DC 12V Electric Hydraulic Pump, 15 Quart Double-Acting Power Unit for Dump Trucks 61365527

Name: DC 12V Electric Hydraulic Pump, 15 Quart Double-Acting Power Unit for Dump Trucks 61365527
Brand: Saleyee
SKU: GT-61365527
Price: 372.32 USD
Availability: OutOfStock

SKU: GT-61365527

Sale
Regular price $372.32

Tax is calculated at next step but shipping is free.

Introduction

This hydraulic pump features a 12V DC motor with 1.6kW power. The double-acting power unit ensures stable lifting operations. You only need to add hydraulic oil, connect the power and tubing. No complex setup required. It's versatile for large machines, shear forks, elevators, forklifts, and more.

With its capacious fuel tank and powerful motor, this hydraulic pump effortlessly lifts heavy machinery, providing quick starts, precise control, and consistent reliability. Say goodbye to stalling and frequent failures.

Our double-acting power device provides a dual-action lifting effect. Hydraulic oil alternates between the two ports, evenly distributing force across your equipment. This design saves energy and ensures accuracy in operation, setting it apart from single-acting power units.

Please note that continuous long-term operation is not recommended. When used in an S3 working system, it operates in cycles: 30s on, 270s off, and 180s max continuous working time. For extended operation, there's an intermittent 360s continuous working time.

Trusted by professional mechanics and construction sites, this 12V hydraulic pump. It's your powerful ally for tasks like cantilever tailplate operation, shear fork lifting platforms, vertical lifting platforms, semi-electric push trucks, dump trailers, and more.

Specifics

Type: Hydraulic Pump (15 Quart)

Voltage: DC 12V

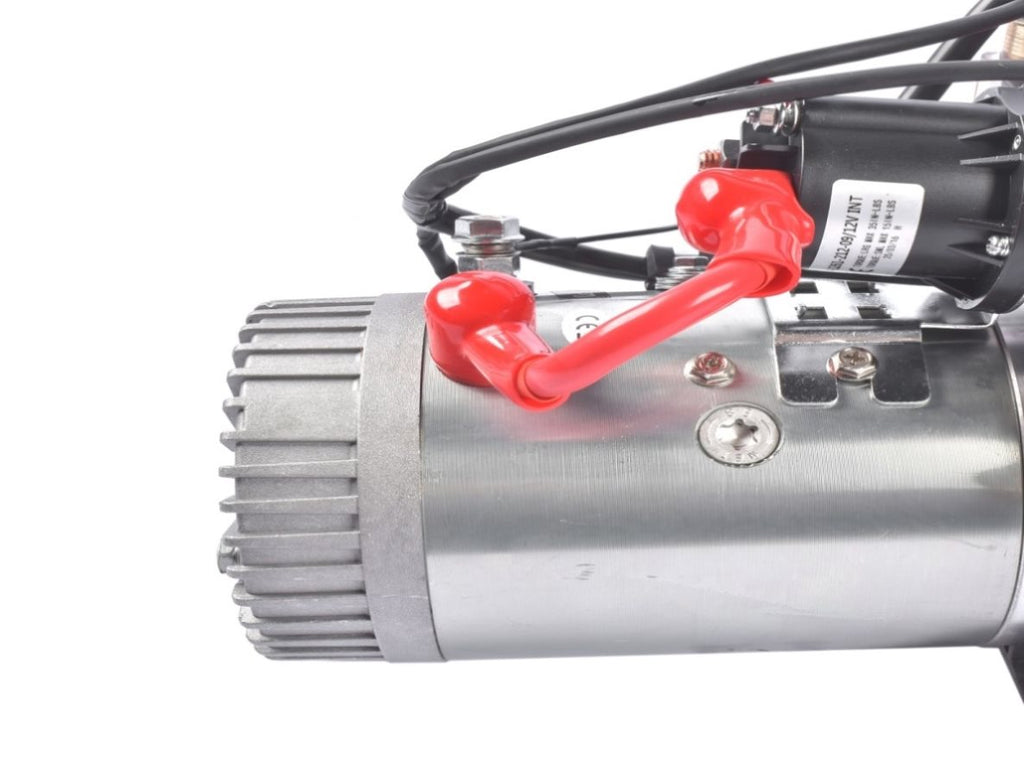

Motor Power: 1.6KW
A1 and A2 Oil Port Pressure: 3200PSI / 22MPa
Acting: Double-acting
Oil Port Model: (9/16")SAE#6 Port
Installation Method: Horizontal Mount
Reservoir Material: Metal

Features

High-Powered Performance

Our hydraulic pump adopts a 12V, 1.6kW DC motor, delivering a high flow rate of up to 0.91GPM. With a 15-quart tank and 16-20Mpa oil pressure, this powerhouse releases a maximum pressure of 3200 psi; the dump trailer pump can effortlessly handle heavy vehicles and machinery, lifting them with ease. Experience the power!

Precision Double-Action Lifting

Designed for accuracy, our hydraulic power unit employs a double-action power mechanism. Ensures hydraulic oil works alternately in both ports, evenly distributing force across your equipment. A built-in safety relief valve automatically releases pressure if the limit is exceeded, ensuring a safer operation with fewer failures.

Hassle-free Setup

The 12V hydraulic pump arrives pre-assembled. Add hydraulic oil and connect the power supply and tubing, and you're ready to start. The hydraulic pump includes SAE#6 converter, making it compatible with metric and American interfaces for your convenience.

Built to Last

Our hydraulic pump is built tough. It boasts robust overall sealing, minimizing the risk of oil leaks. The rust-proof solid metal steel tank ensures durability, even in high-impact situations and daily use. It's engineered to withstand the rigors of installation on heavy equipment.

Versatile Applications

This double-acting hydraulic pump isn't limited to one task. It's a versatile workhorse, suitable for various lifting and stamping applications. From dump trailers and container truck tailplates to hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.

Package Includes

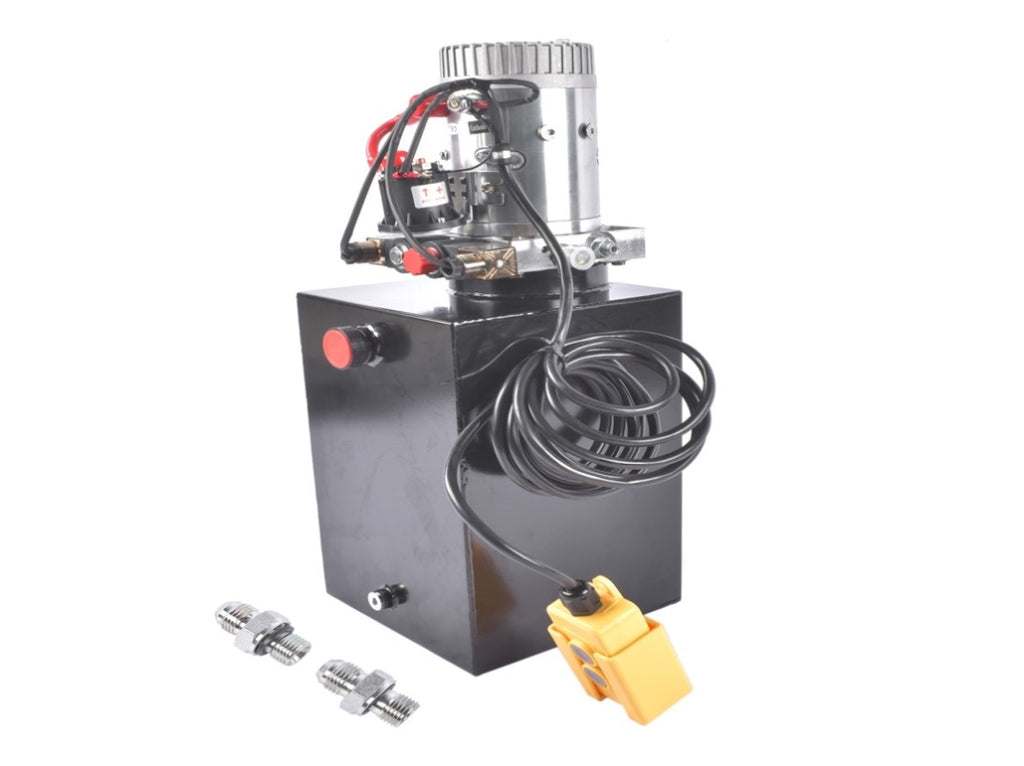

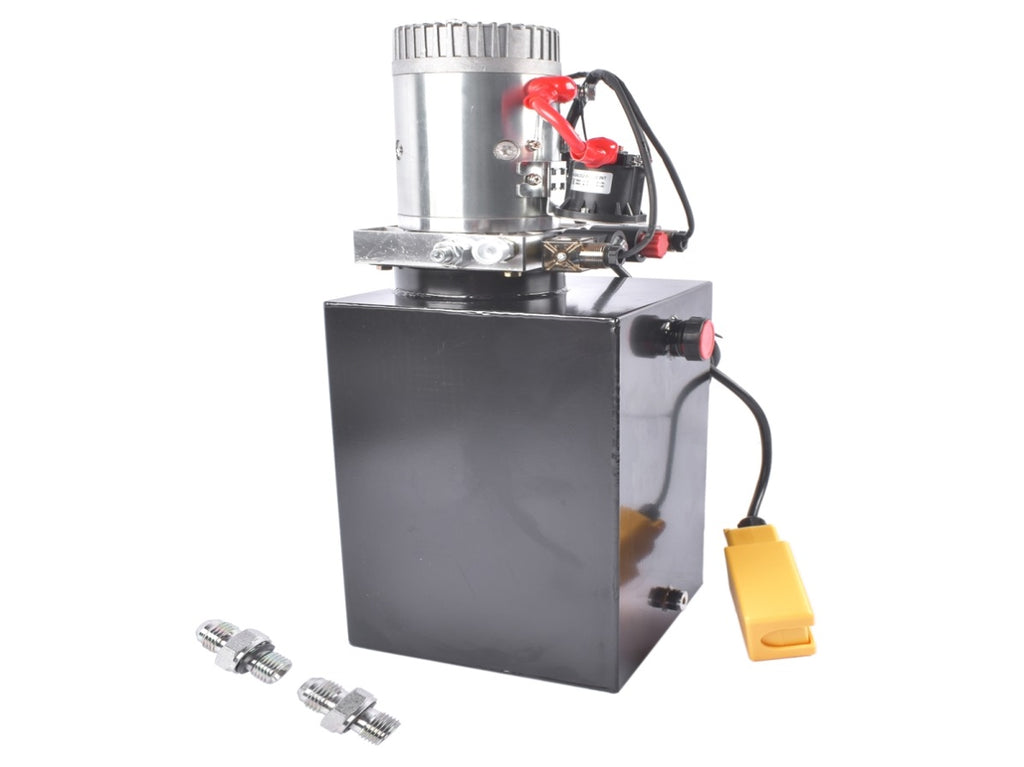

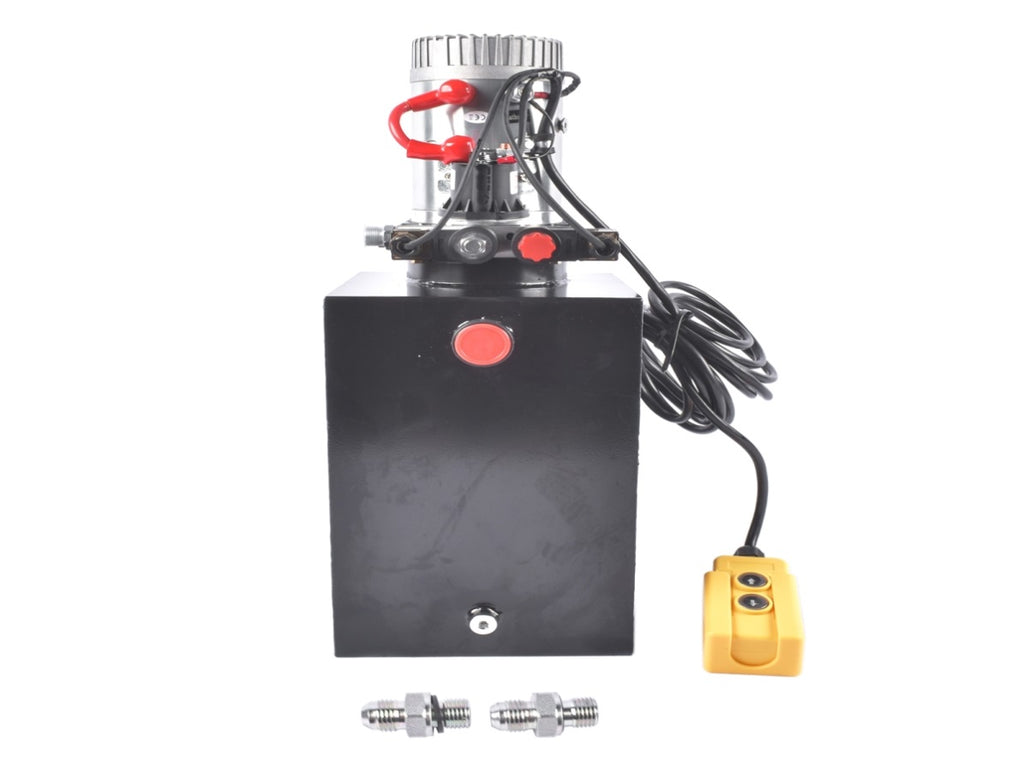

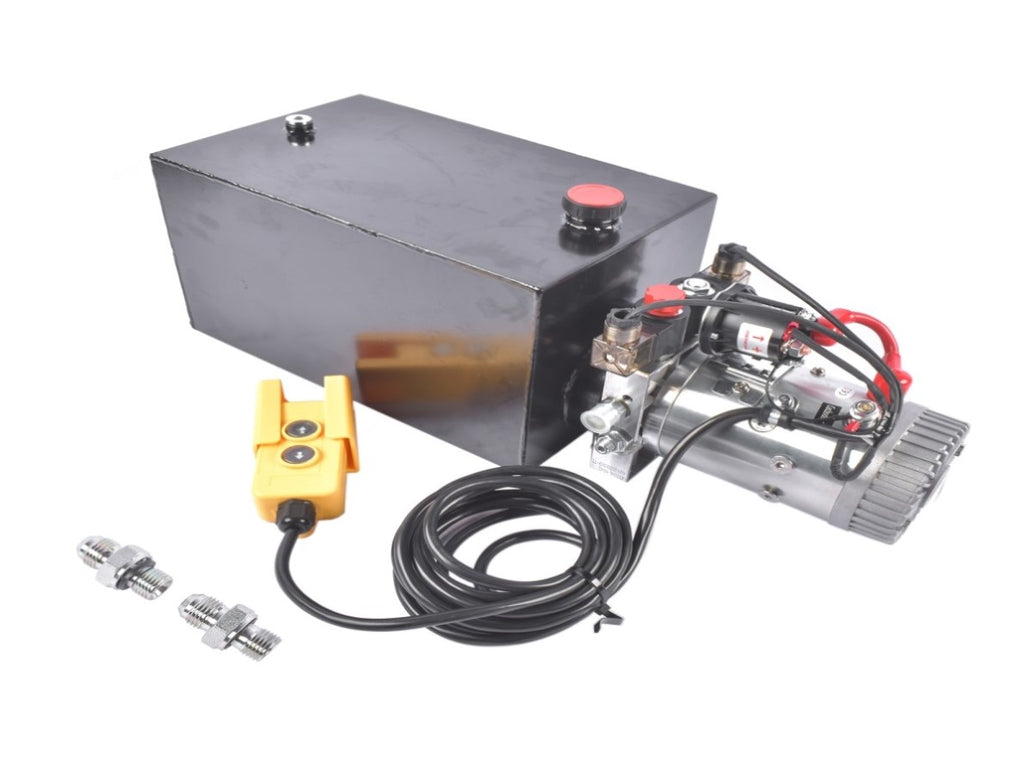

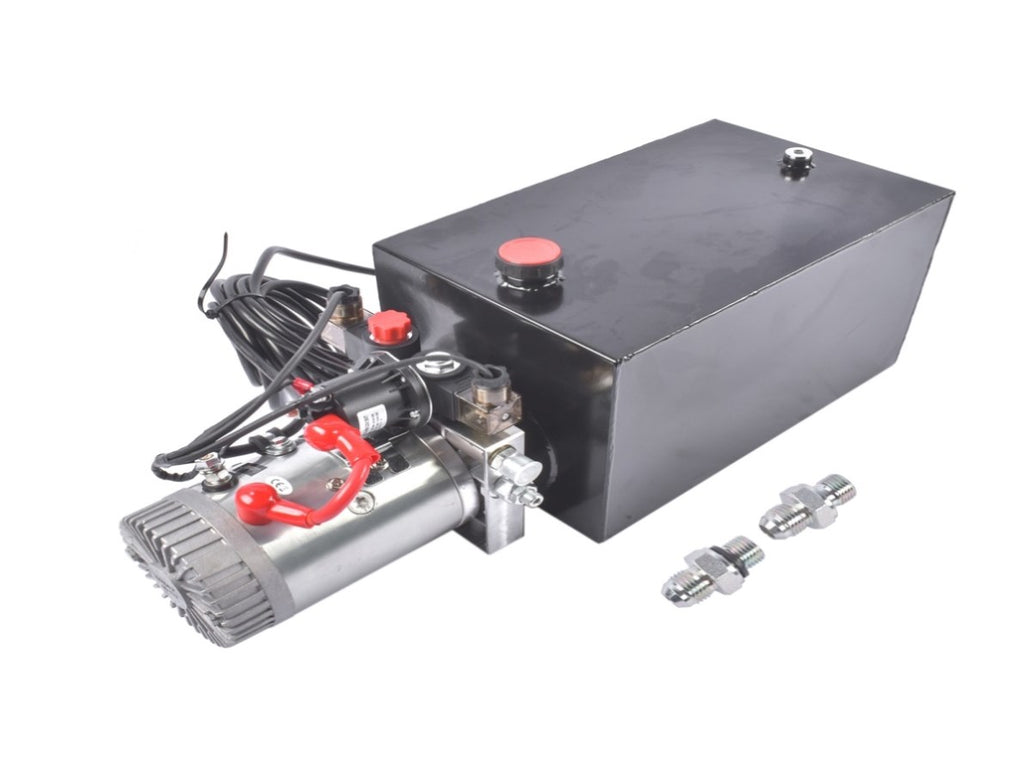

1x 12V Double Acting Hydraulic Pump

1x Dump Trailer Remote Control Switch

2x Additional SAE#6 Connectors

1x English Manual

(As Pics Shown!)
