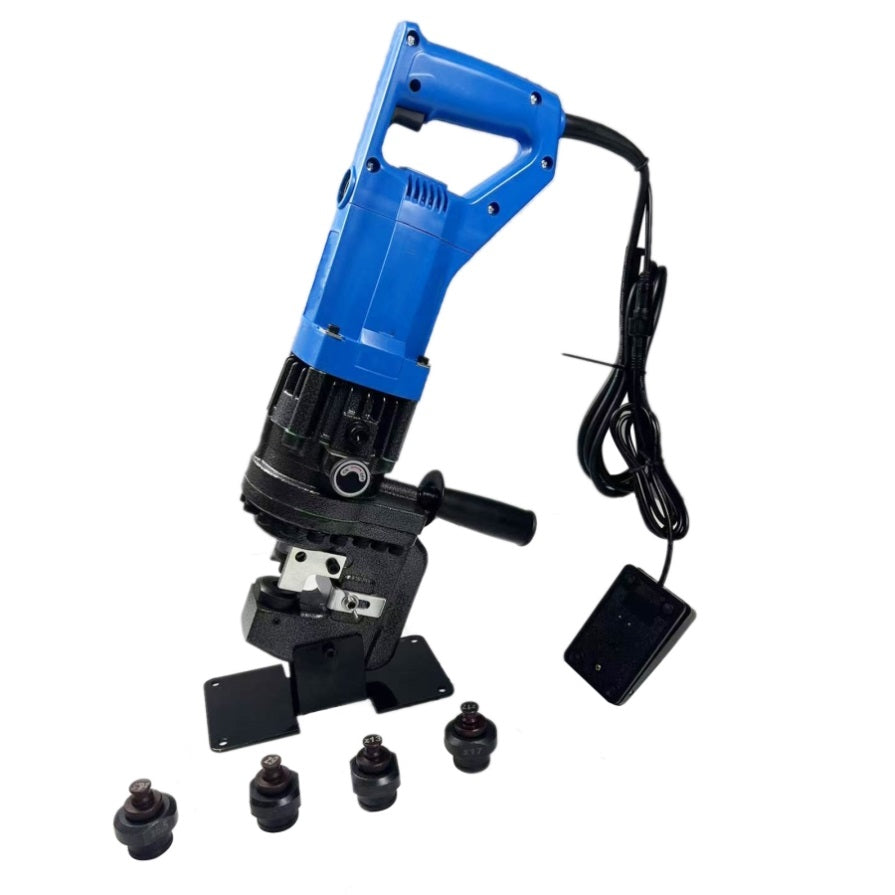

Electric Hydraulic Hole Puncher Knockout Punching Machine Set with 5 Dies 110V 1200W for Punching 37702761
Motor Type: Pure Copper
Voltage: 110V
Wattage: 1200W
Punching speed: 2.0 - 3.0 seconds (quick hole punching speed)
Hole diameter: 6 millimeters - 20 millimeters
Max Throat Depth: 1 to 1.4 inches (35 millimeters maximum)
Suitable Material: ≤8mm/0.31inch Copper Bars and Aluminum Plates, ≤6mm/0.24inch Iron Bars and Steel Plates
Includes Punch/Die 5 Set (φ6.5, φ9, φ13, φ17, φ20.5mm)(Φ1/4”, 3/8”, 1/2”, 11/16”, 4/5”)
【1200W High Power】
The hydraulic metal hole puncher comes with a 1200W strong power, which provides high power for punching, and you can efficiently complete the work.
【Five Applicable Dies】
Auto return mechanism returns the punching rod to start. There are five different dies, φ6.5, φ9, φ13, φ17, φ20.5mm. They are portable and easy to use, improving punching efficiency.
【Portable】

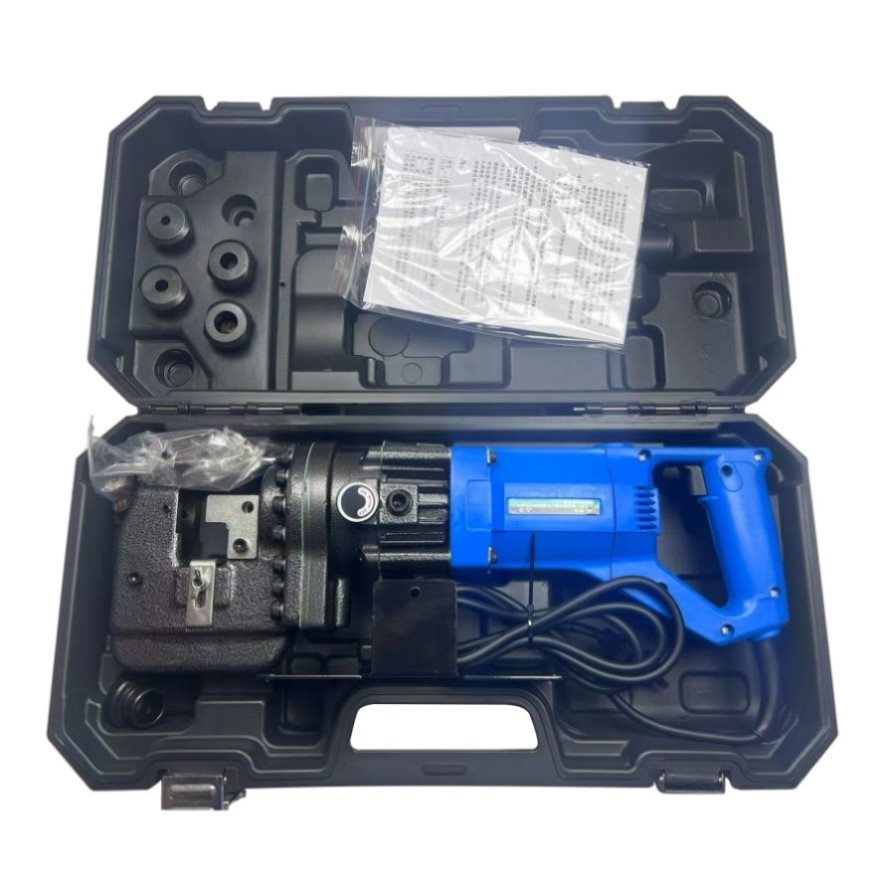

The electric punch is packed in a box, and the internal parts are arranged neatly, shockproof and drop-proof.
【Various Uses】
The hydraulic puncher is suitable for punching on steel plate, copper plate, iron plate, aluminum plate.
【Convenient】

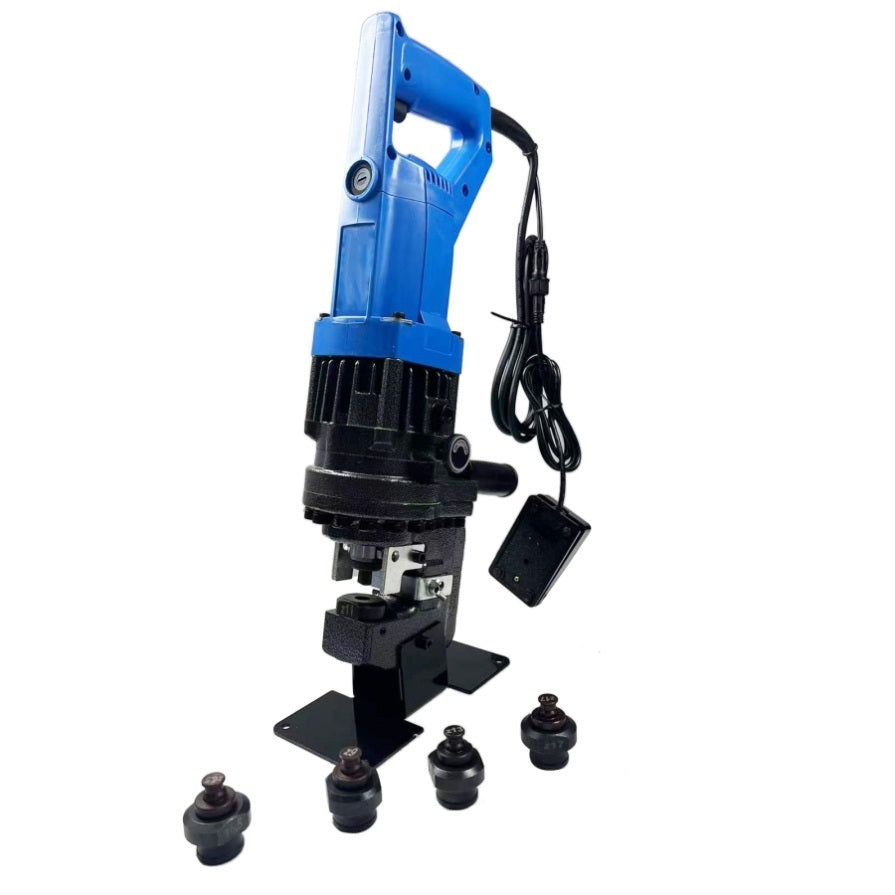

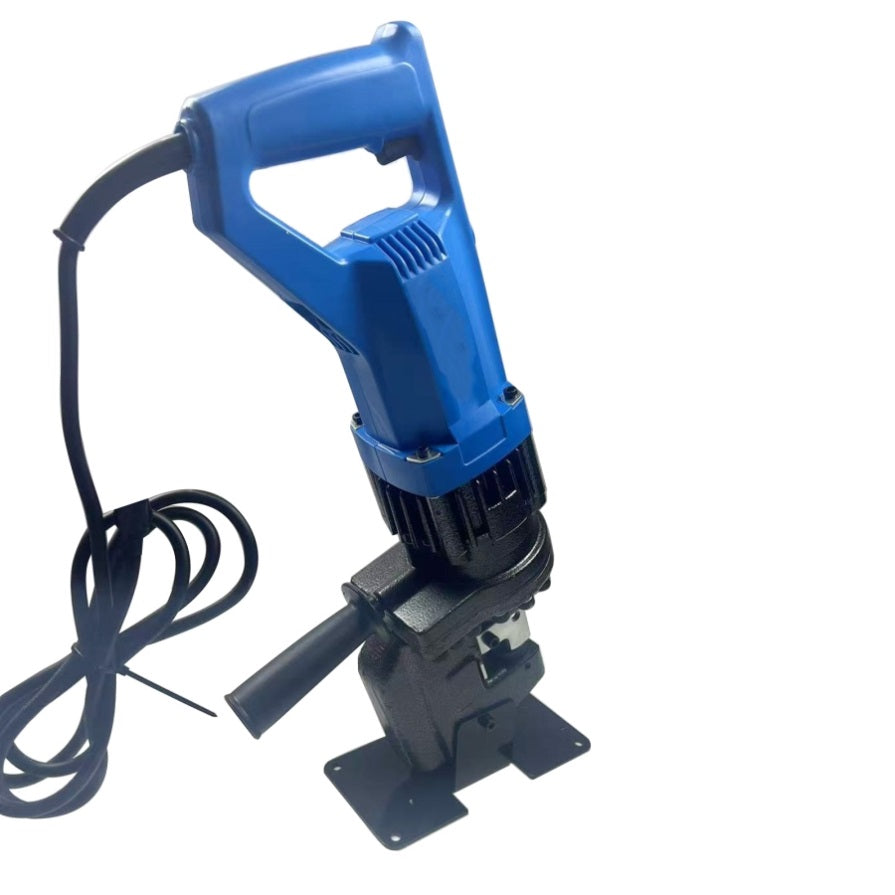

This hole punch is equipped with an auxiliary handle, it can be operated by hand, which is convenient for working at different angles. It can also be installed on the base to work on the platform.

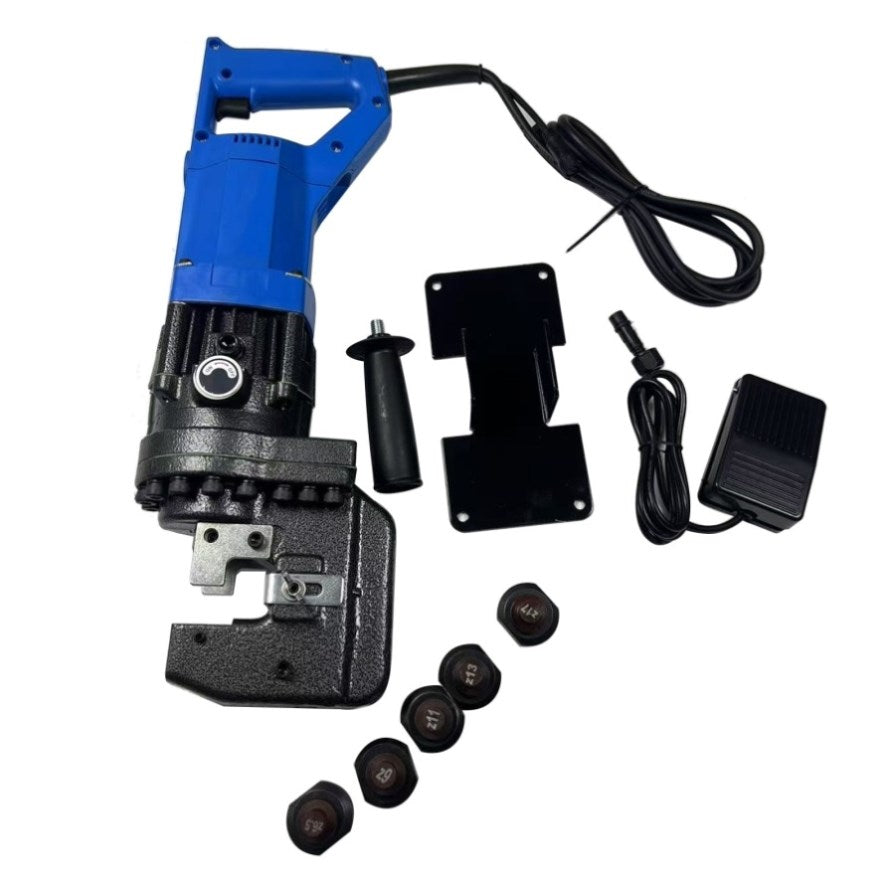

Included:
1* Electric Hydraulic Hole Puncher
Other Accessories for Installation
As Pics Shown
