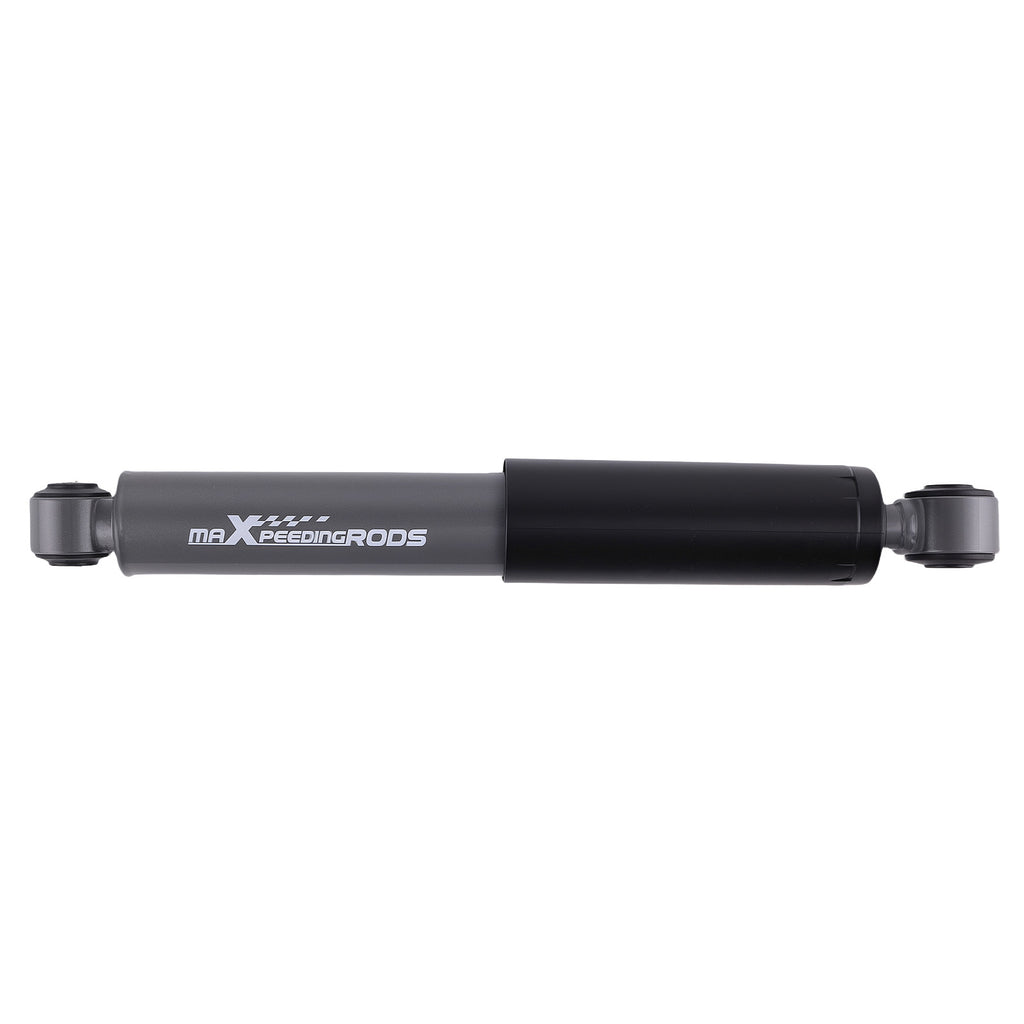

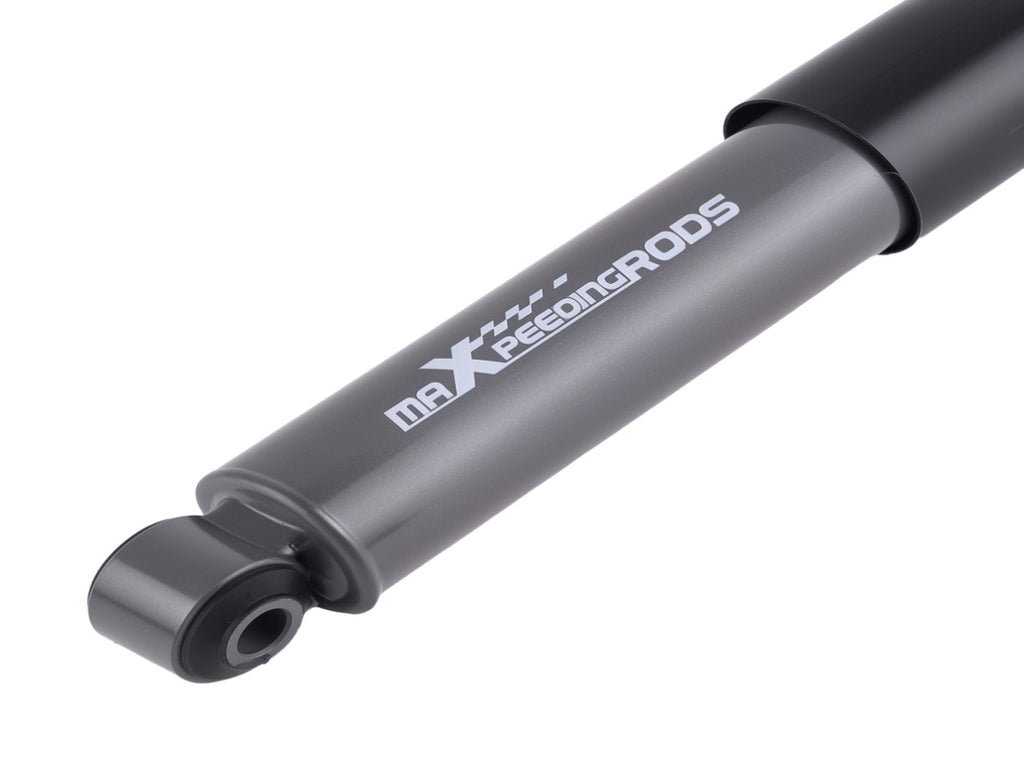

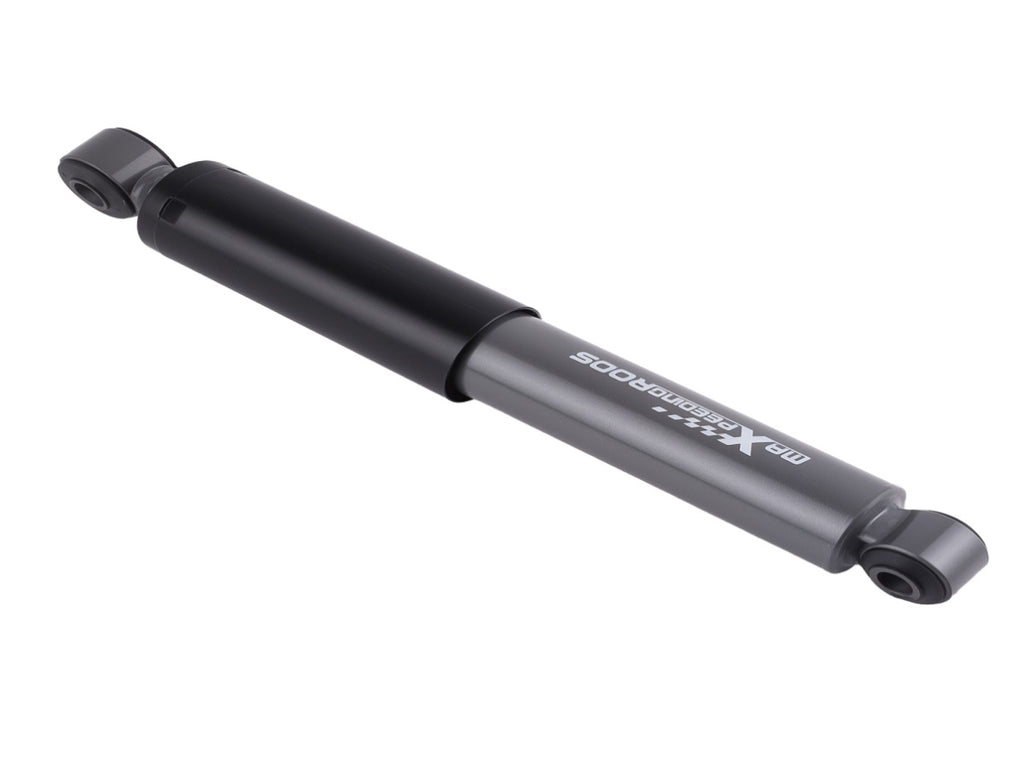

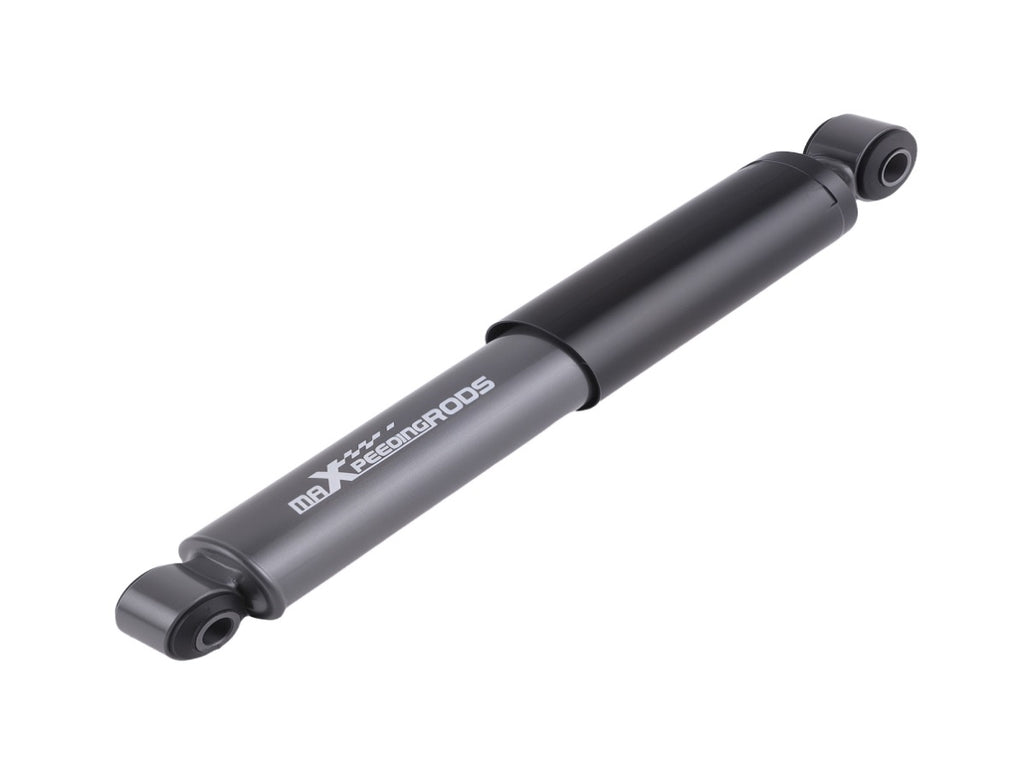

Front Lowering Shocks 2"-5" Drop Fit for Chevrolet C10 1963-1987 Fit for GMC C15 1963-1987 2WD 01840260

Application:

Fit for Chevrolet C10 1963-1987

Fit for GMC C15 1963-1987

2WD only

note: These do NOT fit the R10 model

Specification:

part type: lowering shock

drop height applicable: 2"-5"

location: front

Material: High Tensile Strength Steel

Finish: Powder coated

Bushing material:Rubber

Diameter of piston rod:12.5mm/ 0.49inch

Piston diameter:30mm/ 1.18inch

Outer cylinder diameter: 45mm/ 1.77inch

Extended length:378mm/ 14.88inch

Collapsed length:263mm/ 10.35inch

Travel range: 115mm/ 4.52inch

Nitrogen charged:Yes

Dust cover equipped:Yes

Feature:

*High-pressure nitrogen charged twin-tube shock absorber with high durability.

*Rubber bushings for better absorption.

*Powder coated surface：provides superior corrosion resistance.

*12.5mm Chromed Hardened Piston Rod.

*30mm Diameter Sintered Iron Piston.

*45mm Shock Body helps Heat dissipation.

*Precision Welding.

*Easy bolt-on installation

*High Tensile Strength Carbon Steel for optimal durability and fitment.

*Dust cover helps protect product.

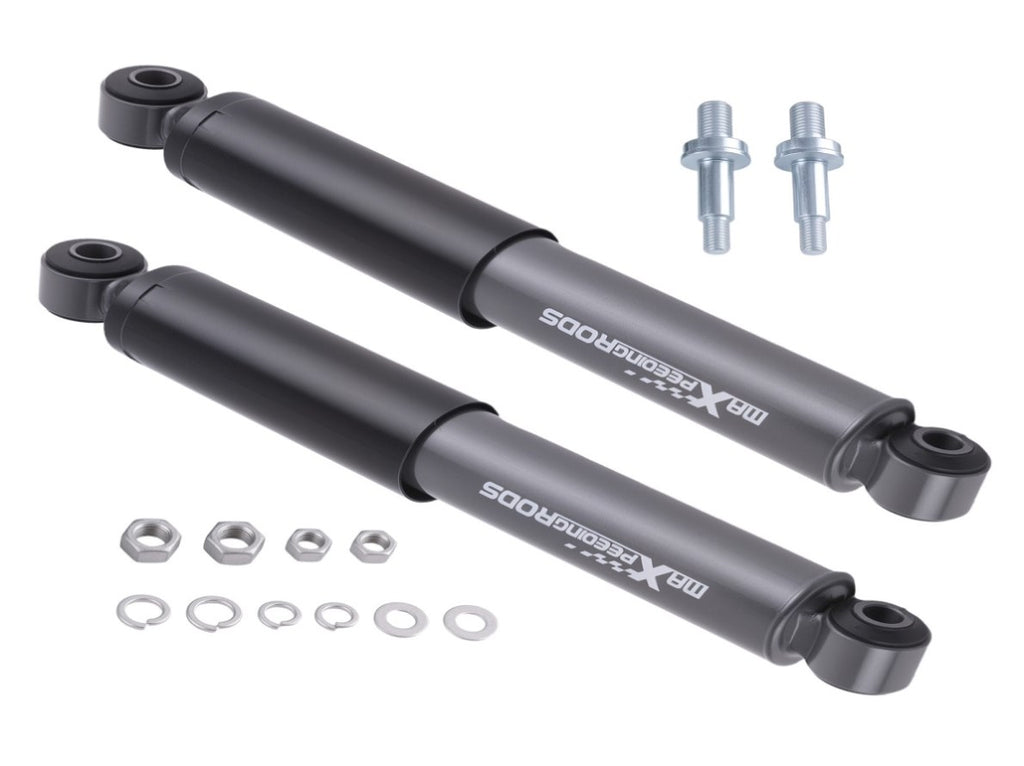

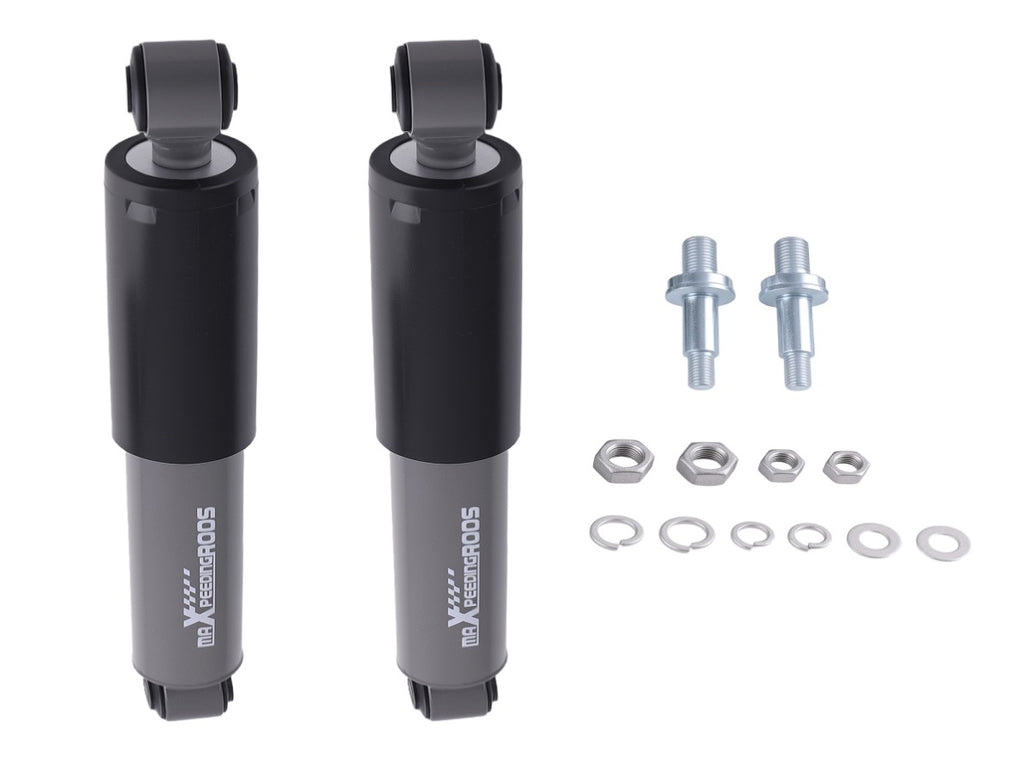

Package Includes:

2x front shocks

package dimensions: 52*18*13 cm

weight: 4.25 kg

Notice：California Prop 65 Warning

Code: MXR02FXSY
