Front & Rear Coilover Suspension Parts Fit For Honda civic VII DX/EX/GX/HX/LX/Si Coupe 58424841

Introducation:

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.

Application:

Fit For Honda civic VII DX/EX/GX/HX/LX/Si Coupe (EM2) 2001-2005

Fit For Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005

NOTE： not fit for Hybrid

Features

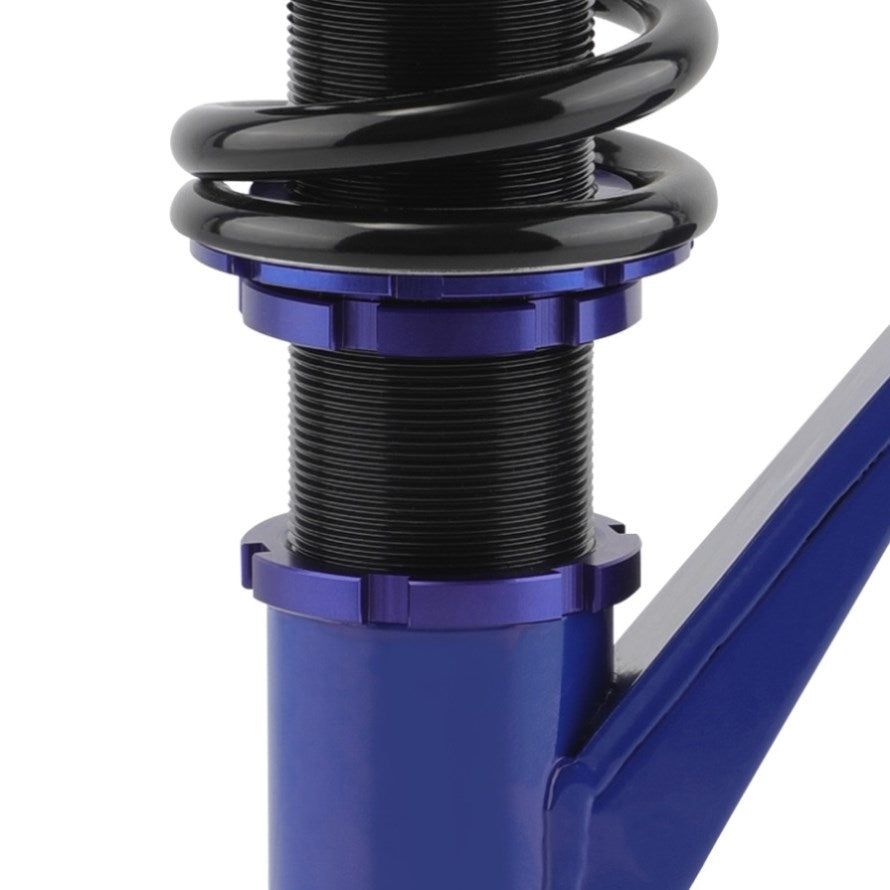

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

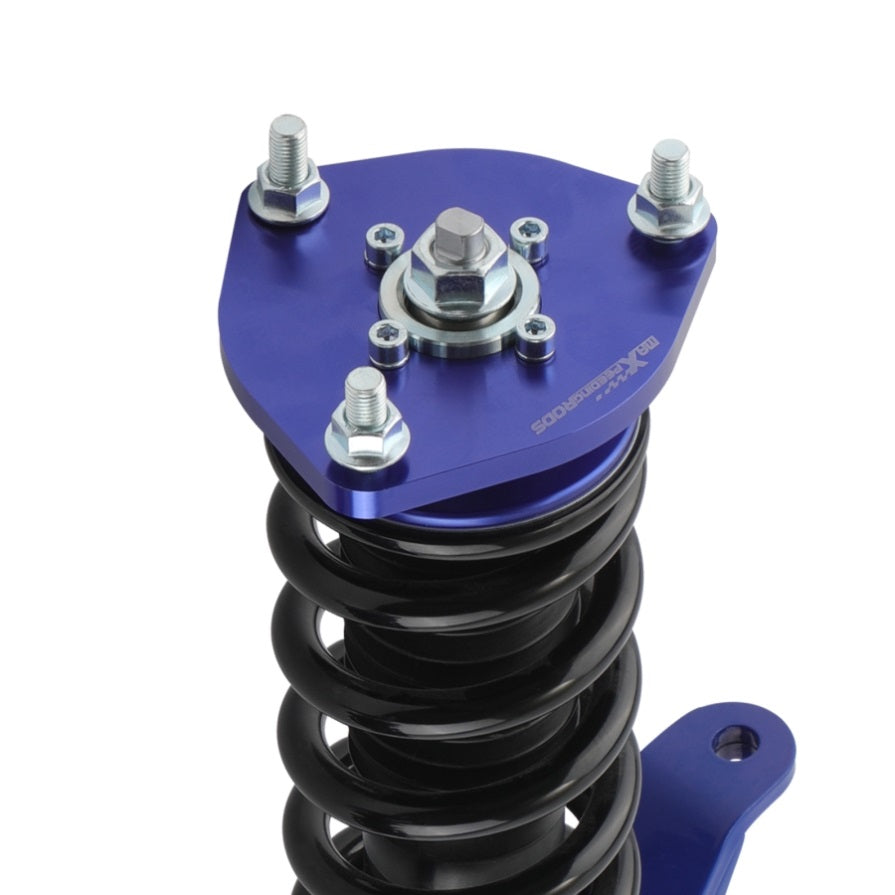

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Specifications:

Front top mount: Pillow ball with camber plate

Rear top mount: Standard rubber

Damping adjustable: Not available

Camber adjustable: Available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 62 mm

Spring length Front: 200 mm

Spring length Rear: 140 mm

Spring Preload advised: 7-10 mm

Color: Blue body with black spring

Package included:

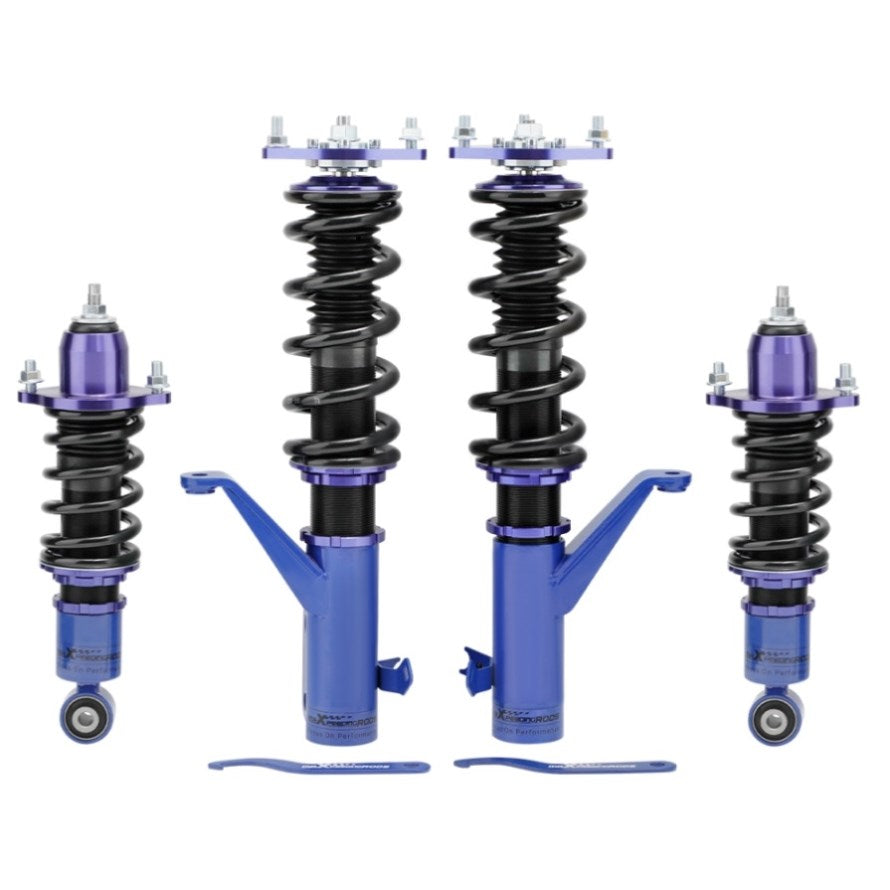

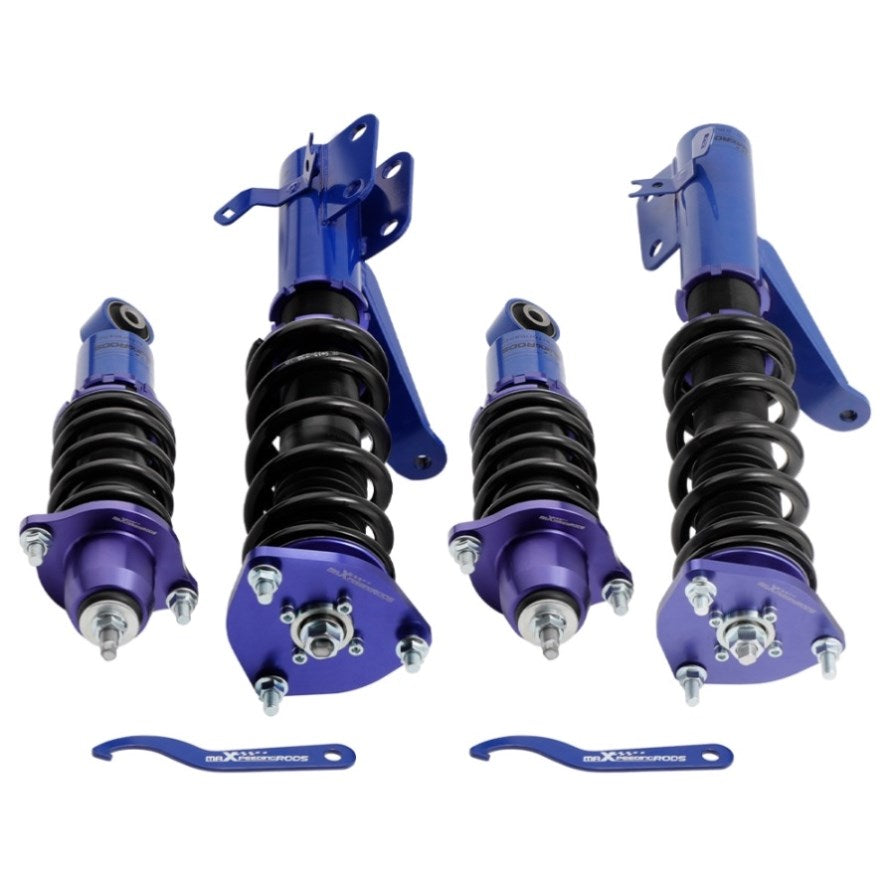

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Dimension:

Package Size: 64*50*20 cm

Weight: 23950 g

1.Authority ID:MXR02FXSY

2.Notice: California Prop 65 Warning
