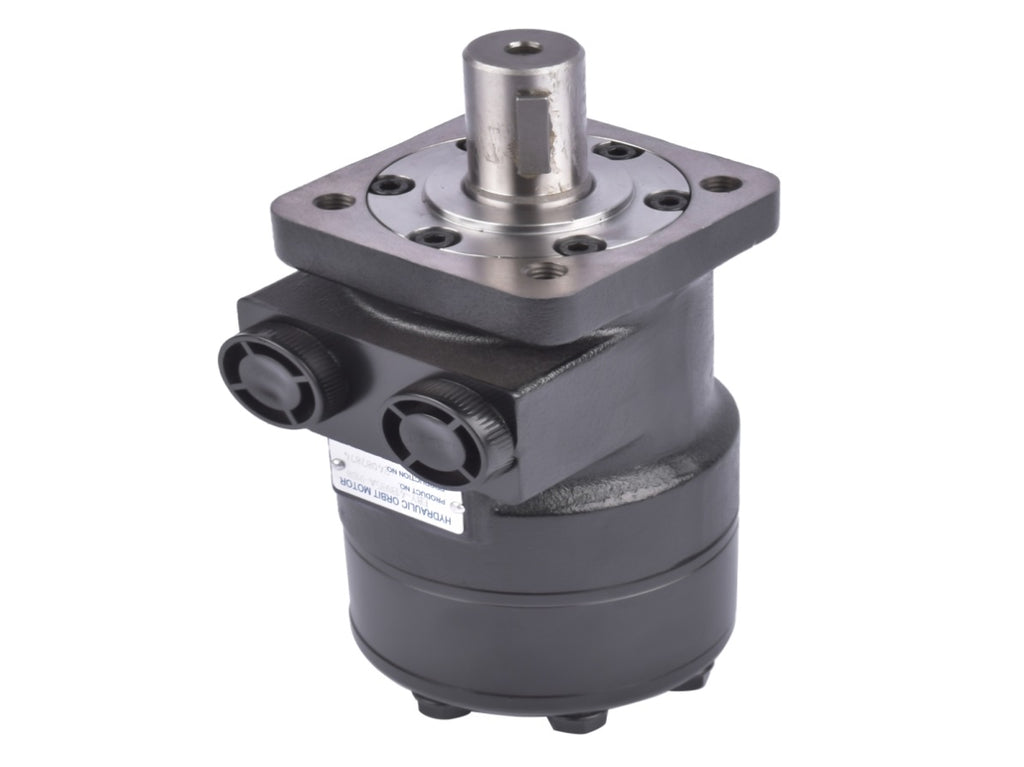

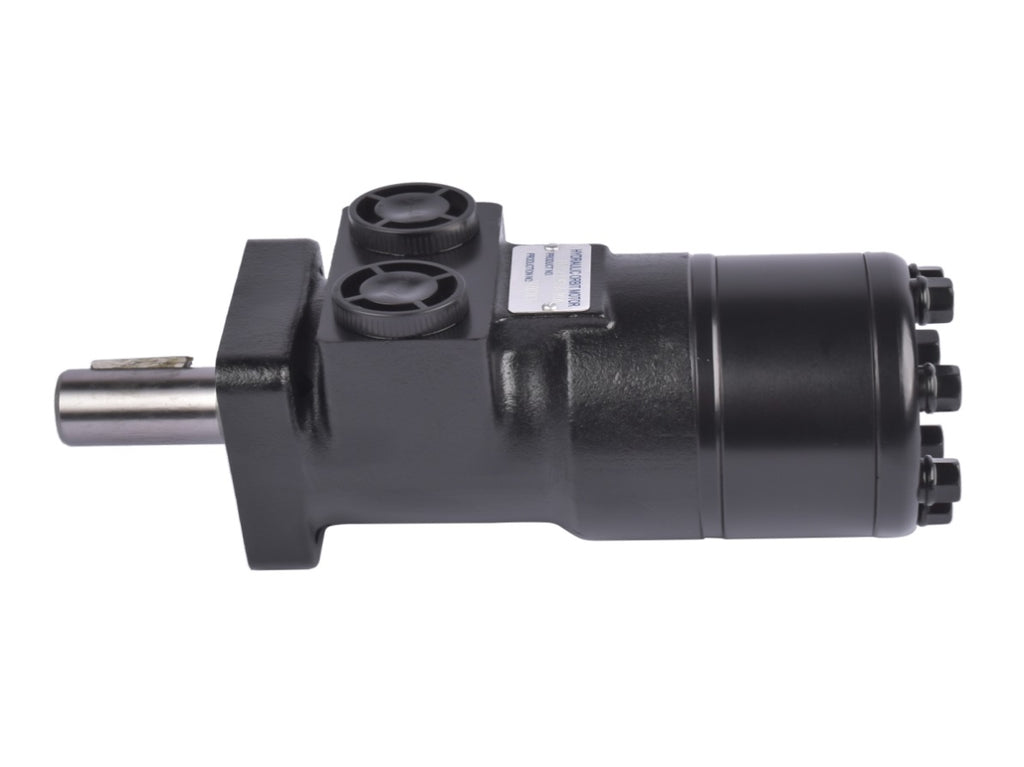

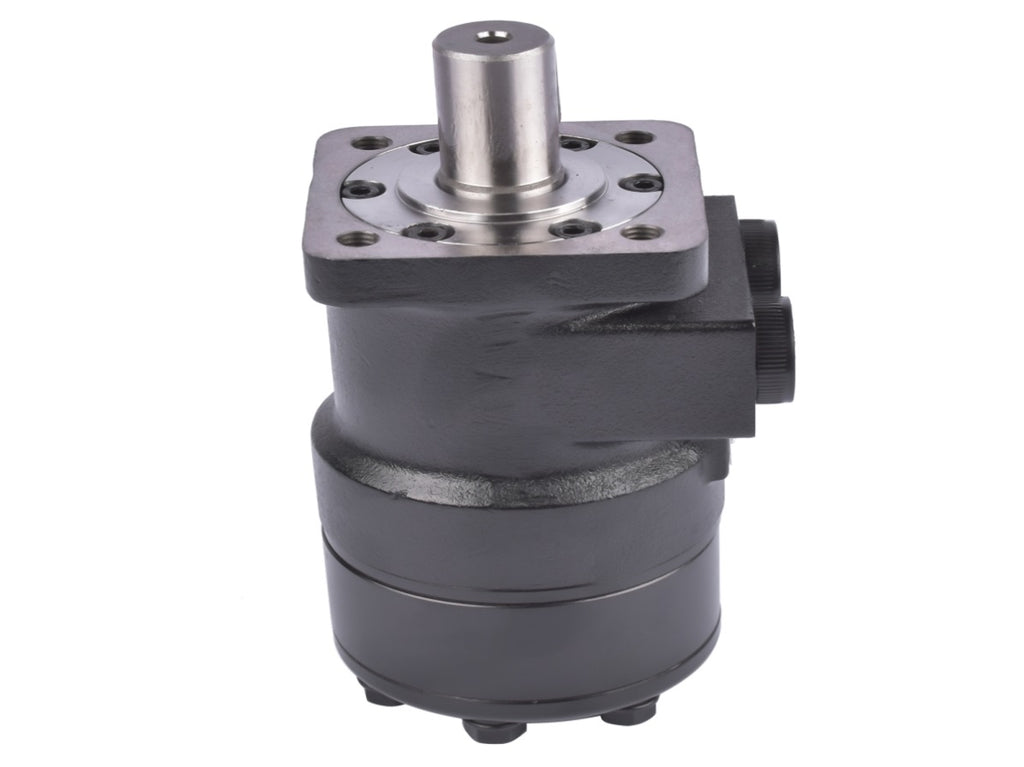

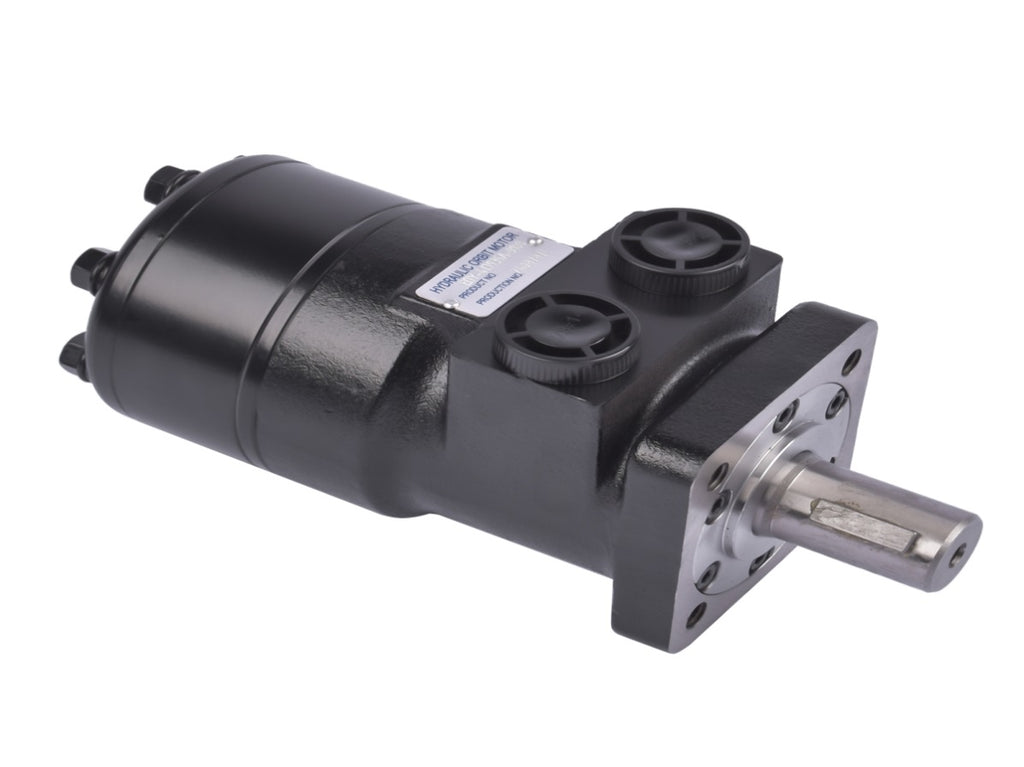

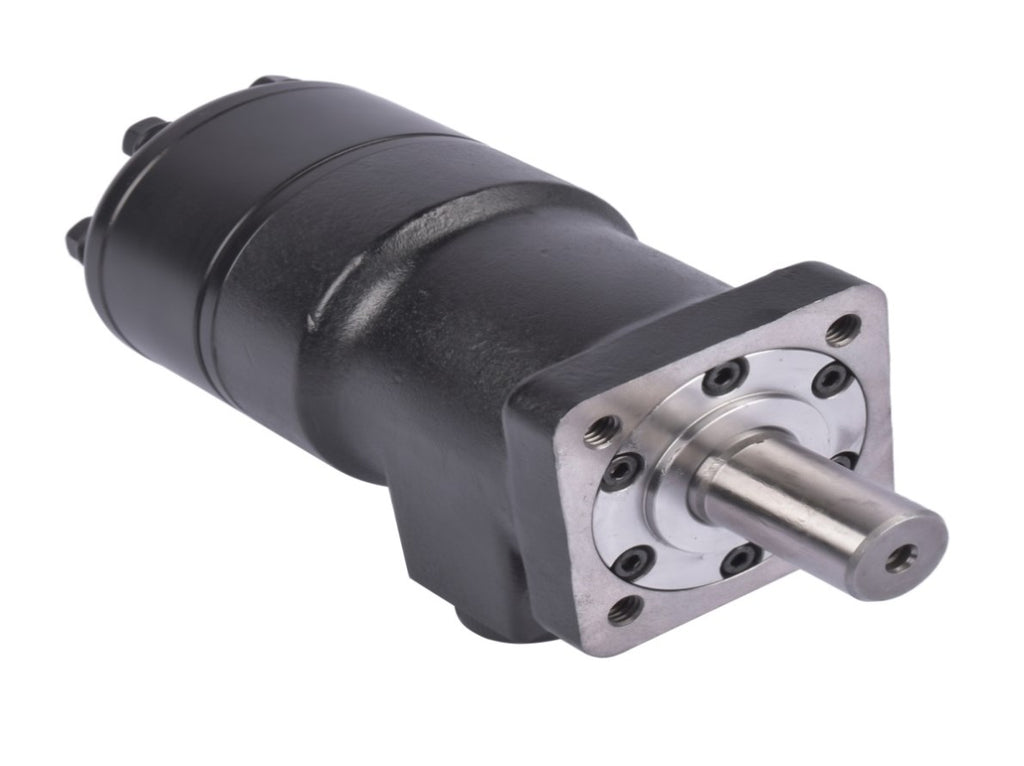

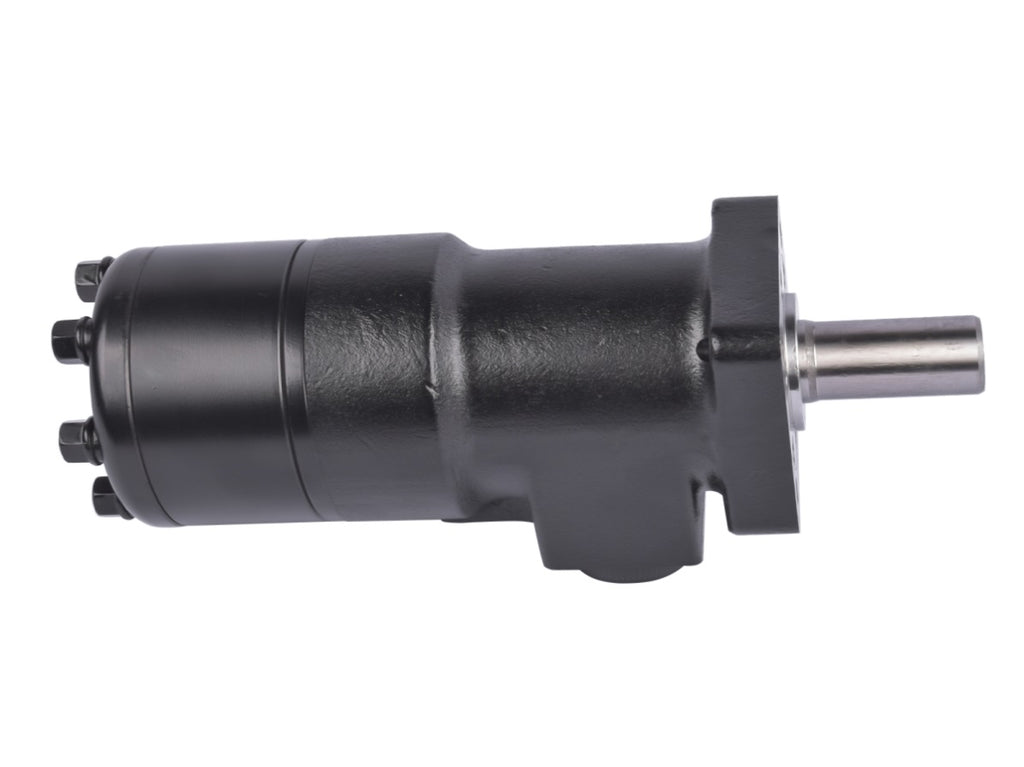

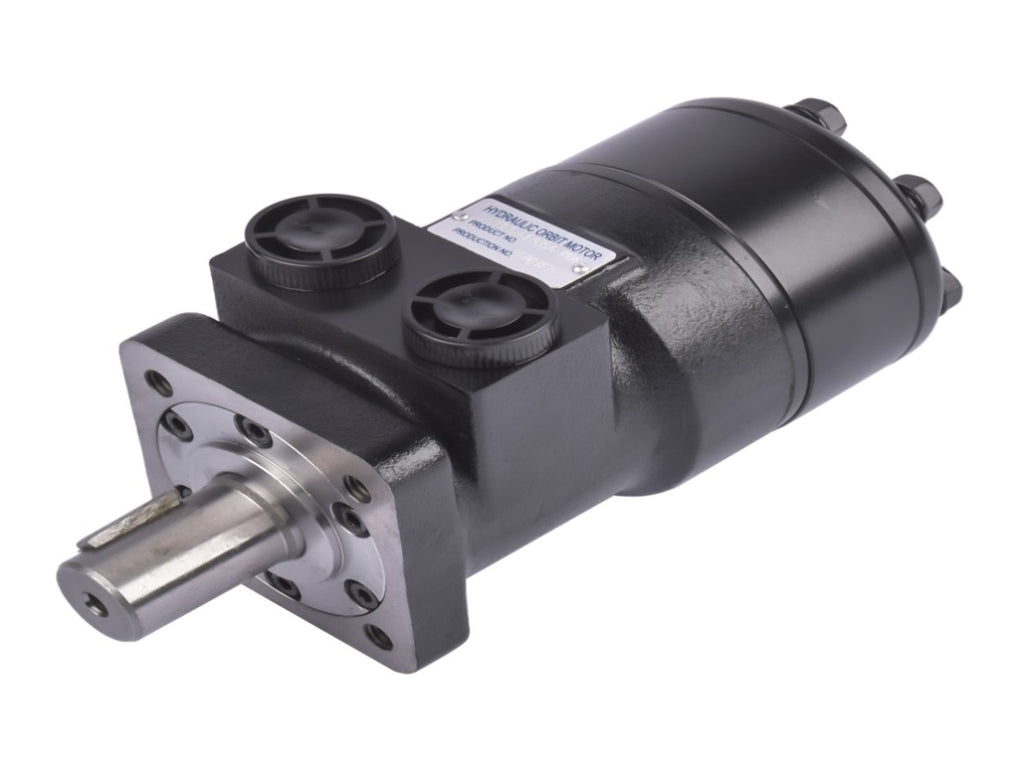

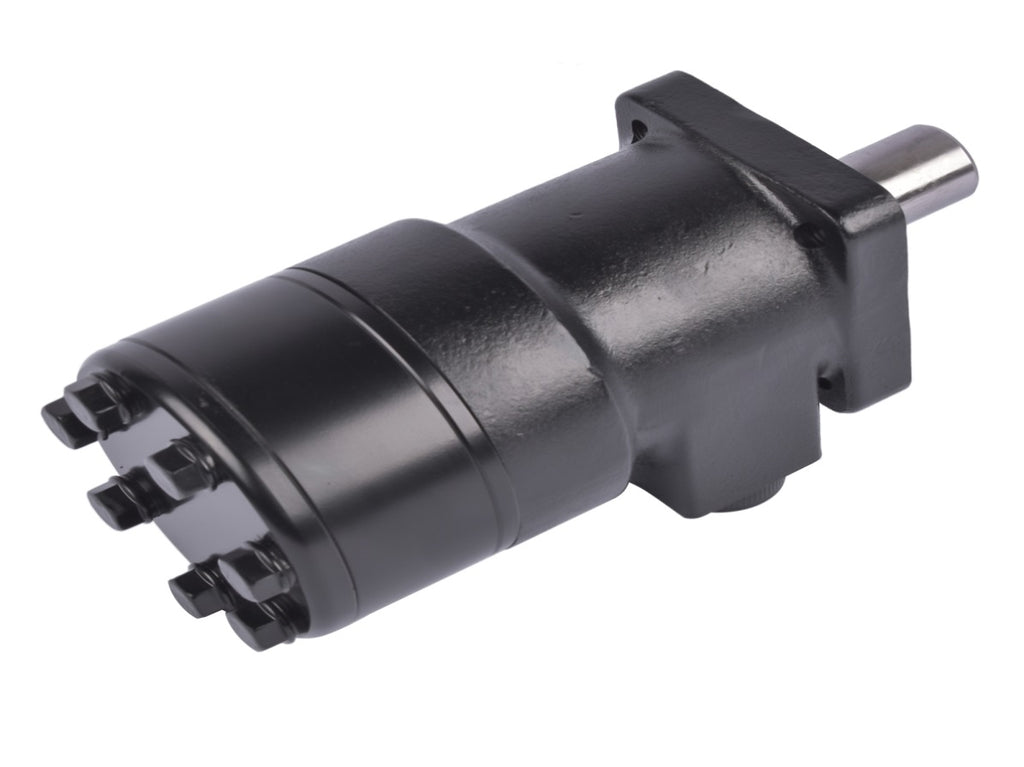

Hydraulic Motor 101-1013 101-1013-009 Fits For Eaton Char-Lynn H Series 57080188
Replacement Part Number:
101-1013-009, 1011013009, 101-1013, 1011013
Applications:
Fits For Eaton Char-Lynn H Series
Specifications:
Displacement: 113 185 Cm3/r [11.3 In3/r]
Mounting Type: Ba 4 Bolt Std - 44.40 [1.748] Dia. x 3.05 [.120] Pilot, .375-16 Unc-2b Mounting Holes On 82.55 [3.250] Dia. b.c.(No Pilot With Extreme Duty Seal)
Output Shaft: 01 25.4 [1.00] Dia. Straight, Woodruff Key, .250-20 Unc-2b Hole In Shaft End
Port Type: Aa .875-14 Unf-2b Sae o-Ring Ports
Mounting Type: Ba 4 Bolt Std - 44.40 [1.748] Dia. x 3.05 [.120] Pilot, .375-16 Unc-2b Mounting Holes On 82.55 [3.250] Dia. b.c.(No Pilot With Extreme Duty Seal)
Output Shaft: 01 25.4 [1.00] Dia. Straight, Woodruff Key, .250-20 Unc-2b Hole In Shaft End
Port Type: Aa .875-14 Unf-2b Sae o-Ring Ports
