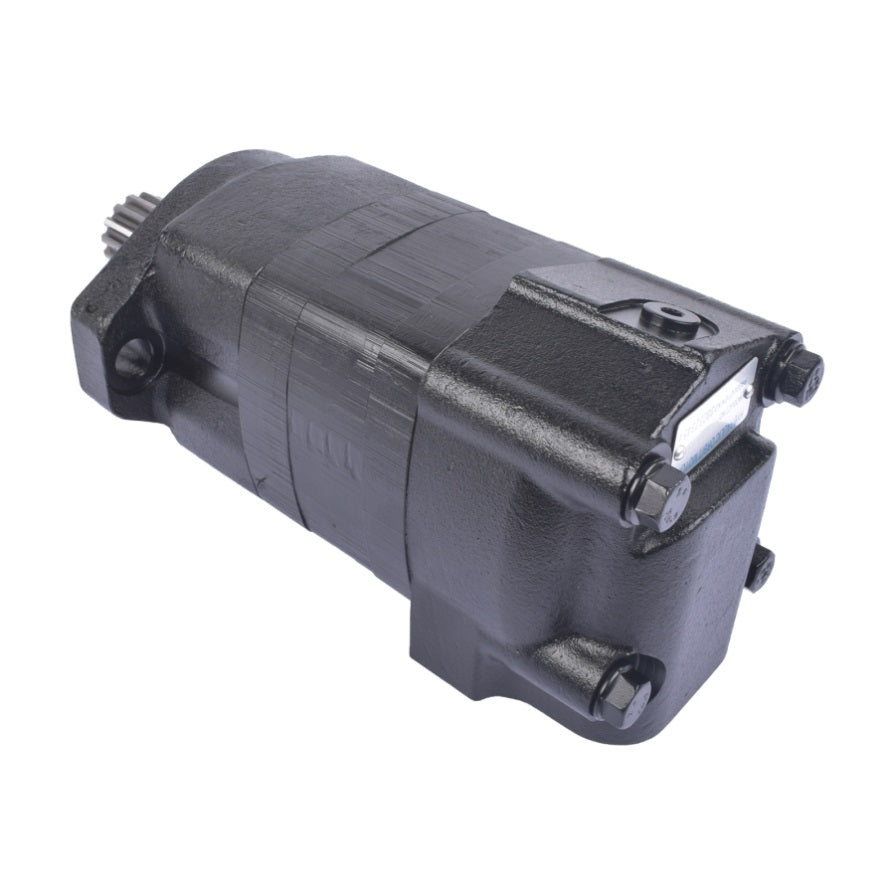

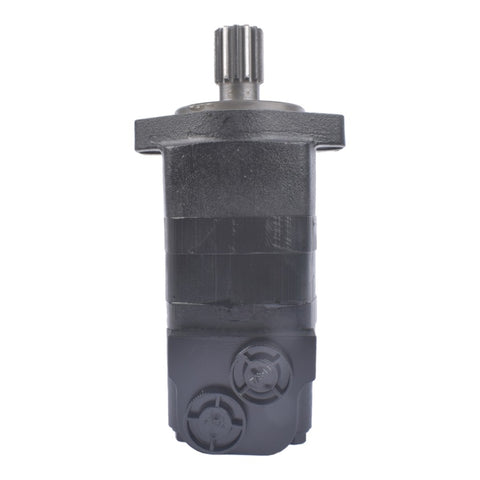

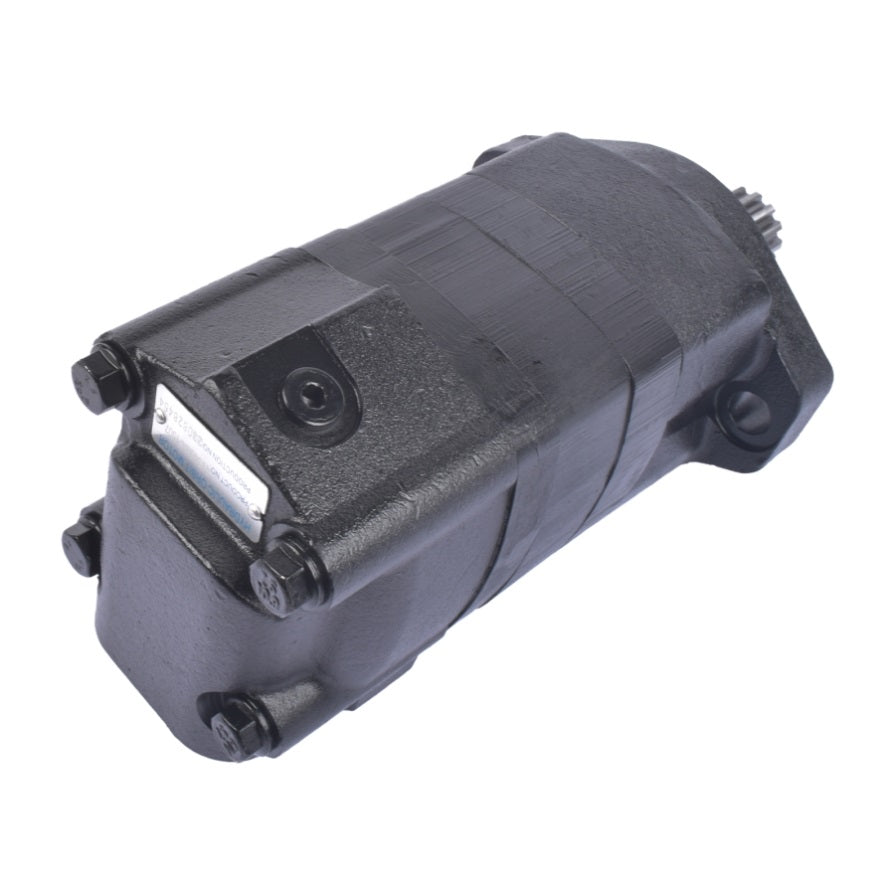

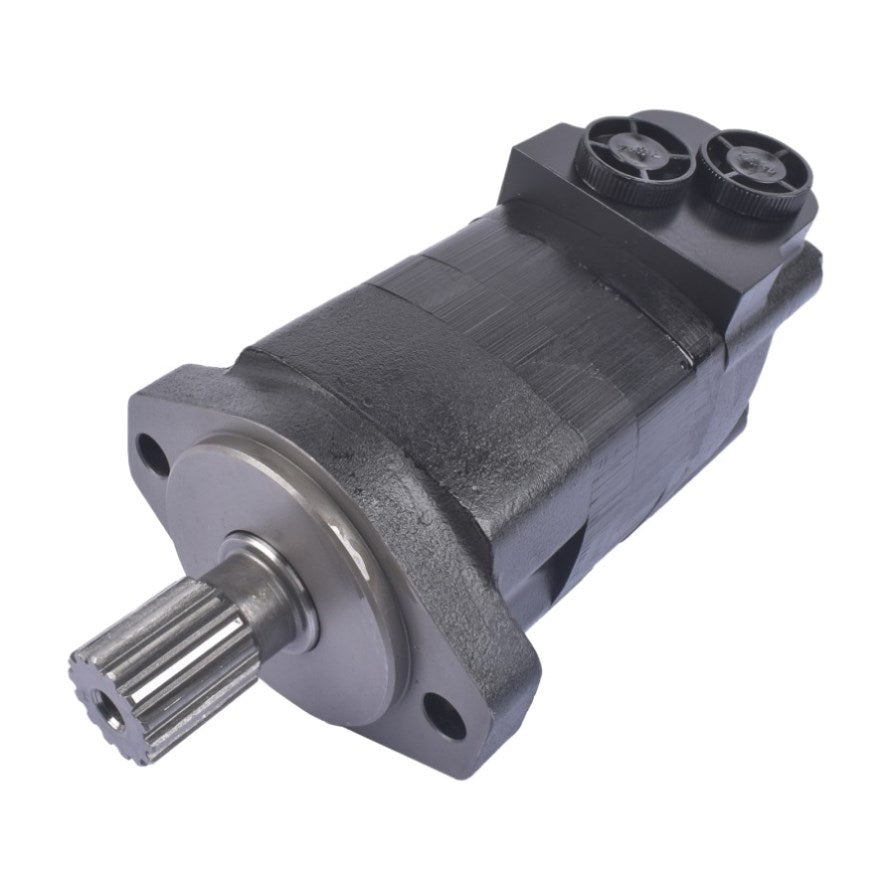

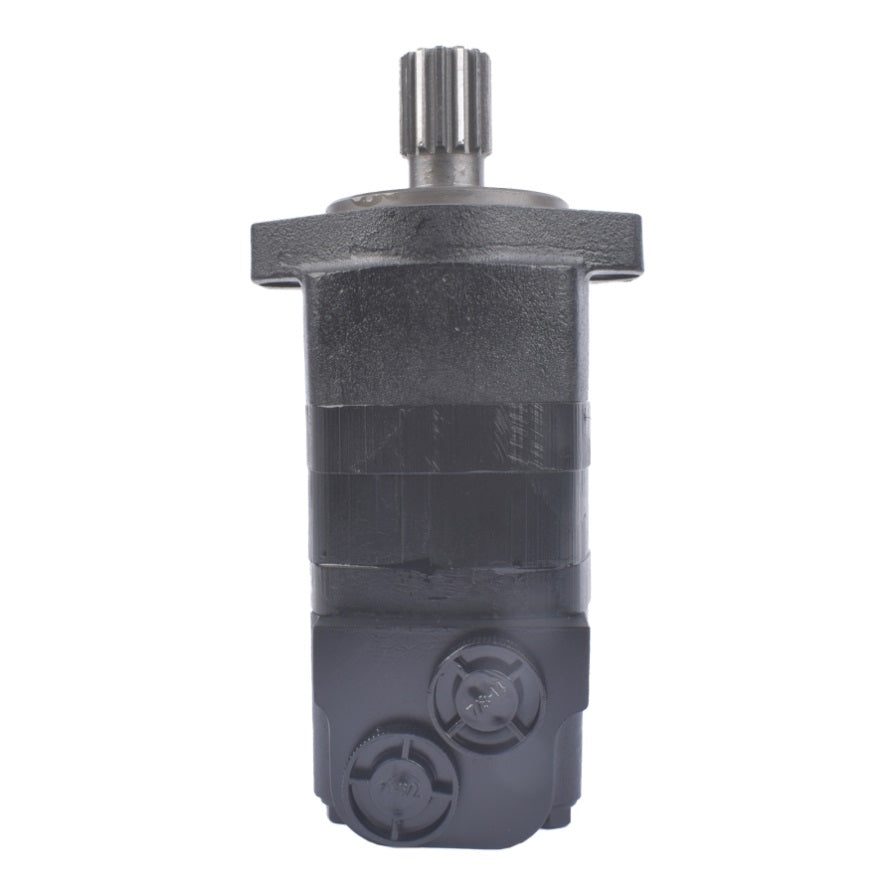

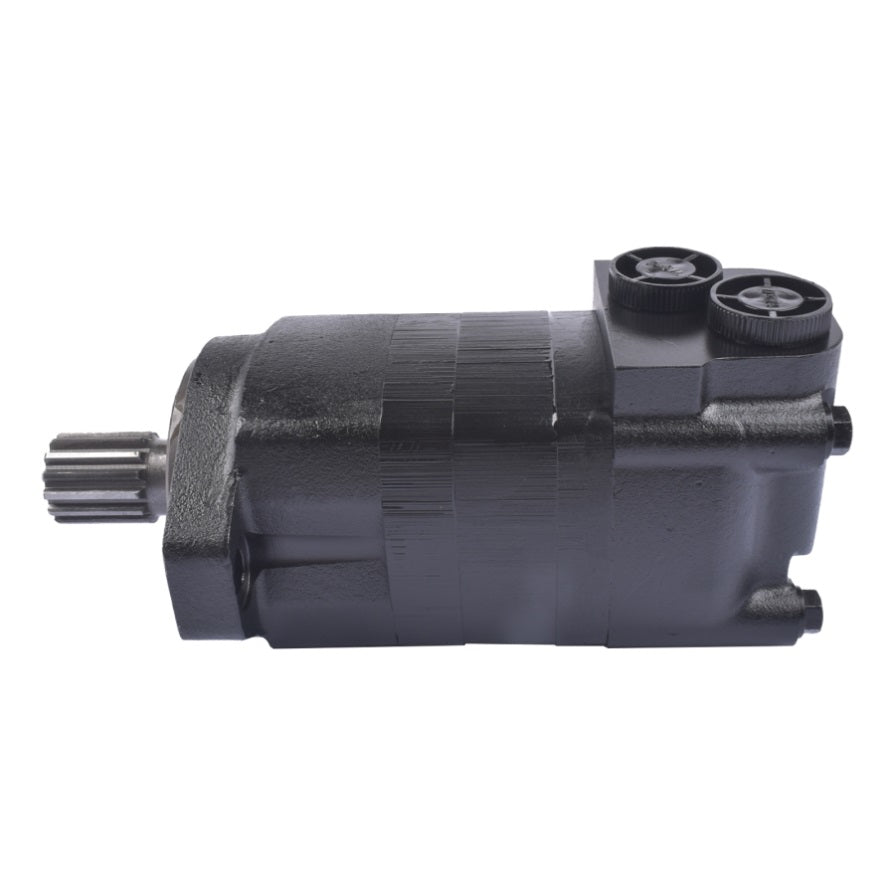

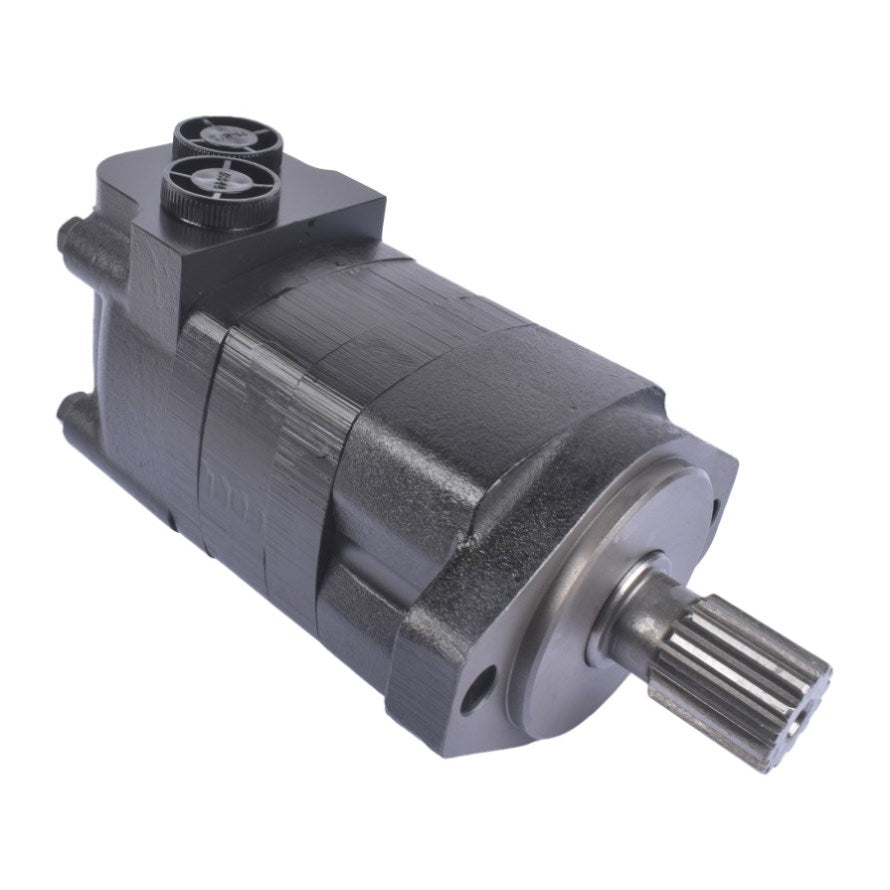

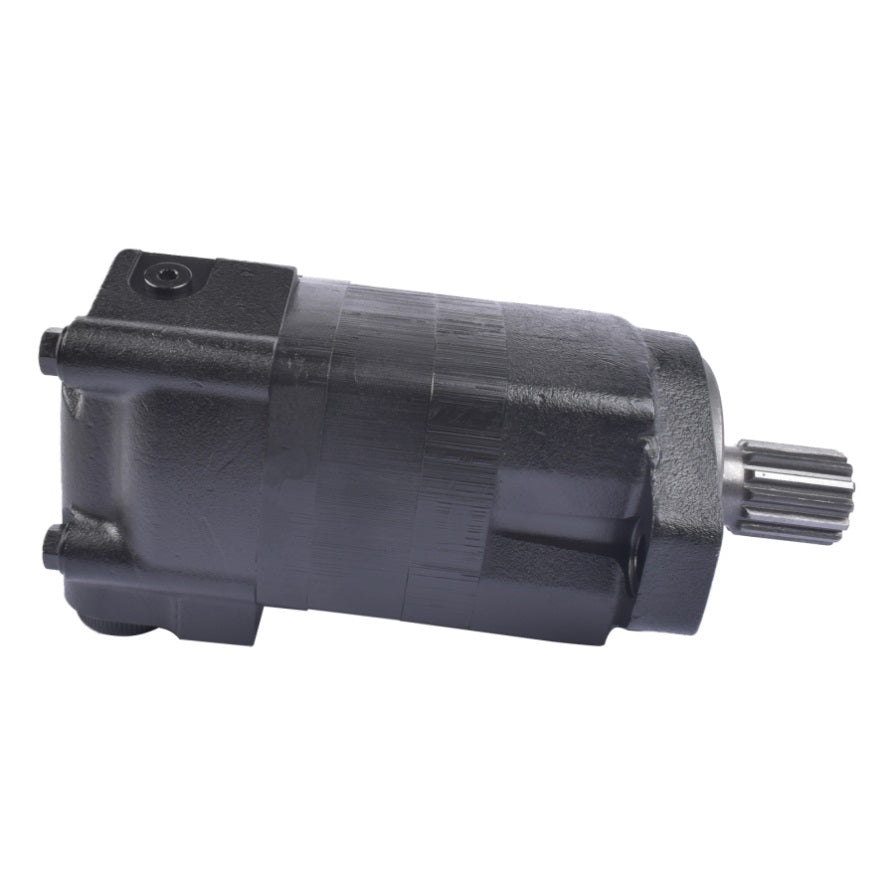

Hydraulic Motor 104-1032-006 For Eaton Char-Lynn 2000 Series .875 O-RING PORTS 45550853

OEM Part Number

104-1032-006, 1041032006, 104-1032, 1041032

Fit For the Following Models

Fit for Eaton Char-Lynn: 2000 Series

Specifications:
Displacement: 158.1 CM3/R [ 9.65 IN3/R]
Mounting Type: STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A
Output Shaft: 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH
Ports: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
Color: Black

Note: To ensure you order the correct part, please check if the number of your previous part is exactly the same as the number(s) stated in the listing.

Package Includes

1 x Hydraulic Motor
