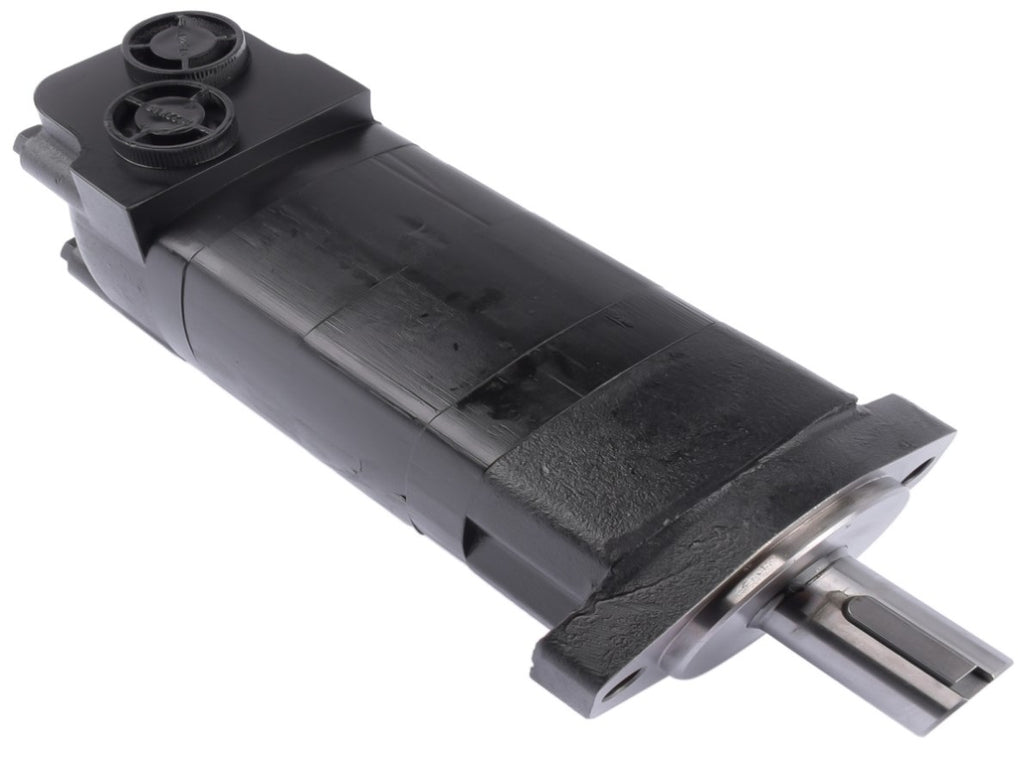

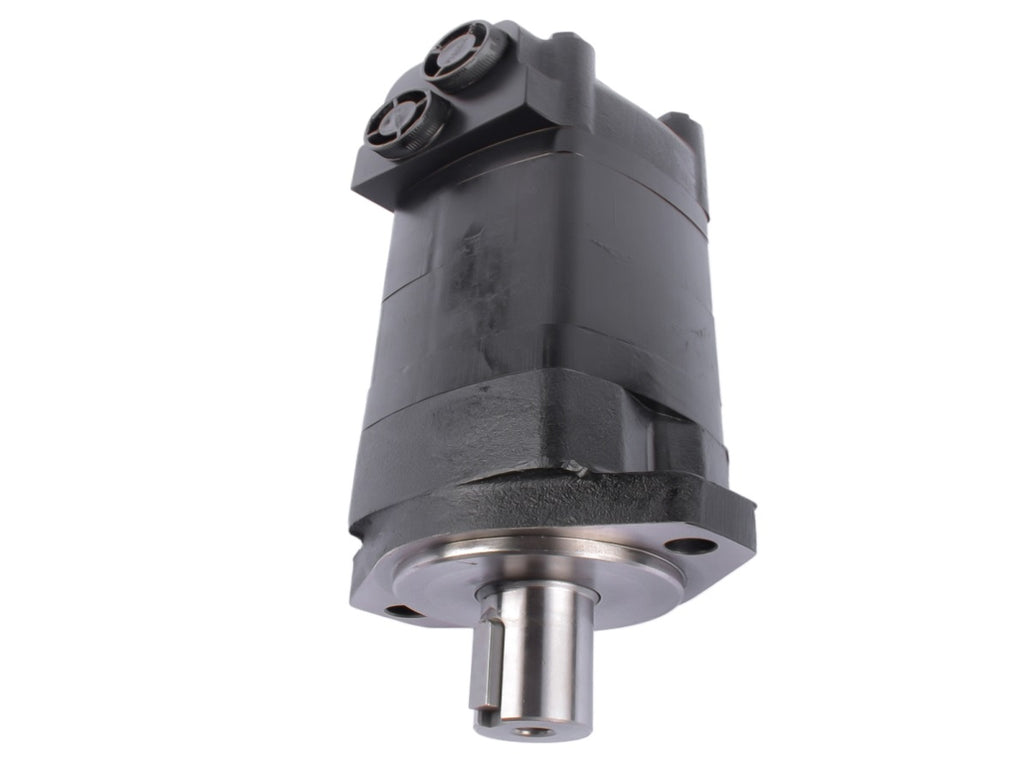

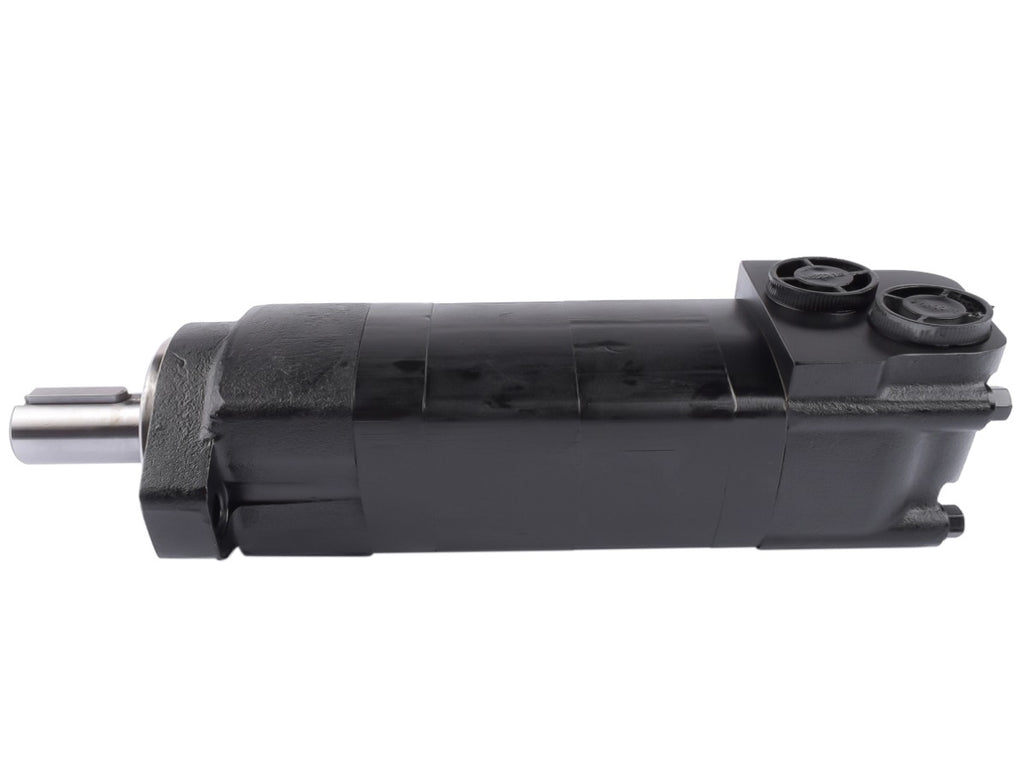

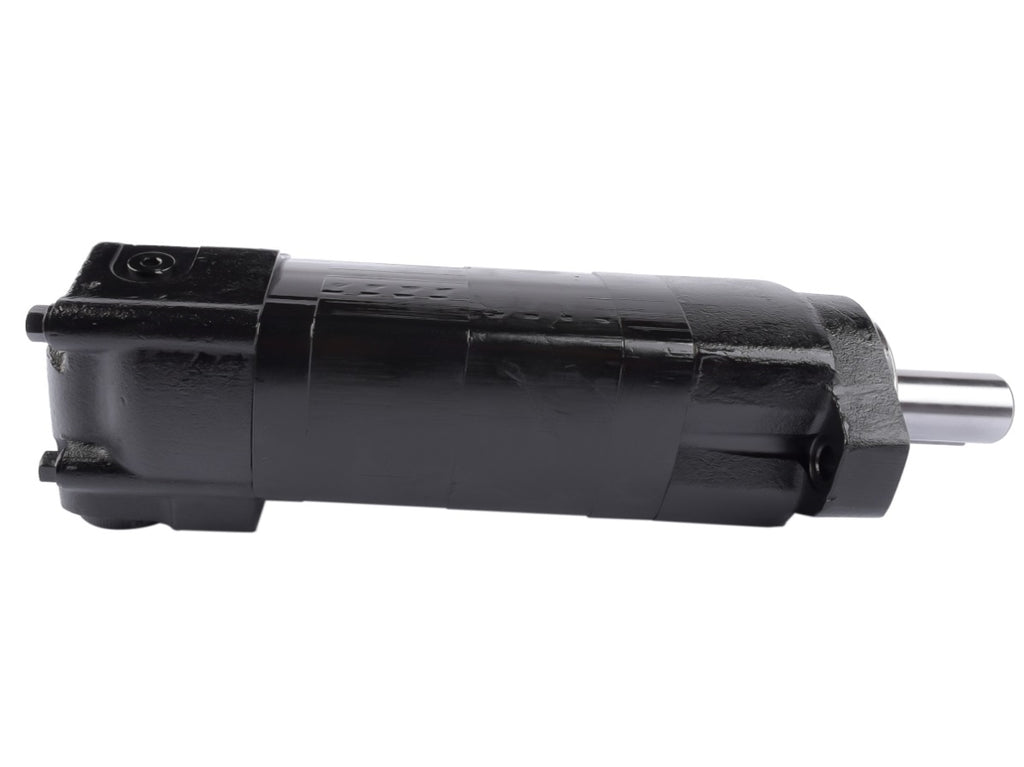

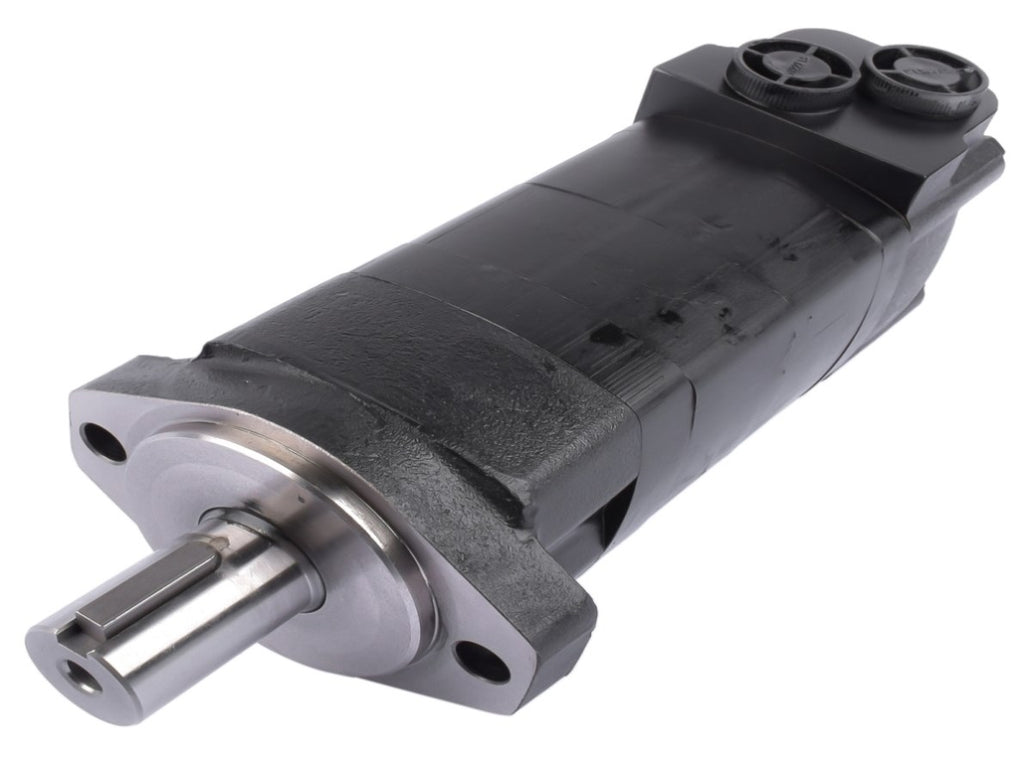

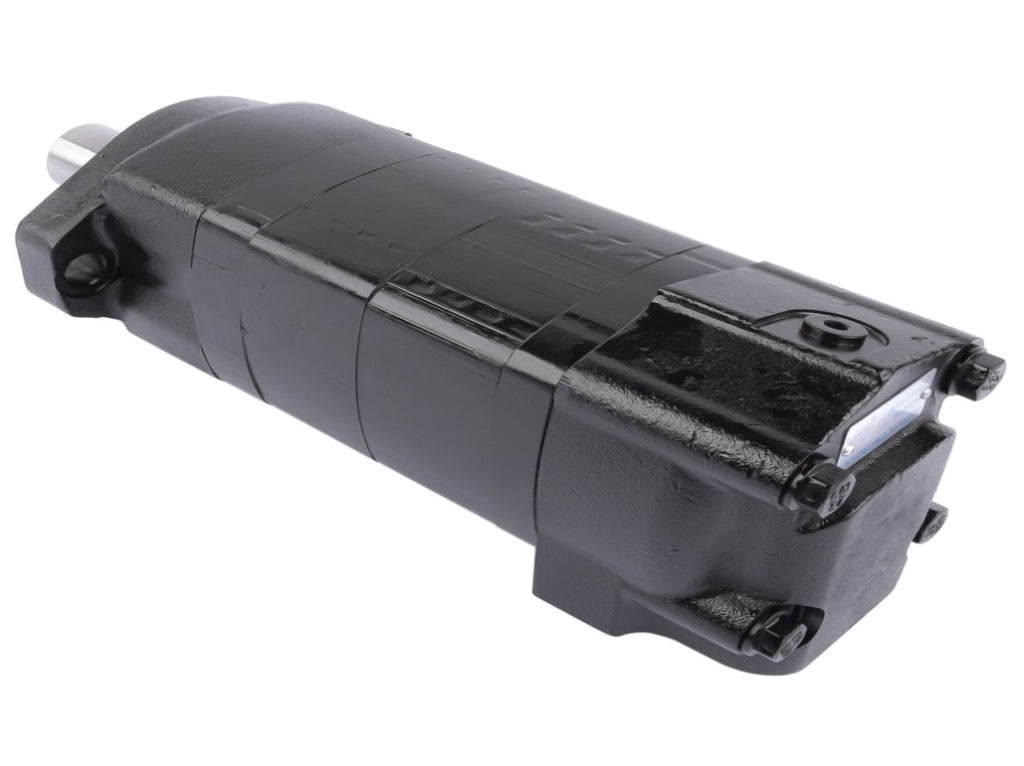

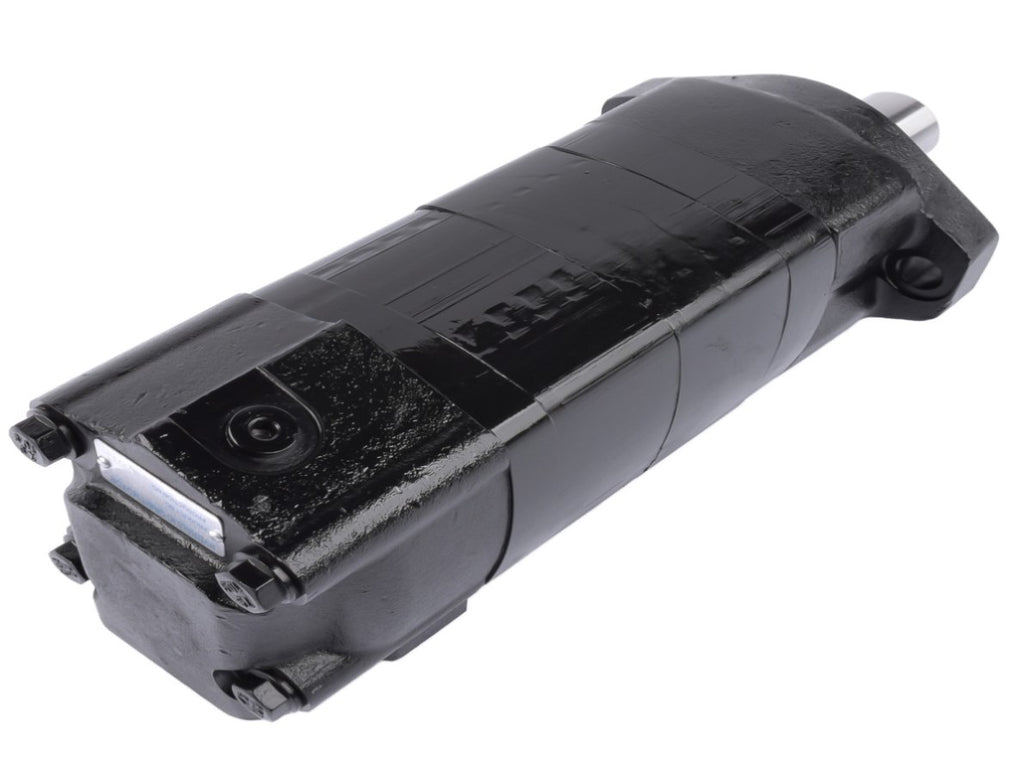

Hydraulic Motor for Eaton Char-Lynn 2000 Series 104-1420-006 1041420006 1041420 56768226

Part Number:

104-1420-006, 1041420006, 104-1420, 1041420

Applications:
Fit for Eaton Char-Lynn: 2000 Series

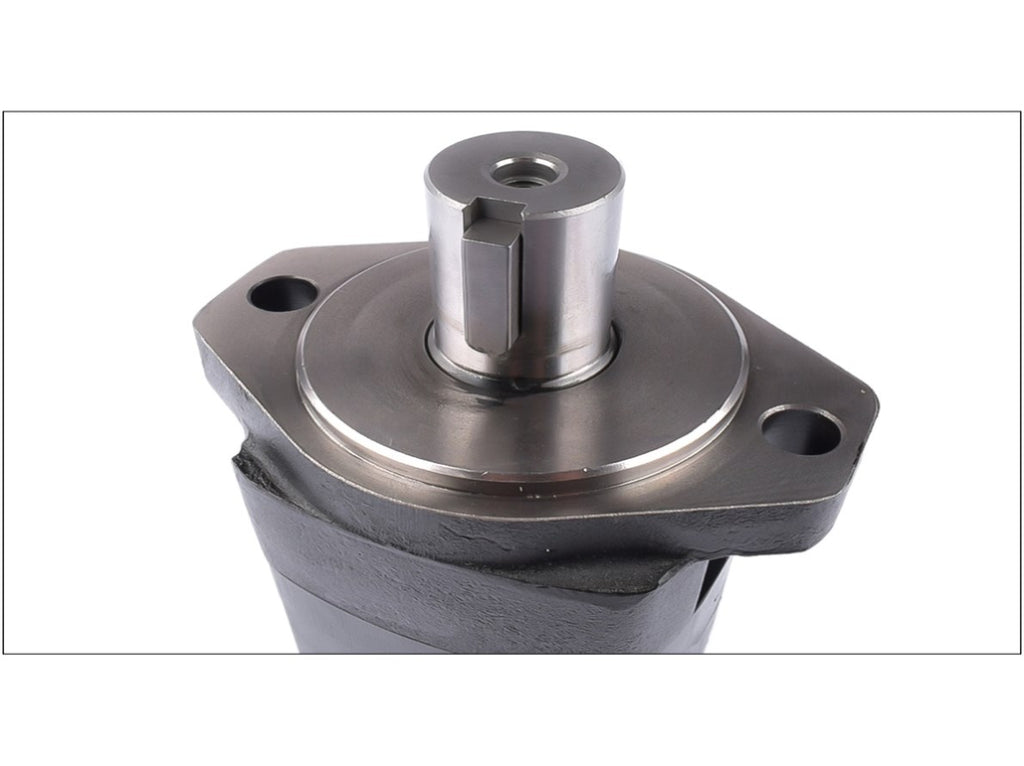

Actual Mounting Flange: 2-Bolt Flange - Sae A - With 3-1/4 In. Pilot Dia.
Actual Output Shaft: Straight

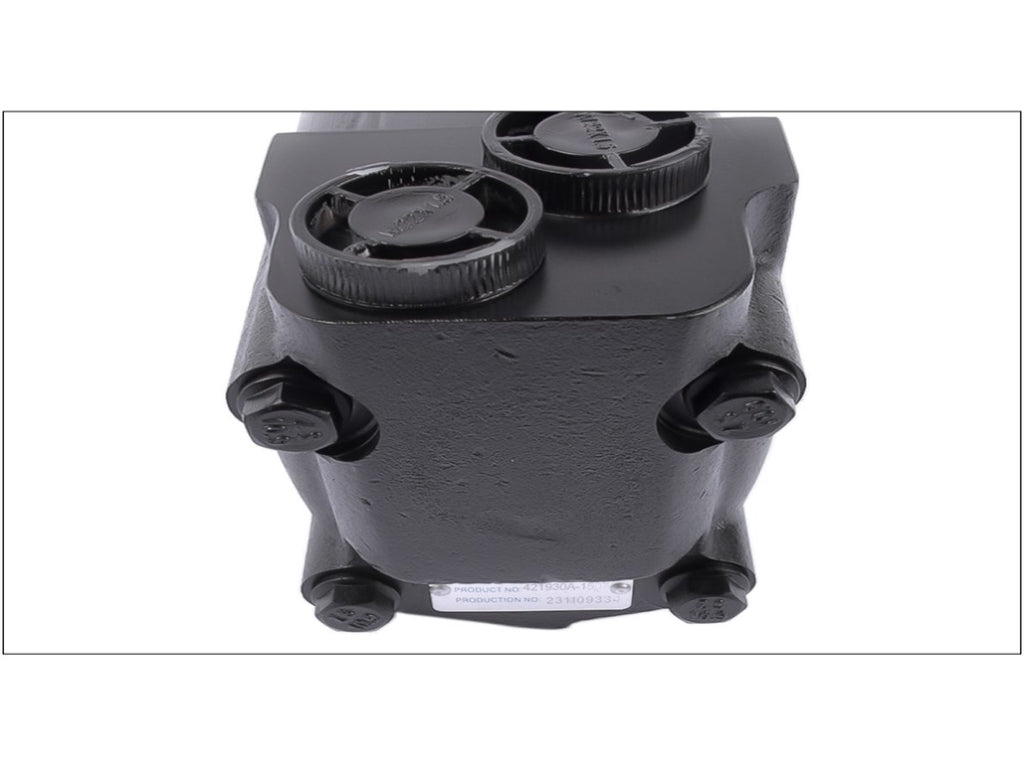

Actual Port Type: 875-14 UNF-2B SAE O-Ring Ports - Staggered Ports
Continuous Flow Rate: 75 L/min
Displacement; 29.84 in³/r
Drain Connection Size: 4375-20 Unf-2b O-ring Port Size -4
Intermittent Pressure: 140 bar
Maximum Continuous Oil Viscosity: 70 Saybold universal second
Maximum Operating Temperature: 180 °F
Maximum RPM-Continuous: 153 rpm
Maximum System Operating Temperature: -34°C to 82 °C

Package Includes:

1x Hydraulic Motor
