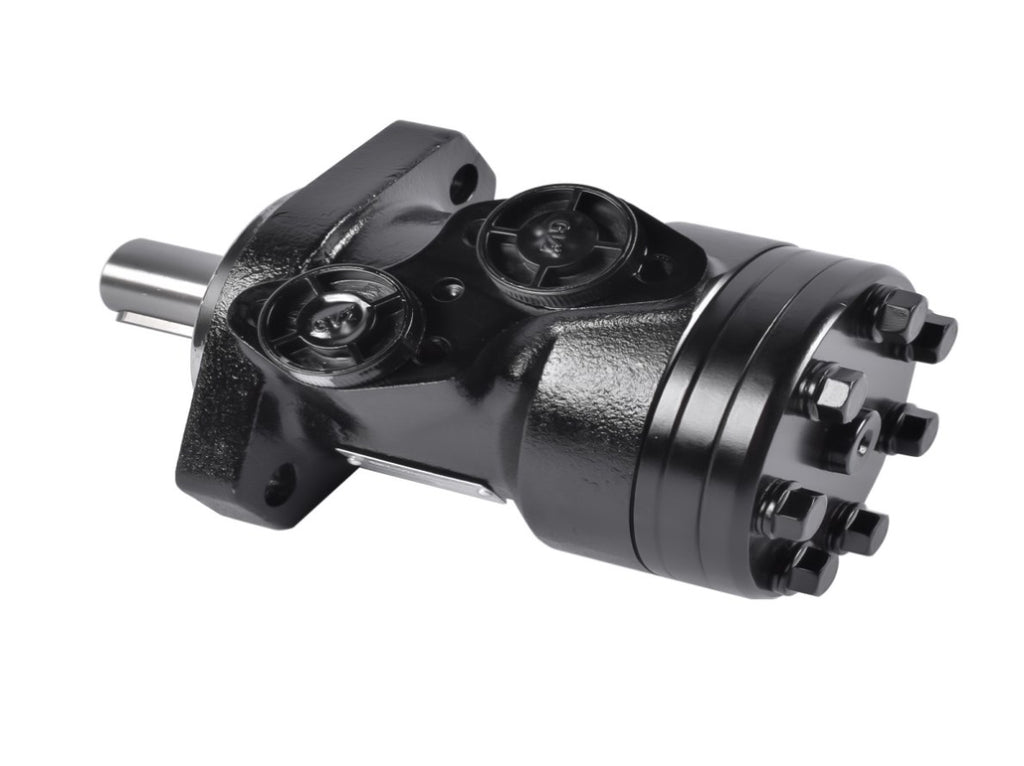

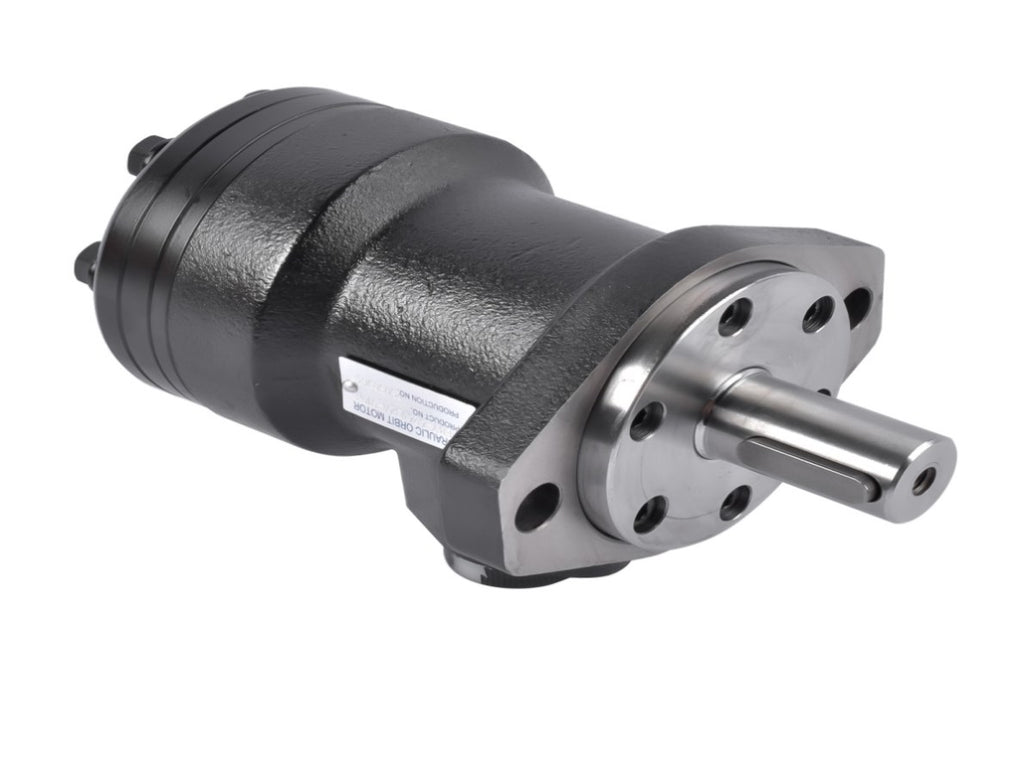

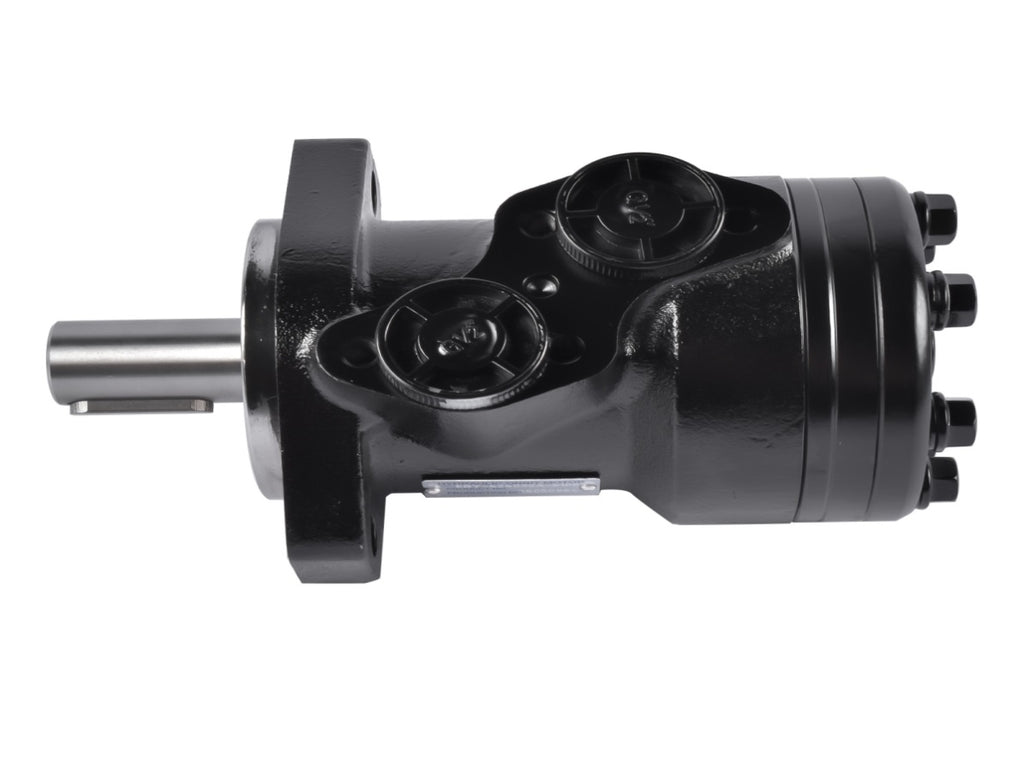

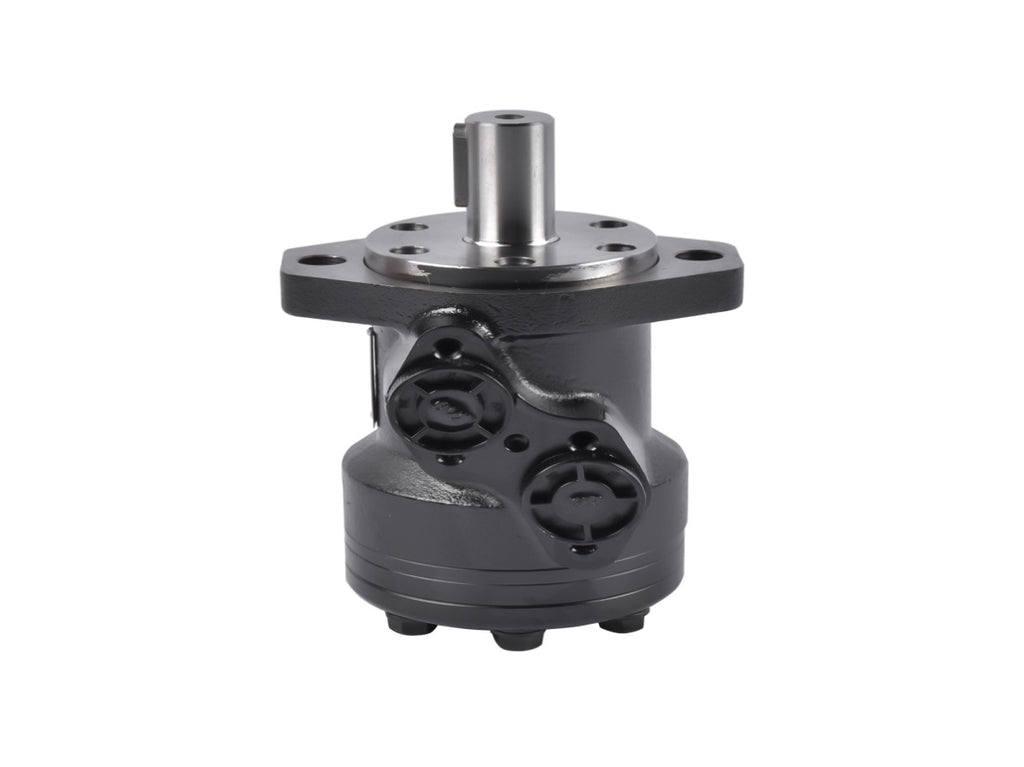

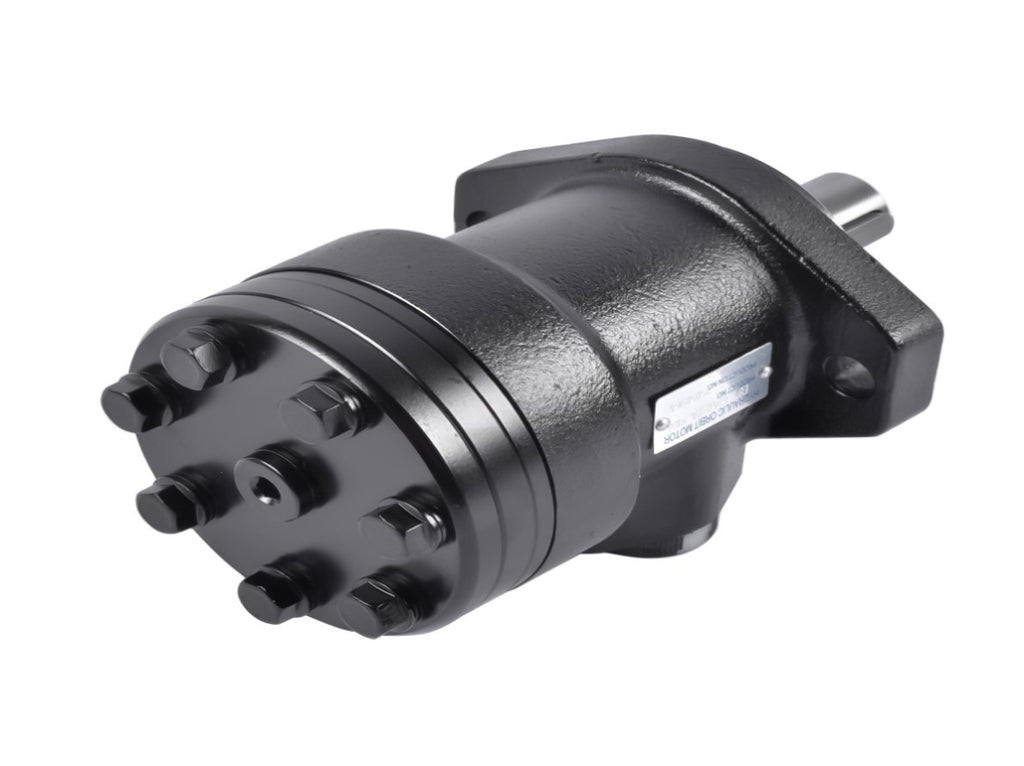

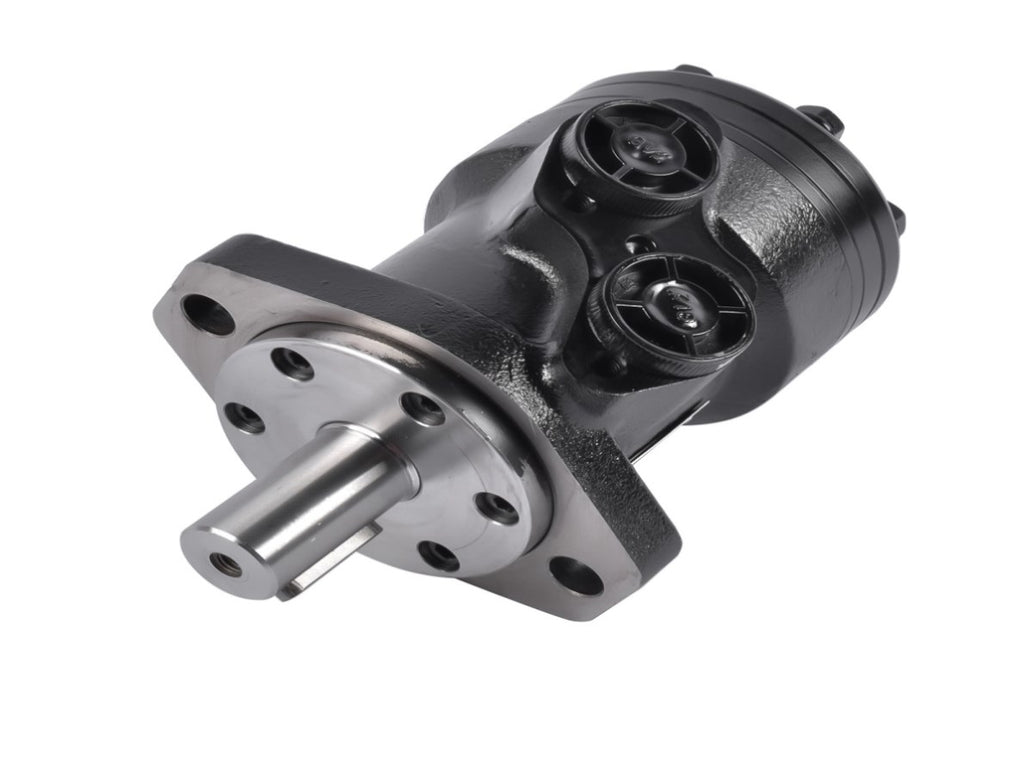

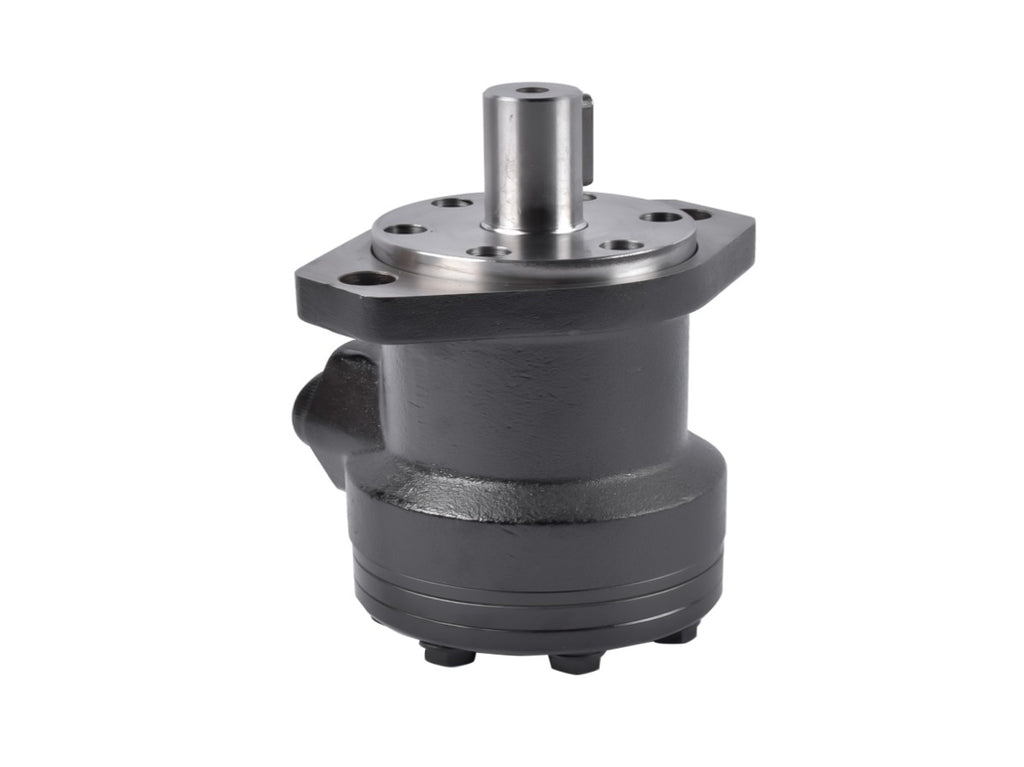

Hydraulic Orbital Motor OMR50 - 151-0700 1510700 Hydraulic Motor 1'' G1/2'' 53036297

OEM Part Number

OMR50 - 151-0700

1510700

Specification:

Geometric displacement: 51.6cm³/[3.16in]
Max speed cont: 775rpm
Max speed int: 970rpm
Max torque cont: 100Nm/[890lbf in]
Max torque int: 130Nm/[1150lbf in]
Max output power cont: 7.0kW/[9.4hp]
Max output power int: 8.5kW/[11.4hp]
Max pressure drop cont: 140bar/[2030psi]
Max pressure drop int: 175bar/[2540psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 40L/min
Max oil flow int: 50L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 80Nm/[710lbf in]
Min starting torque at max press drop int: 100Nm/[890lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]

Package Includes:

1x Hydraulic Orbital Motor
