Power Steering Gear Box Fit For Chevy GMC C10 1969 1970 1971-1987 Trucks CP50014 67425037
Application:
Fit For GMC C1500 1969-1987
Fit For Chevrolet C10 1969-1987
Note: with Power Steering Gear
Part Number:
CP50014, SGB10TRK
Specification:
Hose Port Type:copper nozzle
Steering Wheel Position: LHD
Pitman Arm included: NO
gear ratio :15.87
Input Shaft Diameter:18.4MM /0.724 IN
Output Shaft Diameter:30MM/1.181 IN
Number of Mounting Holes:4
Input Shaft Spline Count:30
Input Shaft Type: Spline+Glooved
Pressure Port Thread Size:11/16-18
Return Port Thread Size:5/8-18
Total Turns Lock To Lock:4.1
Features:
- Built to strict quality control standards 100% factory tested
- Easy Installation
- The steering gear box is the heart of the vehicle’s steering system. It guides the wheels’movement in conjunction with the direction that the steering wheel is rotated, helping achieve ideal steering response for more efficient driving.
- Steering Gear Boxes are re-engineered, built and tested to match O.E. performance. Each unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance.
- Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
- 100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.
Package Includes:

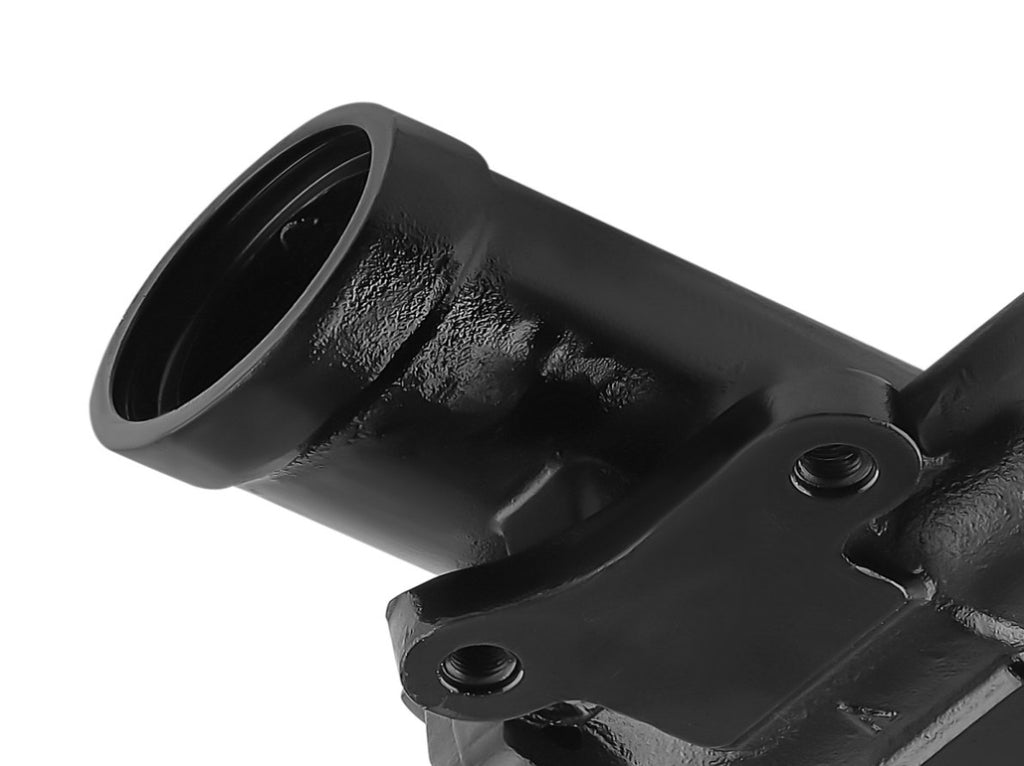

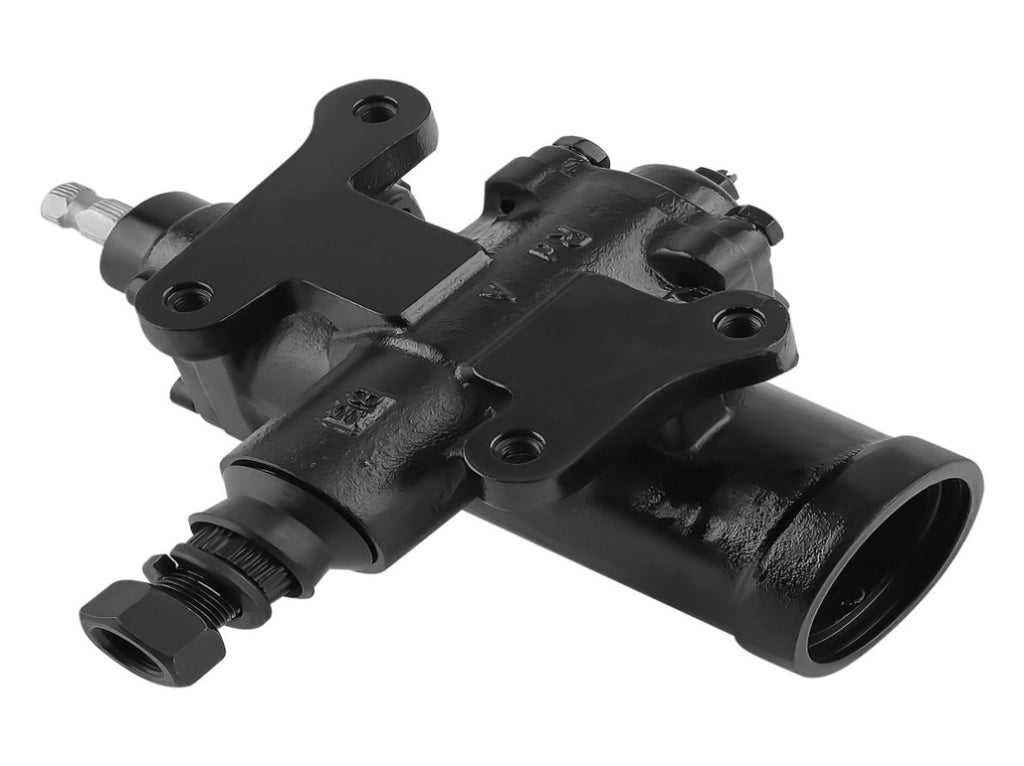

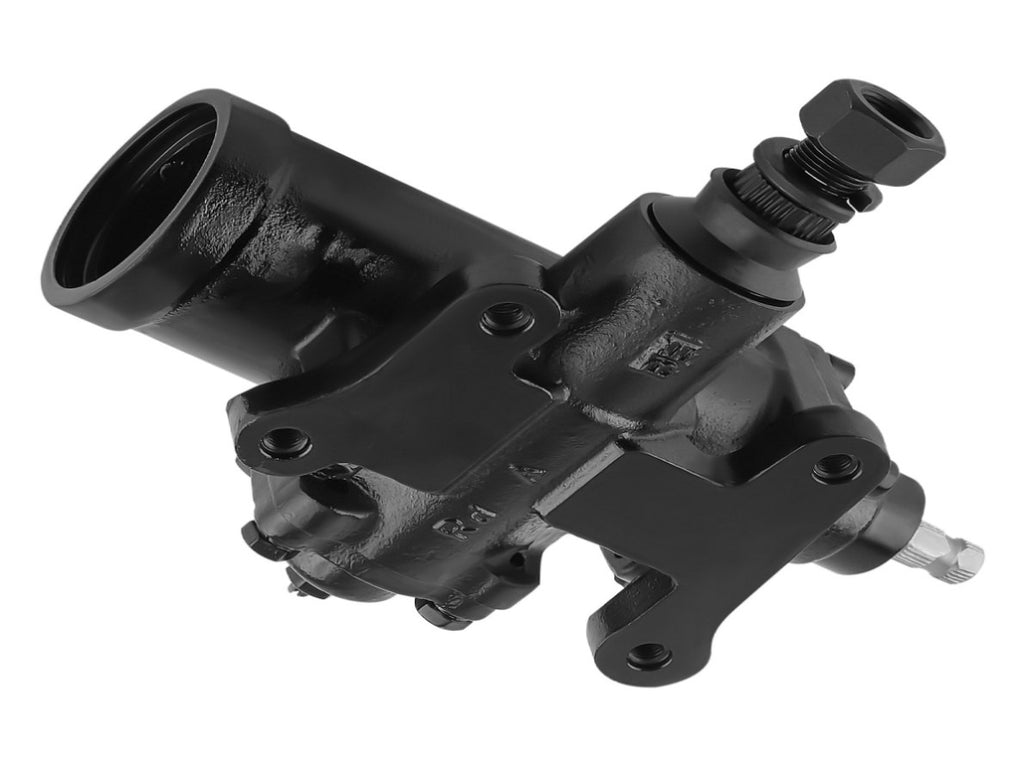

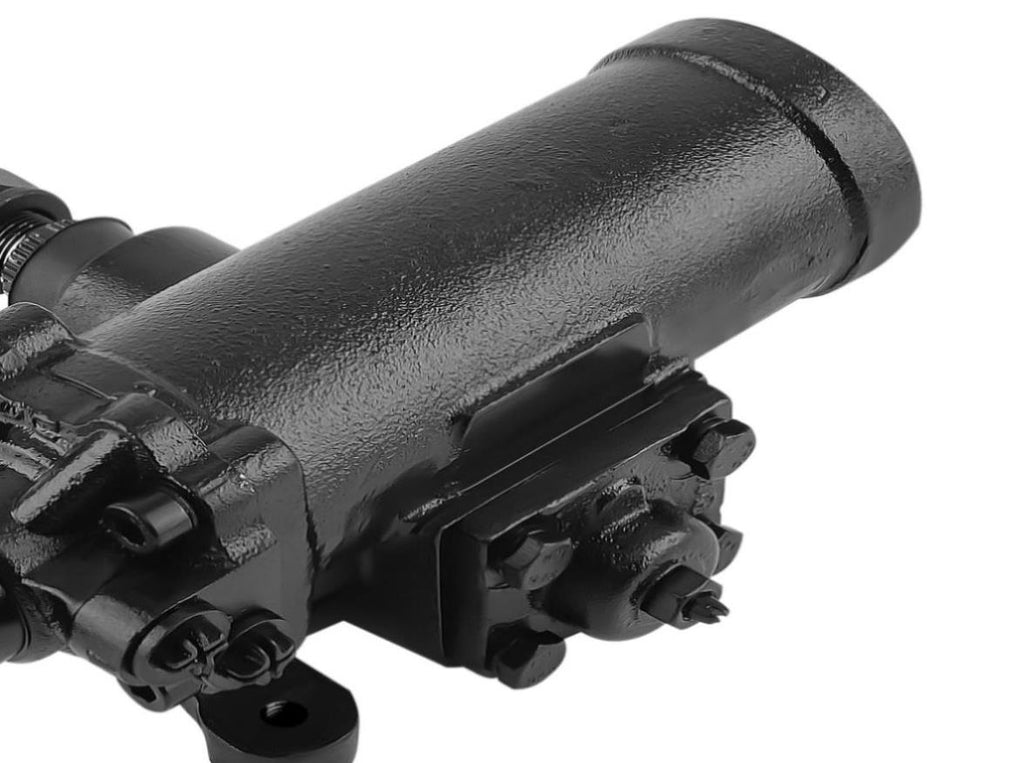

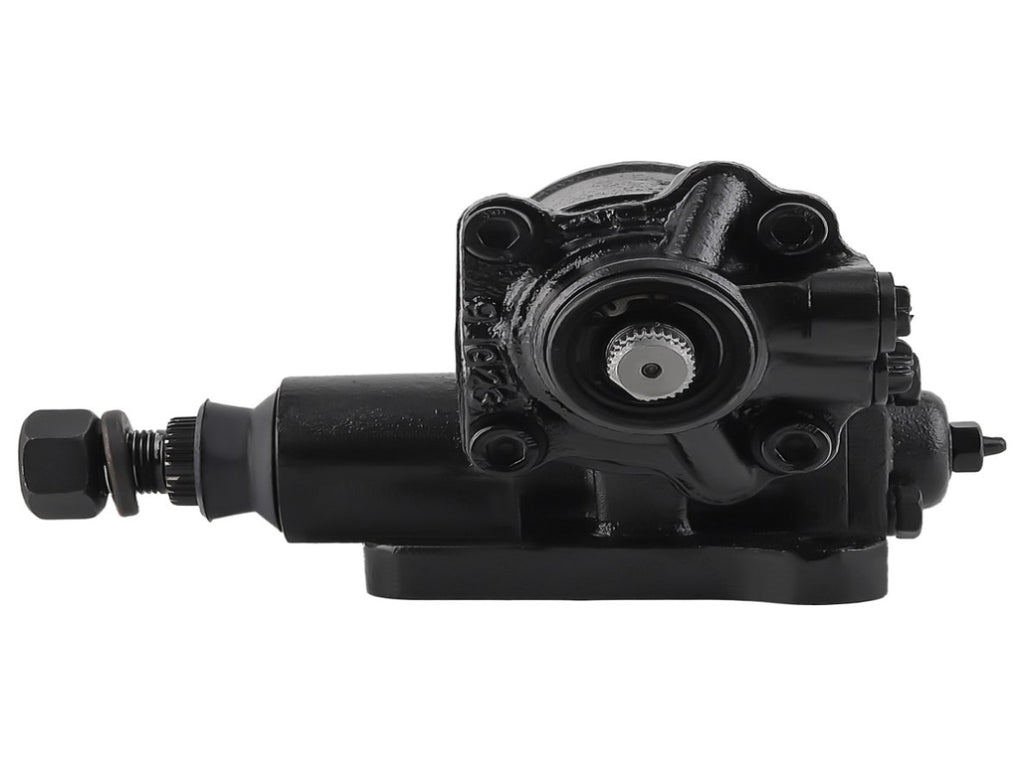

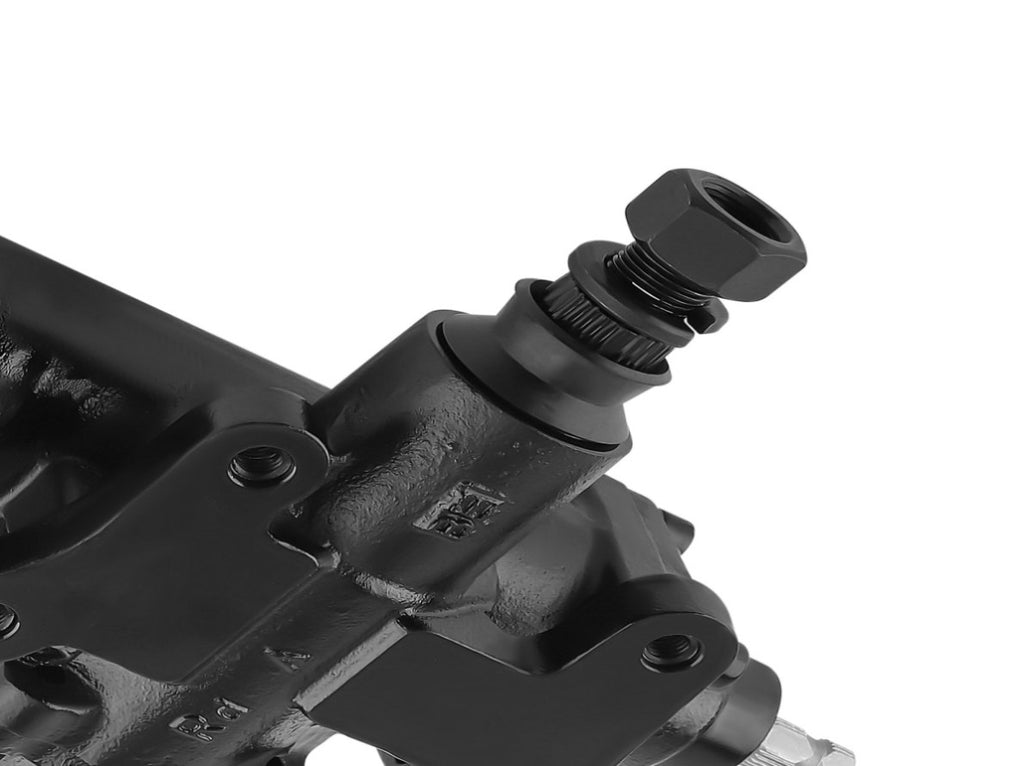

1× Power Steering Gear Box (Showing as the picture)
Notes:
* If your car has these symptoms, it means you need to replace your Power Steering Gear Box.
• No power steering assist in one direction or both.
• Leaks from seals or housing.
• Clunk or popping noise.
• Excessive play in steering wheel at center before wheels start turning.
• Binding or catching while turning.
• Vehicle drifts or wanders while driving straight.
* If you have any question, please feel free to contact us.
* Product appearance and finish may vary but fit and function remain the same
