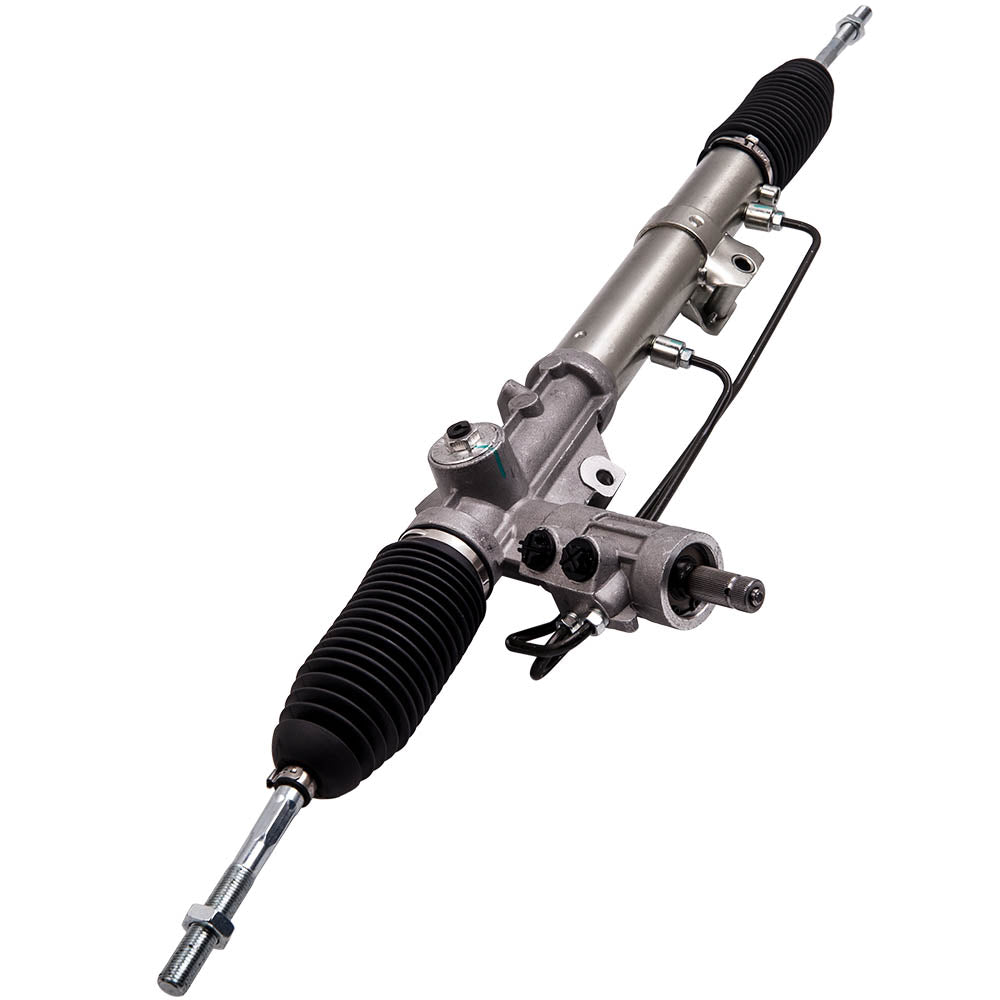

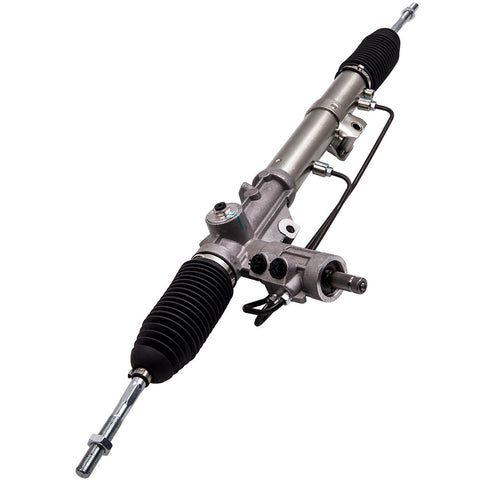

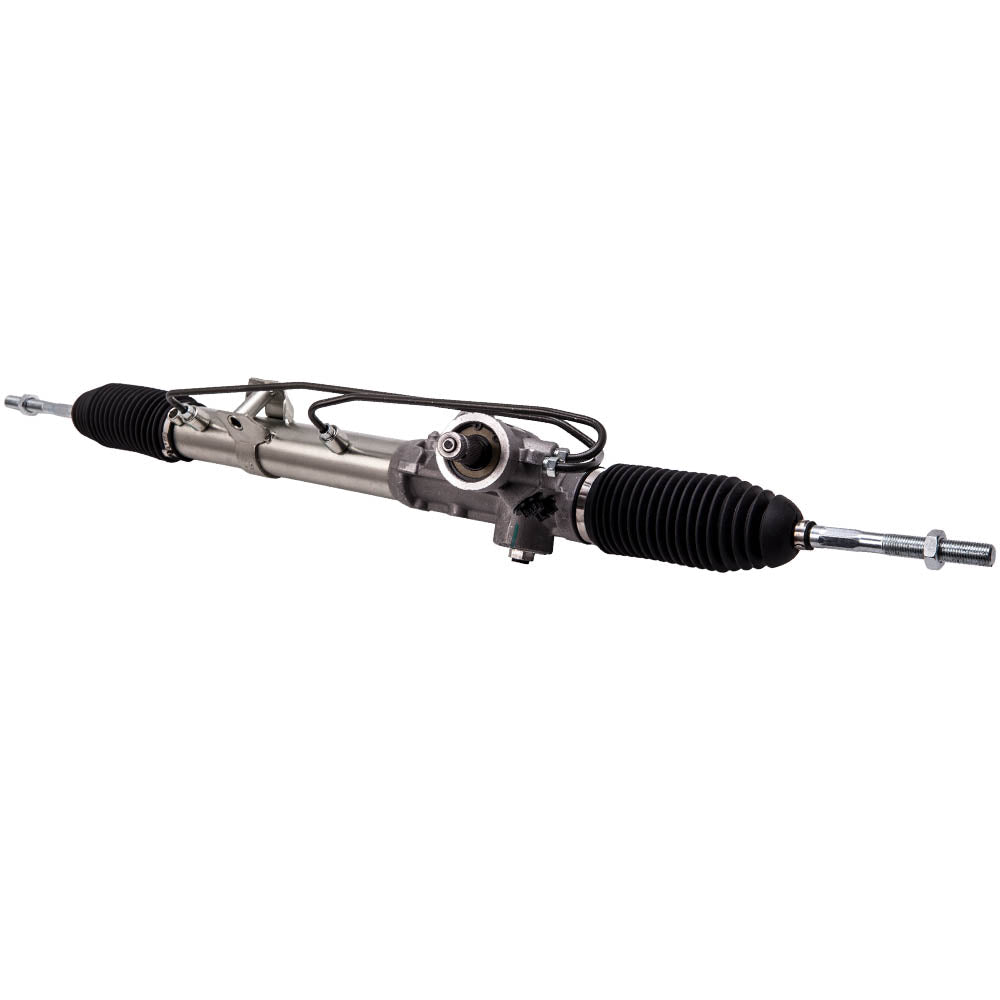

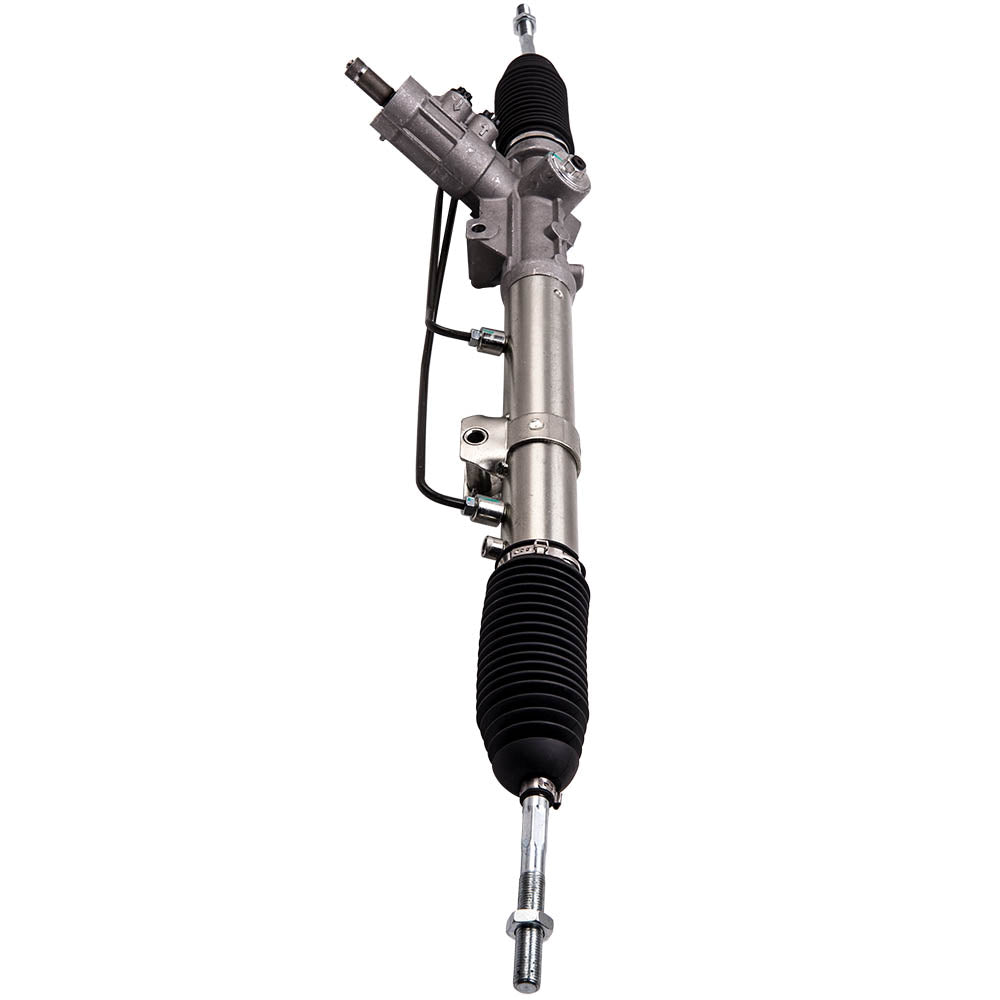

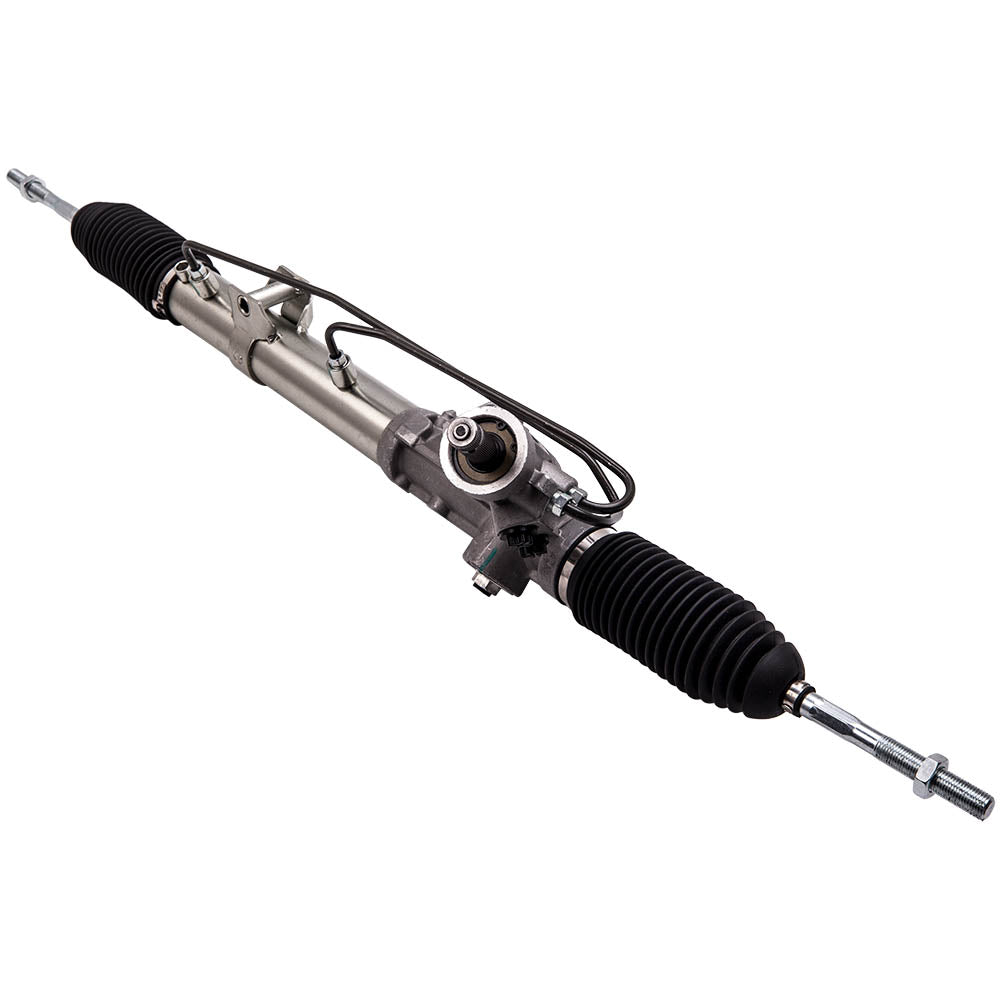

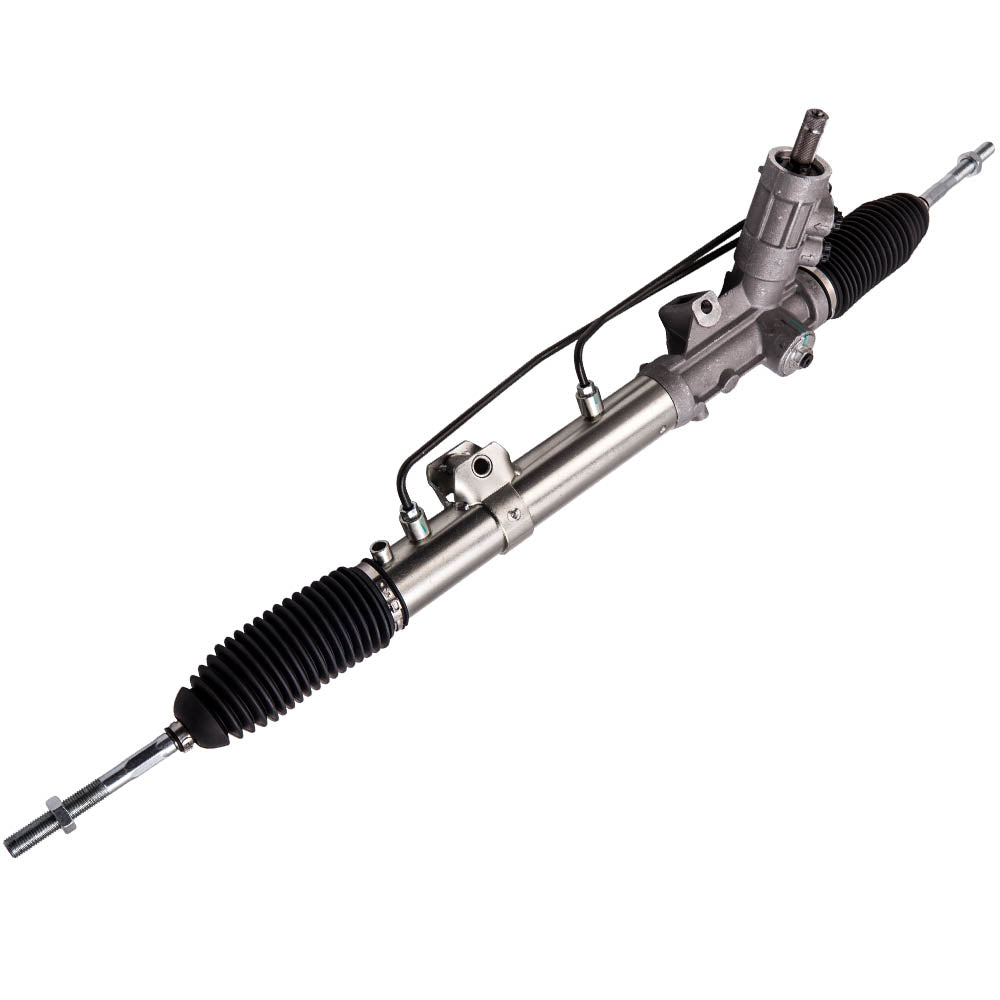

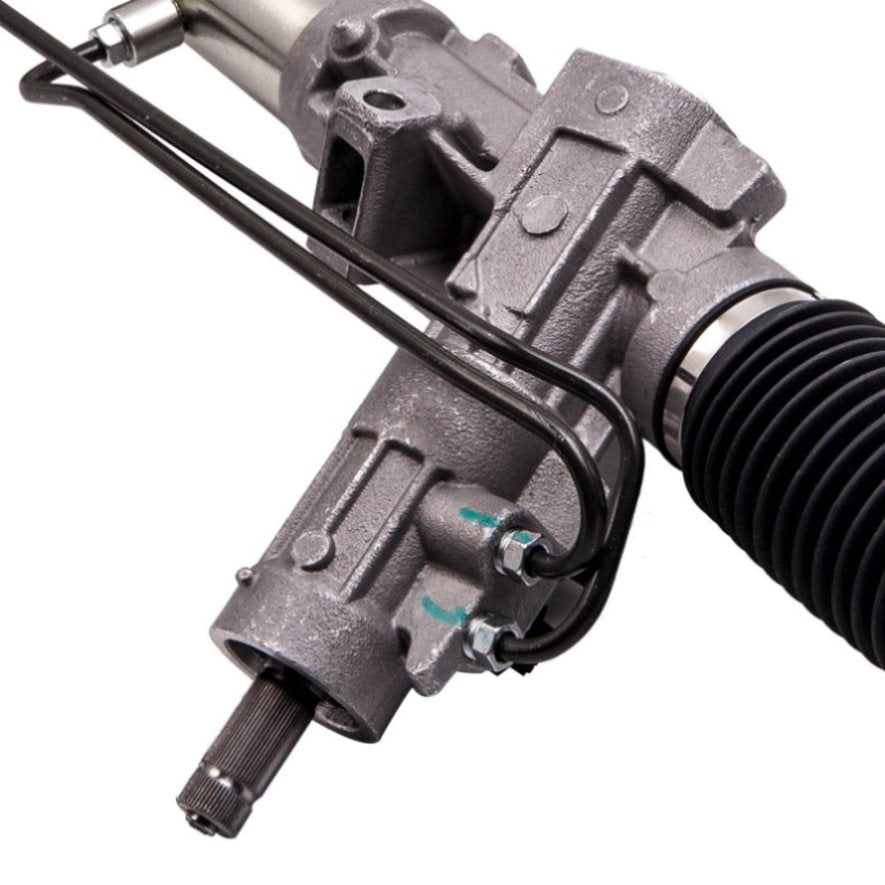

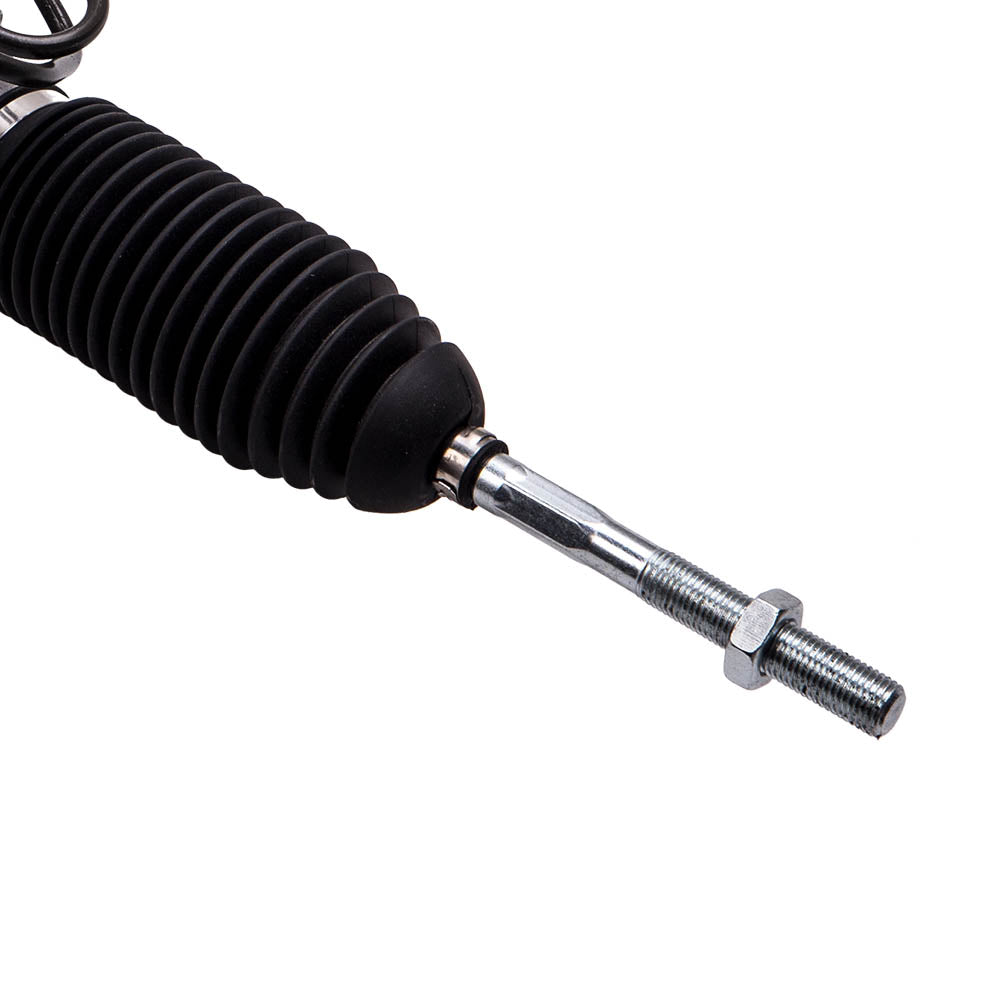

Power Steering Rack and Pinion Assembly Fit for BMW E36 318i 320i 323i 325i 328i M3 Z3 2.8L 2.5L 64620909

Application:

Fit for BMW 318i All Models 1992-1998

Fit for BMW 318iC All Models 1994-1997

Fit for BMW 318iS All Models 1992-1997

Fit for BMW 318Ti All Models 1995-1999

Fit for BMW 323Ci All Models 2000

Fit for BMW 323i All Models  1998-2000

Fit for BMW 323iC All Models 1998-1999

Fit for BMW 323iS All Models 1998-1999

Fit for BMW 325i All Models 1992-1995

Fit for BMW 325iC All Models 1994-1995

Fit for BMW 325iS All Models 1992-1995

Fit for BMW 328Ci All Models 2000

Fit for BMW 328i All Models 1996-2000

Fit for BMW 328iC All Models 1996-2000

Fit for BMW 328iS All Models 1996-1999

Fit for BMW M3 All Models 1995-1999

Fit for BMW Z3 3.2L Engine 1998-2002

Fit for BMW 330i All Models 2001-2006

Fit for BMW 330Ci All Models 2001-2006

Note: Left Hand Drive only

Part Number:

32131096240, 32131140828, 32131096280, 2131140946,

32131140956, 32131140972, 32131469273, 32132227192,

32132229397, 32111139316, 32111139315,

26-1822, 26-2800, 688915, 36R0548, AAZ-26-1822,

18000657-101, 18000657-102, 18000657-103,

32 13 1 140 972, 32 13 2 227 192, 32 13 1 096 280,

32 13 1 140 946, 19320646, 3060110

Features:

High-quality replacement: power steering rack and pinion.

This part may also be called: Power Steering (PAS) or Steering Assist System 100% test reliability and performance.

Top performance and long service life.

Strictly tested to ensure reliable performance.

Hydraulic test to ensure internal byroad of high and low pressure.

Simulate roads to ensure normal operation.

Easy to installation, long service life as a guarantee.

Specification:

Color: Black/Sliver

Casting Material: Steel/Aluminum

Rack Material: corrosion and rust prevention

Transmission Type: Automatic

Rack Type: Hydraulic

Surface Finish: Polished, Rust Protected

Number of Mounting Holes: 2

Hose Port Type: O-Ring

Tie Rod Ends Included: Inner

Total Turns Lock To Lock: 2.88

Pressure Port Thread Size: M14 x 1.5

Return Port Thread Size: M16 x 1.5

Rack Length (mm): 981.08

Thread Length (In): 2.47

Thread Length (mm): 62.74

Distance Between Mounting Holes (in): 9.22

Distance Between Mounting Holes (mm): 234.19

Input Shaft Diameter (in): 0.68

Input Shaft Diameter (mm): 17.15

Input Shaft Length (in): 1.52

Input Shaft Length (mm): 38.56

Rack Length (in): 38.63

Condition: 100% Brand New

Warranty: 2 year

Note:

* Please confirm your original part number or oem numbr can matche up with one of the part numbers above.

* Professional installation is highly recommended (No Instruction Included).

* For whatever we can help,please feel free to contact us via ebay message. We are always here for you.

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
