Rear Differential 705502546 for Can-Am Outlander 1000/1000R XMR 13-18 705502178 34283016

OEM Part Number

can-am 705502546

705501723

705502178

705502090

Fit for the Following Models

2013-2018 Can-Am Outlander 1000

2019-2021 Can-Am Outlander 450/MAX 450

2015 Can-Am Outlander 800 R

2018-2021 Can-Am Outlander 850/1000R/570/650

2016-2021 Can-Am Outlander Max 1000 R

2017-2021 Can-Am Outlander Max 570

2016-2021 Can-Am Outlander Max 650/850/1000R

Specification

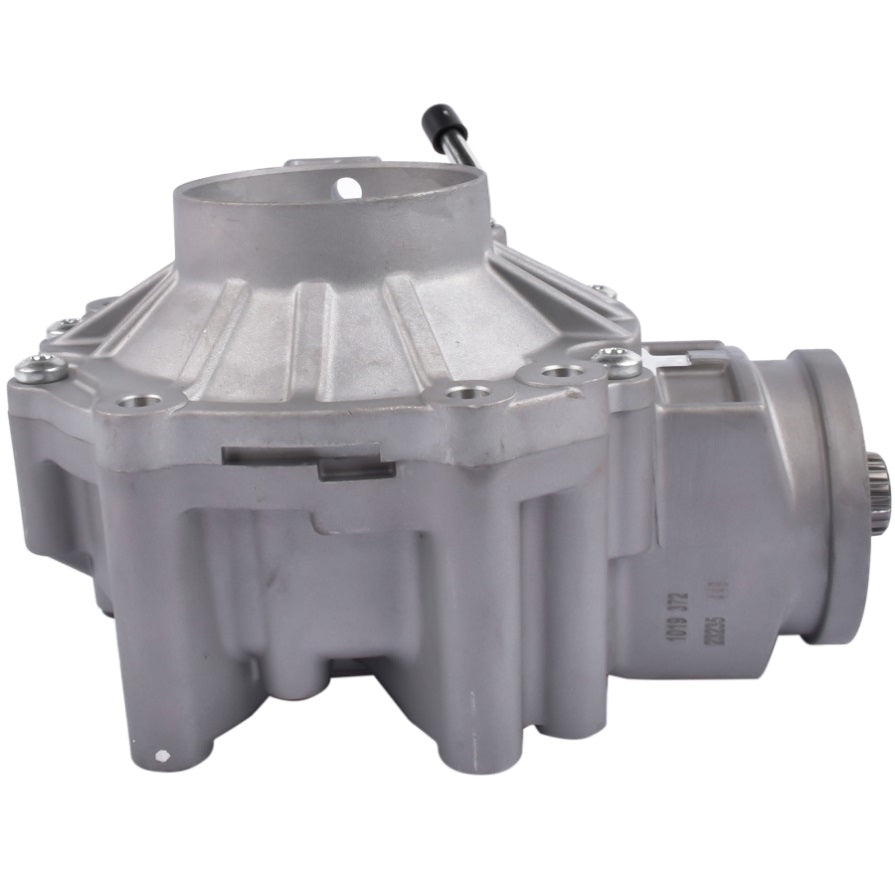

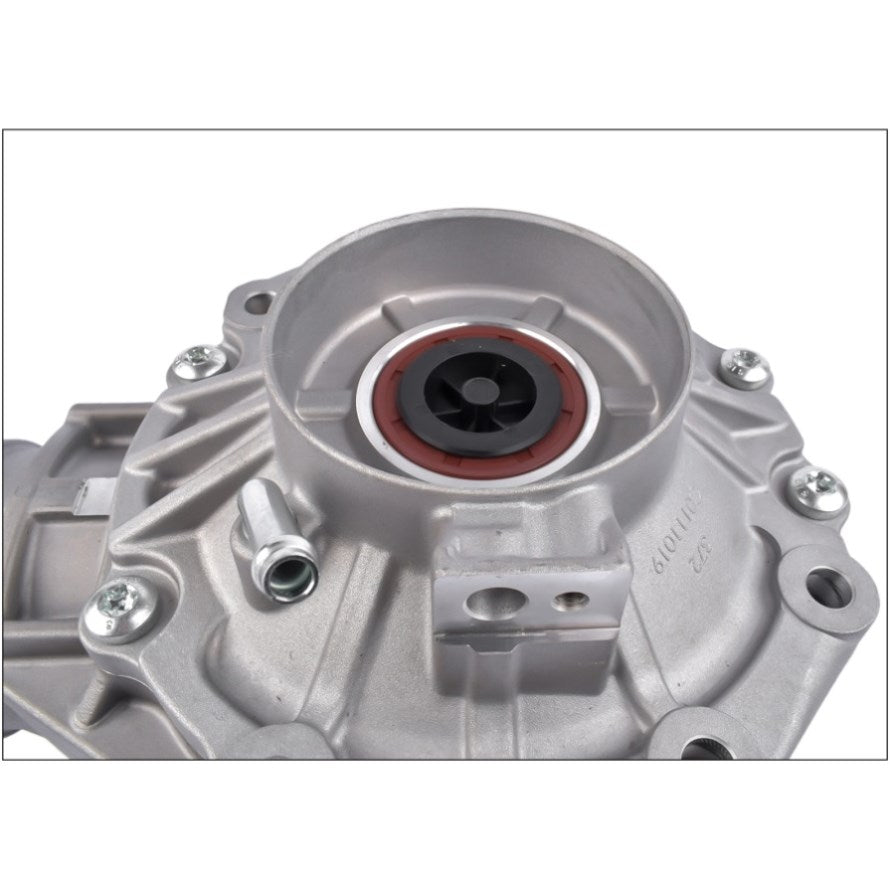

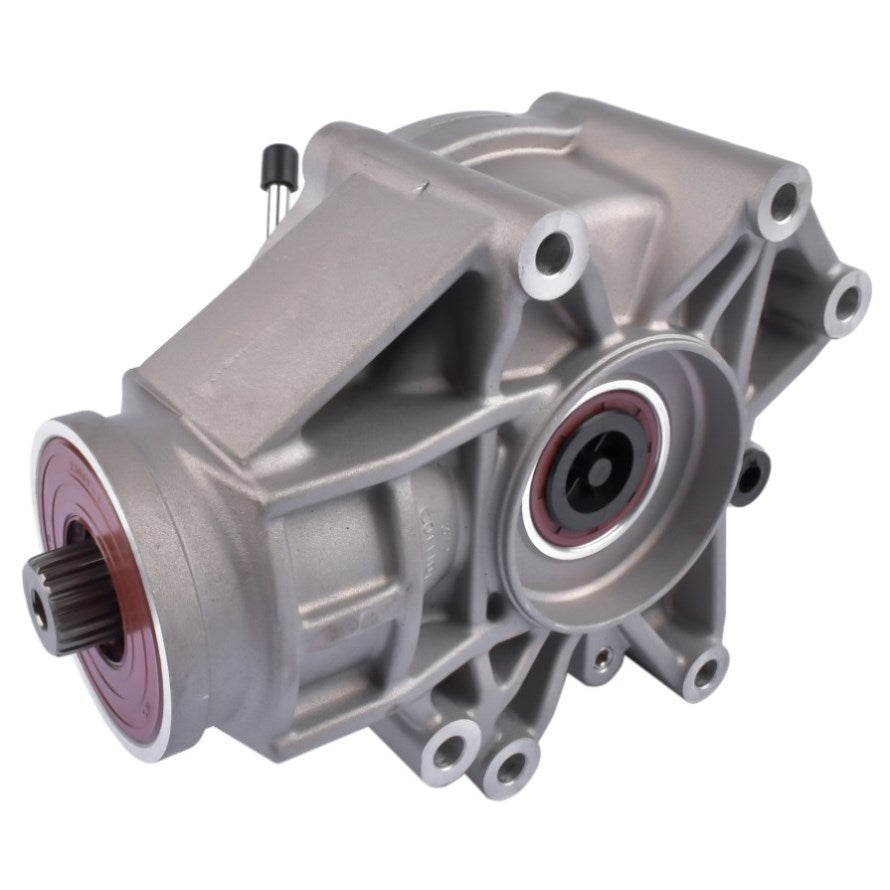

This is the XMR 1000 rear differential found in 2013-2018 1000/1000R XMR.

It is also used in the G2 800 XMR & 850 XMR.

It will fit g2 bikes (500/650/800/850/1000) if you are upgrading you will need to shorten your shaft

(G1 bikes will require further modifications to work).

This differential has automotive style cut gears, tapered roller bearings, along with an overall larger gear size.

There are a total of three bearings on the pinion gear giving it much more support over the standard rear differentials, this requires a shorter driveshaft, as mentioned earlier if you are swapping this in place of a standard differential.

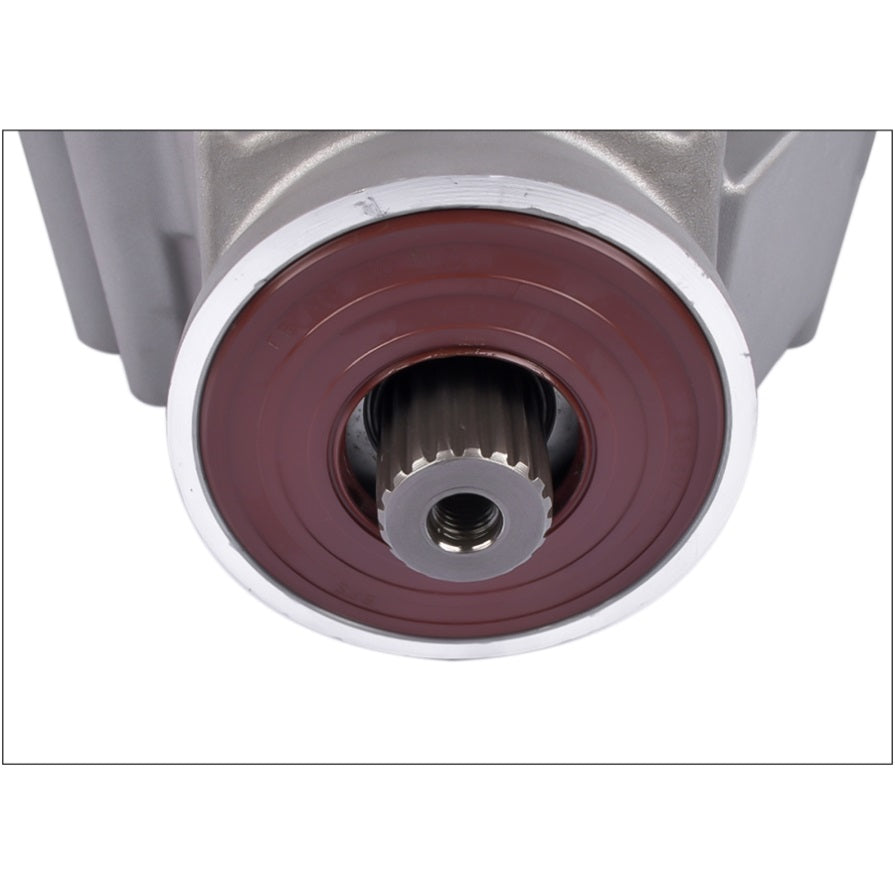

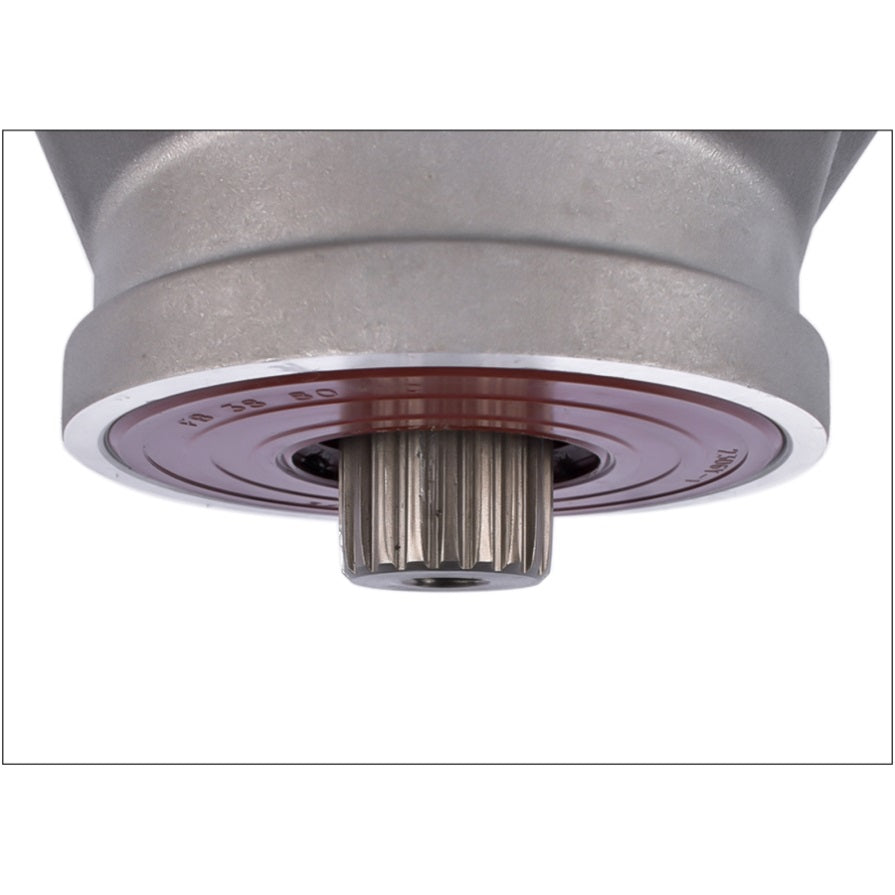

Pinion spline count 20, standard differentials use 18 spline pinion shafts, that are smaller in diameter. In every way this is a beefier differential.

To bolt your driveshaft on this differential you will need a M10x1.25 16mm long bolt (not included)

Professional installation is highly recommended.

Package Includes

1x Differential

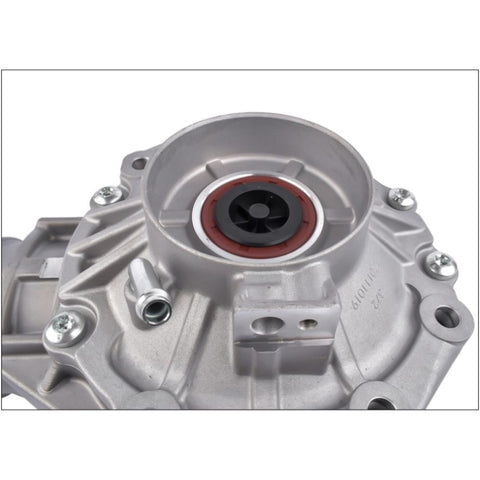

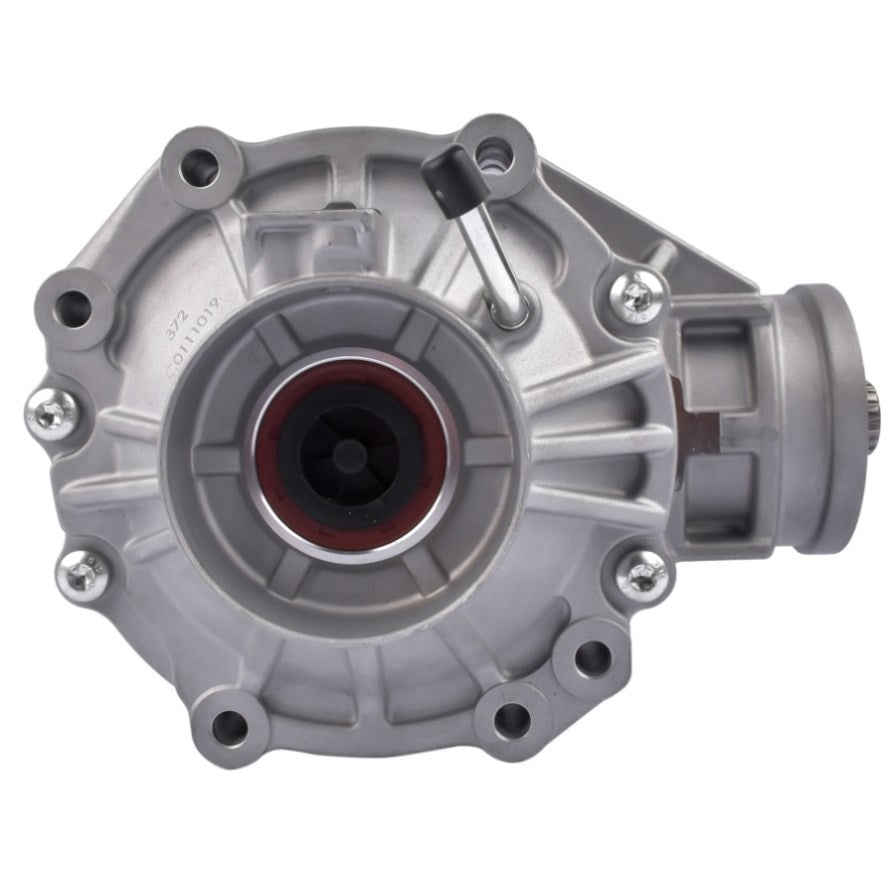

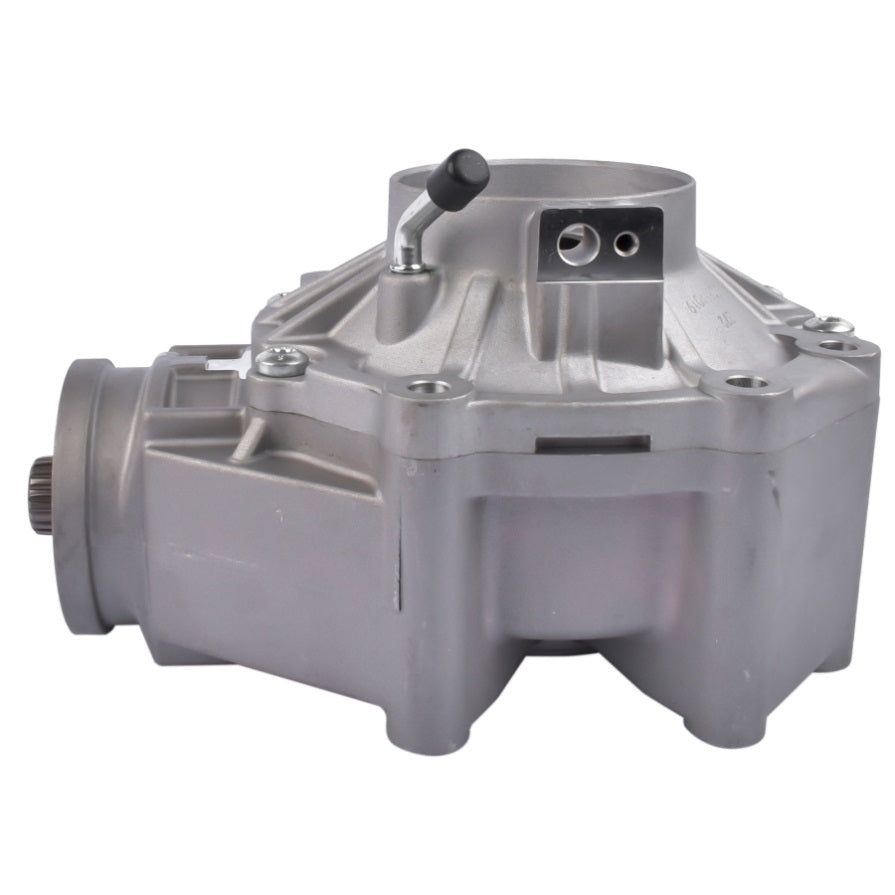

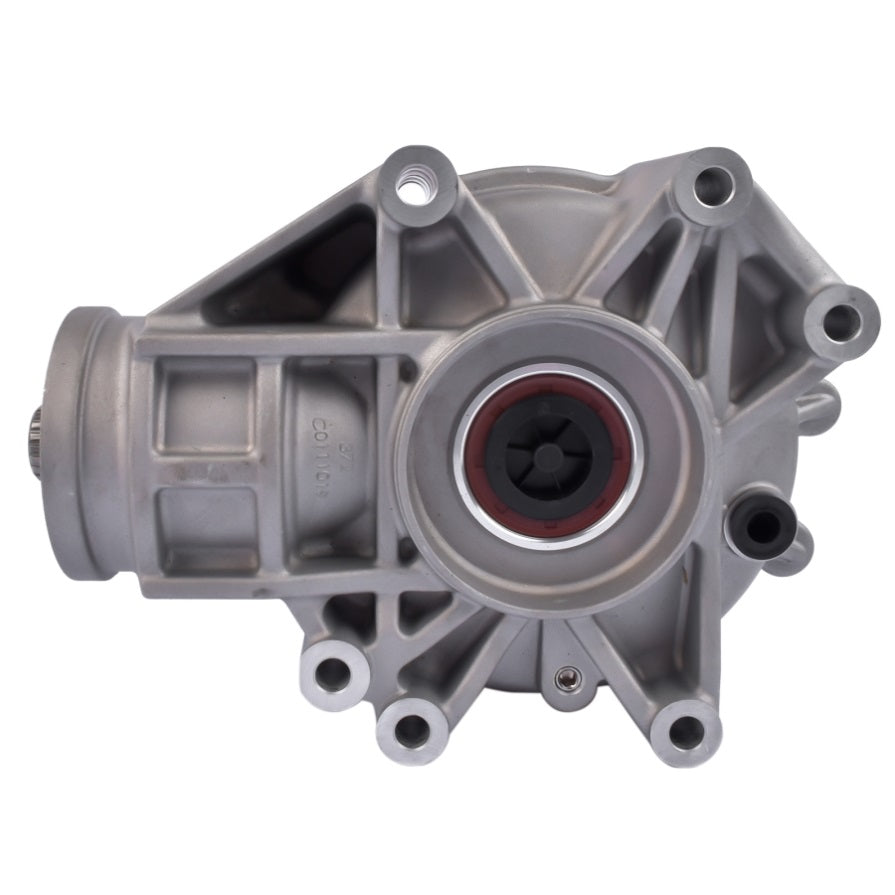

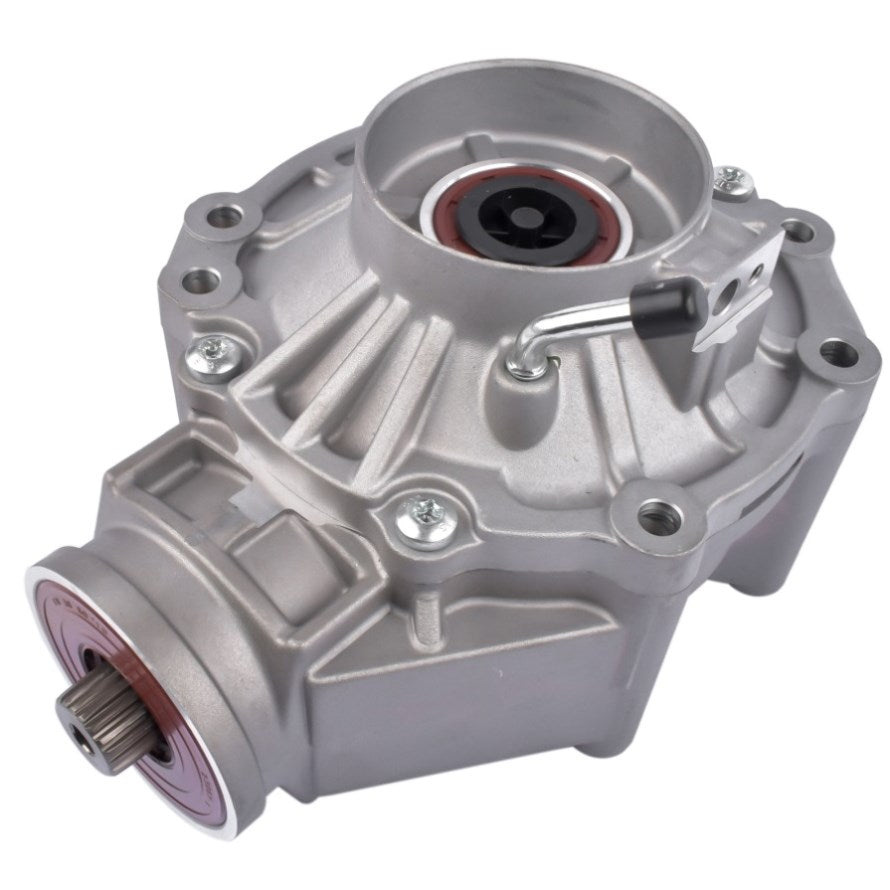

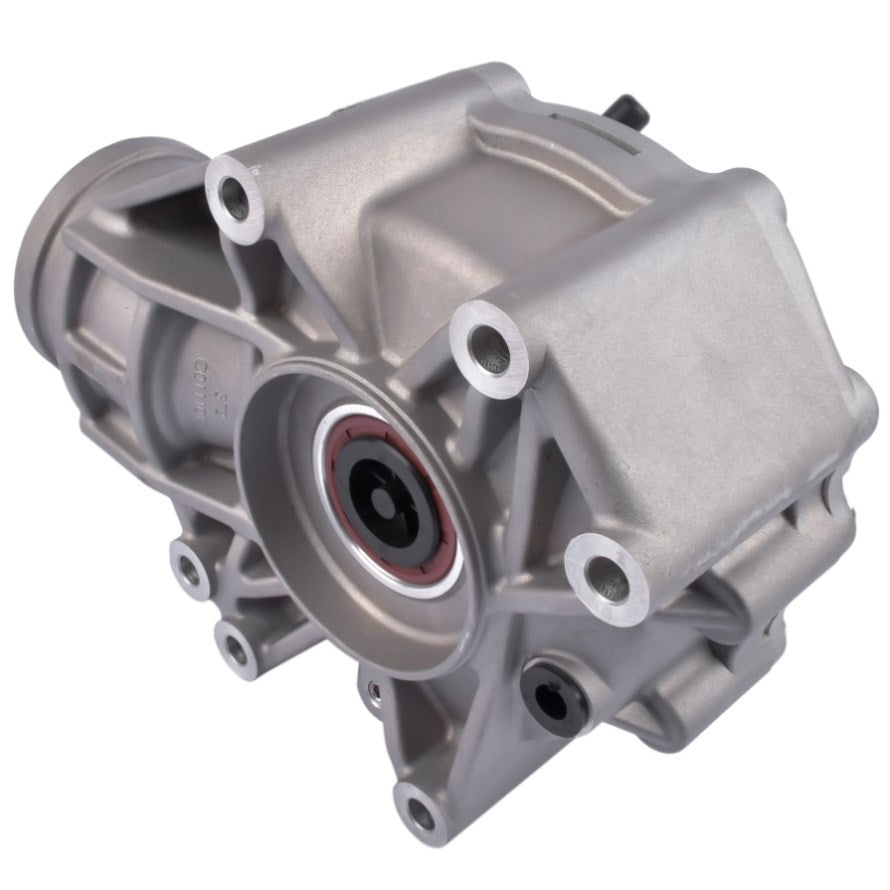

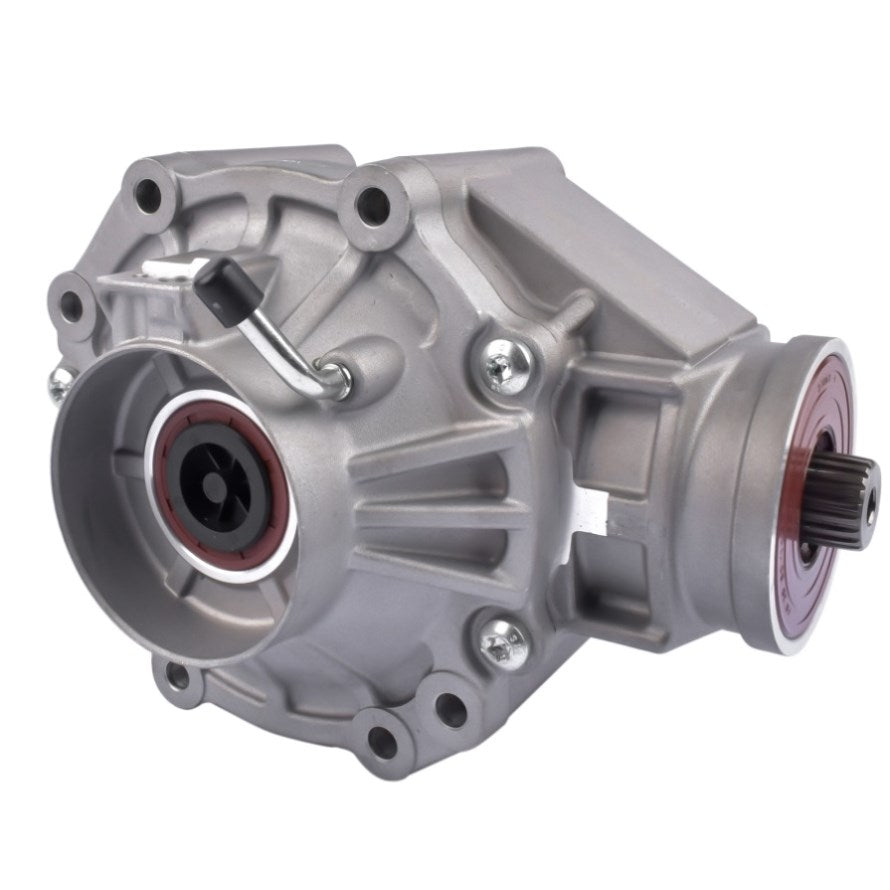

As Pics Shown
