Rear Trailing Arm Crossmember Anti Squat for Chevy C10 GMC C15 1963-1972 00090978

Introduction:

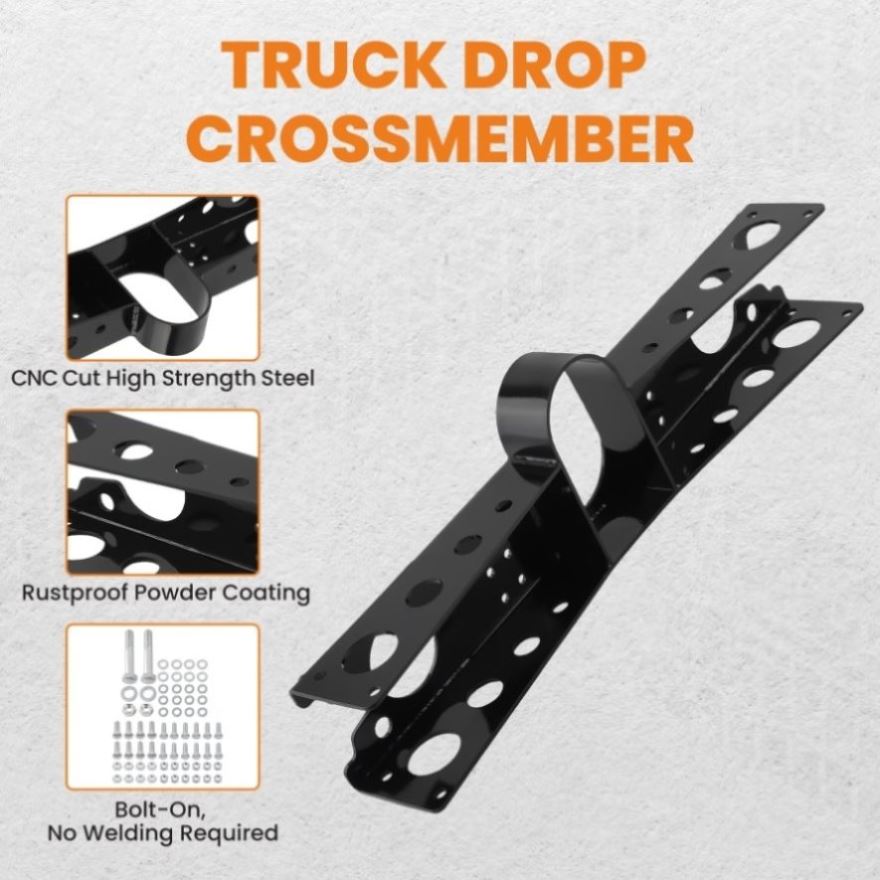

Trailing arm crossmember/truck drop cross member is specifically designed for Chevy trucks that have a 4" drop or more. It Increases ground clearance on your lowered truck. Includes bolt on trailing arms mounts with anti squat provisions up to 4 degrees and are far superior to the welded items on the market.Designed for use on short wheel-base, one-piece drive line pickups with 5" drop or more. Long bed requires drilling and mounting of OE carrier bearing bracket.

Application :

for Chevy C10 Panel 1963-1967
for Chevy C10 Pickup 1963-1972
for Chevy C10 C10 Suburban 1967-1972
for GMC C15/C1500 Pickup 1967-1972
for GMC C15/C1500 Suburban 1968-1972

Feature:

• For use on short wheel-base, one-piece drive line pickups with 5" drop or more
• Lower hole is for factory trailing arm position
• Allow for the use of 5 different trailing arm settings
• CNC cut steel chassis grade steel
• Hoop design eliminates any interference with drive shaft on lowered trucks
• Direct bolt in directly to your stock location

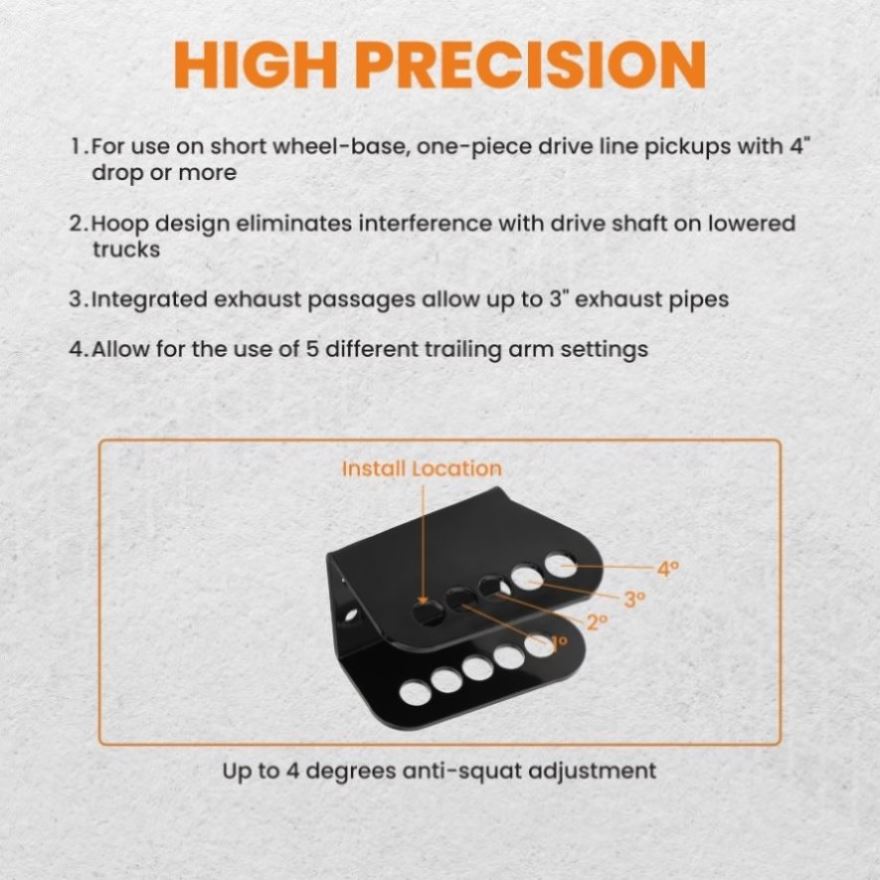

• Adjustable from OE position up to 4 degrees anti squat adjustment
• Integrated exhaust passages allow up to 3" exhaust pipes
• Also allows for harder launches for quicker 0-60 foot times.
• No welding or modifications required
• Black Powder Coated
• Metal thickness: 5mm

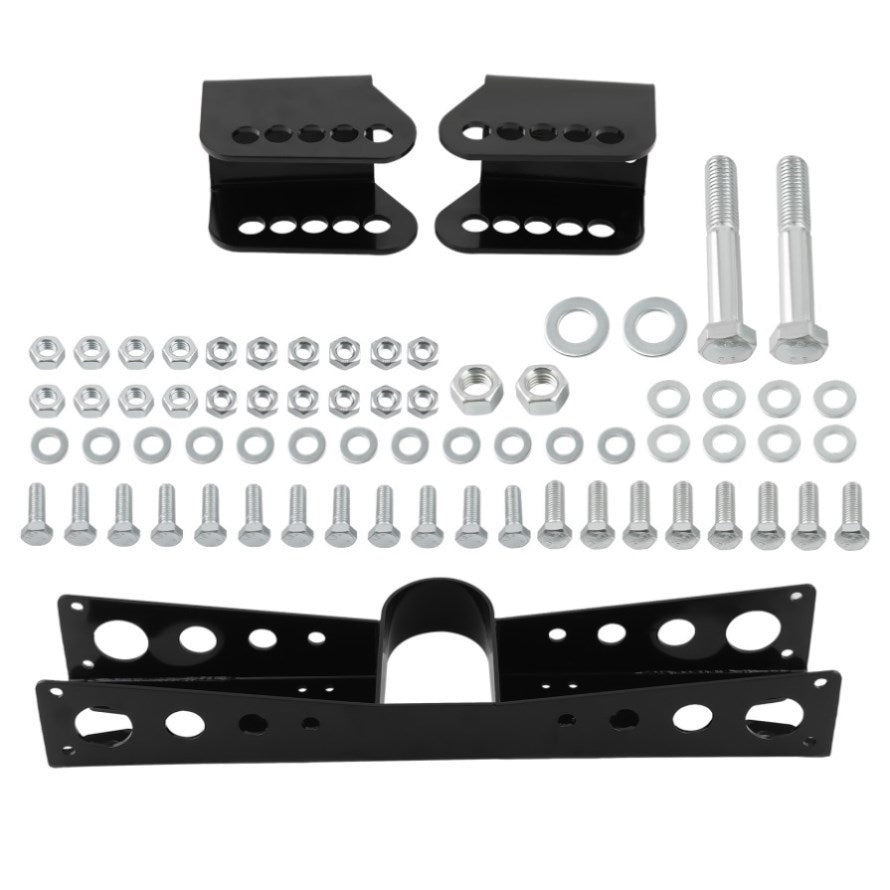

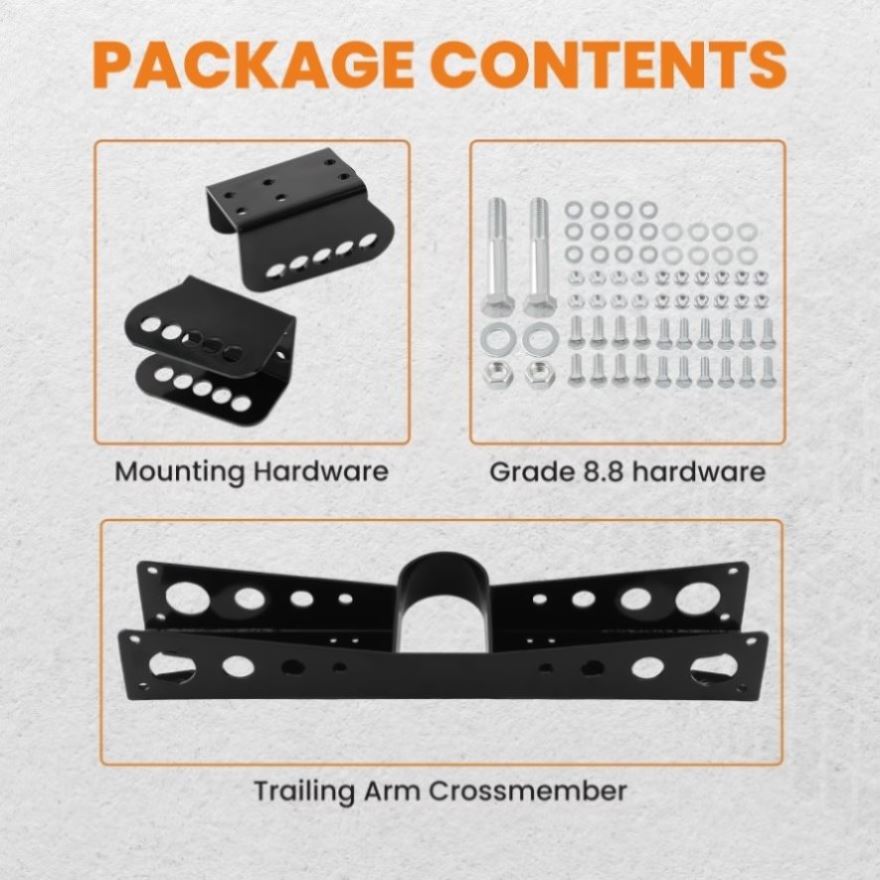

Package included:

Grade 8.8 hardware
Anti squat provisions
Trailing Arm Crossmember

Note:

Please feel free to contact us for whatever we can help.

NOTIECE:

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
