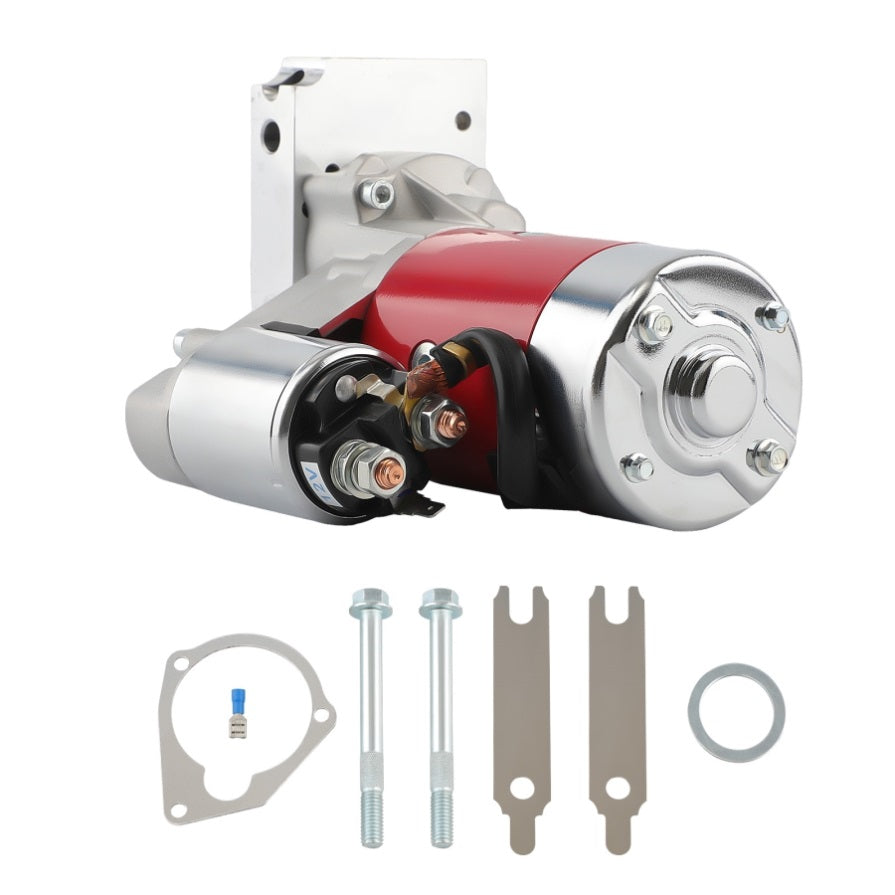

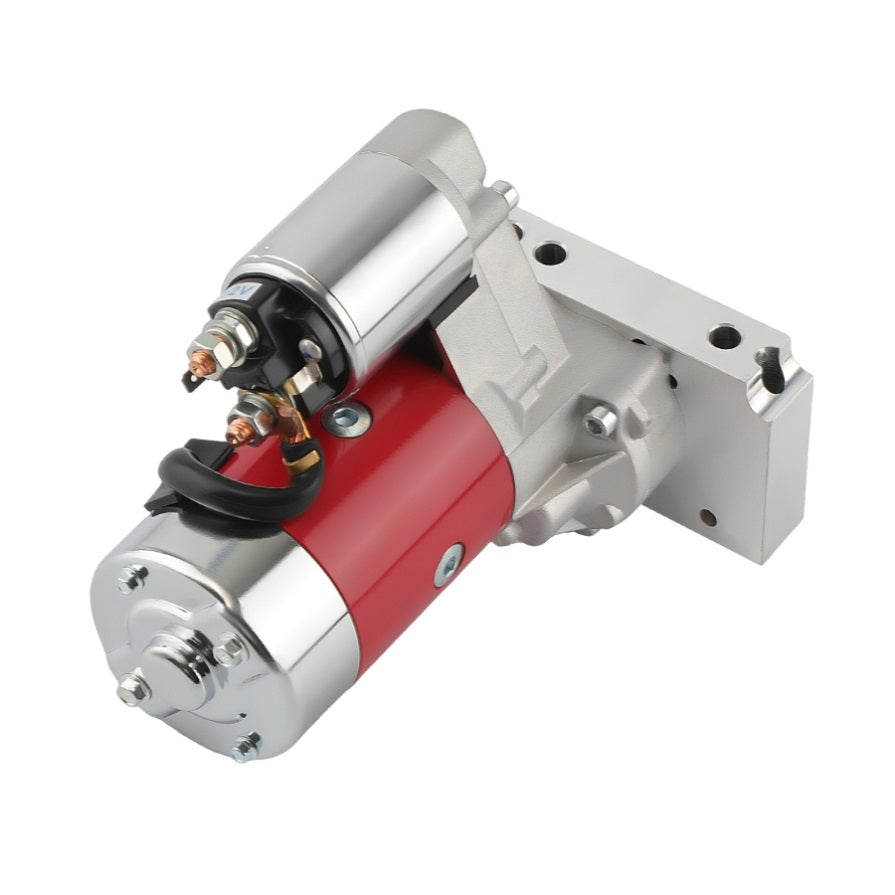

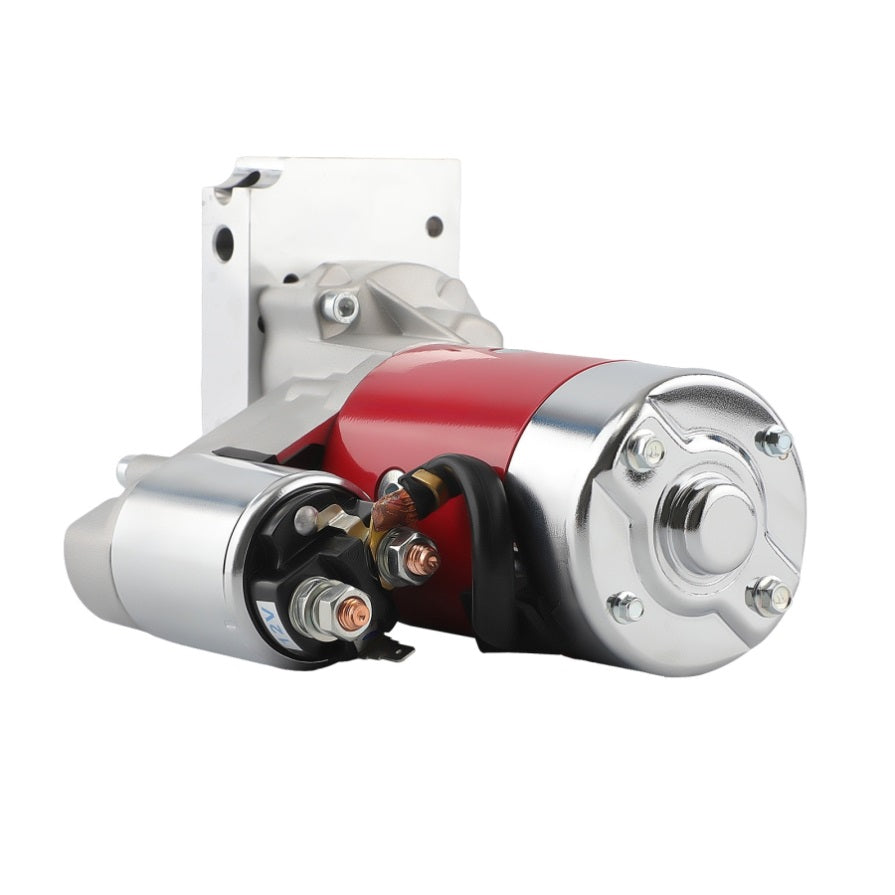

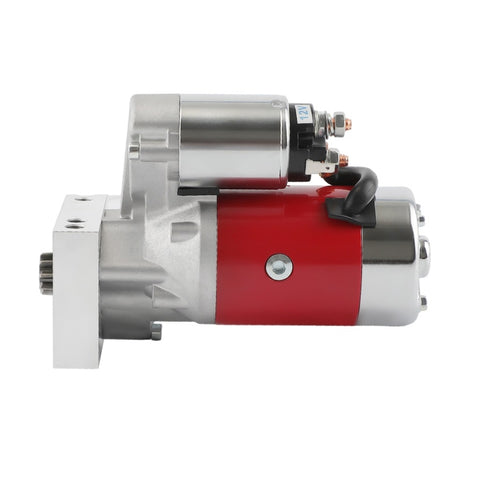

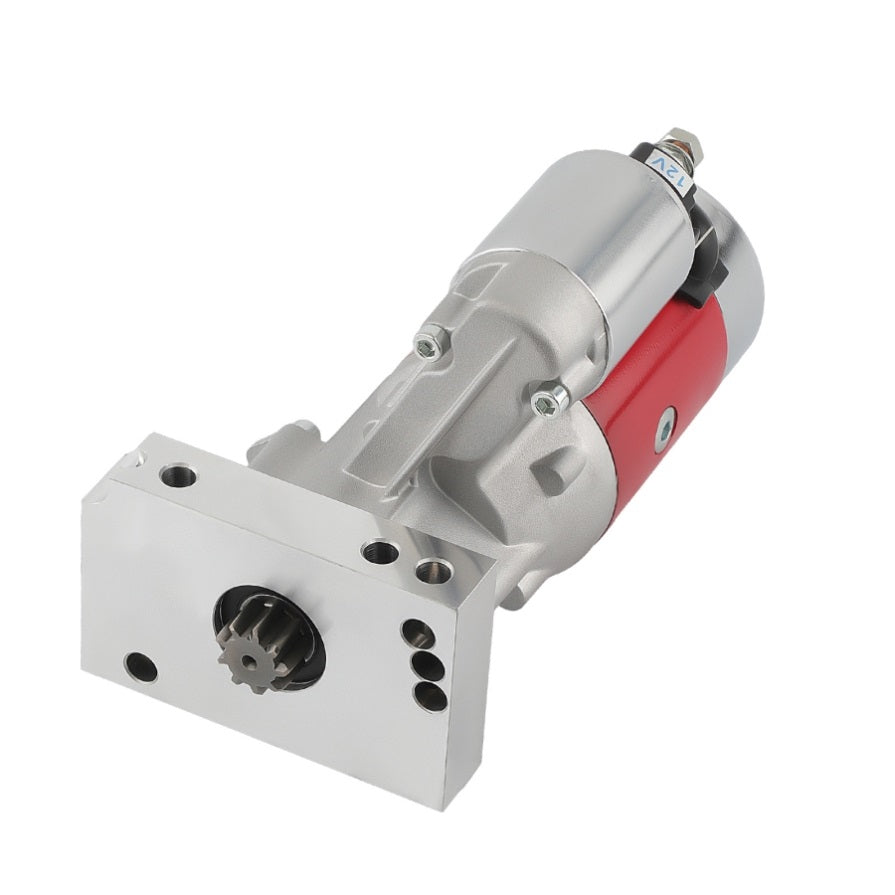

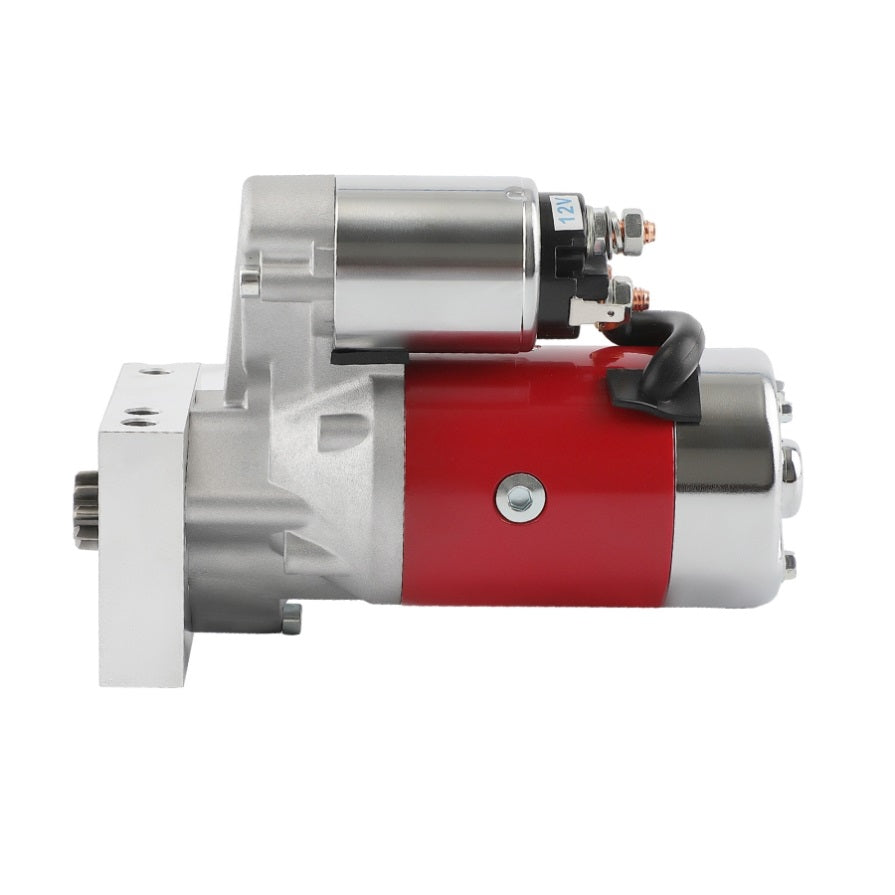

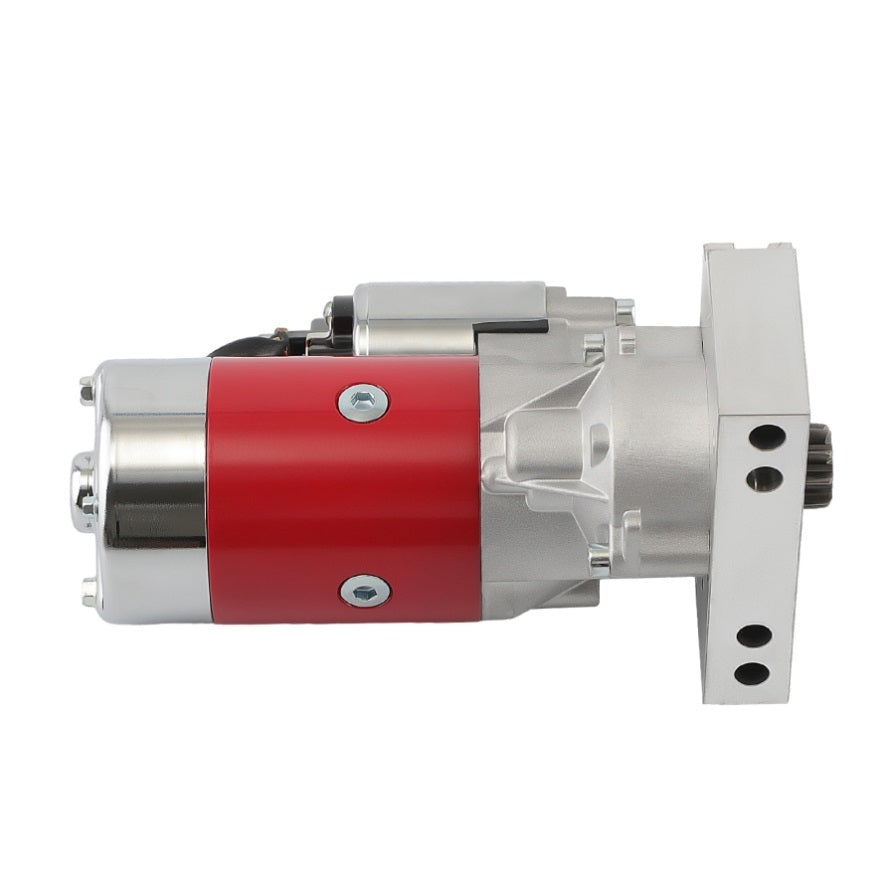

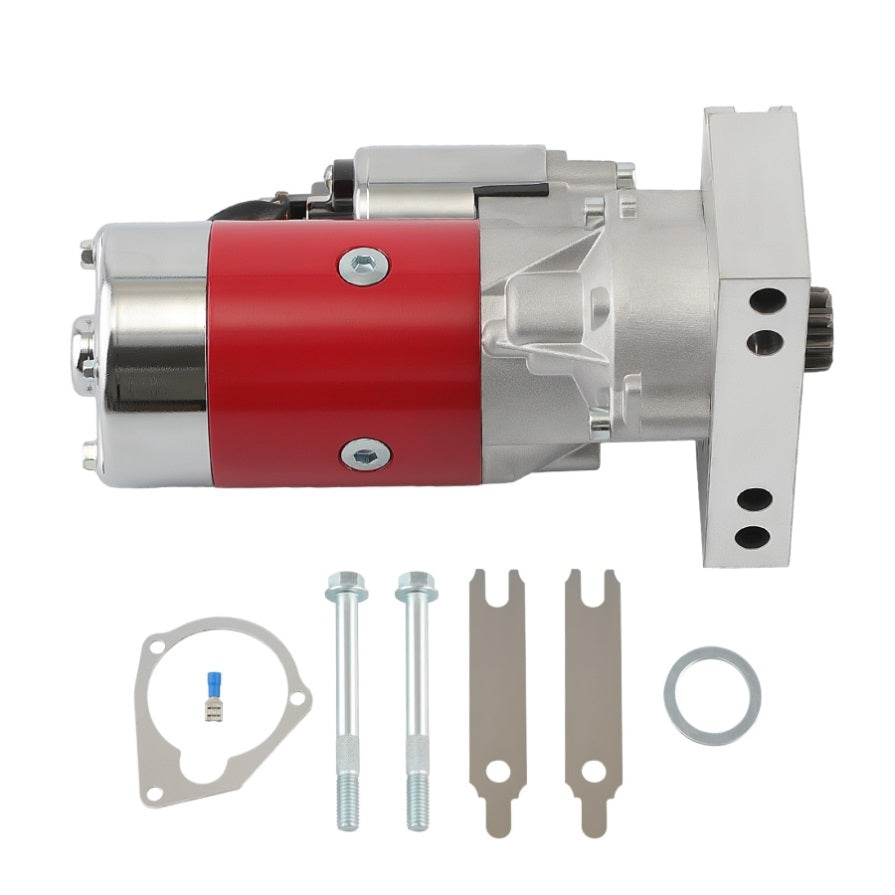

Starter Motor Fit for Chevy Chevrolet V8 Small Block Big Block 18493 18493N 12V 9TH 18493, 18493N, 00304542

Application:

Fit for Chevrolet Small & Big Block 262-454 CID V6-V8, w/ AT or MT, w/ 153-Tooth or 168-Tooth Flywheel (up to 18:1 Compression Ratio)

OE/Part Number:

18493, 18493N, PP106, PE106, 91-25-1201, 91251201, 91-25-1201N, 91251201N, S1963N,

244-1603, 2441603, 4N1603, 441603, 44-1603, 114999, 18493N-C, 18493NC

Specification:

Color: Red

Material: Aluminum

Voltage: 12

Type: 3HP / 3Horsepower

Tooth Flywheel: 153 168

Number of Teeth: 9

Power: 2kW / 2.68HP

Rotation: Clockwise / CW

Starter Type: OSGR

Gear OD: 0.988in / 25.1mm

Version: High Torque Version / 3-Clocking Positions

Mtg Ear 1 Hole: 10mm Unthreaded

Mtg Ear 2 Hole: 10mm Unthreaded

Mtg Ear 3 Hole: 10mm Unthreaded

Feature:

Heavy Duty 2.0kW, 3HP, OSGR, 12 Volt, CW, 9-TOOTH Pinion

Ideal for High Compression Engines up to 18:1 Compression

Soolid Billet Aluminum Mounting Block

Torate Motor Position for Additional Clearance

Full Ball Bearing Design

Compact Design for More Clearance between Oil Pan & Headers

Larger Field Windings, Stronger Armature, Bigger Brushes and 1 inch Longerh than the S1935N

Installation Note:

To use this type of starter you must verify that it has three bolt holes on the starter pad. You will use two of the three holes to mount this starter but they must be straight across from each other to accept this starter. This starter cannot be installed if the two holes are staggered.

PS: Check your block for starter bolt pattern used, 454 blocks many times had a staggered bolt starter.

Note:

* Professional installation is highly recommended (No Instruction Included).

* For any needs please contact us.

Code:MGGRP
