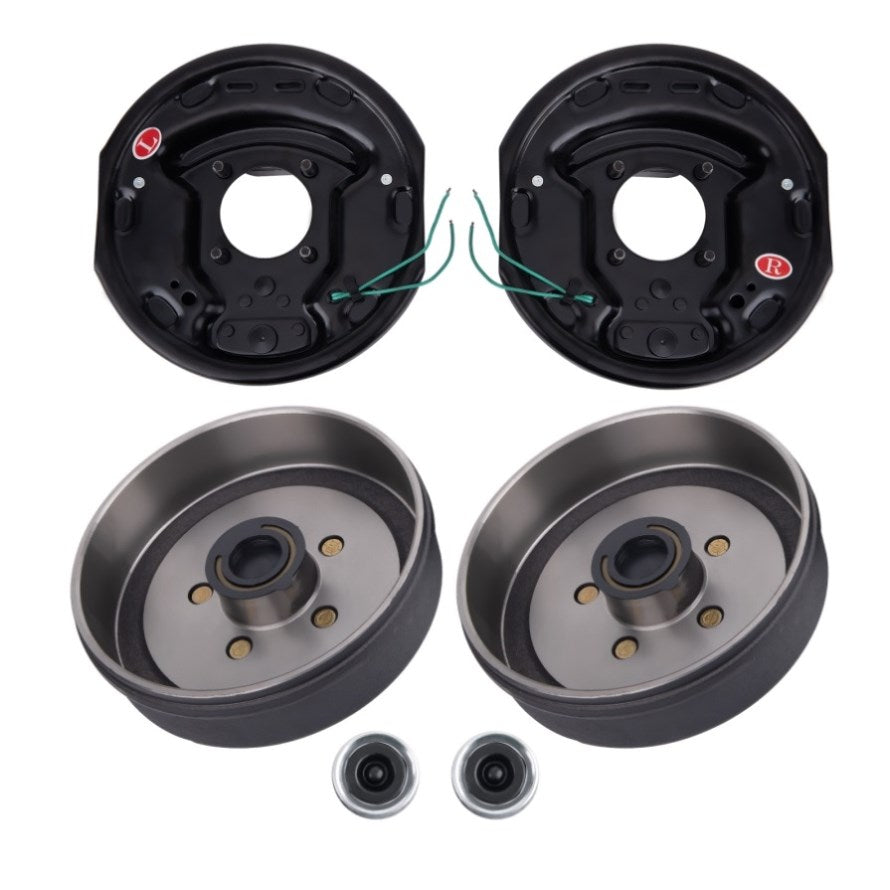

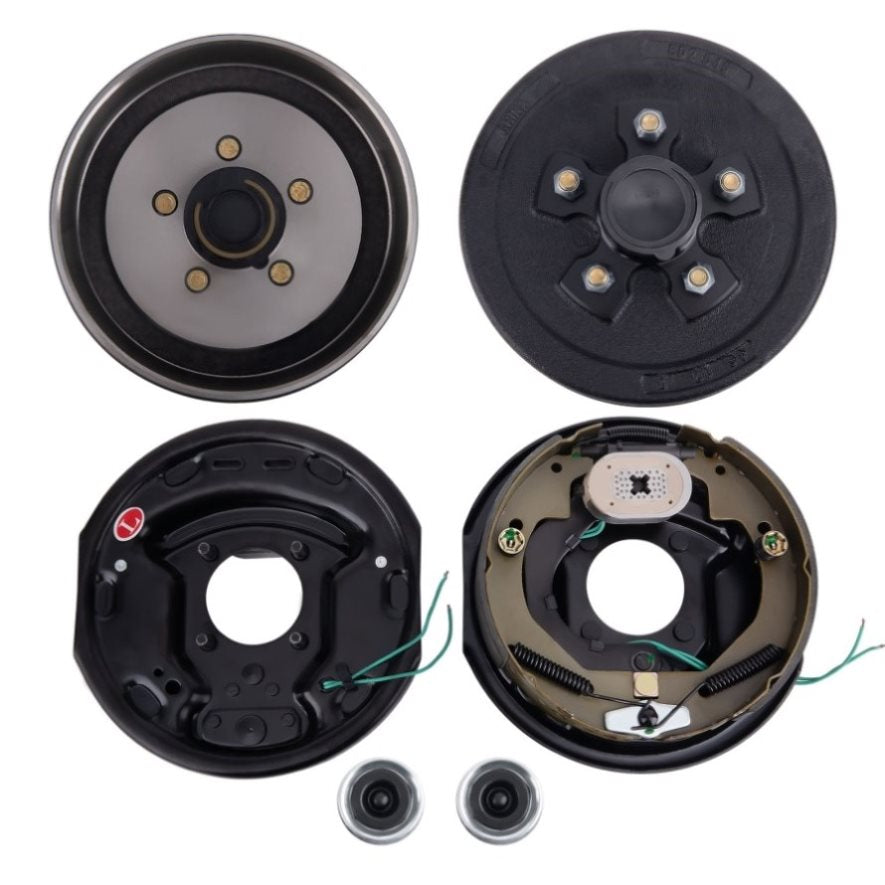

Trailer 5 on 4.5 Hub Drum Kits 10"X2-1/4" Electric brakes Fit For Complete Electric Brake Assembly 44013989
Fit For:
Complete Electric Brake Assembly and Hub Drum Kit, 3,500 lb 10"x2.25".

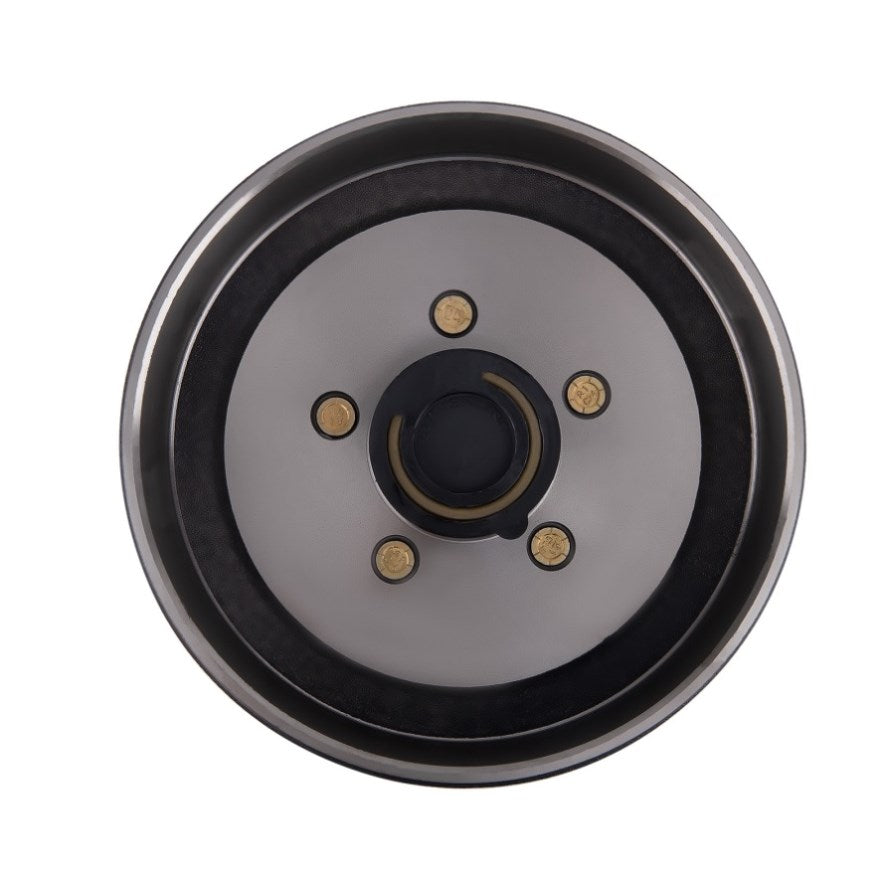

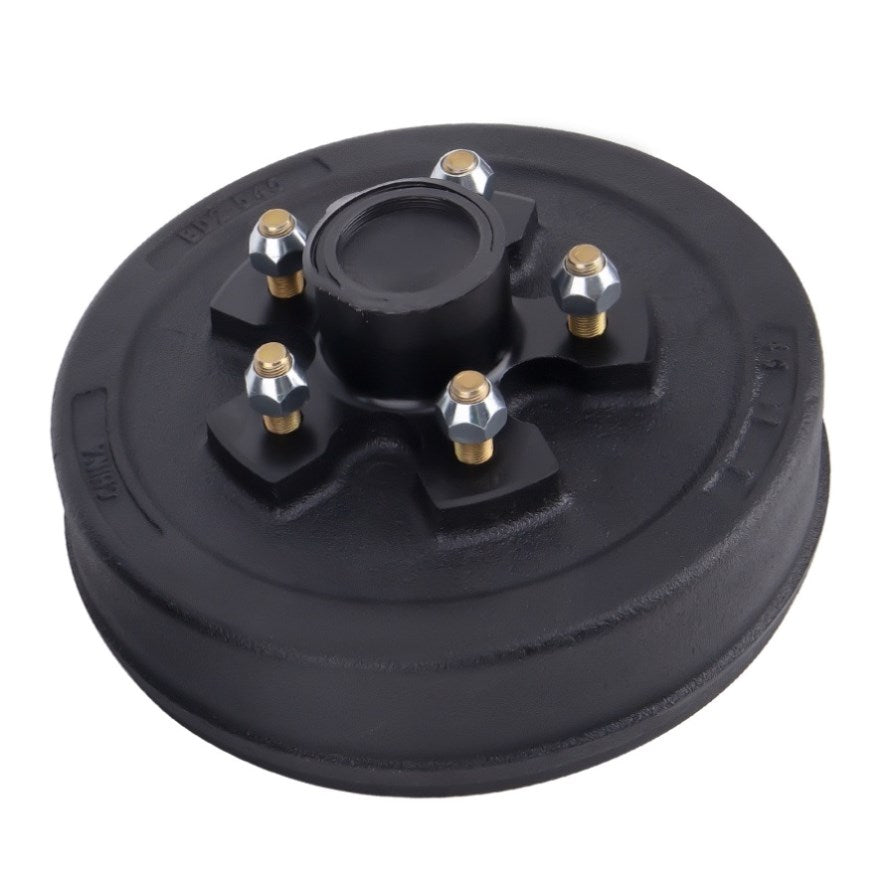

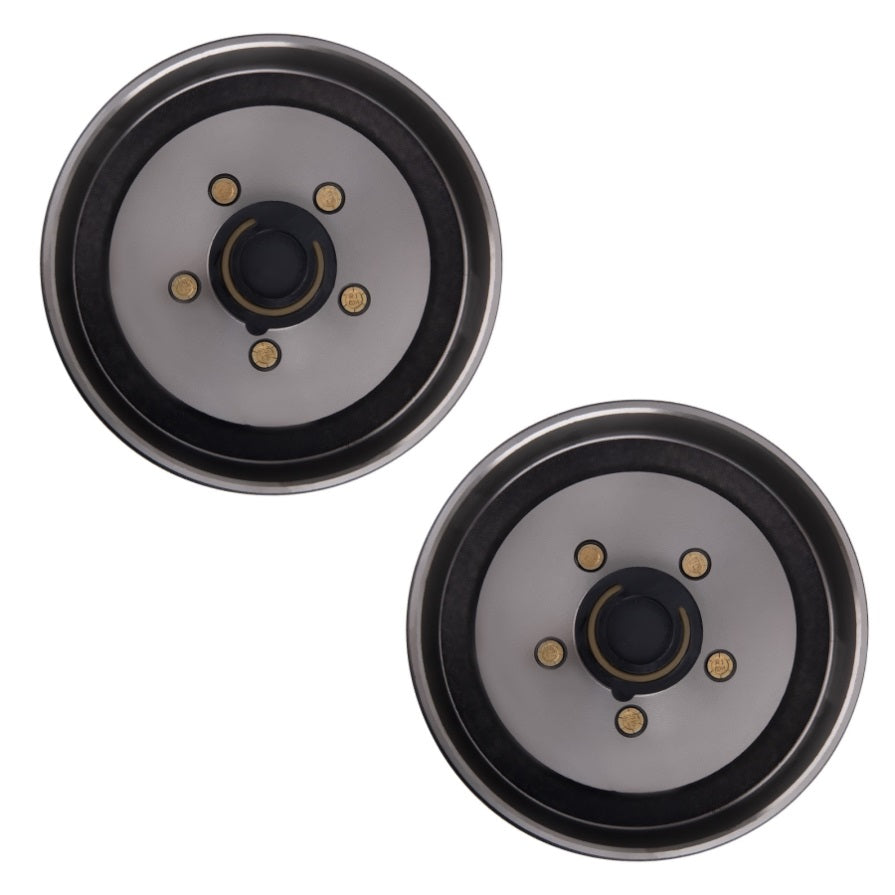

Drum feature:
(1) 5 on 4.5" bolt pattern
(2) 5 x 1/2"-20 studs installed
(3) 2 x bearing races installed
(4) Replace part #. 008-247-05, 84546
(5) Bearing Kits with Hardware.

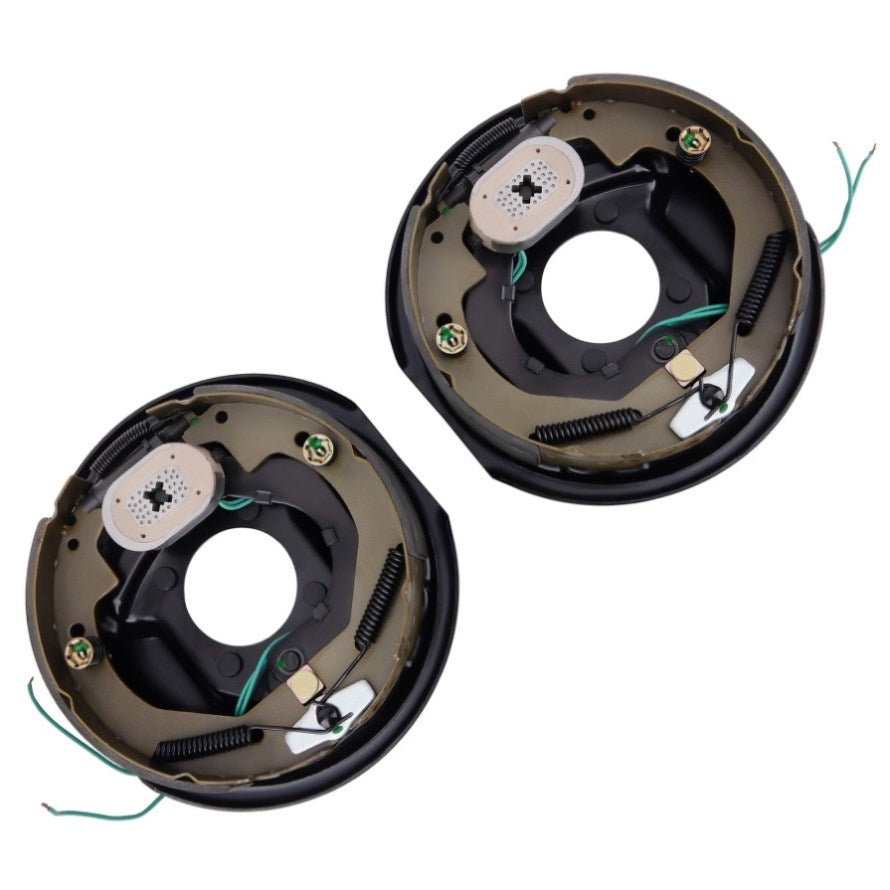

Brake Assembly features:
(1) Left / Right Hand 10" x 2-1/4" Electric brake
(2) Works on Dexter and other brands 3500 lbs axle in the market
(3) Center hole dia: 3"
(4) Mounting bolt circle dia: 4"
(5) This drum and brakes have been sold by large quantity to trailer axle manufacturers nationwide
5 on 4.5" bolt pattern.
Fits most other 3,500 lb idler axles with #84 spindles. You must match your bearing numbers and bolt pattern prior to ordering. Make sure your axle has a 4bolt brake flange installed behind your hub to bolt these brakes to, bolts are 2.75" standard square pattern (or 4 on 4" diameter).
NOTE:
* Please confirm your old part number matches up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
