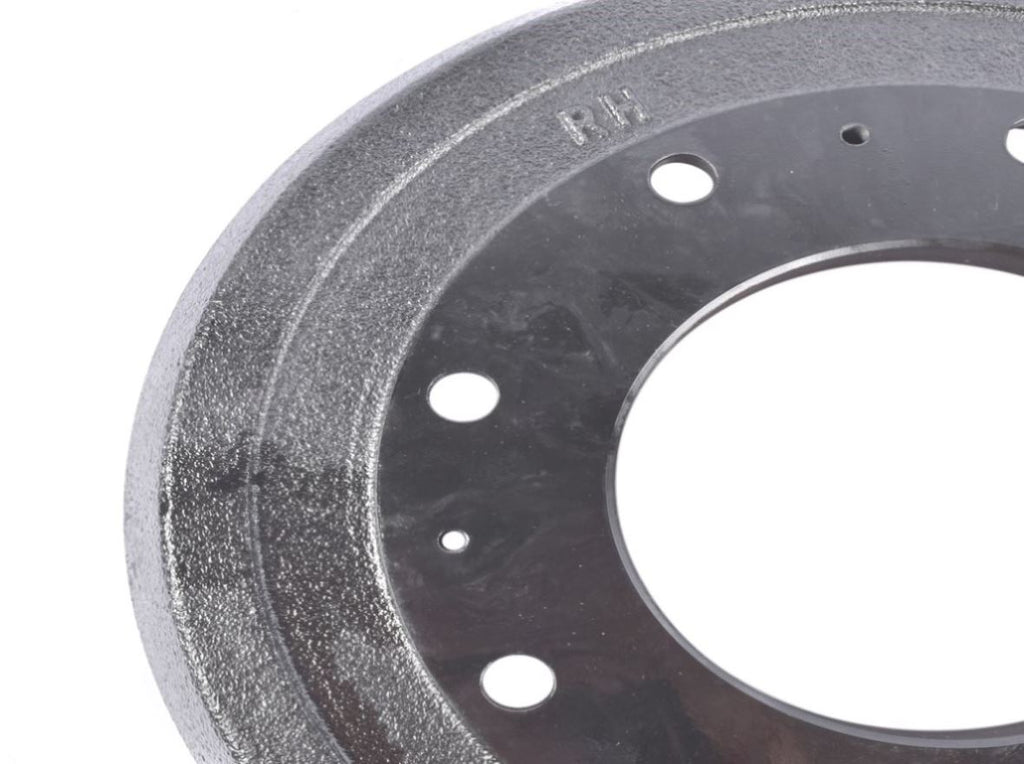

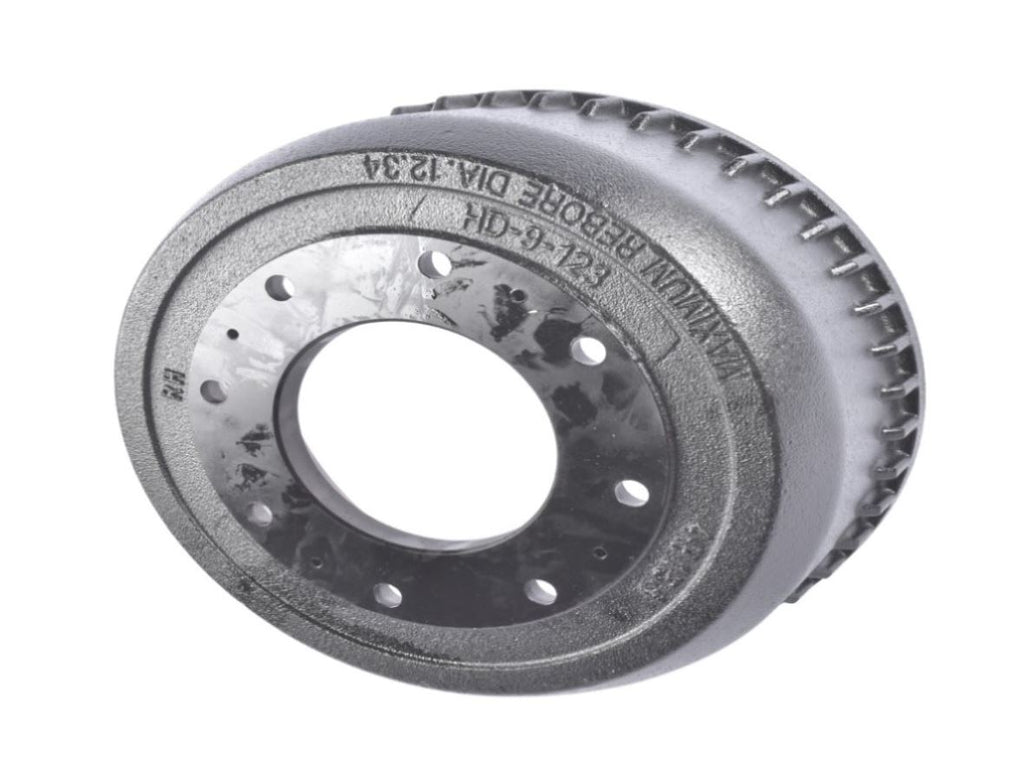

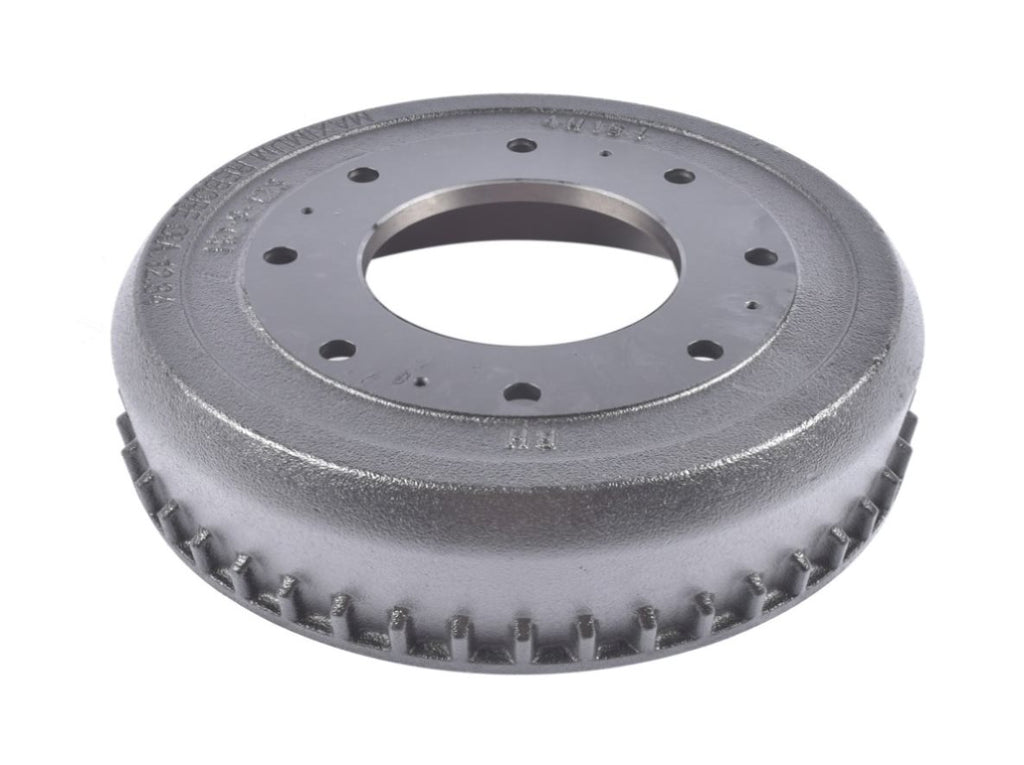

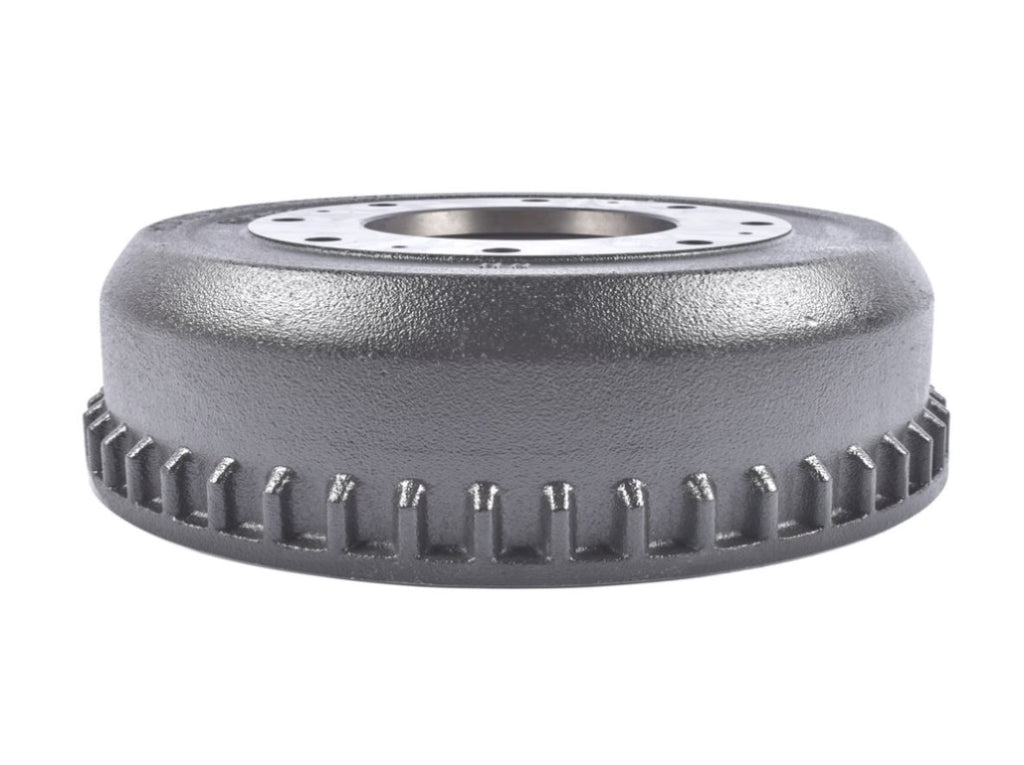

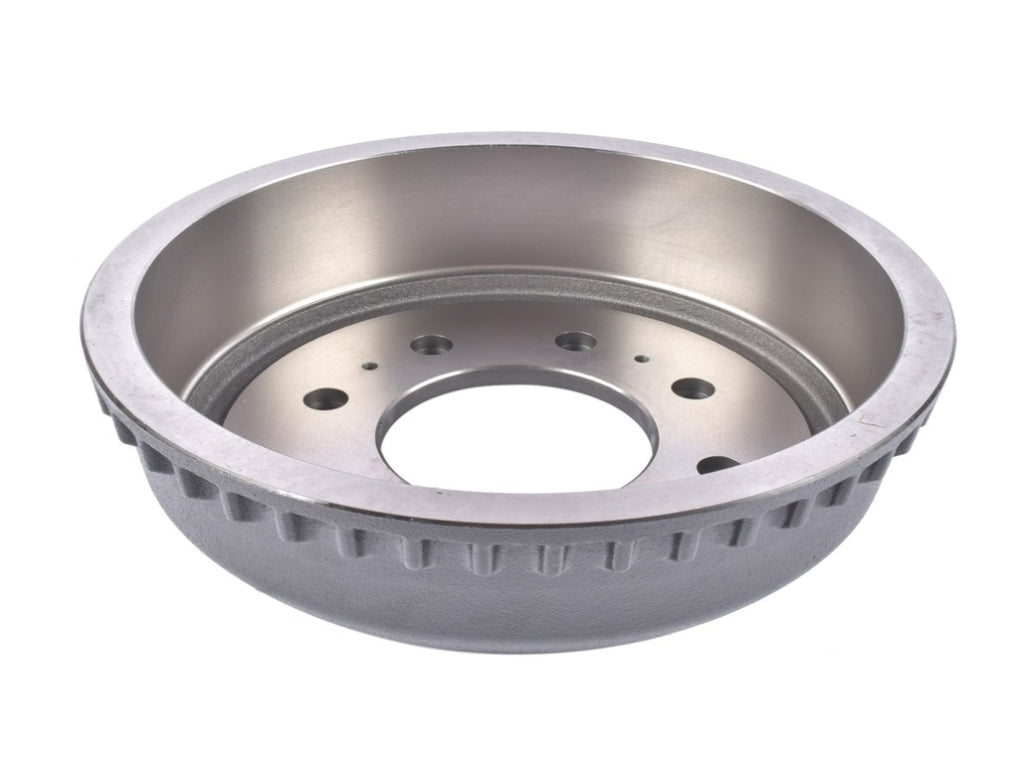

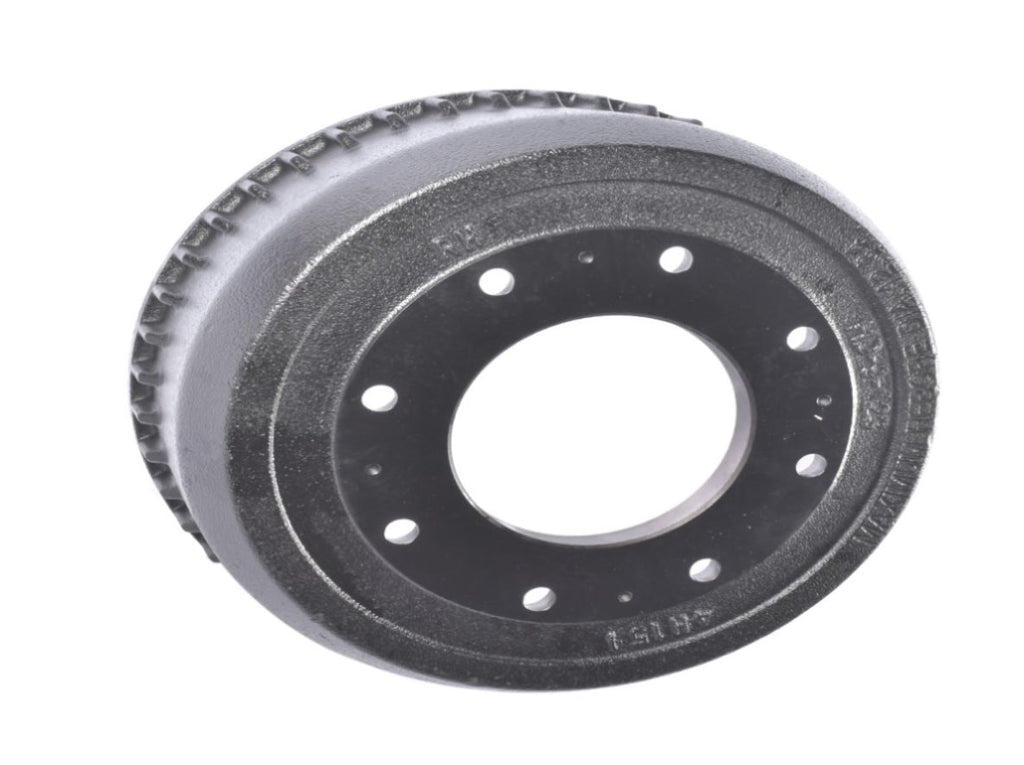

Trailer Brake Drum for 9,000-10,000 lbs. Axle Non ABS Electric Hydraulic 8 Holes 07277139

Description:

Axle capacity - 9,000-10,000 lbs. General Duty (Manufactured Before July 2009)

Drum Capacity - 5,000 lbs.

Bolt pattern - 8 On 6-1/2''

Hub Pilot - 4-3/4''

This brake drum is commonly used for Dexter Axle 9K, 10k, and 13G 12.25" x 3.375" brakes.

Brake Diameter: 12-1/4"

Brake Width: 3-3/8"

Non ABS Electric and Hydraulic Application

Holes: 8

Bolt Circle: 7-1/2"

Features:

Heavy-Duty Build: This brake drum is constructed with high-strength materials to withstand the demands of heavy loads and provide long-lasting performance.

Axle Compatibility: Designed to fit 9000, 10,000 lbs. (10K) GD and 13G axles, this brake drum offers compatibility with a range of trailer configurations.

12-1/4 x 3-3/8" Size: With its 12-1/4-inch diameter and 3-3/8-inch width, this drum provides effective braking performance for heavy-duty axles.

Precision Engineering: The drum is designed with precision engineering to meet industry standards, ensuring consistent and reliable braking performance.

OEM Part Number:

9-123, 009-123-01, 009-123-03

8-430-03, 8-430-05, 8-430

Package Includes:

1x Trailer Brake Drum
