Turbo Turbocharger VF52 Fit For Subaru Forester 2.5XT 2007-2011 Impreza WRX 2.5L Gas 2009-2014 65740520

Adaptability for :

Fit for Subaru Impreza WRX 2009-2014

Fit for Subaru Legacy 2005-2009

Fit for Forester 2.5XT 2007-2011

Fit for Outback 2005-2009

Turbo Model: RHF5H, RHF5H 09 098E

Turbo Part Number:

14411AA800,14411-AA800,1-4411-AA800,

40-30186 R,VF52, VF55,

Specification:

Compressor Wheel Diameter: 46/59mm

Turbine Wheel Diameter: 47/51 mm

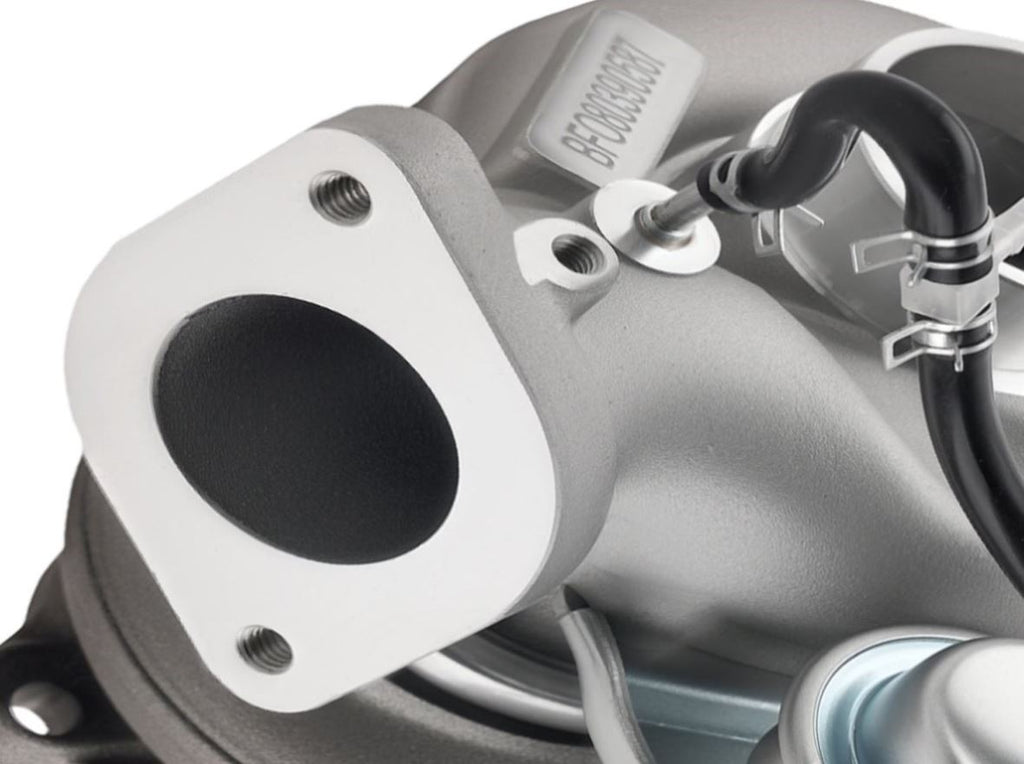

Exhaust Inlet Flange: 3 Bolts

Exhaust Outlet Flange: 5 Bolt

Nozzle Area: 7cm

Turbo Model: RHF5H, RHF5H 09 098E

Engine Code: 6MT, EJ25 2.5 GT

Cooling Type: Water & Oil Cooling

Thrust Bearing: 360 Degrees

Horsepower: 320HP

Bearing Type: Floating Bearing

Turbo Type: Individual

Condition: 100% Brand New

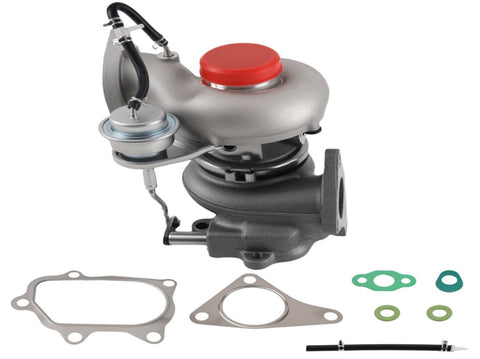

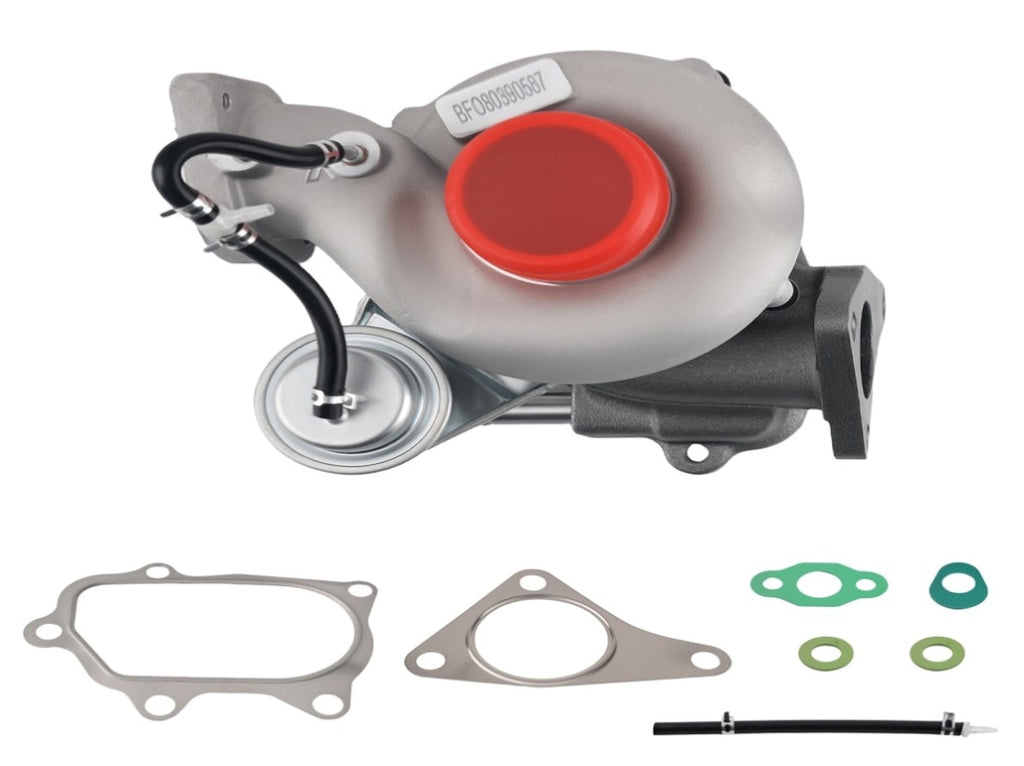

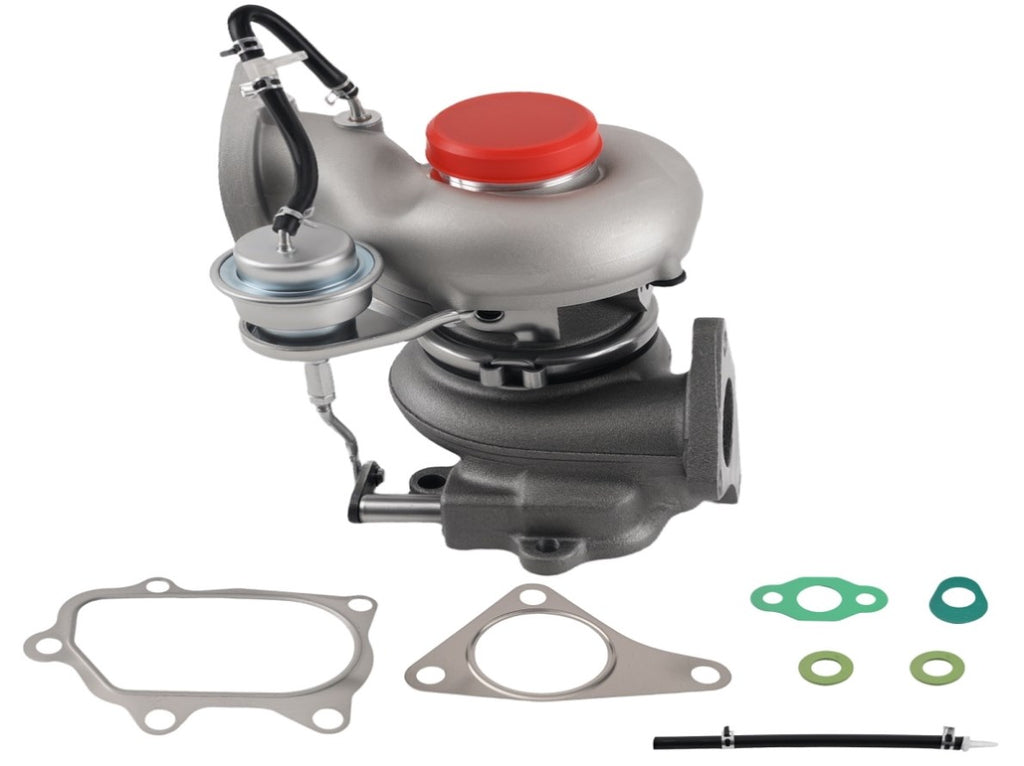

Accessories: You will get exactly as shown in the picture above

Package Weight: 6740g

Package Size: 30*28*24cm

Feature:

* Product Material

1. Turbine housing:  Ductile iron QT450-10- temperature resistant up to 700℃

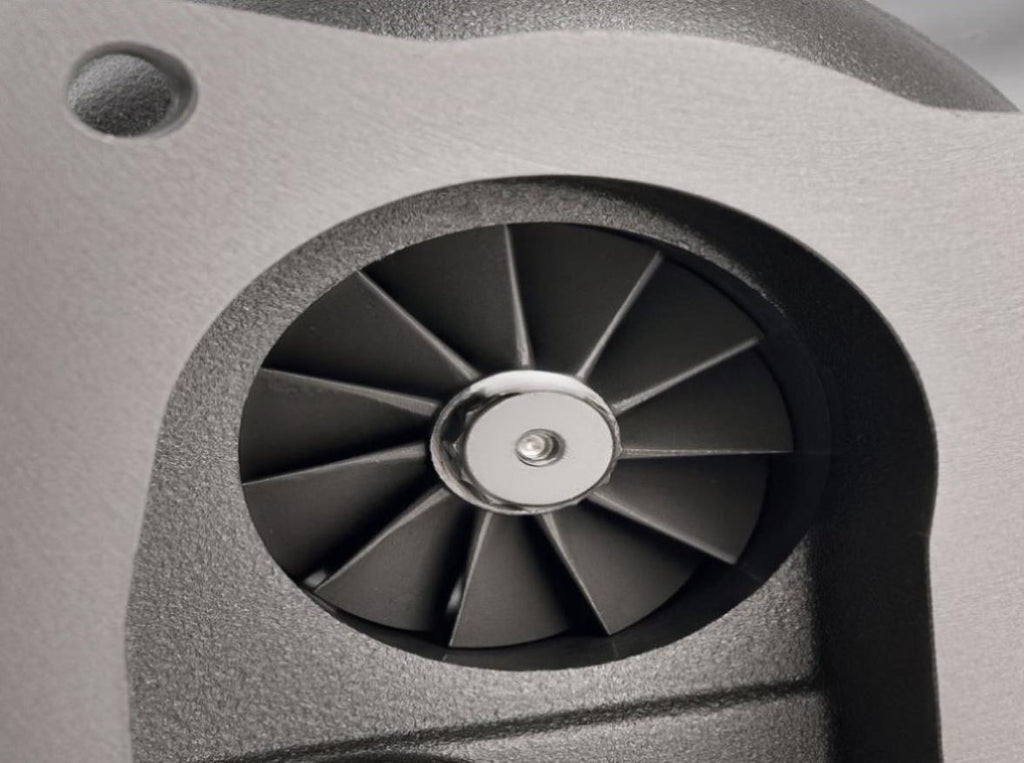

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

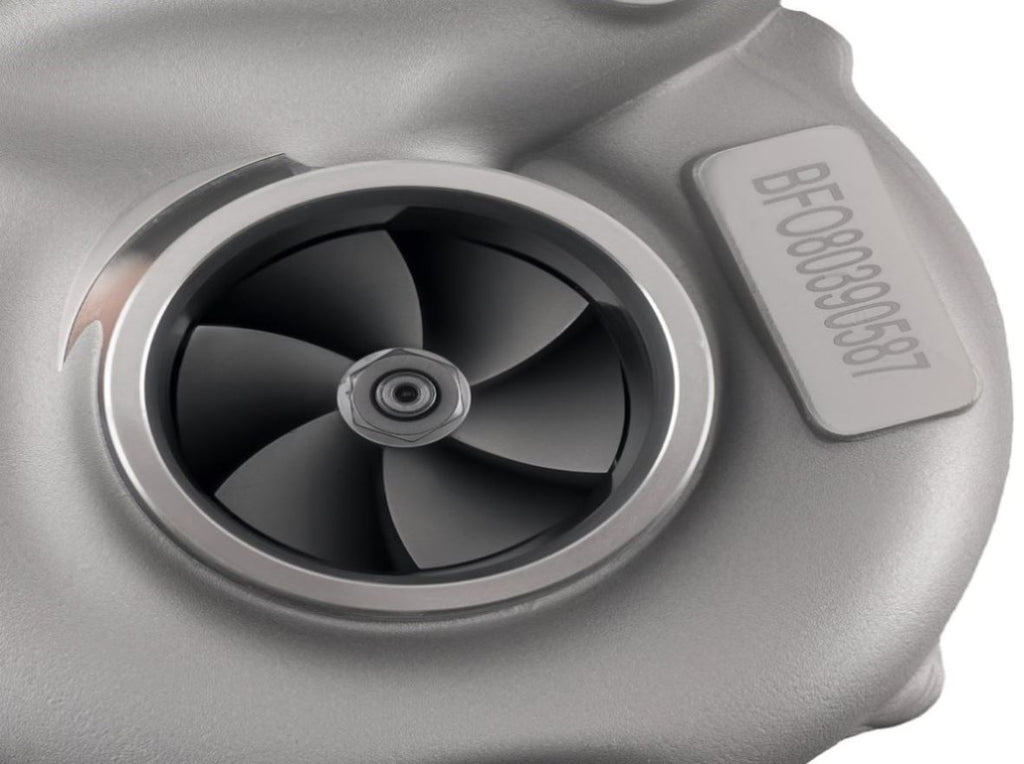

4. Compressor wheel/blades:  Cast aluminium blades – superior air tightness & corrosion resistance

* Product

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programme

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

How to Find Turbo Code:

If you are not sure the fitment for your old turbo , please let us know this information on your old turbo :

1 . The OEM/ part number information on your original turbo nameplate

2 . The Engine code & KW , HP , Year for your car

3 . The Photos of  your complete turbo

4.  Please note that the registration number cannot identify the turbo application
