Turbocharger Turbo fit for BMW 520i 528i X1 X3 xDrive 20i 28i N20B20 2.0 49477-02003 10838414
Applications:
Fit for BMW 320i (F30, F35, F80) with N20B20 Engine 2012-
Fit for BMW 320i xDrive (F30, F35, F80) with N20B20 Engine 2012-
Fit for BMW 328i (F30, F35, F80) with N20B20 Engine 2012-
Fit for BMW 328i xDrive (F30, F35, F80) with N20B20 Engine 2011-
Fit for BMW 328i Touring (F31) with N20B20 Engine 2012-
Fit for BMW 520i (F10, F18) with N20B20 Engine 2011-
Fit for BMW 528i (F10, F18) with N20B20 Engine 2011-
Fit for BMW 528i xDrive (F10, F18) with N20B20 Engine 2011-
Fit for BMW 520i Touring (F11) with N20B20 Engine 2011-
Fit for BMW 528i Touring (F11) with N20B20 Engine 2011-
Fit for BMW 528i xDrive Touring (F11) with N20B20 Engine 2011-
Fit for BMW X1 sDrive 20i (E84) with N20B20 Engine 2011-
Fit for BMW X1 xDrive 20i (E84) with N20B20 Engine 2011-
Fit for BMW X1 xDrive 28i (E84) with N20B20 Engine 2011-
Fit for BMW X3 xDrive 20i (F25) N20B20 Engine 2011-
Fit for BMW X3 xDrive 28i (F25) with N20B20 Engine 2011-
Fit for BMW Z4 sDrive 20i (E89) with N20B20 Engine 2011-
Fit for BMW Z4 sDrive 28i (E89) with N20B20 Engine 2011-
Fit for Peugeot 508 2.2L, HDi FAP 205 with DW12C Engine 2011+
Replacement & Part Number:
49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
49477-02006, 49477-02007, 49477-02008, 49477-02051, 49477-02052,
49477-02053, 49477-02054, 49477-02055, 49477-02056, 49477-02057,
49477-02058, 11657588938, 11657635803, 7635803, 7588938
4947702001, 4947702002, 4947702003, 4947702004, 4947702005,
4947702006, 4947702007, 4947702008, 4947702051, 4947702052,
4947702053, 4947702054, 4947702055, 4947702056, 4947702057,
4947702058, 49477 02001, 49477 02002, 49477 02003, 49477 02004,
49477 02005, 49477 02006, 49477 02007, 49477 02008, 49477 02051,
49477 02052, 49477 02053, 49477 02054, 49477 02055, 49477 02056,
49477 02057, 49477 02058
Specification:
Engine: N20B20
Turbo Model: TD04, TD04LR6
Fuel Type: GAS
Cooling Type: Water Cooling
Bearing Type: Journal Bearing/Floating Bearing
Universal Fitment: No
Finish: Matte

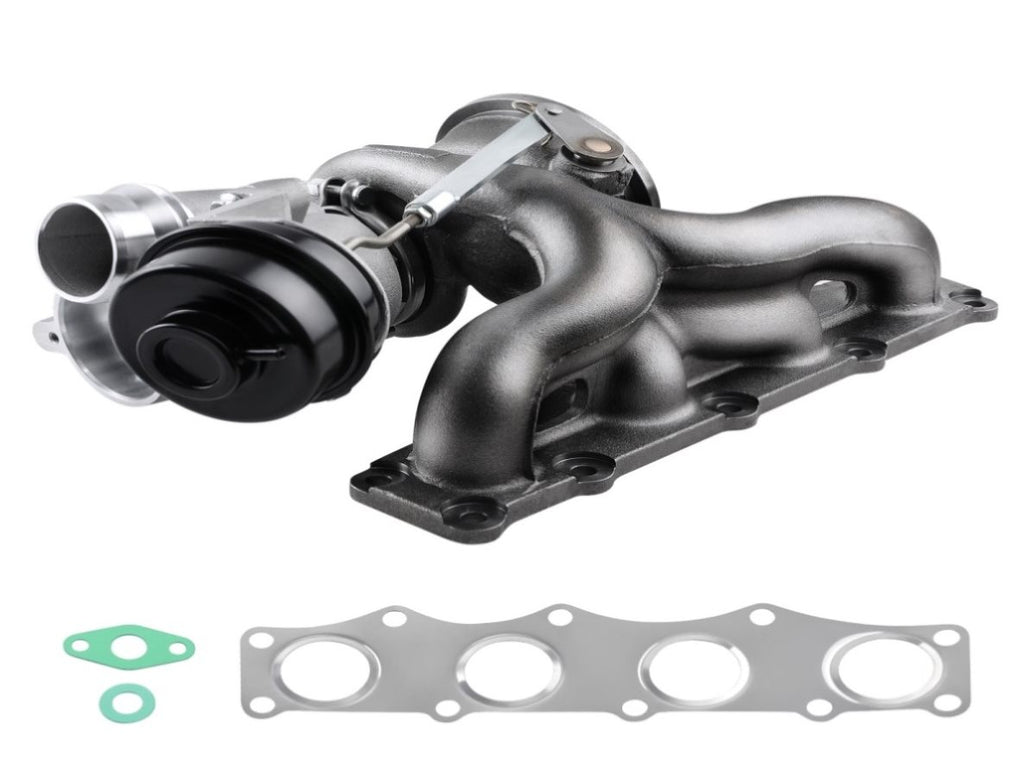

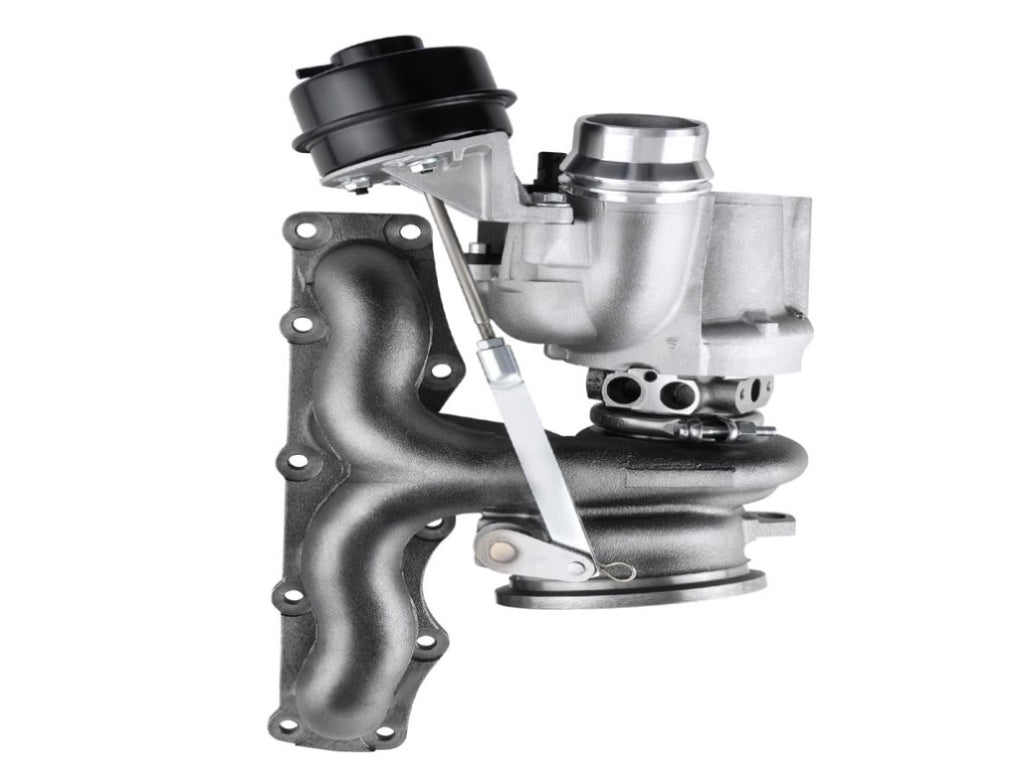

with Exhaust Manifold & Wastegate Actuator & Gasket
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 55*41*29 cm
Package Weight: 11.65 kg
Package Included:
1x Turbocharger
1x Flange Gasket
2x Oil port gaskets
1x Manual
1x Brochure
1x Sticker
Features:
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance
* Product Features
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
