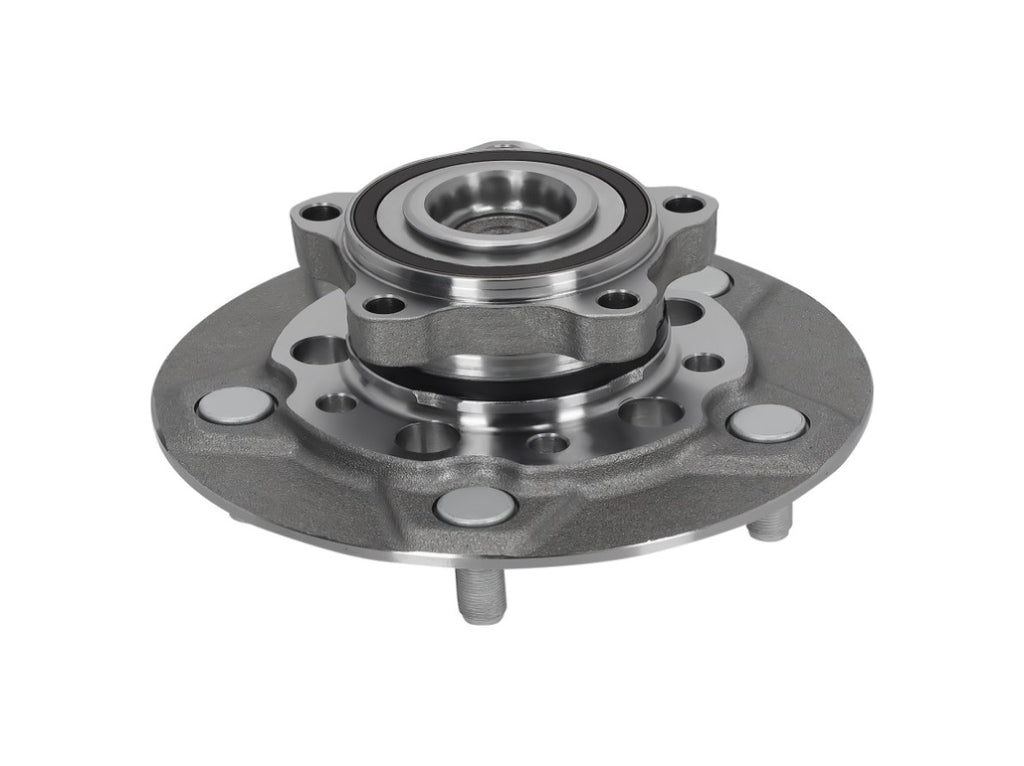

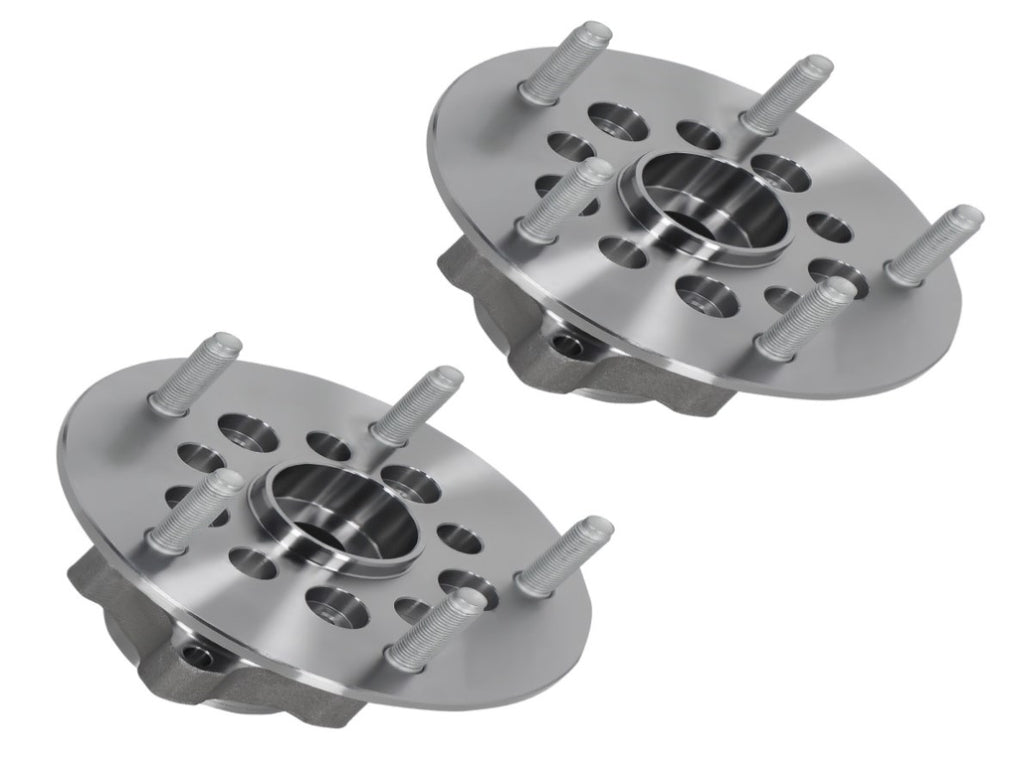

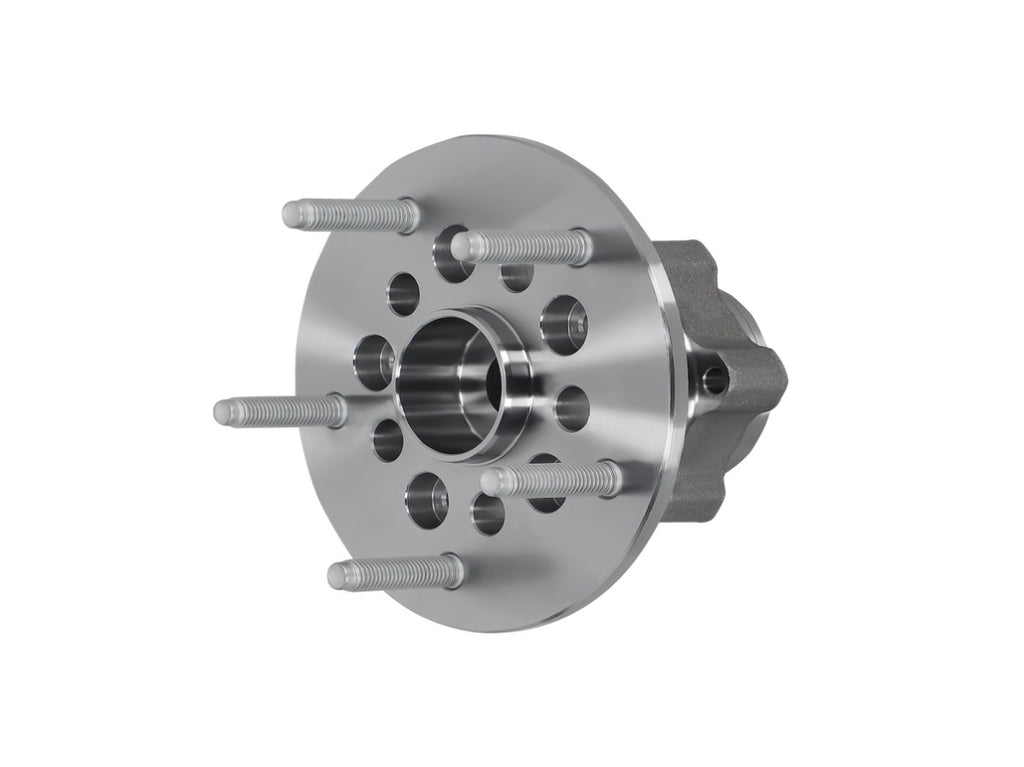

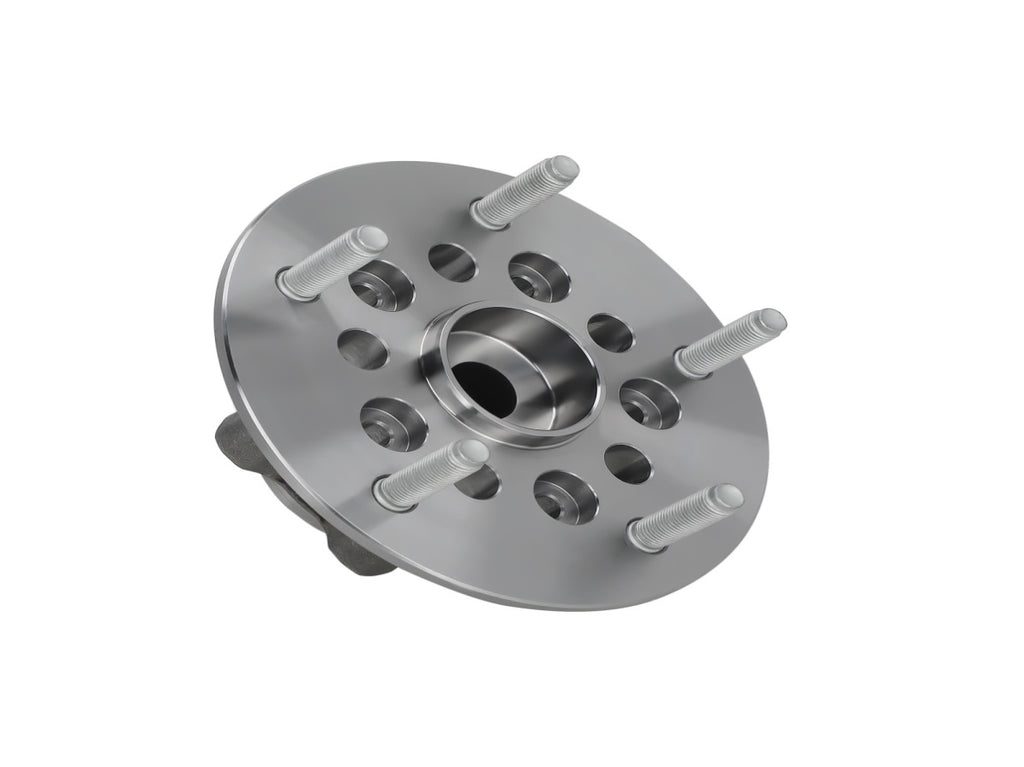

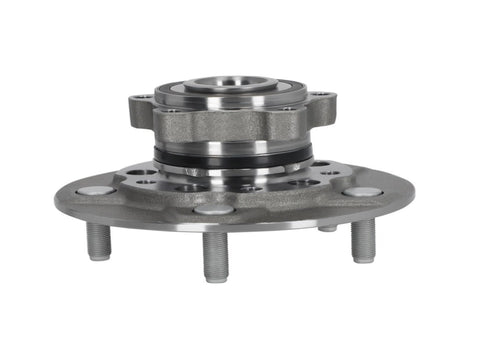

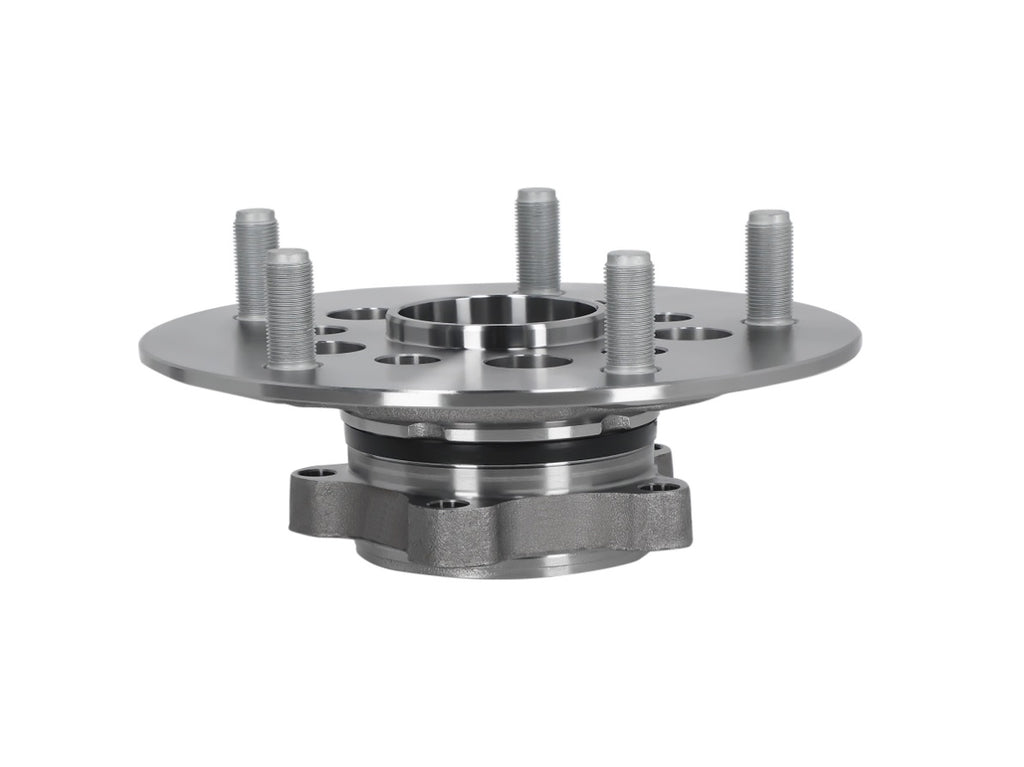

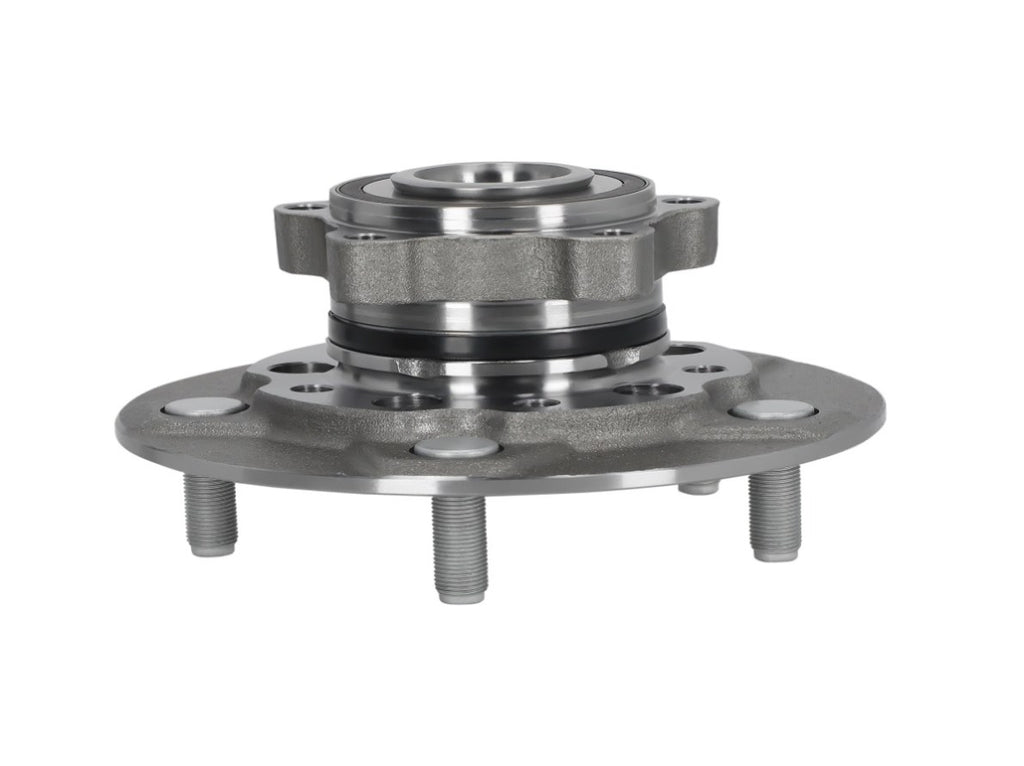

2x Front Wheel Bearing and Hubs fit for Ford Transit-150 Transit-250 Transit-350 HD 87485109
Application fit for:
fit for Ford Transit-150 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-250 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-350 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-350 HD 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-250 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-350 2015 - 2019 with Single Rear Wheels (SRW)
fit for Ford Transit-350 HD 2015 - 2019 with Single Rear Wheels (SRW)
Replace OEM Number:
515153, BR930937, HA590579
096509615096515096
096509615096515096
Specifications:
Position: Front Left and Right
Flange Bolt Quantity: 5
Wheel Stud Quantity: 5
ABS on Hub: No
Flange Type: Pentagonal
Brake Pilot Diameter: 92.9mm
Flange Diameter: 208mm
Bolt Circle Diameter: 160.1mm
Hub Pilot Diameter: 87.5mm
Flange Offset: 78.2mm
Wheel Pilot Diameter: 64.9mm
Type: Wheel Hub & Bearing Assembly
Package including:
2x Front Wheel Bearing Hub Assembly - Driver and Passenger Side - 515153
Note:
* Professional Installation ls Highly Recommended.
* Even if your car is shown in the compatibility, pls also double check the fitment detalls and photos before ordering
* If you have any questions, please feel free to contact us!
* Even if your car is shown in the compatibility, pls also double check the fitment detalls and photos before ordering
* If you have any questions, please feel free to contact us!
