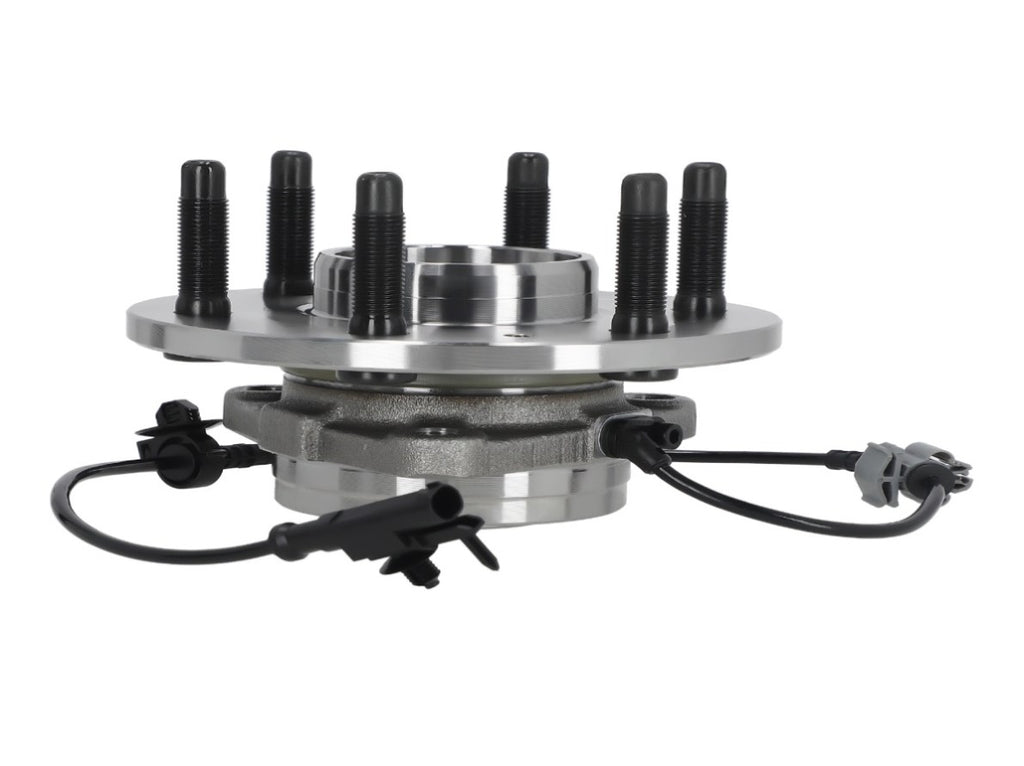

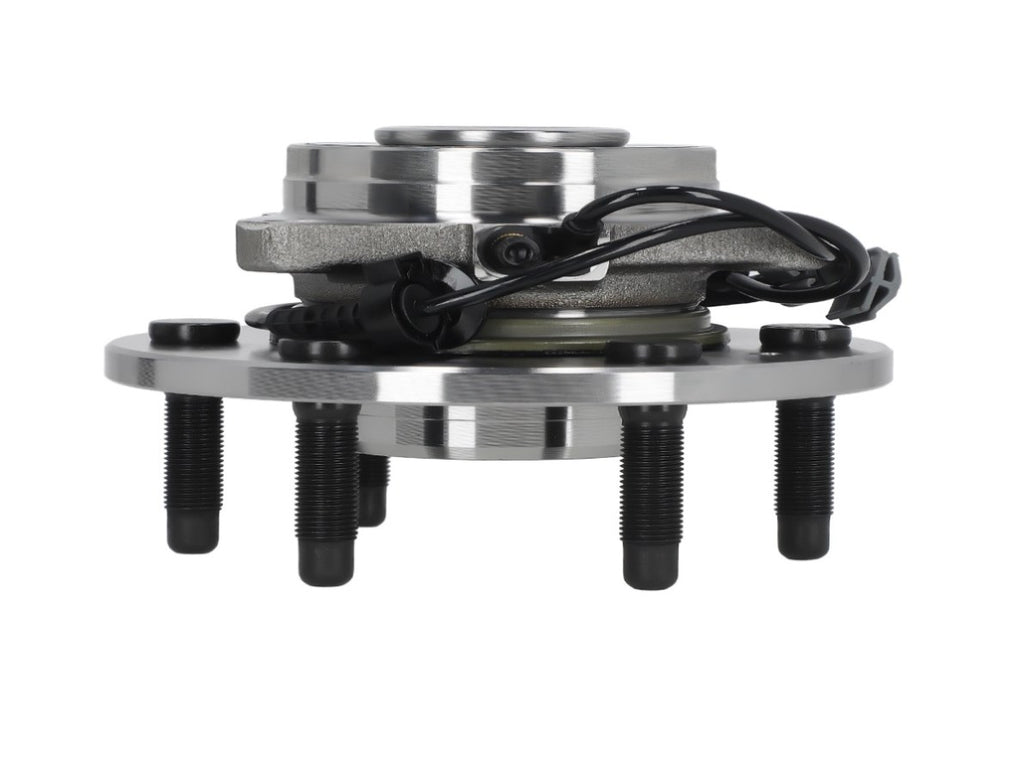

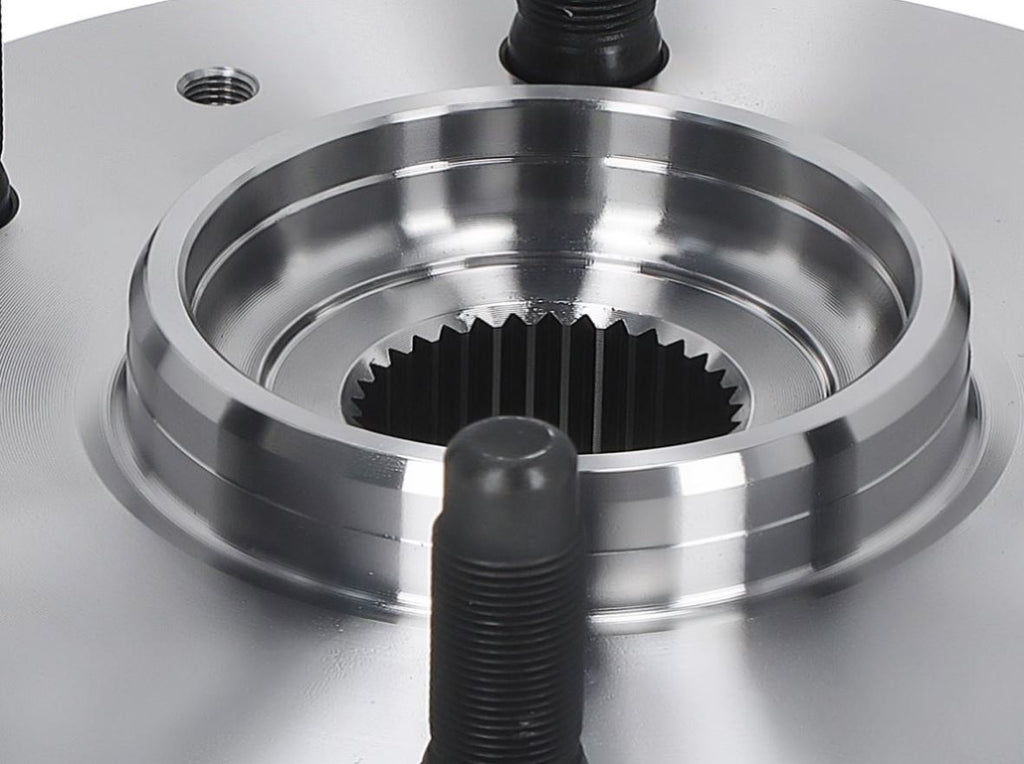

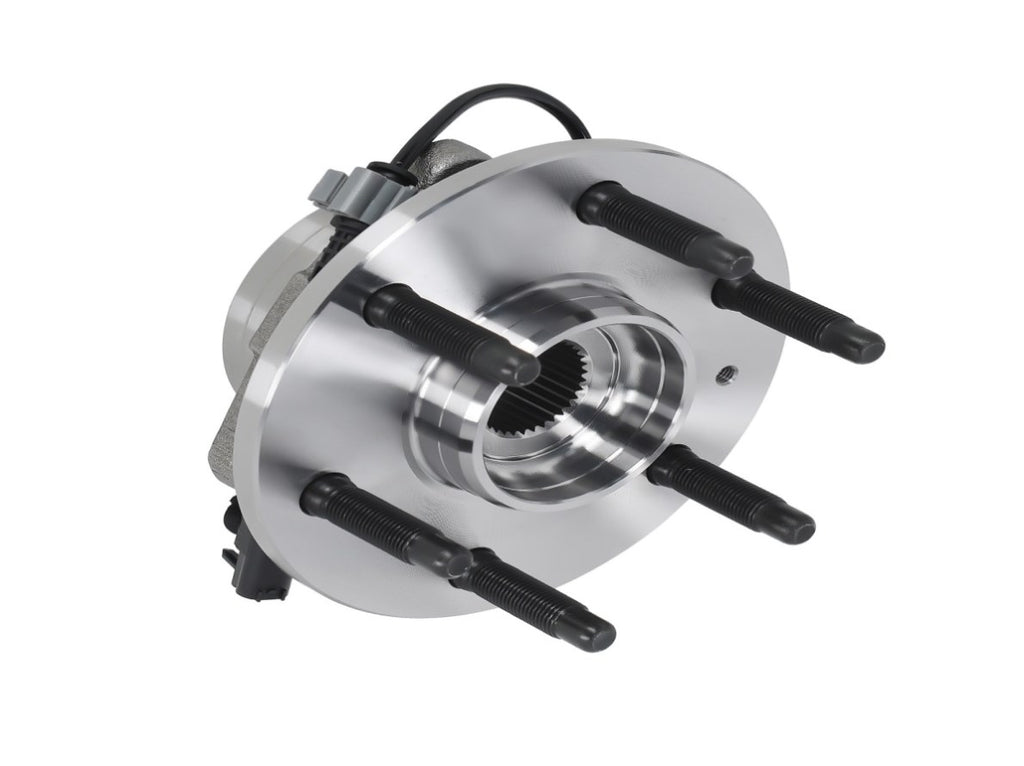

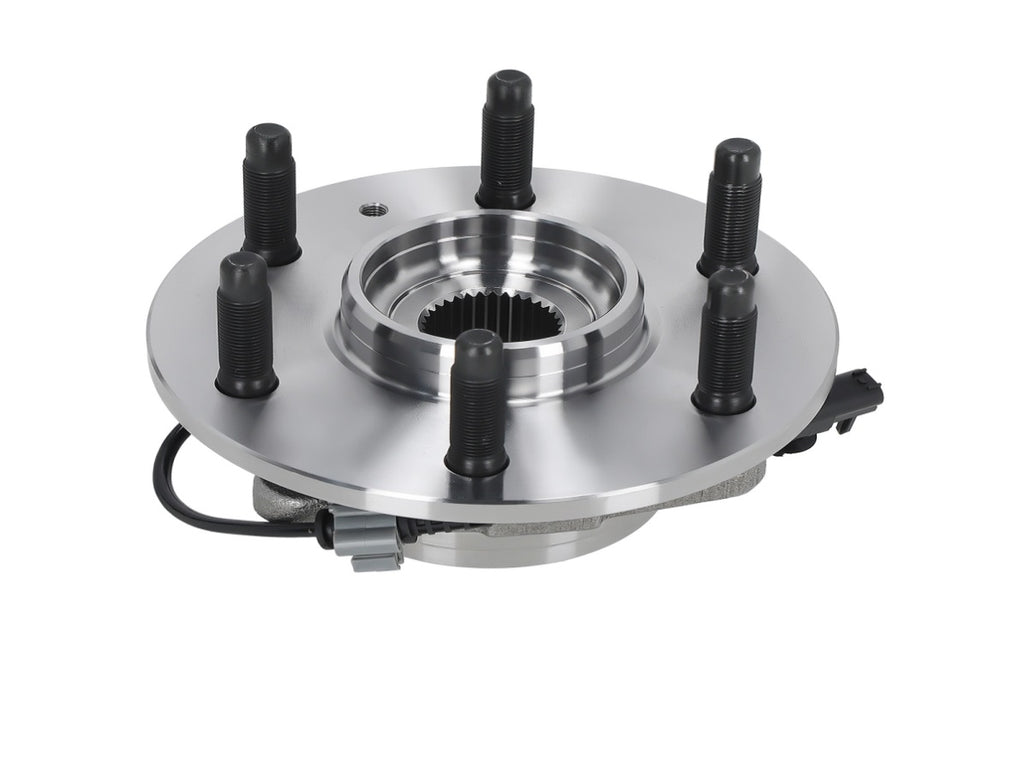

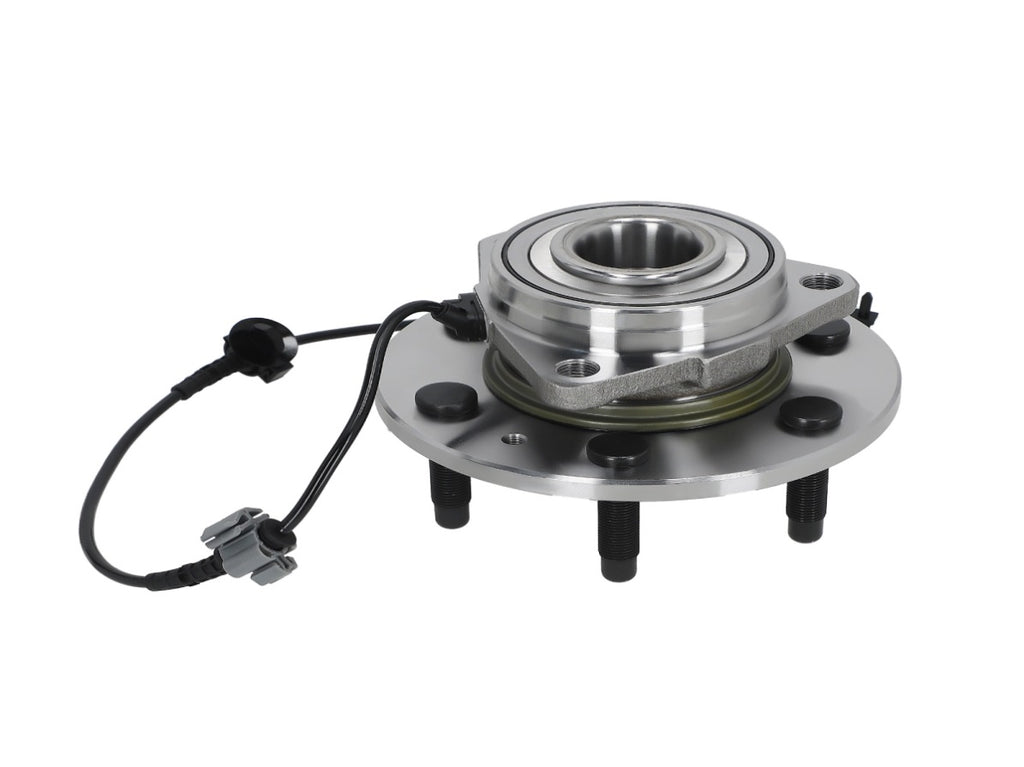

Front LH RH Wheel Bearing Hub Assembly fit for Cadillac Chevrolet GMC Silverado 1500 68507145
Package including:
1x Front Wheel Hub and Bearing Assembly
Application fit for:
fit for Cadillac Escalade(Front;AWD) 2007-2014
fit for Cadillac Escalade ESV(Front;AWD) 2007-2014
fit for Cadillac Escalade EXT(Front;4WD) 2007-2013
fit for Chevrolet Avalanche(Front;4WD) 2007-2013
fit for Chevrolet Silverado 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013
fit for Chevrolet Suburban 1500(Front;4WD) 2007-2014
fit for Chevrolet Tahoe(Front;4WD) 2007-2014
fit for Chevrolet Tahoe(Front;RWD) 2014
fit for GMC Sierra 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013
fit for GMC Yukon(Front;4WD) 2007-2014
fit for GMC Yukon XL 1500(Front;4WD) 2007-2014
fit for GMC Yukon XL 1500(Front;AWD) 2007-2013
fit for Cadillac Escalade ESV(Front;AWD) 2007-2014
fit for Cadillac Escalade EXT(Front;4WD) 2007-2013
fit for Chevrolet Avalanche(Front;4WD) 2007-2013
fit for Chevrolet Silverado 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013
fit for Chevrolet Suburban 1500(Front;4WD) 2007-2014
fit for Chevrolet Tahoe(Front;4WD) 2007-2014
fit for Chevrolet Tahoe(Front;RWD) 2014
fit for GMC Sierra 1500(Front;4WD;EXCLUDES CLASSIC MODELS) 2007-2013
fit for GMC Yukon(Front;4WD) 2007-2014
fit for GMC Yukon XL 1500(Front;4WD) 2007-2014
fit for GMC Yukon XL 1500(Front;AWD) 2007-2013
Replace OEM Number: 515096,WE60747,BR930661,25918329, 720-0024, SP500301
Specifications:
Position: Front Left or Right
Position: Front Left or Right
Material:Bearing steel 55
Lugs: 6 BoltsDrive Type: 4WD, AWD, RWD
ABS Type: Sensor Wire
Flange Type: 3-Bolt Triangular
Flange Diameter: 7.09 in. / 180 mm
Bolt Circle Diameter: 5.5 in. / 139.7 mm
Flange Shape: Triangle
Flange Offset: 1.97 in. / 50 mm
Flange Shape: Triangle
Flange Offset: 1.97 in. / 50 mm
Flange Bolt Hole Quantity: 3
Wheel Stud Quantity: 6
Bolt Size: M14x1.5
Wheel Pilot Diameter: 3.03"/77.7mm
Bolt Circle Diameter Metric: 139.7
Wheel Stud Quantity: 6
Bolt Size: M14x1.5
Wheel Pilot Diameter: 3.03"/77.7mm
Bolt Circle Diameter Metric: 139.7
Bolt Thread Pitch: M14*1.5
Brake Pilot Diameter: 3.087
Hub Pilot Diameter: 3.91 in. / 99.3 mm
Lugs: 6 Lug
Finish: Polished, Rust Protected
ABS Type: Sensor Wire
Brake Pilot Diameter: 3.087
Hub Pilot Diameter: 3.91 in. / 99.3 mm
Lugs: 6 Lug
Finish: Polished, Rust Protected
ABS Type: Sensor Wire
Condition: Brand New
Warranty: 2 Years
Warranty: 2 Years
Feature:
*Direct replacement.
*Built to strict quality control standards.
*Vibration-free hub machining to precise OE fit and function.
*Excellent performance: Optimum factory-installed preload to minimize excessive noise and wear.
What is hub assembly?
The hub assembly is responsible fit for attaching the wheels to the car and is a pre-assembled unit with precision beams, seals and sensors. The hub assembly connects your wheels to your vehicle and allows the wheels to turn freely, enabling you to drive safely. The hub assembly is also critical to the anti-lock braking system and traction control system. In addition to bearings, it contains wheel speed sensors that control the vehicle's ABS braking system and traction control.
