Front Wheel Bearing Hub Assembly fit for Dodge Ram 1500 09-11 715126 5 Lugs 39389479

Application:

fit for DODGE RAM 1500 2009 - 2010 FITS MODELS MFG. FROM 12/08/08

fit for DODGE RAM 1500 2011 FITS MODELS MFG. FROM 12/08/08

OE/Part number:

515126, 715126, WE61050, BR930808, 68024245AA, 52070323AI, 52070323AJ, HA590354, H515126, 7203020, 5154171AA

Specification:

Position: Front Left or Right
Flange Bolt Quantity: 3
Wheel Stud Quantity: 5

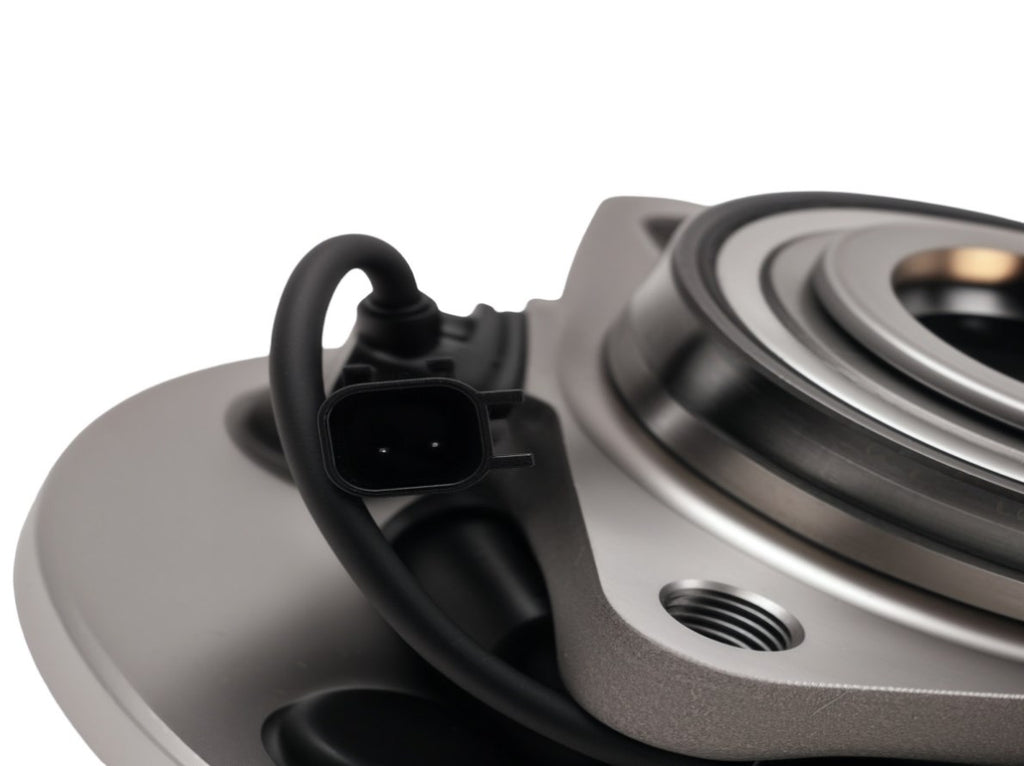

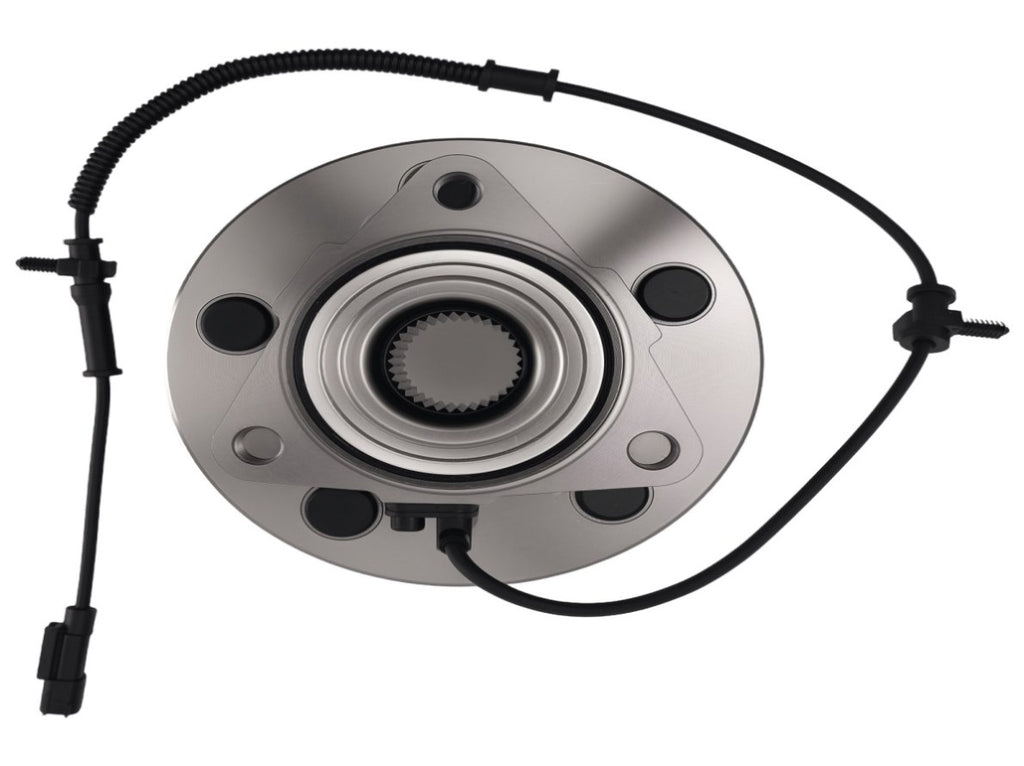

ABS Type: Sensor
Material: Bearing Steel
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Brake Pilot Diameter (IN): 3.09
Brake Pilot Diameter (MM): 78.4
Driven Or Non-Driven Type Hub Assembly: Driven
Drive Type: 4WD or 2WD Models
Flange Bolt Hole Quantity: 3
Mounting Type: Bolt-on
Flange Bolt Size (MM): M14 x 1.5
Flange Bolts Included: No
Flange Diameter (IN): 7.2
Flange Diameter (MM): 183
Flange Offset (IN): 1.84
Flange Offset (MM): 46.8
Flange Shape: Triangle
Hub Pilot Diameter (IN): 3.54
Hub Pilot Diameter (MM): 90
Spline Quantity: 33
Wheel Pilot Diameter (IN): 3.06
Wheel Pilot Diameter (MM): 77.7
Wheel Stud Quantity: 5
Wheel Stud Size (IN): 9/16-18
Generation: 3
Type: Wheel Hub & Bearing Assembly

Package included:

1x Front Wheel Hub and Bearing Assembly - Driver or Passenger Side - 515126

Feature:

・OEM Standard Specifications

Meet OE performance standards

・High-Quality Steel Materials

Provide optimal performance and durability

・Bolt Design

Balance force better, boost safety

・Built-In Seals

Stop contaminants and keep lubrication

Note:

Professional installation is highly recommended.

Please double confirm the compatibility as well as the OEM number before purchasing

**FITS MODELS MFG. FROM 12/08/08**
