Starter Fit for Briggs & Stratton Toro Lawn Mower 16 Teeth AM106883 499521 5778 92506489

Applications

Fit for BRIGGS & STRATTON 12HP MOTORS

Fit for Cub Cadet  1015   1988 - 1991

Fit for Cub Cadet  1020  1988 - 1991

Fit for Cub Cadet  1105  1985 - 1986

Fit for Cub Cadet  111    1978 - 1979

Fit for Cub Cadet  1110  1985 - 1986

Fit for John Deere  111  1979 - 1985

Fit for John Deere  111H  1982 - 1984

Fit for John Deere  L118  -

Fit for Toro  11-32  1978 - 1997

Fit for Toro  11-38  1986 - 1987

Fit for Toro  212-H  1989 - 1991

Fit for Toro  825   1991

Fit for Toro  LT12.5G   1995

Fit for Toro  Sand Pro5000   1992 - 1993

OEM & Part Number:

Fit for ARROWHEAD:   SBS0004

Fit for BRIGGS & STRATTON:   394943, 399169, 490420, 494148,

494198, 494990, 497401, 499521, 499529, 691262, 795121

Fit for CARGO :  112563

Fit for CUB CADET:   BS-399169, BS-499521

Fit for GENERAC:    075255, 75255, 75255-A

Fit for J & N:    410-22005, 410-22015

Fit for JOHN DEERE:   AM106883, AM38136, AM39285,

LG490420, LG497401, LG499521, LG691262, MIA11175, SE501860

Fit for LESTER:   5746, 5778

Fit for NSA:   STR-1005A

Fit for TORO:    78-4340

Fit for TUCKER ROCKY:    49-5790

Fit for WAI:    2-2191

Specifications

Voltage : 12V

Rotation : CCW

Starter Type : PMDD

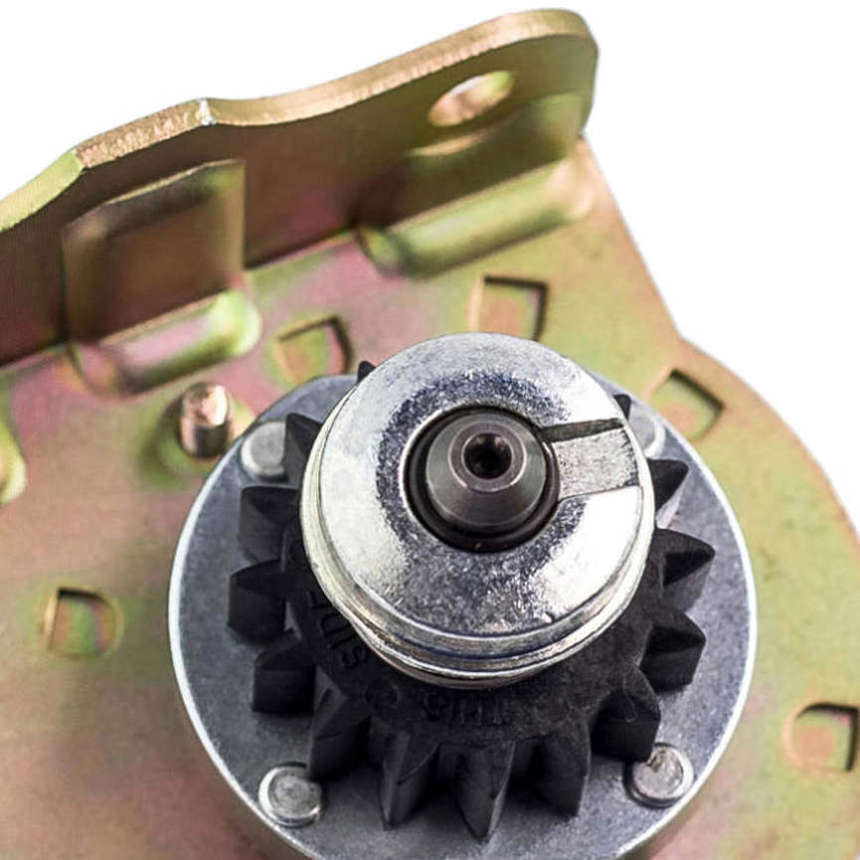

Number of Teeth : 16

Gear OD : 1.598in / 40.6mm

Mtg Ear 1 Hole : 8.0mm Unthreaded

Mtg Ear 2 Hole : 8.0mm Unthreaded

Mtg Ear 3 Hole : 8.0mm Unthreaded

Notes : 4.25"/108mm Long Field Case

Weight : 5.68 lbs / 2.58 kg

Mounting bolt spacing :  approx 58.5mm

Condition: Brand New

Notice

* Suits aluminium and plastic flywheel ring gears, will NOT suit steel gears

* Professional installation is highly recommended (No Instruction Included)

* Fit for any needs please contact us
