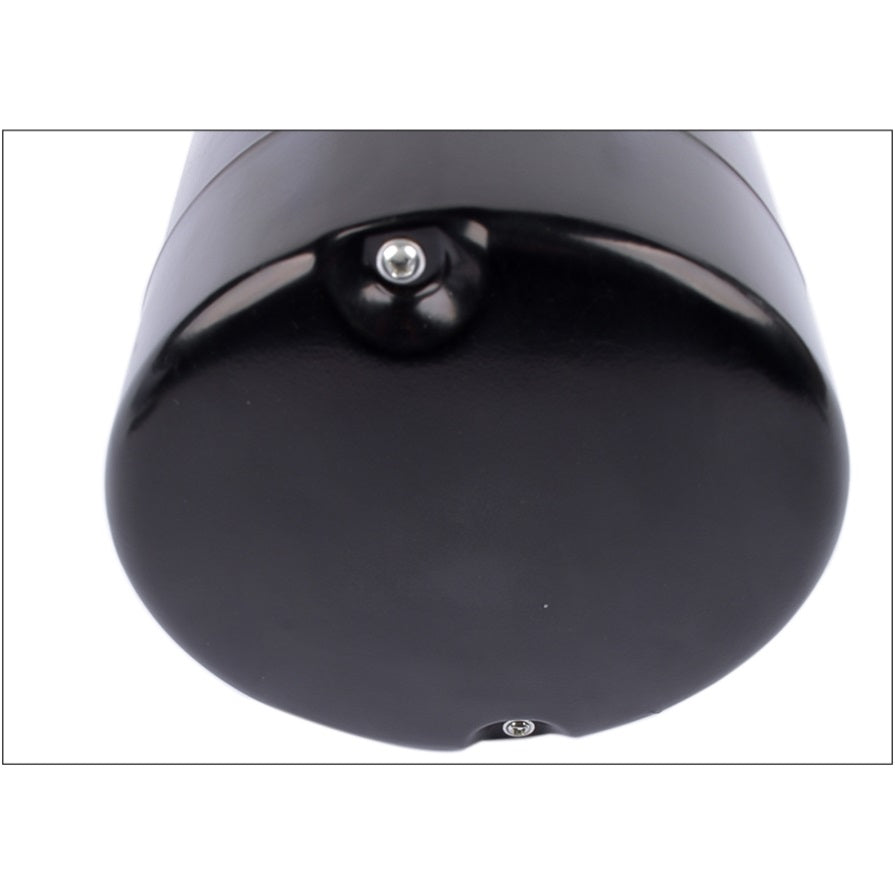

UST1072 Swimming Pool Water Pump Motor C-Face Round Flange 3/4HP 115/230V 56J Frame 3450 RPM 47225658
OE Part Number:
UST1072
UST1072
HST080
Function:
Electric motors convert electrical energy into mechanical energy. In HVAC systems, motors are commonly used to turn air conditioning fan blades and furnace blower motors.
Specifications:
|
AmbientTemperature |
50 deg C |
|
BearingType |
Sealed Ball |
|
Diameter |
6-1/2 Inch |
|
DutyCycle |
Continuous |
|
EfficiencyGroup |
Standard |
|
EnclosureDesign |
Open Dripproof |
|
FinishColor |
Satin Black |
|
FlangeMaterial |
Aluminum |
|
Frame |
56J |
|
FrequencyRating |
60 Hz |
|
FullLoadAmps |
11.0/5.5 A |
|
HP |
0.75 |
|
InsulationClass |
B |
|
Item |
Two-Compartment Pool Filter Motor |
|
MotorDesign |
Capacitor Start |
|
MotorShaftRotation |
CCWPE |
|
MotorThermalProtection |
Auto |
|
MountingType |
C-Face |
|
NumberofSpeed |
1-Speed |
|
OverallLength |
10.63 Inch |
|
Phase |
1-Phase |
|
RPM |
3450 |
|
ServiceFactor |
1.00 |
|
ShaftDesign |
Threaded |
|
ShaftDiameter |
5/8 Inch |
|
ShaftLength |
2-9/16 Inch |
|
ShaftMaterial |
303 Stainless Steel |
|
Thrust Horsepower |
0.75 |
|
Type |
Up-Rated, UAC |
|
VoltageRating |
115/230 V |
Package included
1x Pool Water Pump Motor
