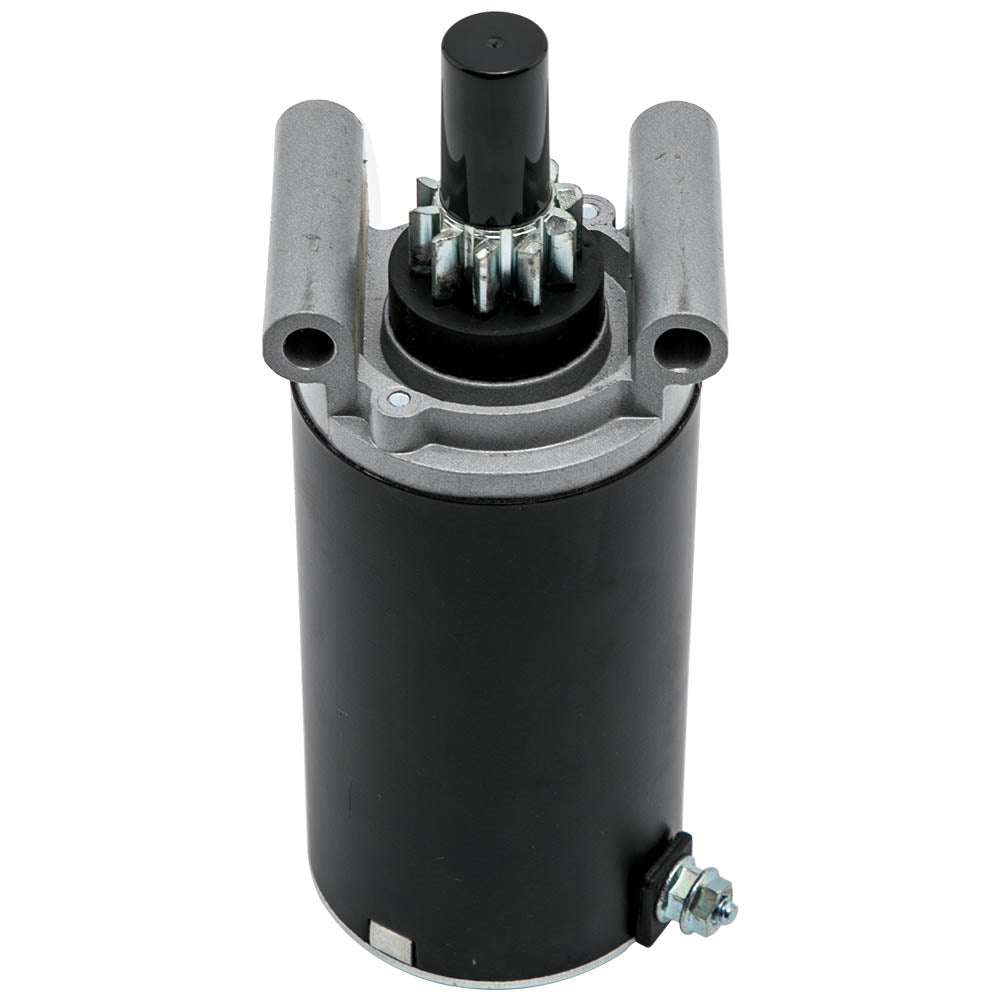

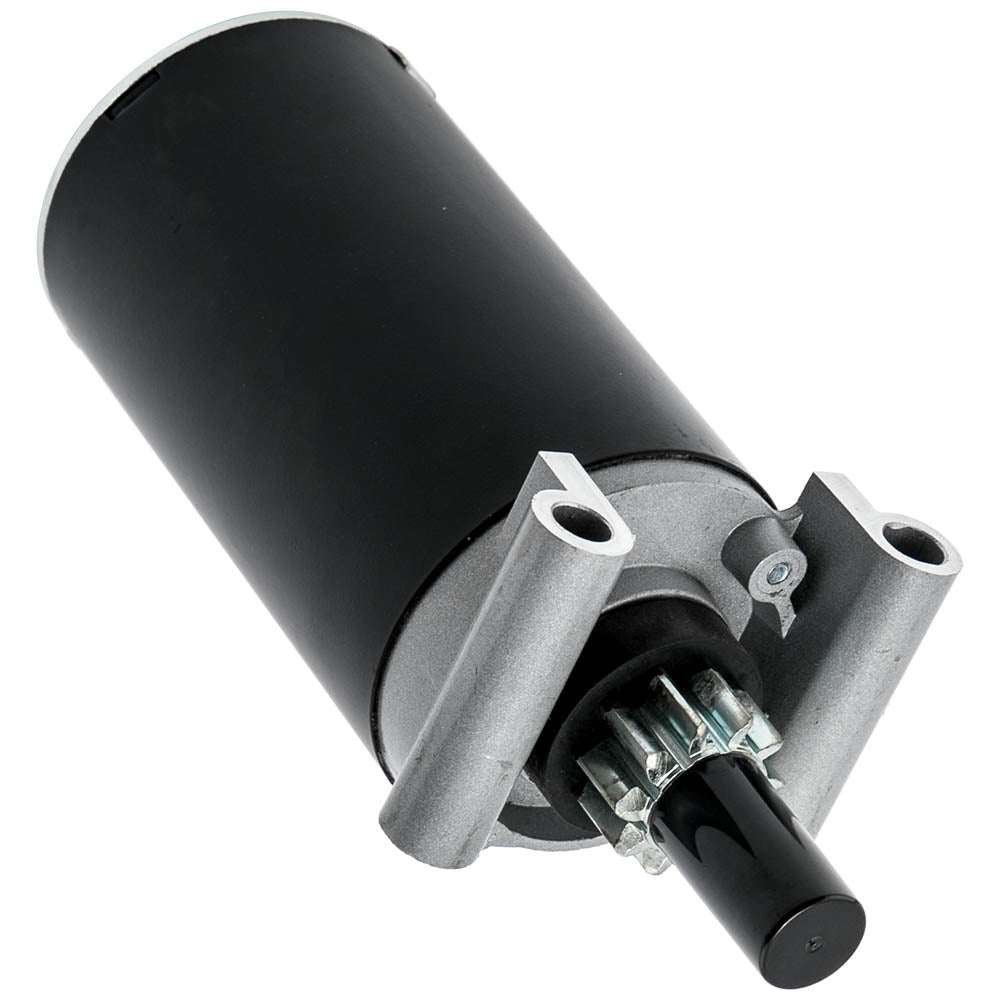

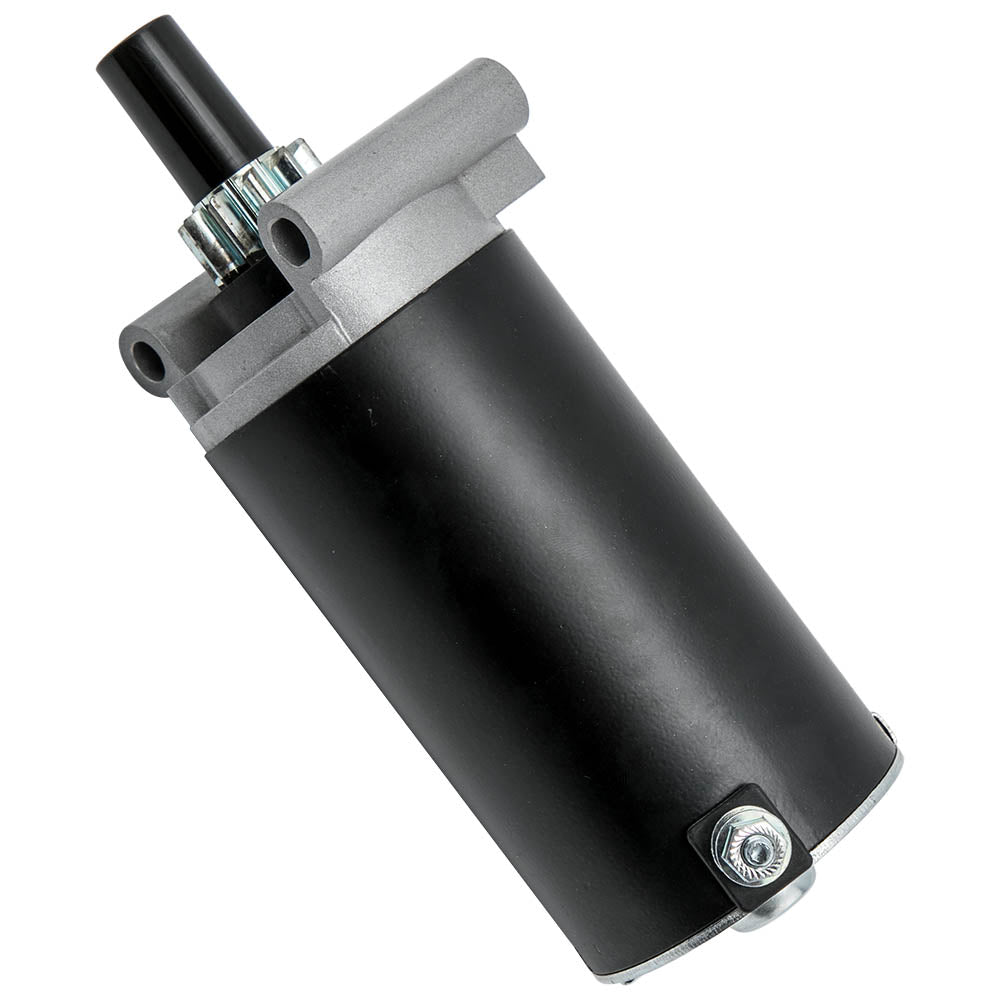

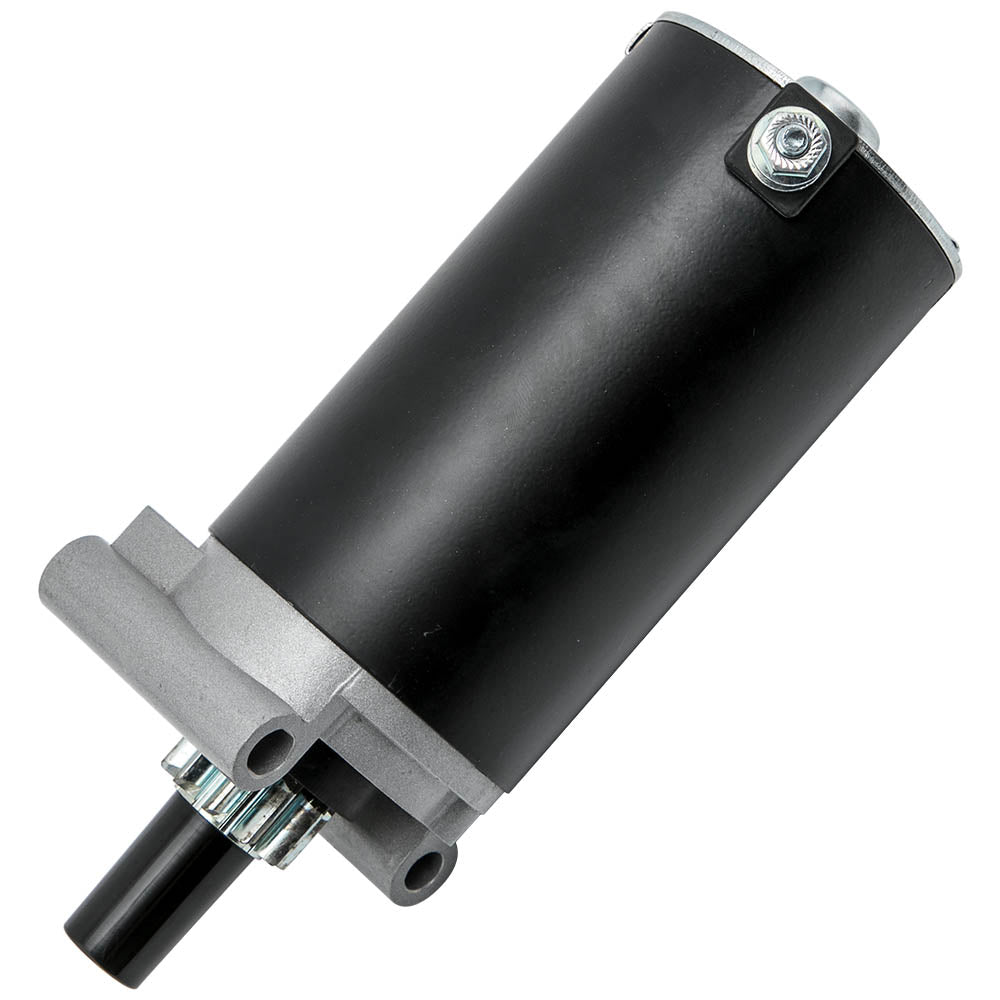

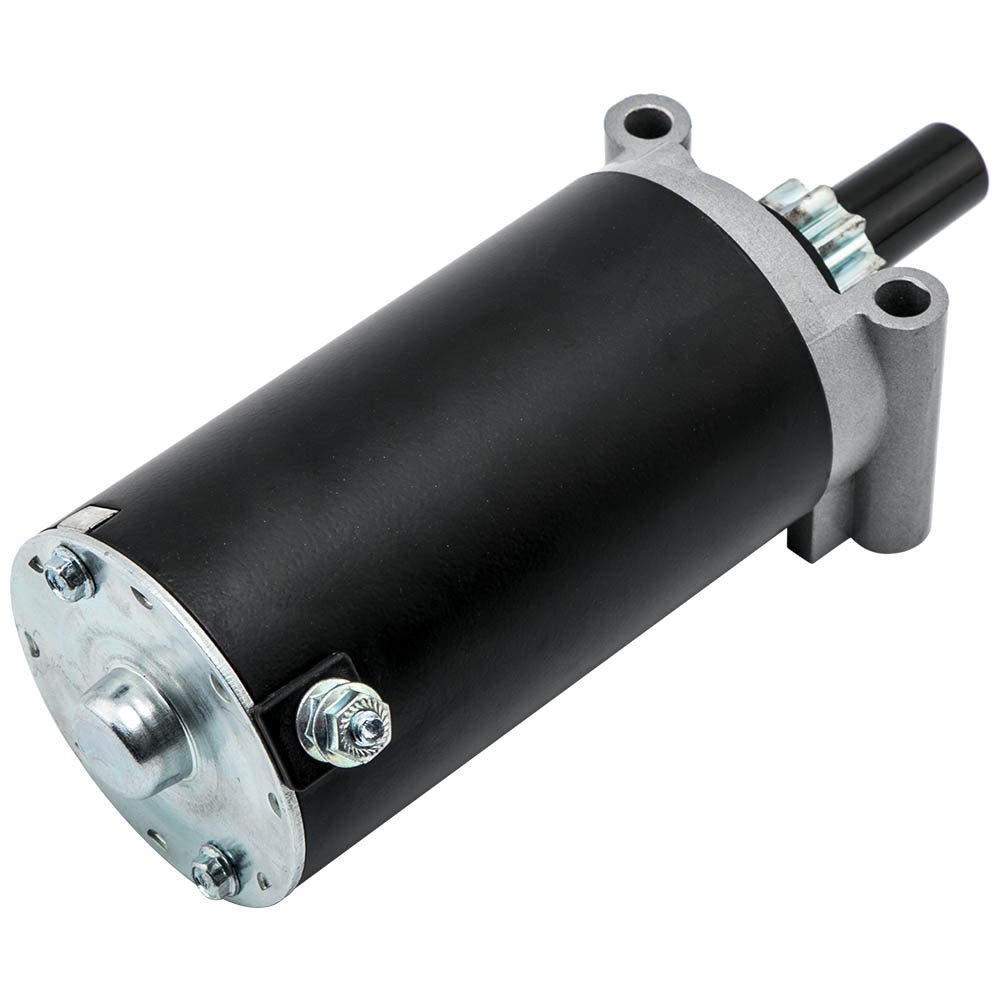

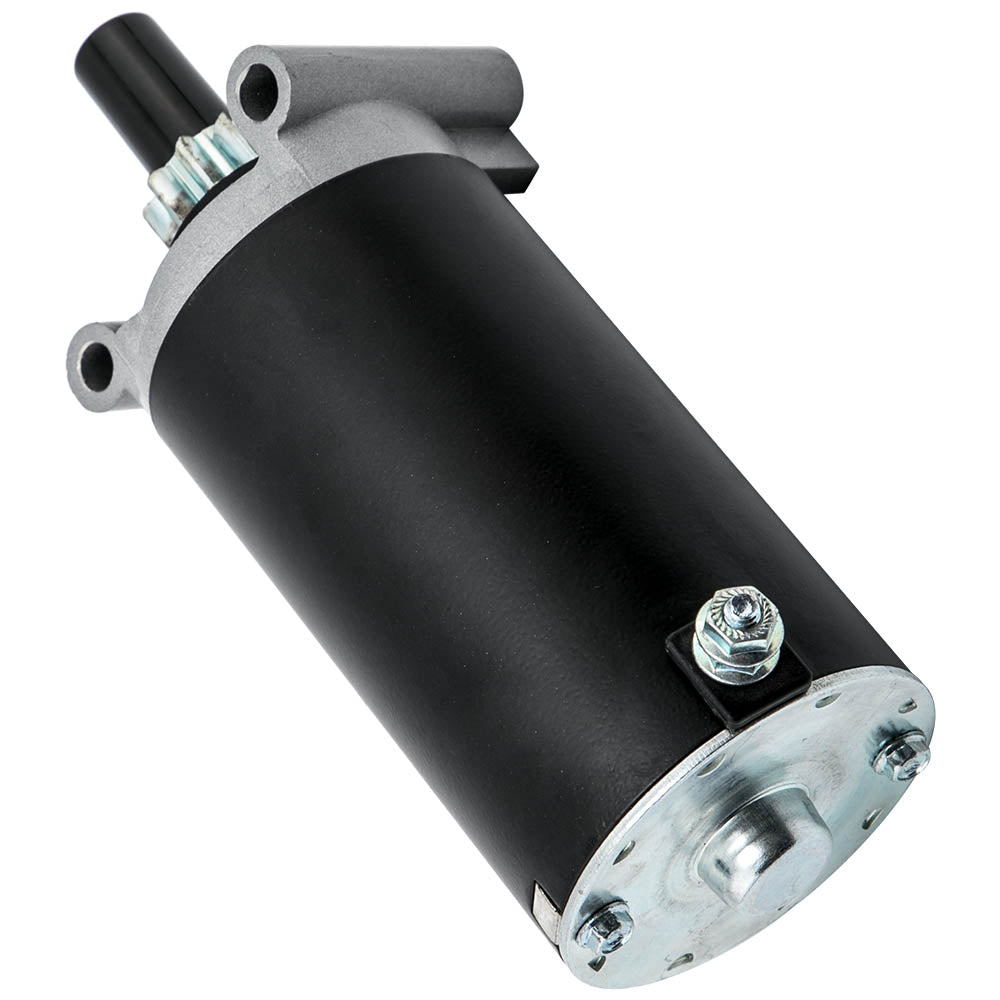

12 Volt 10T Starter fit for Toro GT2200/GT2300/LX425 2006-2009 3209803 PMDD 97235923
Application:
Make Model Engine Years
fit for Cub Cadet i1046 20HP 2006
fit for Cub Cadet i1050 25HP 2006
fit for Cub Cadet LT1045LE 20HP 2005 - 2006
fit for Cub Cadet LT1046 23HP 2005 - 2006
fit for Cub Cadet SLT1550 25HP 2005 - 2006
fit for Cub Cadet SLT1554 27HP 2005 - 2006
fit for Toro G4030 23HP 2007 - 2008
fit for Toro G4035 25HP 2009
fit for Toro G4050 25HP 2008
fit for Toro GT2100 23HP 2006 - 2008
fit for Toro GT2200 25HP 2006 - 2008
fit for Toro GT2300 26HP 2006
fit for Toro LX425 20HP 2007
fit for Toro LX468 22HP 2008 - 2009
fit for Toro LX500 22HP 2006
fit for Toro SL500 23HP 2007
fit for Toro TimeCutterZ4202 20HP 2008 - 2009
fit for Toro TimeCutterZ5020 23HP 2007 - 2009
fit for Toro TimeCutterZ5060 25HP 2008 - 2009
fit for Toro TitanZ4800 23HP 2008 - 2009
fit for Toro TitanZ5200 25HP 2007 - 2009
Part Numbers:
fit for Kohler:
fit for 3209801 3209801S 32-098-01 32-098-01S
fit for 3209803 3209803S 32-098-03 32-098-03S
fit for 3209804 3209804S 32-098-04 32-098-04S
fit for 3209815 3209815S 3209808 3209808S
fit for KOH3209801S
fit for 5801
Description:
Voltage: 12 Volt
Number of Teeth: 10 Tooth Steel Drive Gear - Counter
Rotation: CCW (Clockwise)
Starter Type: PMDD
Mounting hole Centres - 68mm
Drive Pinion Dia. 32.6mm
5" (127.1mm) housing
Note:
* Please confirm your old part number matches up with one of the part numbers above.
* Professional installation is highly recommended (No Instruction Included).
