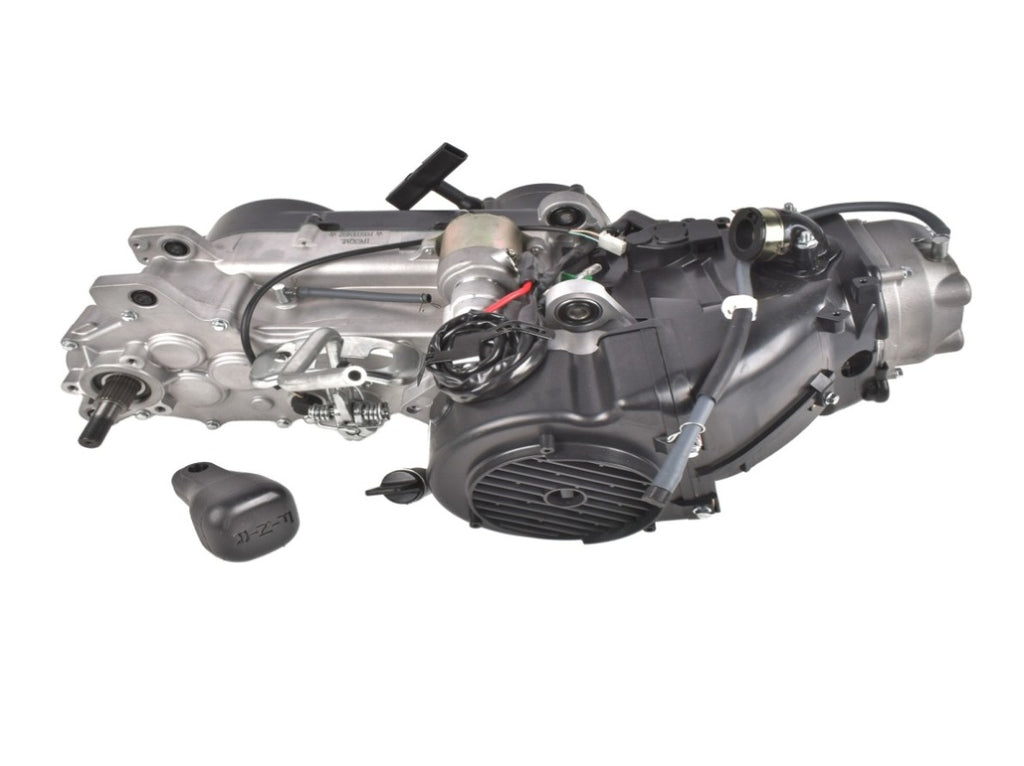

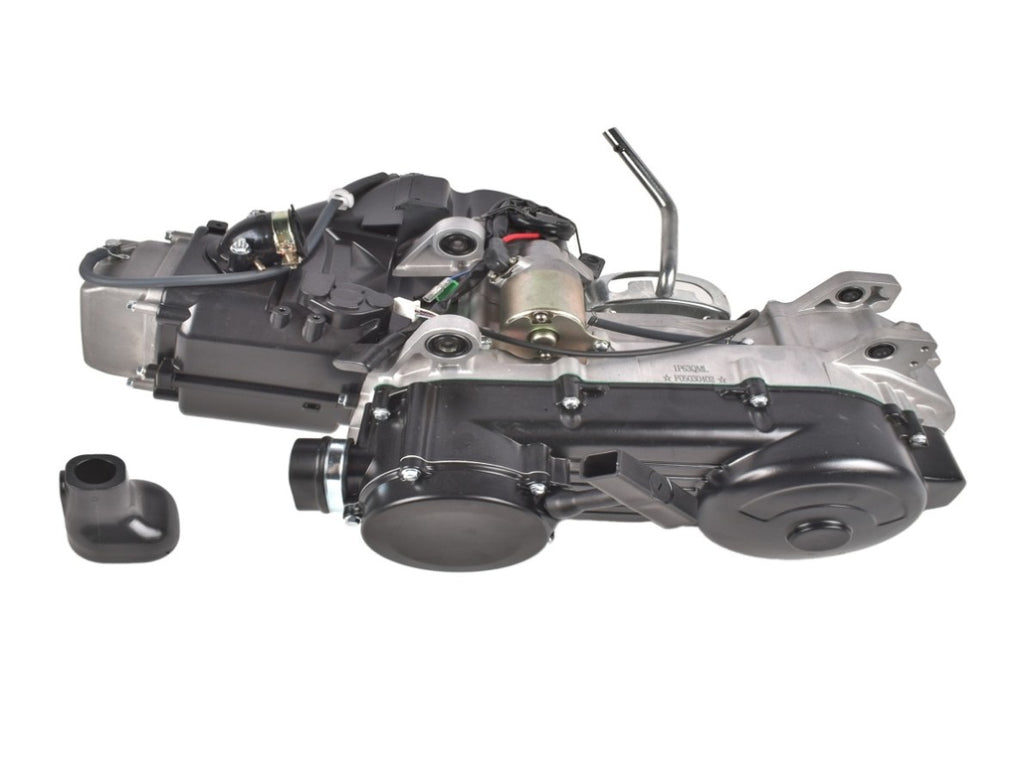

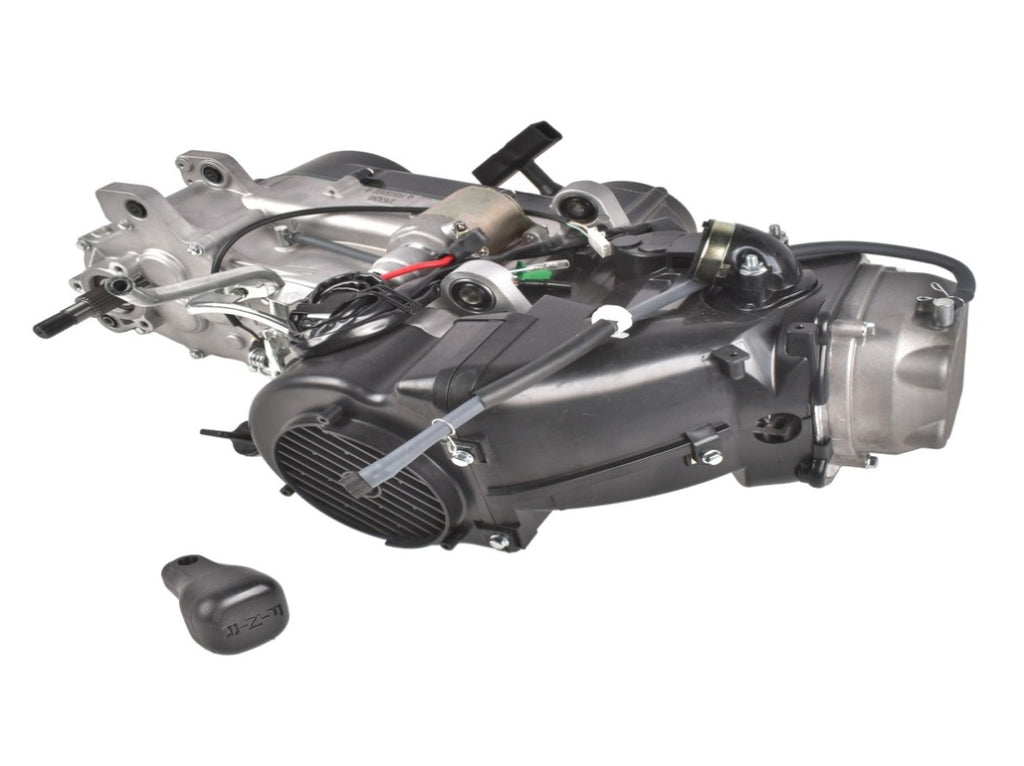

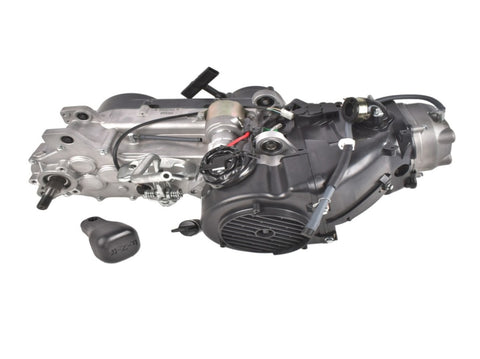

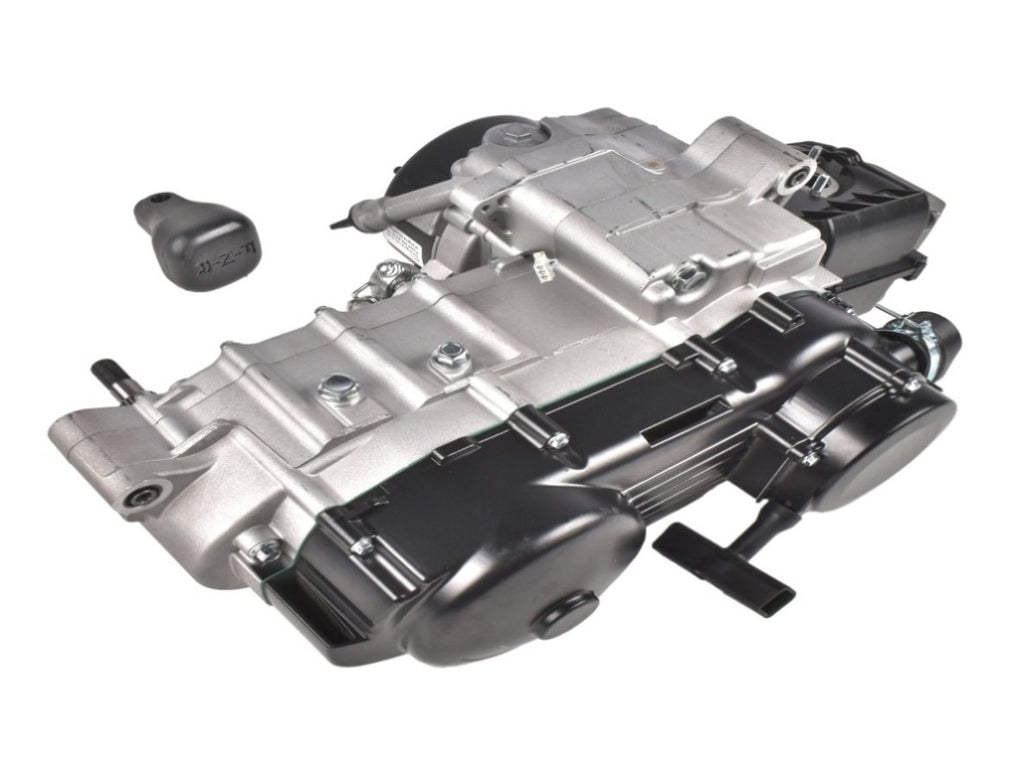

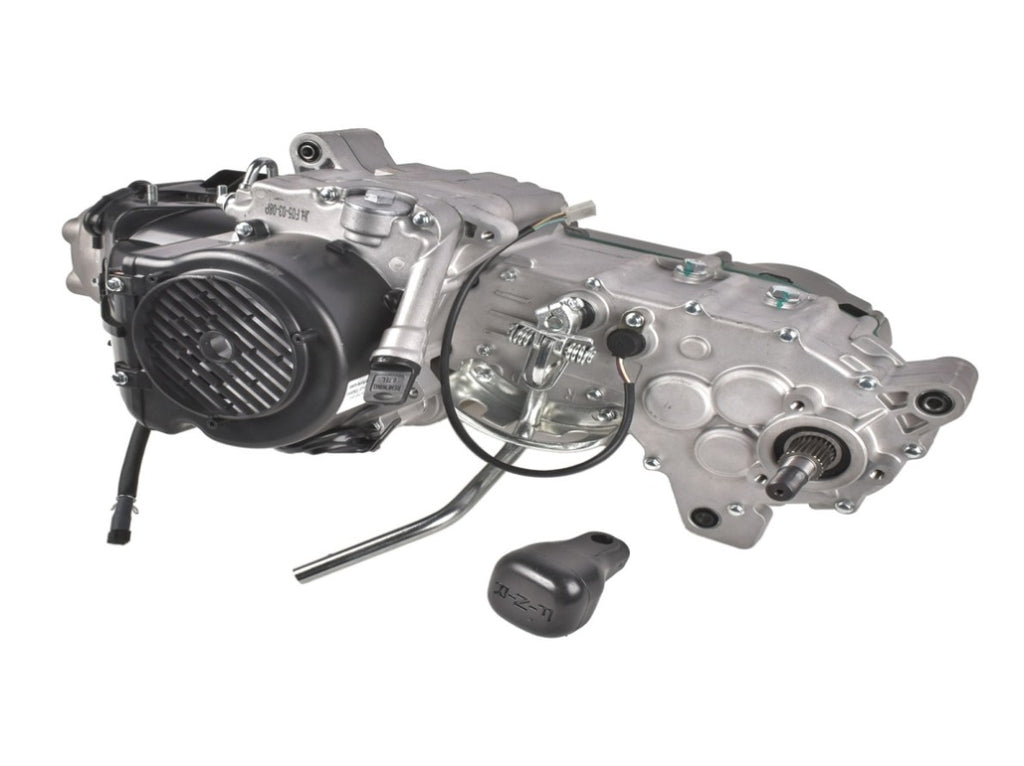

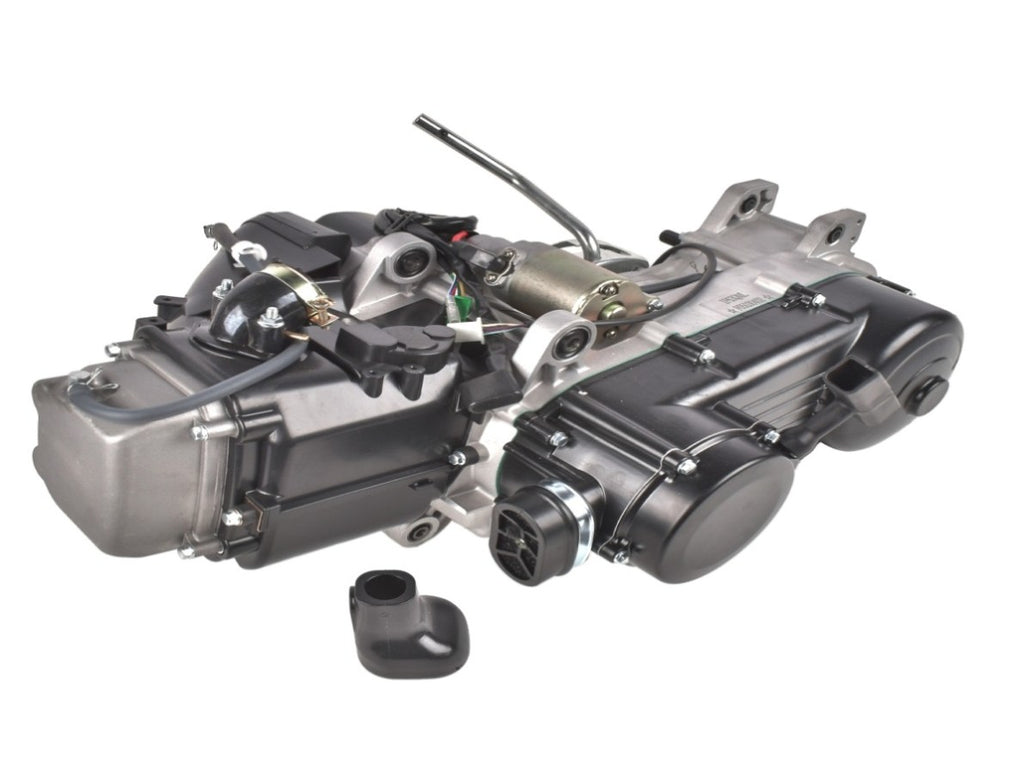

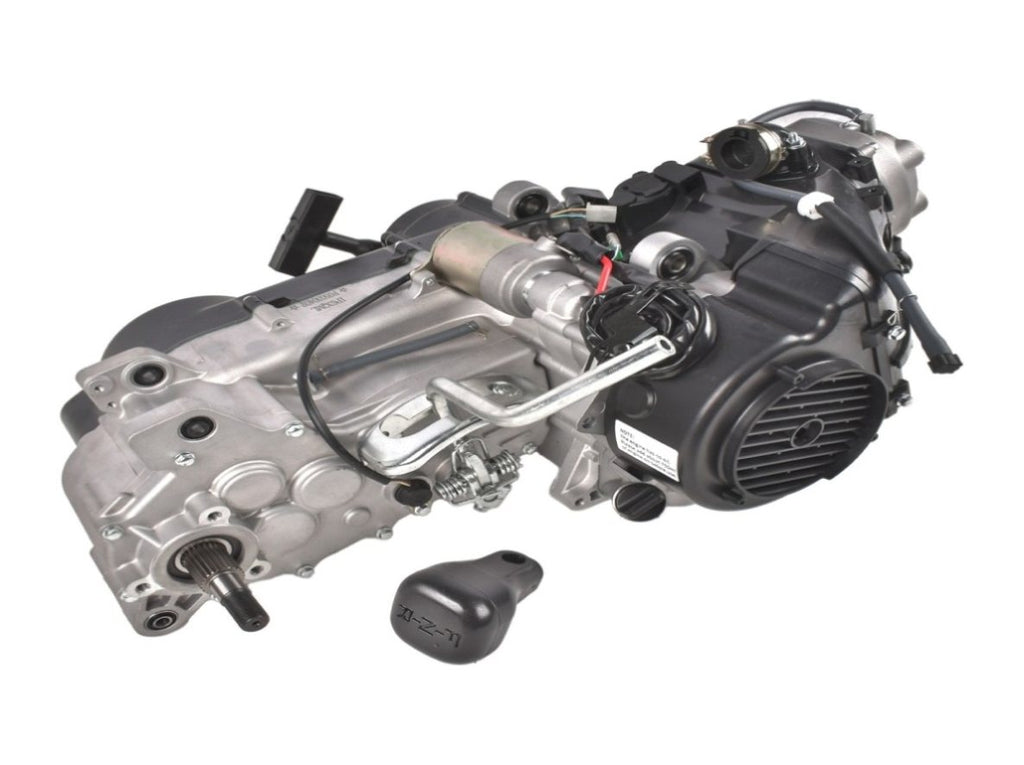

180cc Motor Electric/Kick Start Build-in Reverse Replacement for 200cc ATV Go Kart UTV 76975963

Description

Model Number: #308-999045
Color: Black + Silver
High Quality Compatible with GY6 180cc Short Case Engine Motor, Use 743 Belt, 4 Stroke Oil Cooled and Forced Air Cooled Horizontal Engine, Auto Centrifugal Clutch Transmission, Electric/Kick Start, Build-in Reverse.
180cc-200cc ATVs, UTVs and Go Karts compatible with GY6 engines are compatible with this engine. It also fits for most China made 180cc 200cc engine vehicles.
PLEASE NOTE: Replacement GY6 180cc 200cc motors come in different sizes. Please measure the physical size to be sure you get the correct one.

Specifications

Engine Type: Single Cylinder, 4-Stroke, Horizontal Engine
Cooling System: Oil Cooled and Forced Air Cooled
Cylinder Working Volume: 0.0468gal (177.3ml)
Cylinder Compression Ratio: 10:1
Cylinder diameter: 2.46" (62.5mm)
Piston Stroke: 2.26" (57.4mm)
Ignition Advance Angle: 13°±1 ° (1700r/min); 28°±1 ° (4000r/min)
Port Timing: Intake Valve: On: 5° Before TDC, Off: 25° after BDC; Exhaust Valve: On: 35° before BDC, Off: 8 after TDC
Oil Pump Type: Rotor type
Lubrication: Pressure/splash

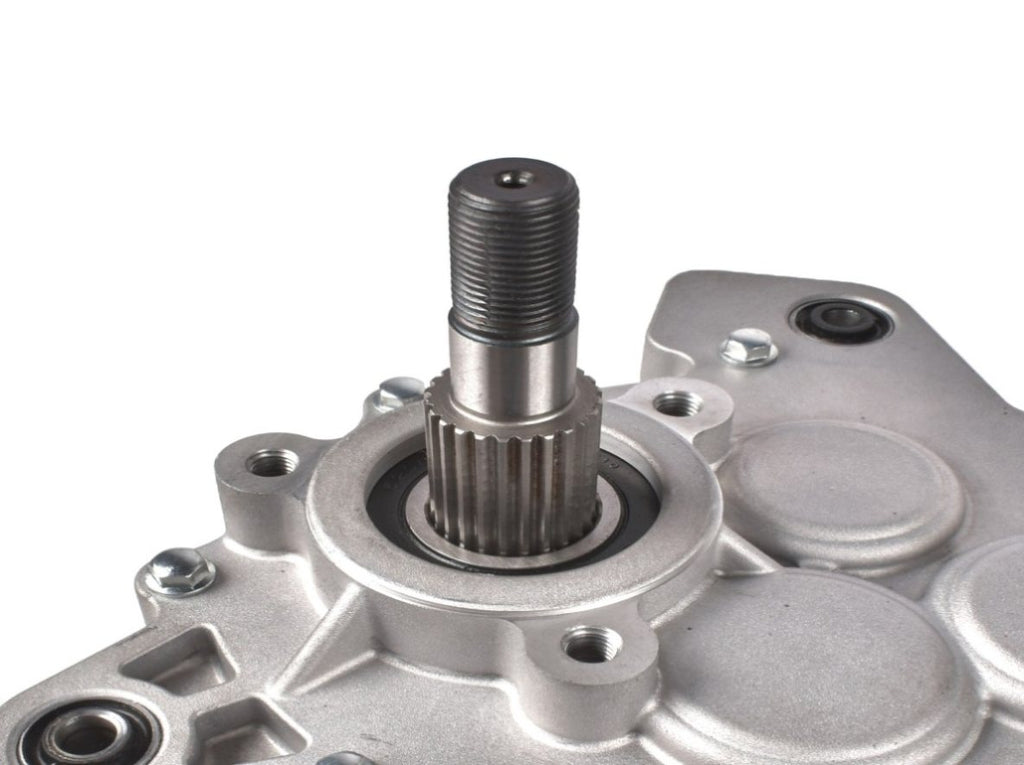

Power Output Shaft Direction: Right Rotate
Valve clearance: In: 0.04 ~ 0.06mm, Out: 0.05 ~ 0.08mm
Clutch Type: Automatic Centrifugal Clutch with Dry Shoes
Transmission: Continuously Variable Speed + (forward gear) Two-stage Gear Reduction, (Reverse) Three-stage Gear Reduction
Forward Gear Ratio: 6.516 (primary: 2.77, final: 2.35)
Reverse Gear Ratio: 24.24 (primary: 3.15, secondary: 3.27, final: 2.35)
Standard Power and Standard Speed: 7kW/7000r/min
Maximum Torque and Corresponding Speed: 11N m/6000r/min
Maximum Power and Standard Speed: 7.5kW/7500r/min
Minimum Non-load Stable Speed (Idle Speed): 1700±100r/min
Minimum Fuel Consumption Rate: 367g/kW h
Ignition Method: CDI

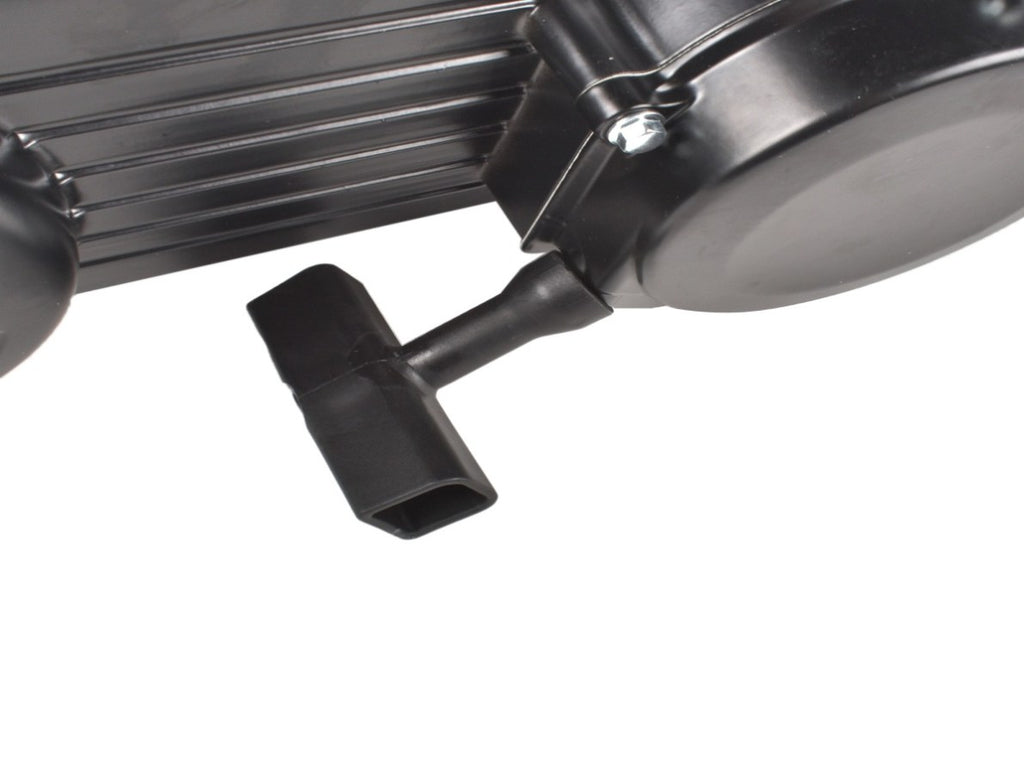

Starter Method: Electric/Kick starter
Carburetor Type: Vacuum Film Carburetor
Carburetor Model: PD24
Spark Plug Type: M10×1
Spark Plug Model: A7RTC
Magneto Type: Flywheel
Magneto Model: GY6-18(LJ)
Oil Tank Capacity: 0.25gal (0.95L)
Gear Oil Capacity: 0.079gal (0.3L)
Dimensions (L×W×H): 656×422×301mm (without carburetor)
Net Weight: 68.35lbs (31kg)
Fuel Grade: Unleaded Gasoline Above #93
Engine Oil Grade: SF 15W/40
Exhaust Temperature: ≤420°C
Oil Consumption Rate: ≤8mg/kW·h

Professional installation is recommended.
