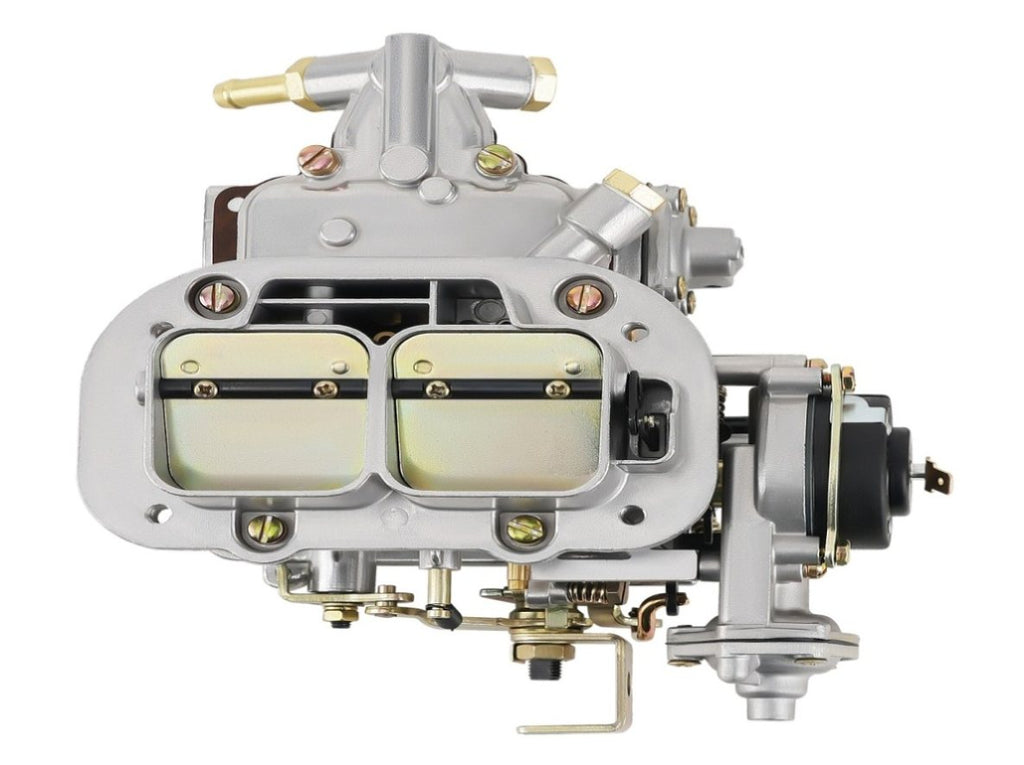

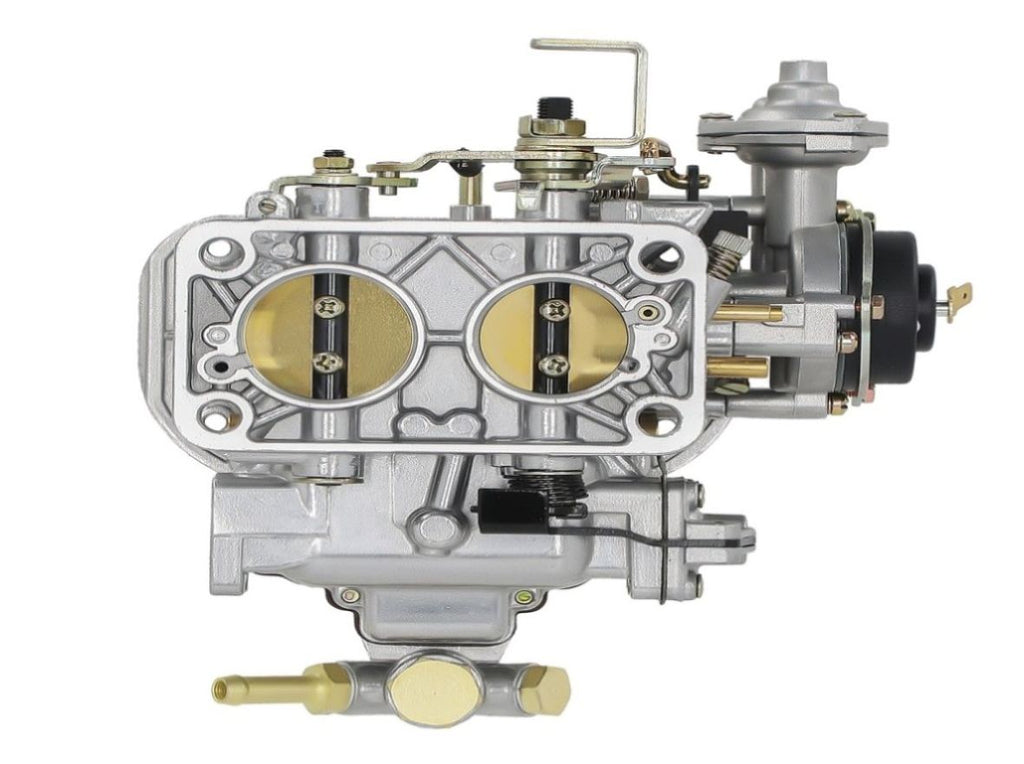

2 Barrel Carburetor Fit For Toyota Pickup Celica Corona 20R and 22R engines DGAV, DGEV, 46441866

Application:

Fit For Toyota Pickup Celica Corona 20R and 22R engines

Fit For Datsun Pickup L16 (1600cc) PL521 also fits 510 1969-1972

Fit For Datsun Pickup L18 (1800cc) PL620 also fits 510, 610, and 710 1973-1974

Fit For Datsun Pickup L20 (2000cc) PL620 also fits 510, 610, and 710 1975-1980

Fit For Datsun 200SX 2.2L 1982-1983

Fit For Nissan Pickup Z20 (2000cc) PL720 1981-1982

Fit For Nissan Pickup Z22 (2200cc) PL720 1981-1983

Fit For Nissan 200SX 1980-1981

Fit For Nissan Sentra 1.5L 1.6L 1986

Fit For Nissan 720 2.0L 2.2L 1984

Fit For Nissan Pulsar 1.6L 1983

Fit For Jeep CJ5, CJ7, CJ8, Wrangler Cherokee with a 258Ci W/ 2BBL BBD Carb 1972-1990

Fit For Mazda B2000 2.0L 1986-1987

Fit For Mazda B2200 2.2L 1987-1993

Replaces Part Numbers:

32/36 DGAV, 32/36 DGEV, 32/36 DGV,

22680.033,‎ 22680033,

22680.033B, 22680033B,

99004.300, 99004300,

99005.068, 99005068,

99217.332S, 99217332S

Specification:

Primary Venturi: φ26mm

Secondary Venturi: φ10.5mm

Primary Auxiliary Venturi: φ27mm

Secondary Auxiliary Venturi: φ10.5mm

Primary Main Nozzle: 1.4mm

Secondary Main Nozzle: 1.4mm

Primary Air Corrector Nozzle: 1.7mm

Secondary Air Corrector Nozzle :1.6mm

Primary Emulsion Tube:  F50

Secondary Emulsion Tube: F50

Primary idle Nozzle: 0.6mm

Secondary Idle Nozzle: 0.5mm

Pump Nozzle: φ0.5mm

Needle Valve:  2.0mm

Float Measurement : 47mm

Features:

1.Good durability and reliability.

2.Meets quality standards, 100% tested before shipping.

3.Advanced manufacturing technology, high reliability and high performance.

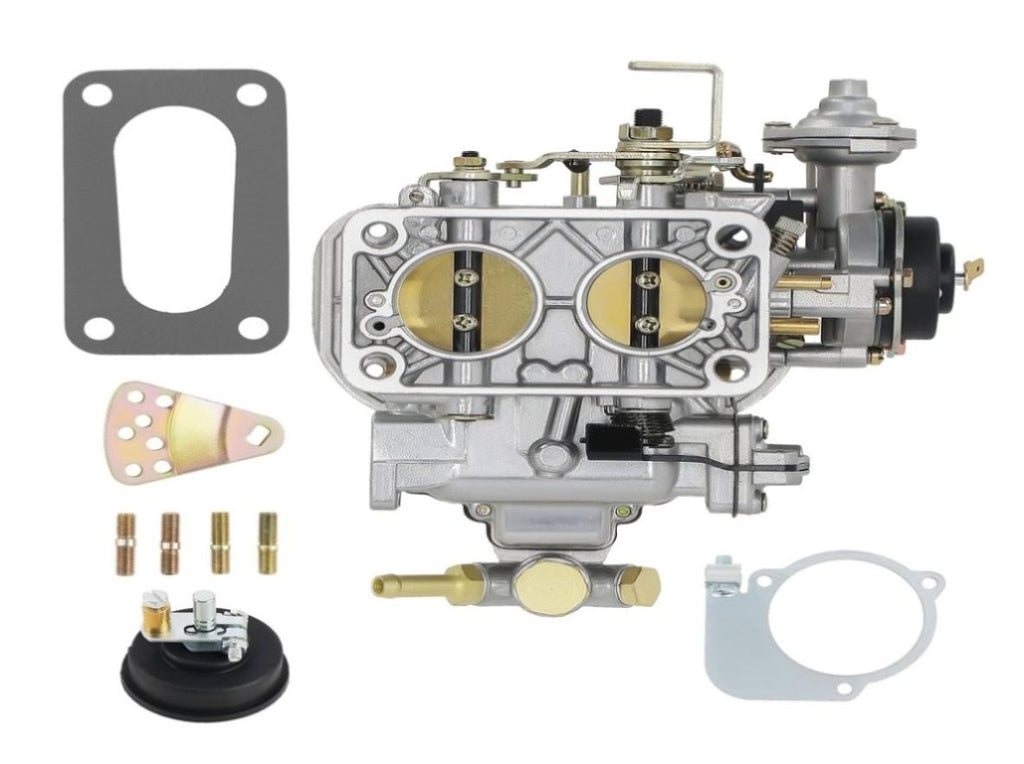

Package Included:

(As pictures Show)

Note:

1. Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors

2.Please confirm your old part number matches up with one of the part numbers above

3. Professional installation is highly recommended
