2AZ-FE 2.4L Engine Rebuild Kit w/ Crankshaft Con Rods Timing fit for Toyota Camry 40908374

Application

Engine: 2AZ-FE 16V DOHC 2.4 LTR VVT-i PETROL.

fit for Toyota Highlander 2001-2007
fit for Toyota Camry 2002-2009
fit for Toyota RAV4 2004-2007
fit for Toyota Corolla XRS 2009-2010
fit for Toyota Matrix S 2009-2011
fit for Scion tC 2005-2010
fit for Scion xB 2008-2015

OE / Part Number

Crankshaft Part Number:

13401-28900, 13401-28010

New Type Part Number:

13011-0H031,13211-0H041-A0,13211-0H041-B0,13211-0H041-C0,
13251-0H030-B0,13251-0H030-C0,13211-28112-A0

Old Type Part Number:
13210-28030-A0,13210-28031-A0

Connecting Rod Part Number:
13201-29685-A0, 13201-29685-B0, 13201-29685-C0
13201-29125-A0, 13201-29125-B0, 13201-29125-C0

Main & Rod Bearing Set Part Number:

13281-28010,132810-H010, 132810-H030, 13281-28011
MB5646SI, 5M8412A, MB922, 7431M, BC1002, BM15-104, MBTO44
CR4514SI, 4B8411A, RB922, BB1001, 4-5000A, RBTO44, BR15-104

Gasket Seals & Head Bolts Set Part Number:

11115-28010, 11115-28011, 11115-28012, 11115-28013, 11213-0H040
11213-28021, 90080-31072, 90311-38078, 90311-38080, 90311-T0024
17173-0H020, 17173-0H040, HS26232PT, ES71183
90311-38089, 90311-38096, 90311-A0014

Intake & Exhaust Valve Kit Part Number:

1371128010,1371528040, 13711-0H010,13715-0H030

Timing Chain Kit Part Number:

13523-0D010, 13521-0H010, 13506-0H011, 13540-0H010, 13559-OH010
13050-28021, 13561-0H010, 13507-28010, 13549-28012, 13566-28010

Specification:

Condition: New
Pistons w/ Rings Specifics：
Standard Bore Diameter: 88.50mm
1st Group: 1.00mm
2nd Group: 1.00mm
Oil Ring: 2.00mm

Features:

1. Built to strict quality control standards
2. High quality Metal and constructed fit for Antirust and Anticorrosion
3. High quality and durable fit for stable performance and long time use.

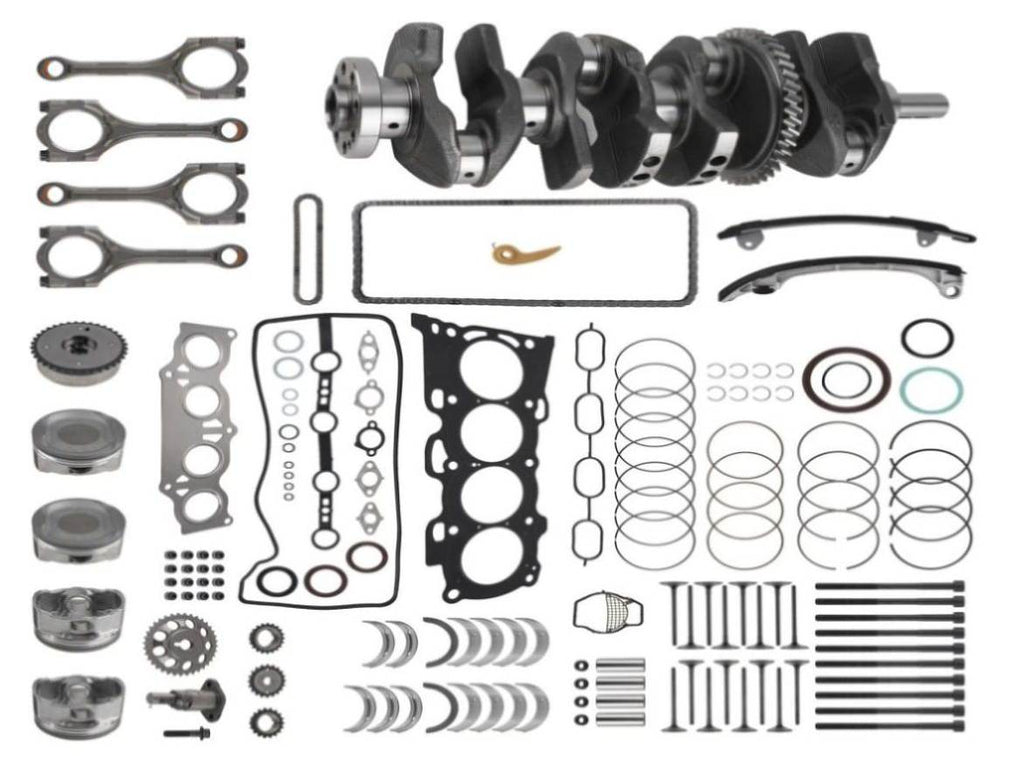

Package Includes:

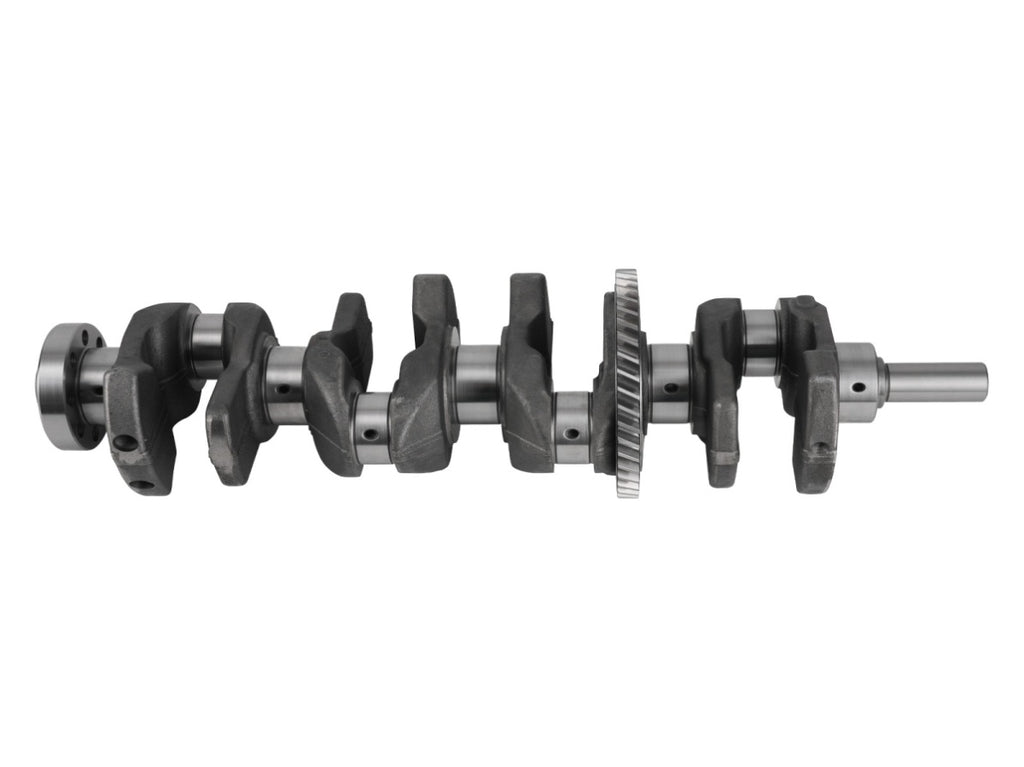

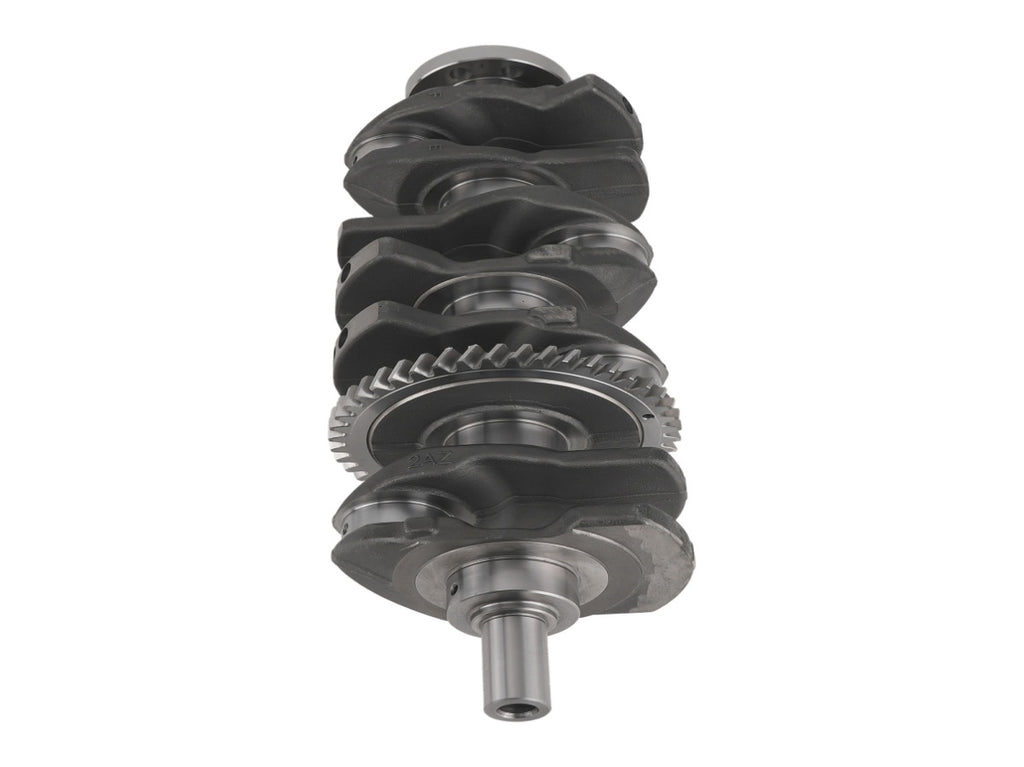

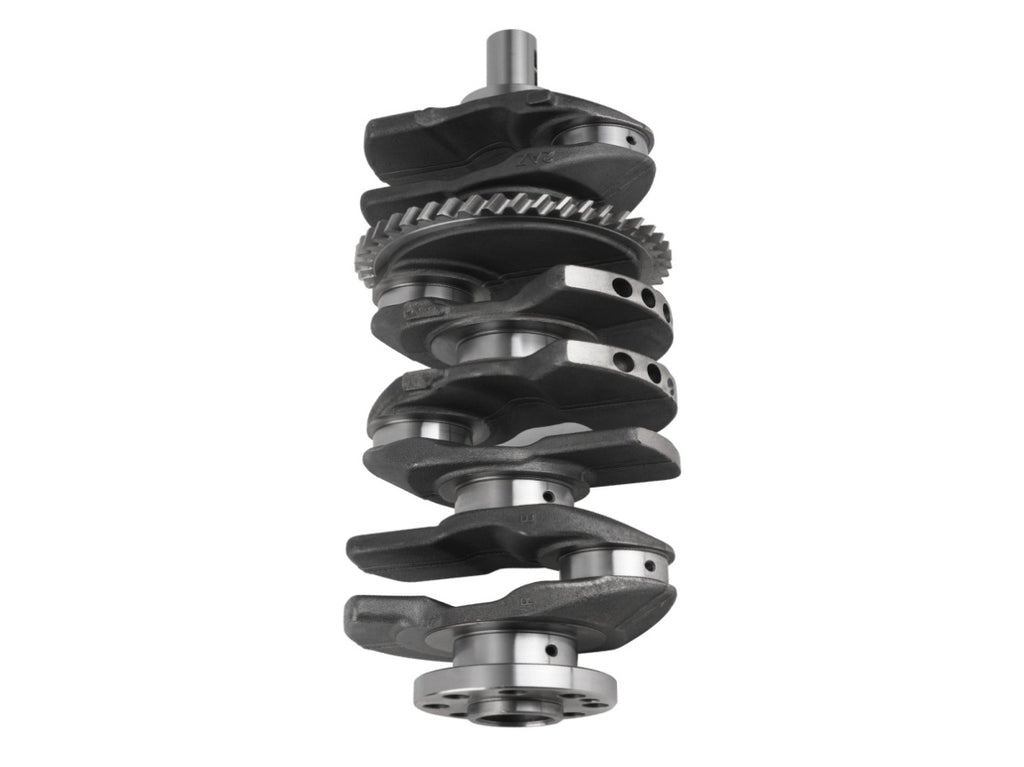

1x Crankshaft

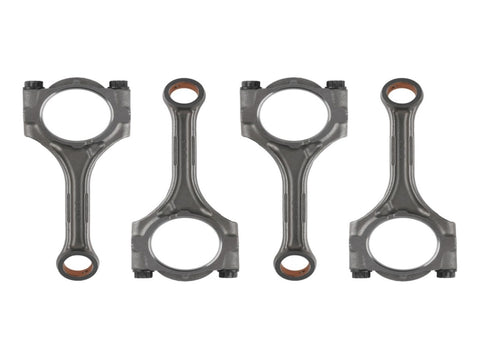

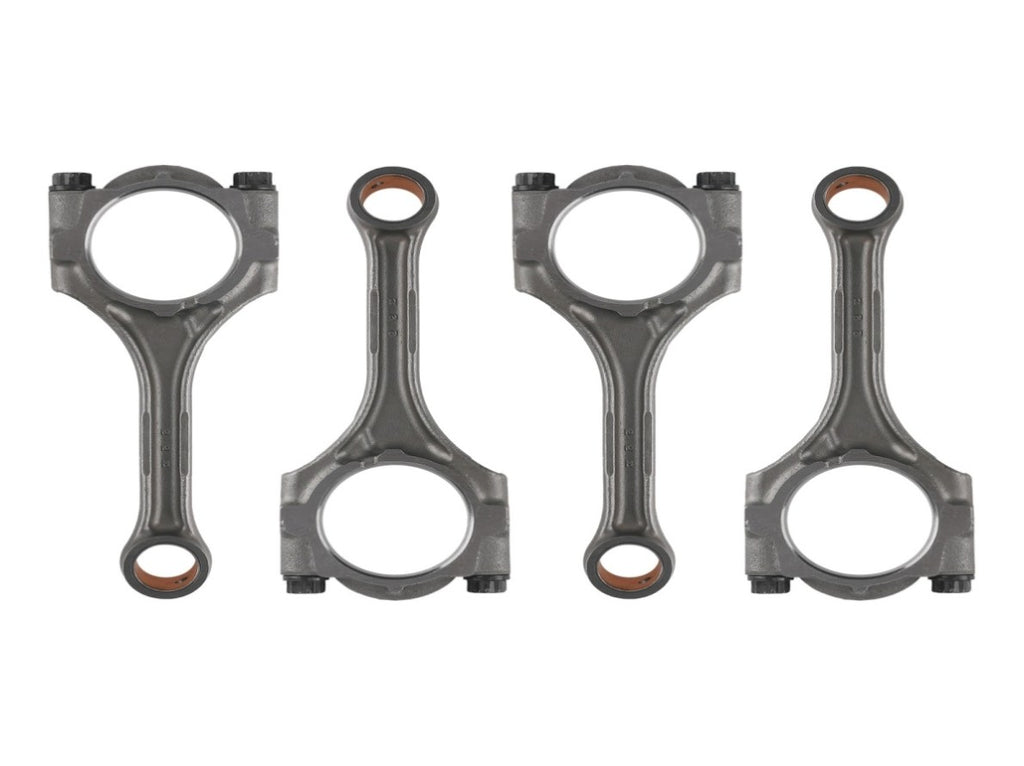

4x Connecting Rods

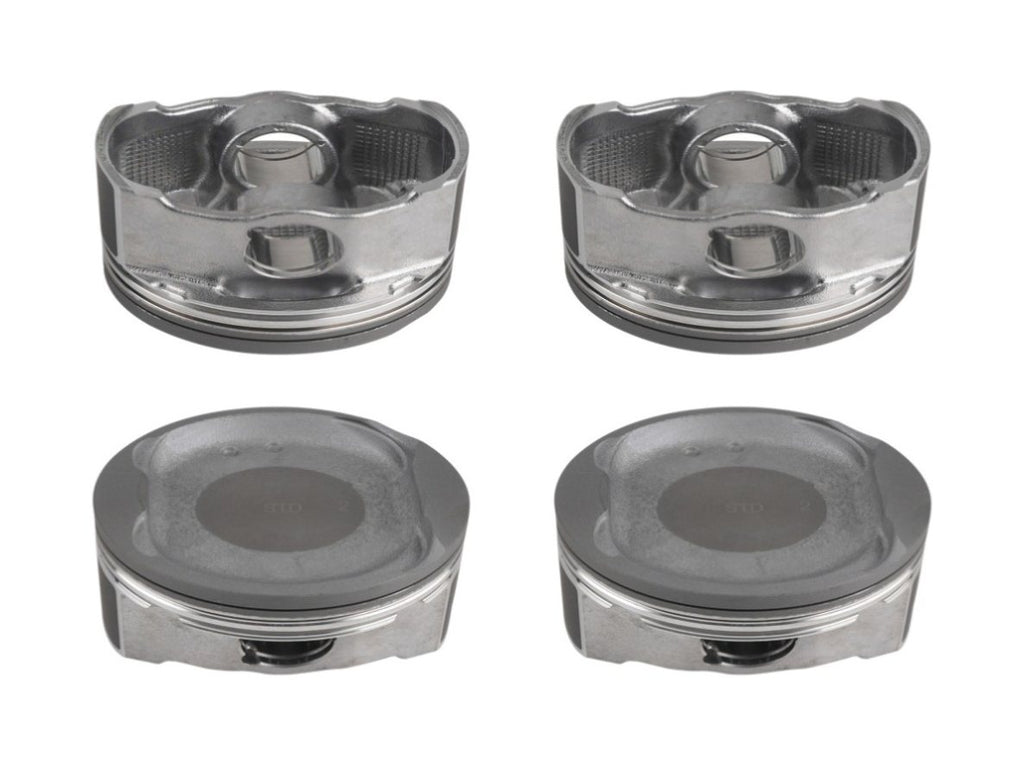

1x Engine Pistons & Rings Set
1x Main & Rod Bearings Set
1x Intake & Exhaust Valve Kit
1x Timing Chain Kit w/ VVT Gear Set
1x Head Gasket Seals & Head Bolts Set:

Multi-layered Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
Cylinder Head Bolt

Timing Chain Kit:

1x Timing Chain (134 Links)

1x Oil Pump Chain (52 Links)

1x Cam Sprocket (Left Vvt-I Sprocket)

1x Crank Sprocket (18 Teeth)

1x Tensioner (Cam Chain Tensioner)

1x Tensioner (Oil Pump Tensioner)

1x Guide Rail (Tensioner Rail)

1x Guide Rail (Fixed Rail)

1x Guide Rail (Oil Pump Fixed Rail)

1x Oil Pump Sprocket (20 Teeth)

Note:

1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
2. No Instruction Included, professional installation is highly recommended.
