3 Row Radiator Shroud Fan Relay Kit fit for Chevy Camaro V8 5.0L 1969 AE370 34210578

Application:

fit for Chevy Camaro (V8 4.9L); 1969-1968

fit for Chevy Camaro (V8 5.0L); 1969

fit for Chevy Camaro (V8 5.3L); 1969-1967

fit for Chevy Camaro (V8 5.4L); 1969-1968

fit for Chevy Camaro (V8 5.7L); 1969-1967

fit for Pontiac Firebird (L6 3.8L); 1967

fit for Pontiac Firebird (L6 4.1L) 1969-1968

Note: Please check compatibility. (ONLY fit for ENGINES USING 20 3/4" WIDE CORES)

OE/Part number:

337,DPI337,CC337,CU337,MC337,EC337,AE370,

Specification:

Type：Aluminum Radiator Fan Shroud Relay Kit

Core Material：Aluminum

Tank Material：Aluminum

Core Size：21.25x16.85x1.73in

Inlet Diameter：Φ40

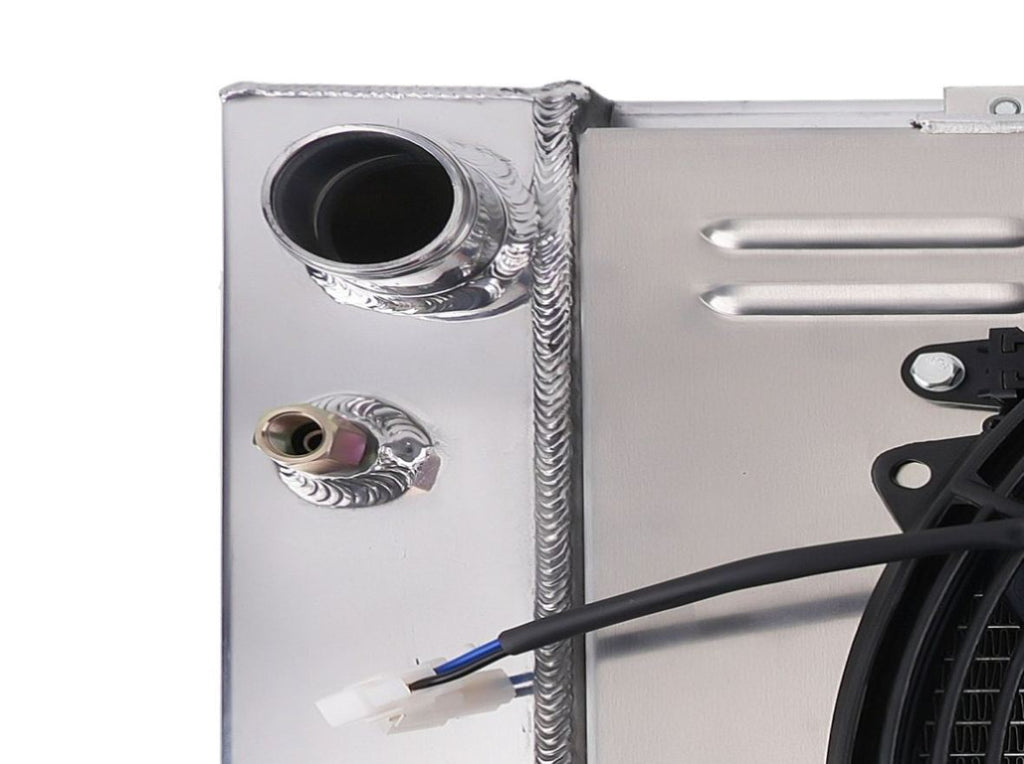

Inlet Location：Top Left

Outlet Diameter：Φ45

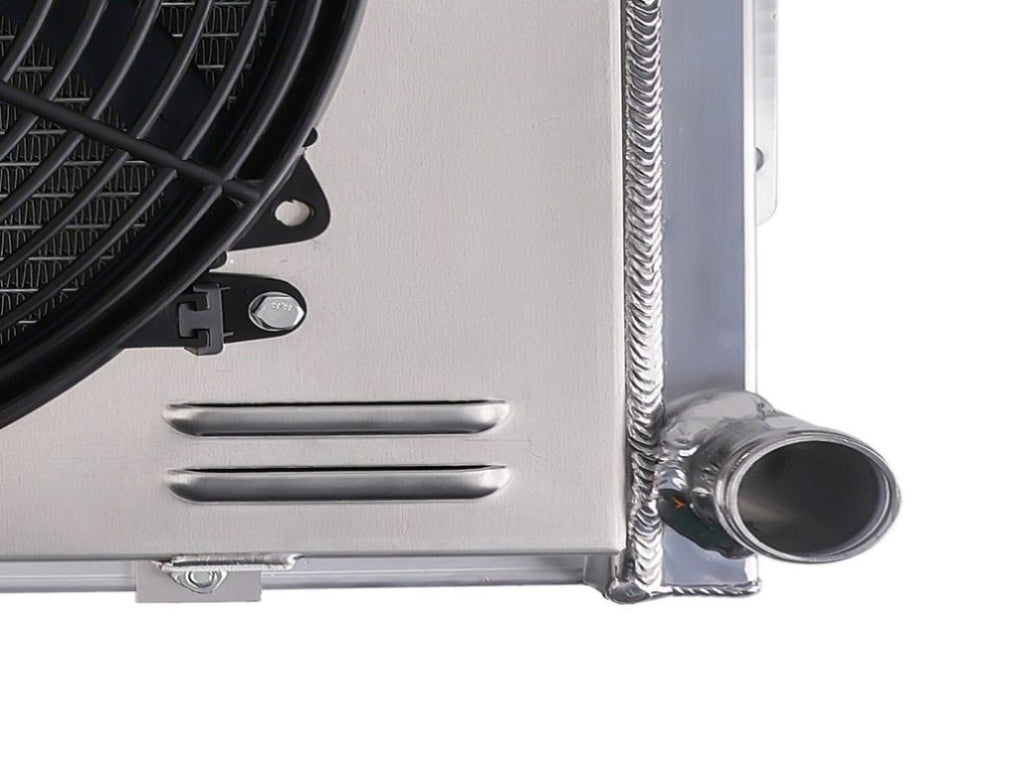

Outlet Location：Bottom Right

Core Row Quantity：3

Down Flow Or Cross Flow Type：Cross flow

Engine Oil Cooler Included：No

Transmission Oil Cooler Included：Yes

Transmission Type：AT

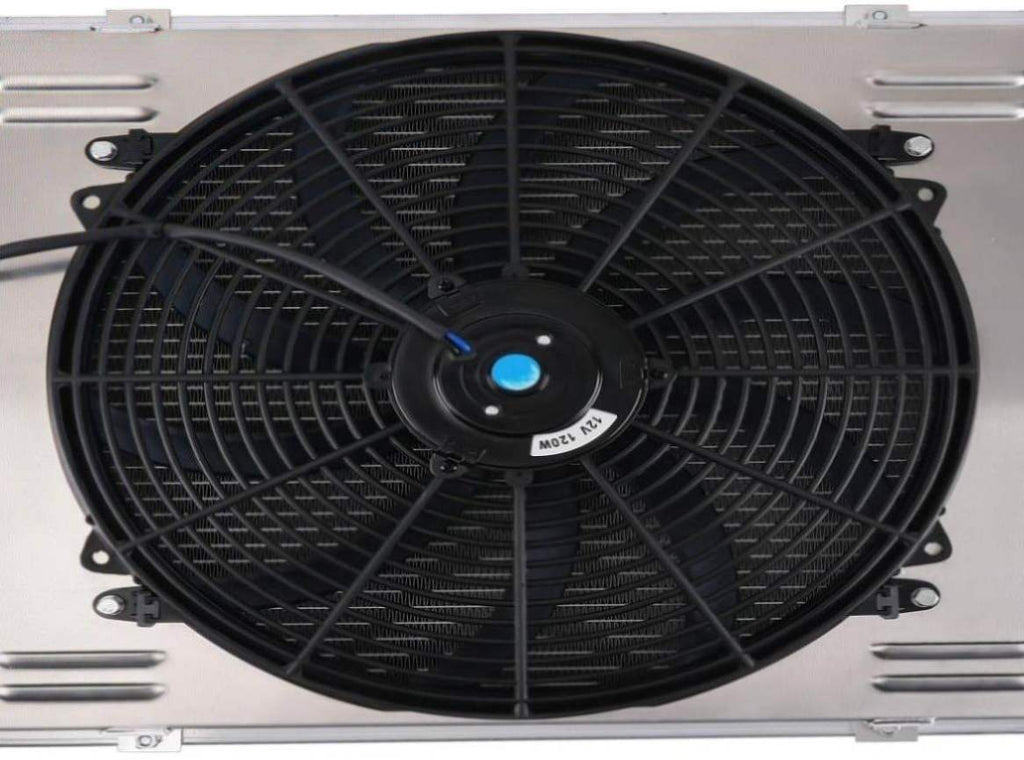

16" Fan:

12V, 120W

≤11.0 AMP DRAW

10 Blades

Color: Black

Fan Diameter: 15.16"

Fan Thickness: 3.27"

Maximum Fan CFM: 580 CFM

Maximum Fan RPM: 2000±5% RPM

Includes the Mounting Tabs fit for an Easy Tie Installation

Easy direct installation, require NO modification

OE Fitment or Replacement Pull Type

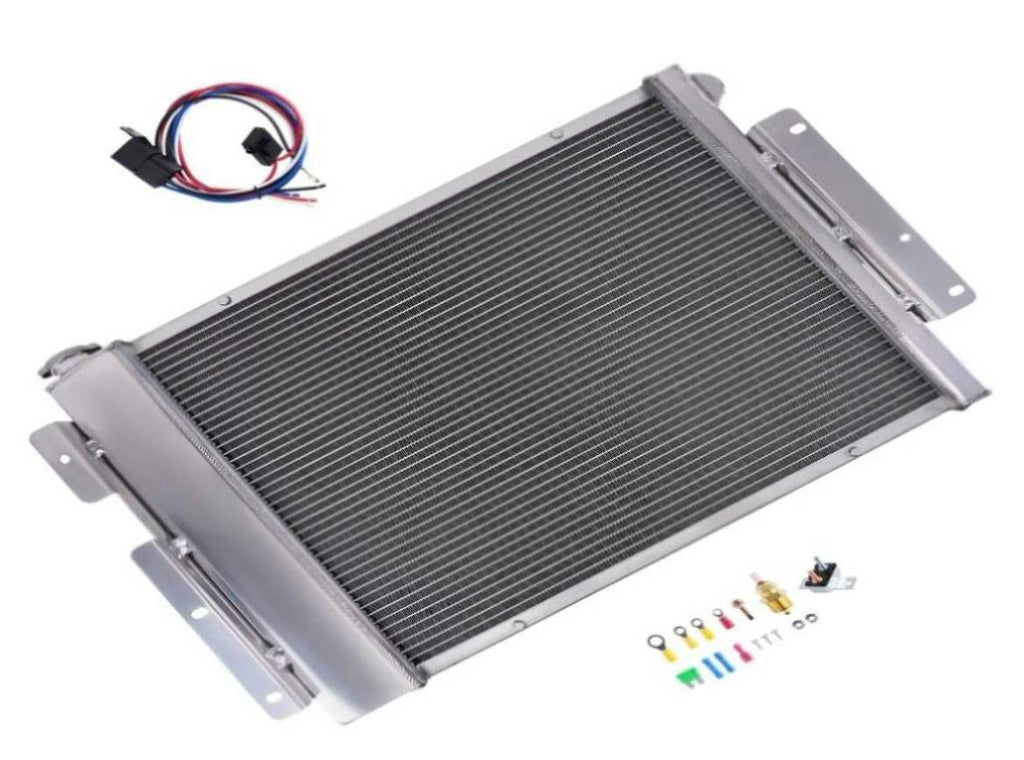

Package included:

1 X Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X Aluminum Shroud

1 X Fans (Includes mounting kits)

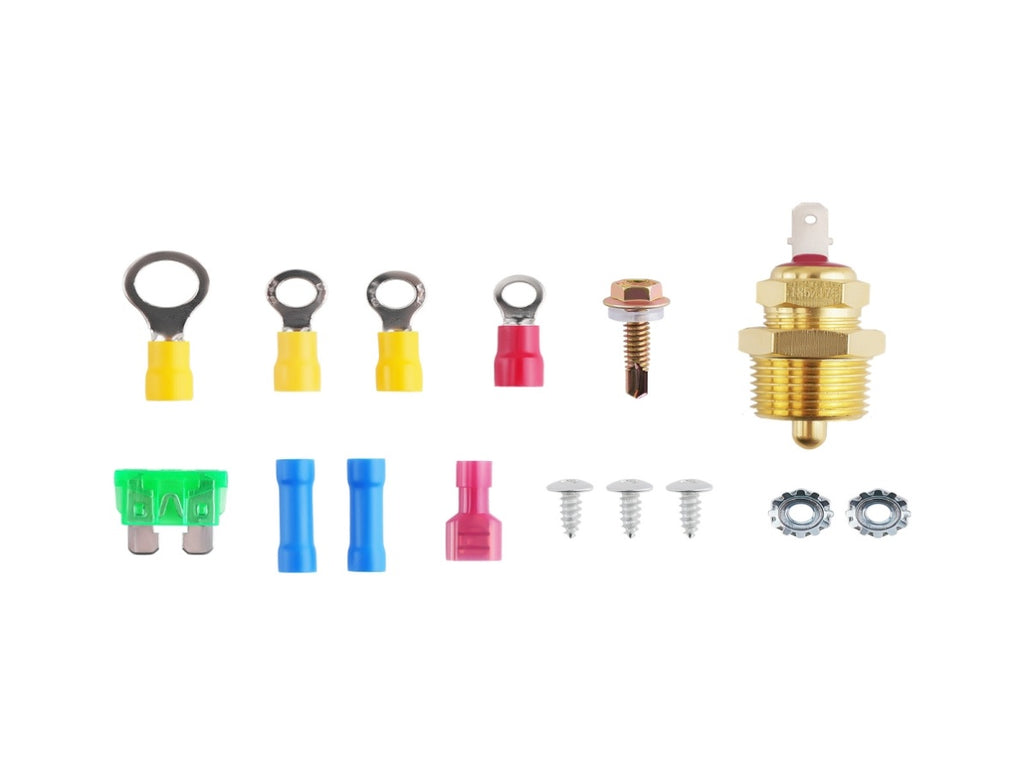

1 X Thermostat Relay Kit (Showing as the picture)

Note:

You confirm that you fully understand the r

isks that may arise from the use of this product, a

nd voluntarily assume all consequences and legal

responsibilities arising from the use of this produc

t. You should ensure that the vehicle after installin

g this product complies with relevant national an

d local laws and regulations, and limit the use of t

his product to specific scenarios permitted by law

s and regulations.
