3.25inch Suspension Lift Kit W/ Shocks fit for Jeep Wrangler JK 4-Door 2007-2018 25077777

overview

Engineered with high-pressure nitrogen charging, this twin-tube shock delivers consistent damping performance and long-lasting durability fit for a smoother ride on any terrain.

Built with a cold-wound chromium-silicon structure, the spring offers superior tensile strength and resilience, ensuring reliable support and a responsive feel mile after mile.

Application:

• fit for Jeep Wrangler JK Unlimited 2WD 2007-2010
• fit for Jeep Wrangler JK Unlimited 4WD 2007-2018

NOTE:

• Does NOT fit for 2-door models.
• If planning on running 35" tires on factory wheels, double check clearance between the front tire, lower control arm and sway-bar links.
• 2012-2018 models require exhaust modifications to clear the front driveshaft.

Specification:

• Lift Height：3.25"
• Material: High Tensile Strength Carbon Steel
• Spring Material: (55CrSi) Steel
• Finish: Powder Coated
• Bushing Material: Rubber
• Diameter of piston rod：18mm/0.71"(Front&Rear)
• Piston diameter: 35mm/1.38"(Front&Rear)
• Outer cylinder diameter: 54mm/2.13"(Front&Rear)
• Travel Length: 250mm/9.84"(Front) 270mm/10.63"(Rear)
• Extended Length:  710mm/27.95"(Front)  680mm/26.77"(Rear)
• Collapsed Length: 460mm/18.11"(Front) 410mm/16.14"(Rear)
• Nitrogen Charged：Yes
• Dust Cover Equipped: Yes

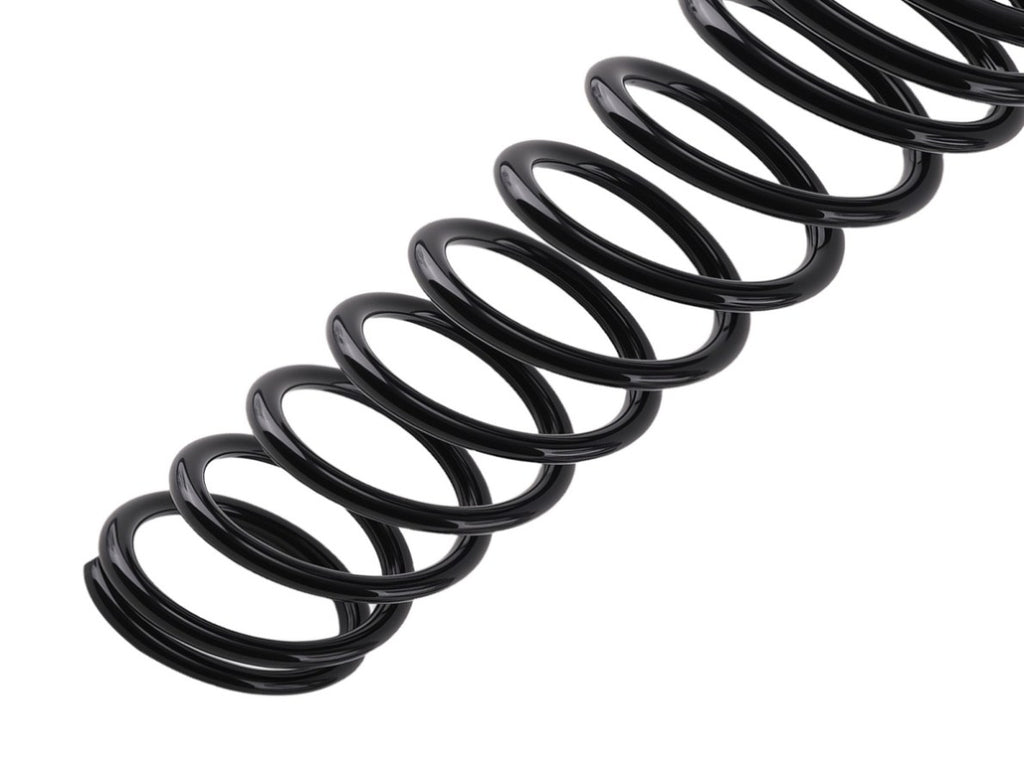

• Spring Length: 500mm/19.69"(Front) 400mm/15.75"(Rear)
• Spring Rate：3kg/mm=168lb/in(Front)  4kg/mm=224lb/in(Rear)

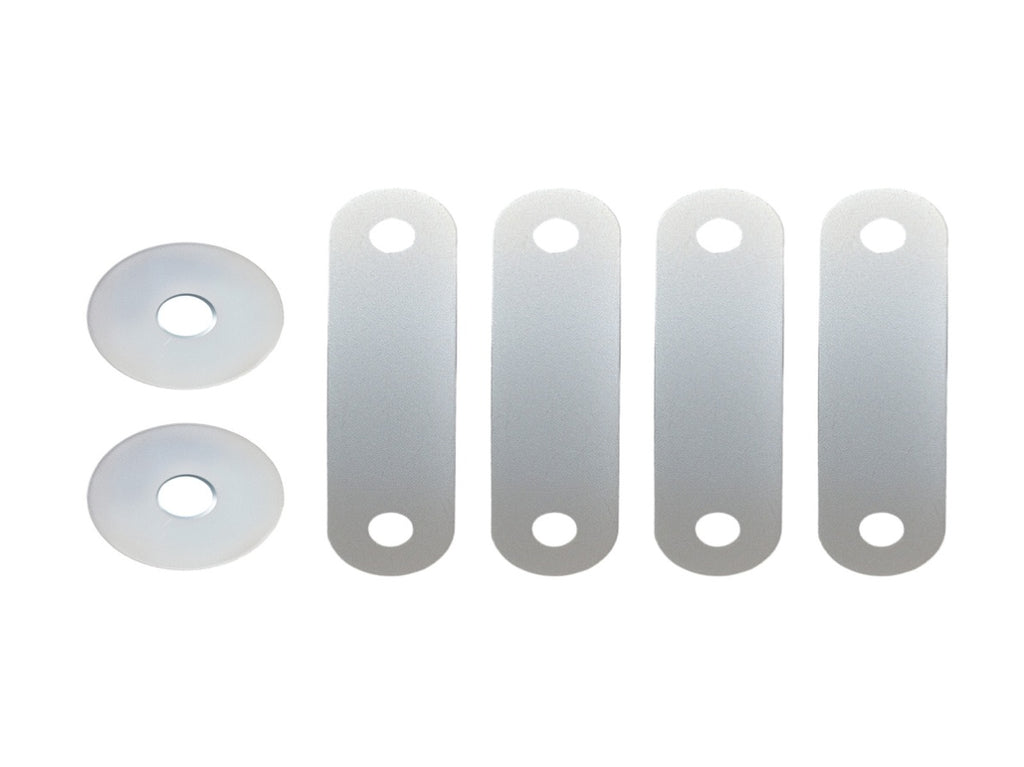

• Spring Spacer Thickness: 19.05mm/0.75"(Front&Rear)
• Spring Spacer Material: Nylon

Feature:

Robust Build Quality：Featuring a 18mm chromed hardened piston rod, a 35mm sintered iron piston, and a spacious 54mm body, this shock is engineered fit for superior heat management and long-lasting durability under demanding conditions.

Enhanced Protection：Constructed from high-tensile strength steel fit for optimal fit and resilience, it includes a protective dust cover to safeguard the piston rod and oil seal from debris and wear.

Refined Ride Comfort：A durable powder-coated finish resists corrosion, while rubber bushings absorb road imperfections more effectively, offering a noticeably smoother and more comfortable off-road experience.

Aggressive Stance：Elevate your vehicle's presence with added ground clearance, confidently accommodating up to larger tires fit for a bolder, more commanding look on any terrain.

Balanced Lift：Effortlessly level your vehicle's front with the rear, restoring a naturally balanced stance fit for improved ground clearance and everyday confidence.

Smooth Ride Preserved：Designed to work harmoniously with your factory suspension, so you gain height without sacrificing comfort or handling.

Tire Info:

• 35x12.50R17 17x9 5x5.0 12
• 35x12.50R17 17x9 5x5.0 6
• 35x12.50R18 18x9 5x5.0 12
• 35x12.50R18 18x9 5x5.0 6
• 35x12.50R20 20x9 5x5.0 12
• 35x12.50R20 20x9 5x5.0 6

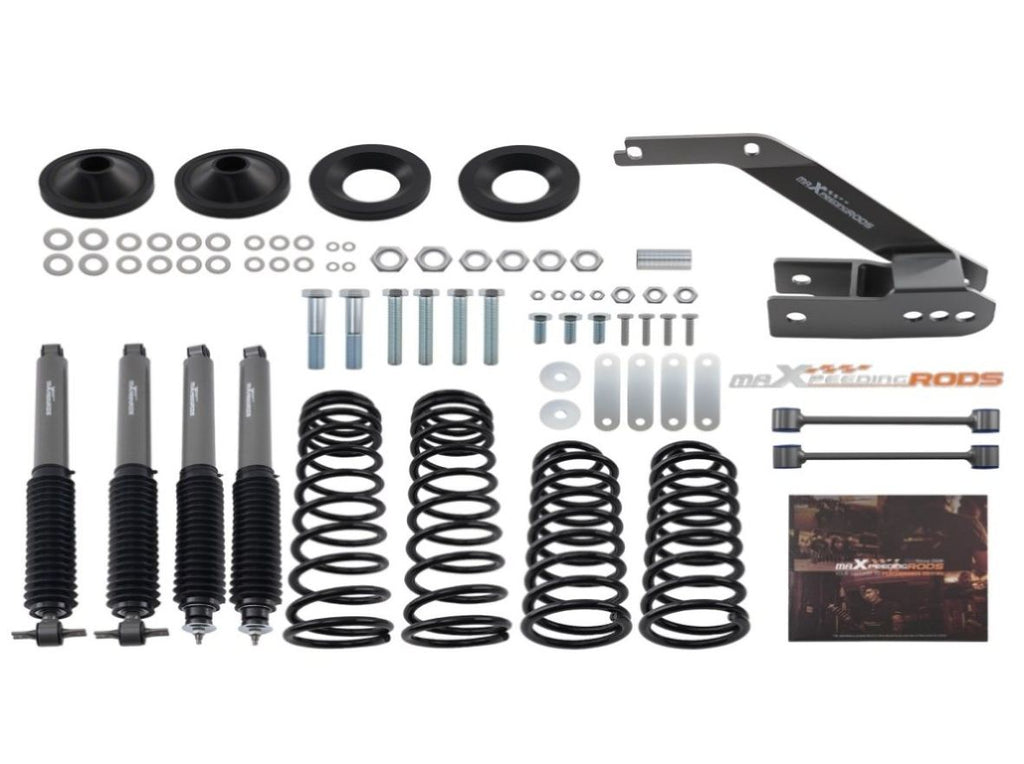

Package included:

• 2x Front Spring Spacers
• 2x Rear Spring Spacers

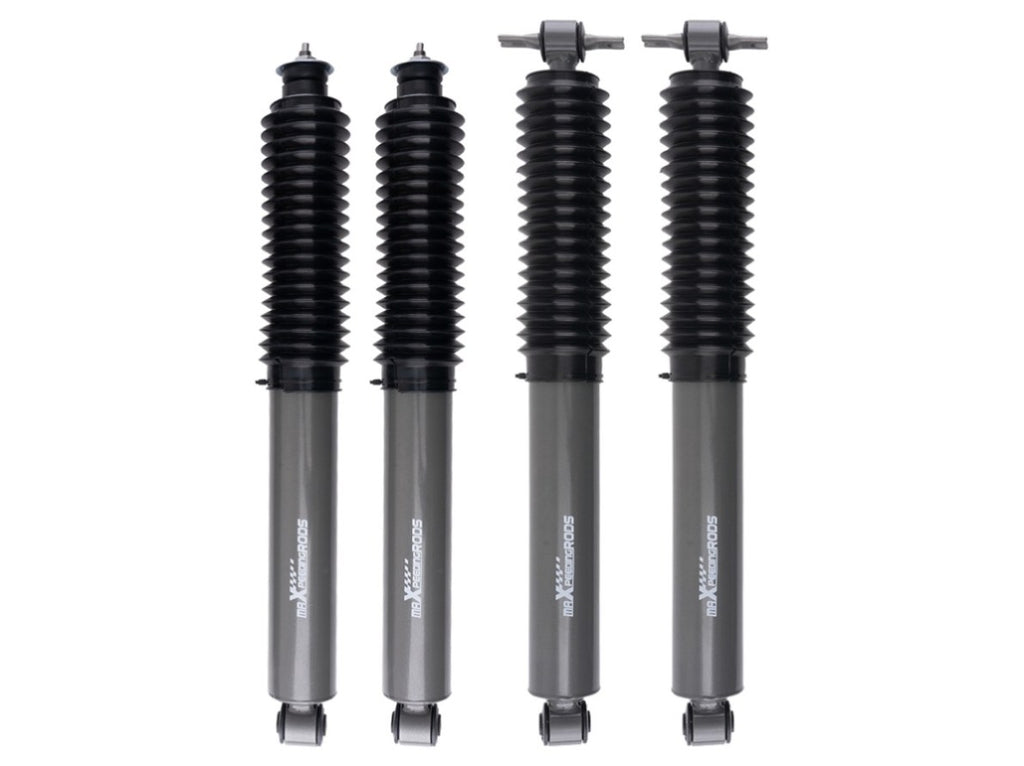

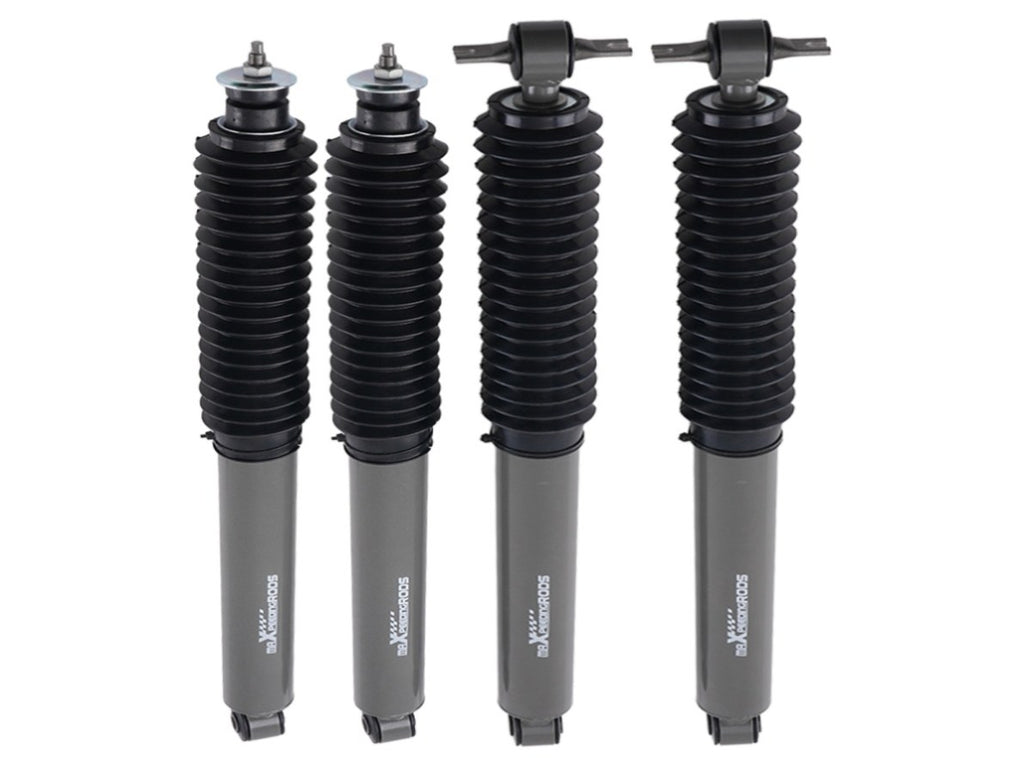

• 2x Front Shocks
• 2x Rear Shocks

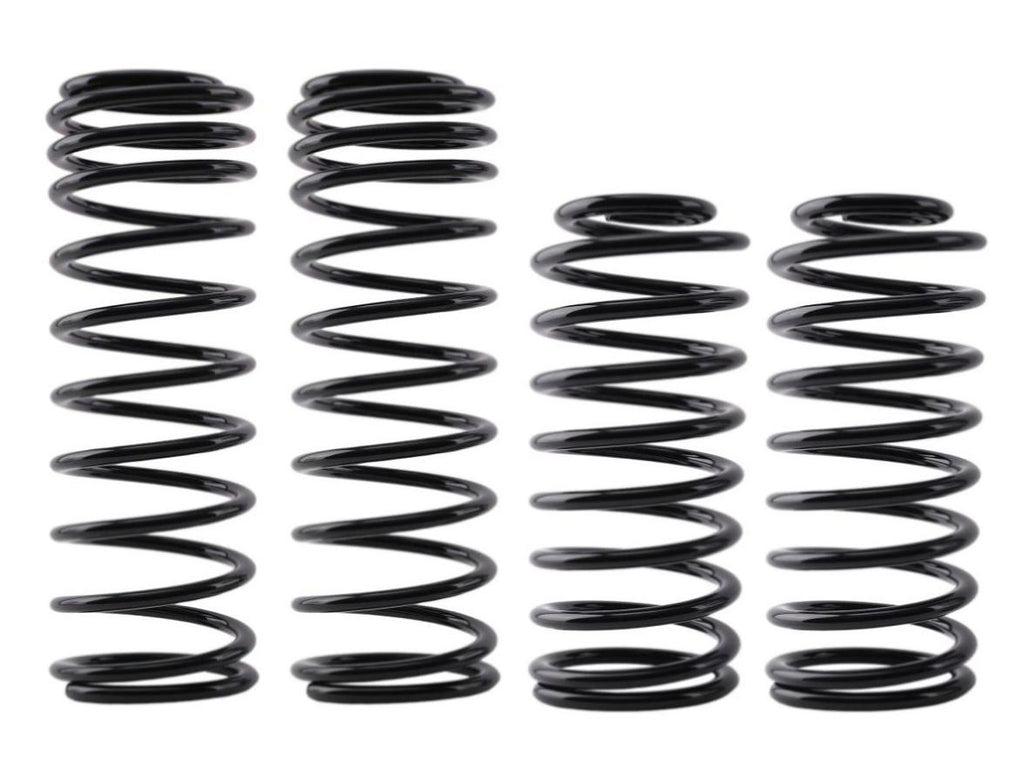

• 2x Front Springs
• 2x Rear Springs
• 1x Panhard rod bracket
• 2x Sway bar links
• Hardwares
