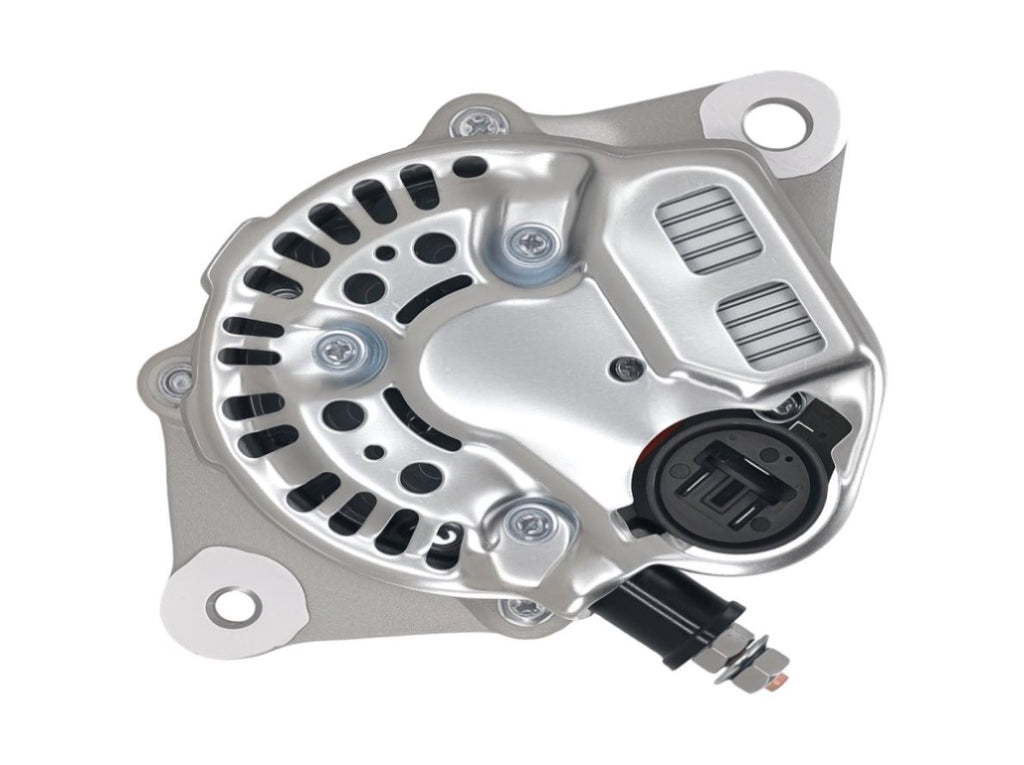

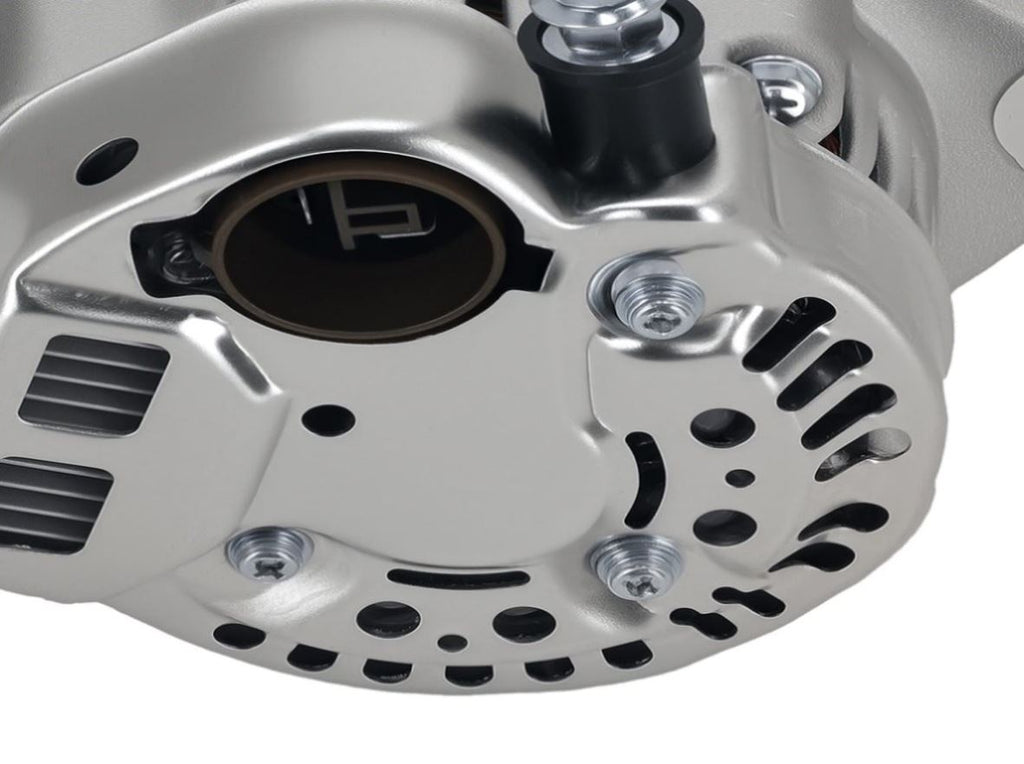

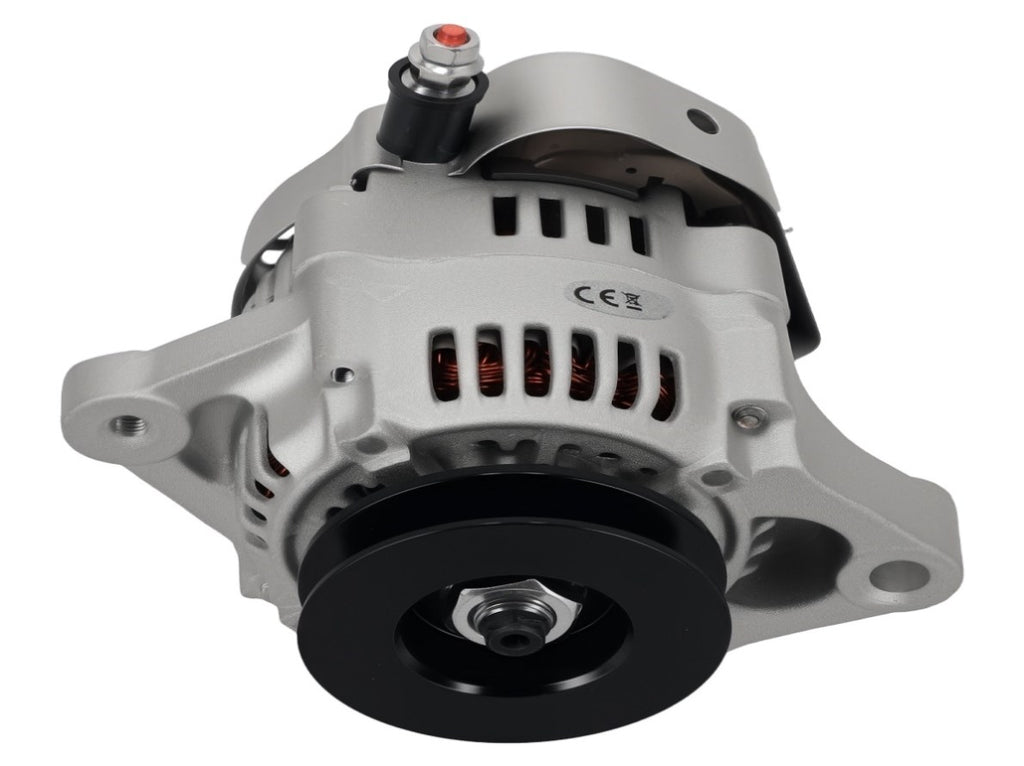

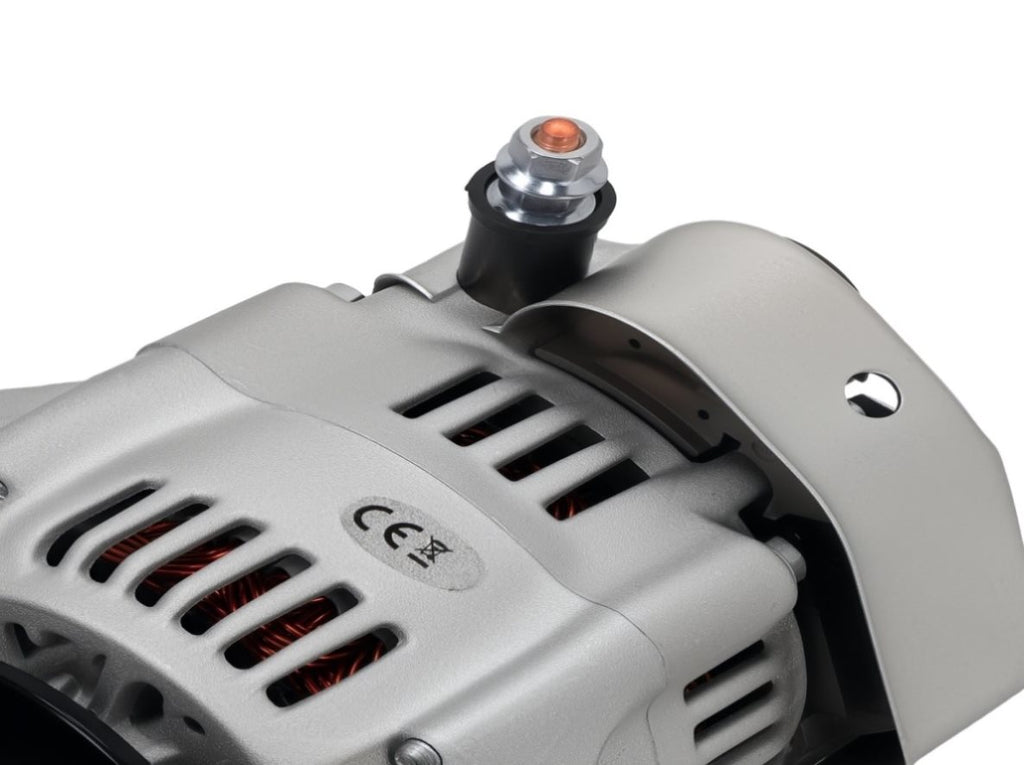

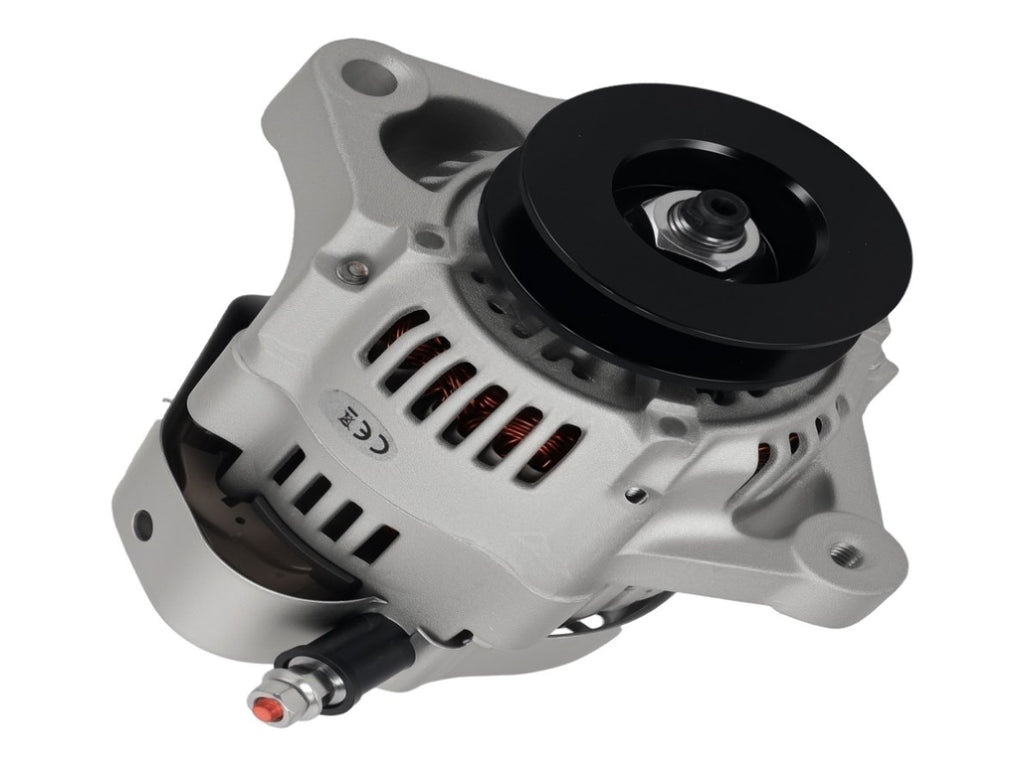

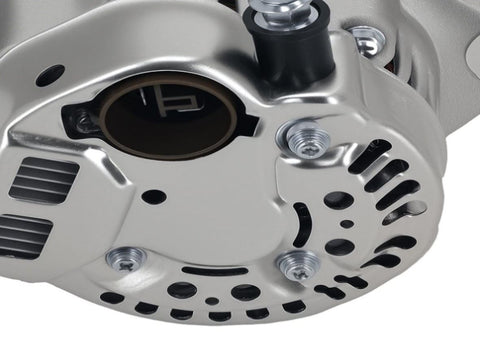

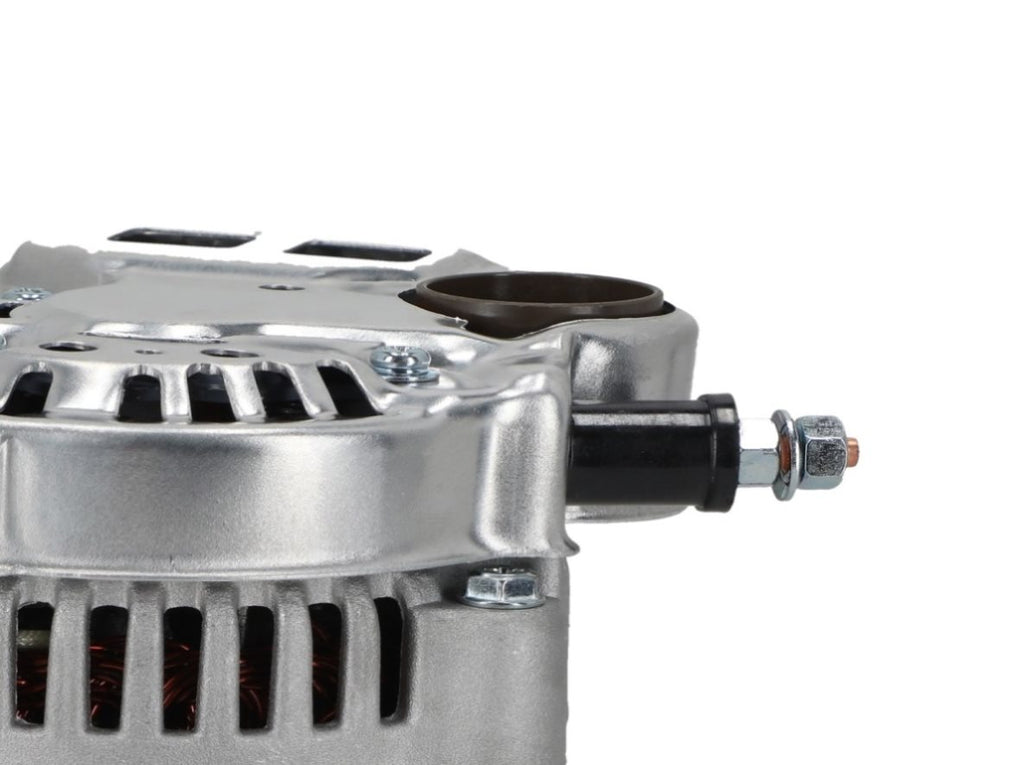

35A Alternator fit for Toyota Lift Trucks 5FG-10 6FG-20 6FG-23 CW 1-Groove Pulley 09920811

Application

fit for Toyota Lift Trucks 603 DT FL1003/2 Same Diesel 1971-1982
fit for Toyota Lift Trucks 2FG-7 4P Toyota Gas 1993-1999
fit for Toyota Lift Trucks 2FG-7 5K Engine 1992-2007
fit for Toyota Lift Trucks  2FG-9 4P Toyota Gas 1993-1999
fit for Toyota Lift Trucks 2FG-9 5K Engine 1992-2007
fit for Toyota Lift Trucks   2FGL-7 5K Engine 1992-2007
fit for Toyota Lift Trucks 2FGL-9 5K Engine 1992-2007
fit for Toyota Lift Trucks  4SG-10 4Y Engine 1994-2007
fit for Toyota Lift Trucks  4SG-12 4Y Engine 1994-2007
fit for Toyota Lift Trucks 4SG-15 4Y Engine 1994-2007
fit for Toyota Lift Trucks 5FD-10 V1512 Engine 1989-1994
fit for Toyota Lift Trucks   5FD-14 V1512 Engine 1989-1994
fit for Toyota Lift Trucks 5FD-15 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FD-18 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FD-20 V1512 Engine 1989-1994
fit for Toyota Lift Trucks   5FD-20 VT1502-T Kubota Dsl. 1989-1994
fit for Toyota Lift Trucks  5FD-23 V1512 Engine 1989-1994
fit for Toyota Lift Trucks   5FD-23 VT1502-T Kubota Dsl. 1989-1994
fit for Toyota Lift Trucks 5FD-25 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FD-25 VT1502-T Kubota Dsl. 1989-1994
fit for Toyota Lift Trucks   5FDL-10 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FDL-14 V1512 Engine 1989-1994
fit for Toyota Lift Trucks 5FDL-15 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FDL-18 V1512 Engine 1989-1994
fit for Toyota Lift Trucks 5FDL-20 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FDL-23 V1512 Engine 1989-1994
fit for Toyota Lift Trucks  5FDL-25 V1512 Engine 1989-1994
fit for Toyota Lift Trucks   5FG-10 4P Engine 1989-2007
fit for Toyota Lift Trucks  5FG-10 4Y Engine 1989-1994
fit for Toyota Lift Trucks   5FG-10 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FG-14 4P Engine 1989-2007
fit for Toyota Lift Trucks   5FG-14 4Y Engine 1989-1994
fit for Toyota Lift Trucks  5FG-14 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FG-15 4P Engine 1989-2007
fit for Toyota Lift Trucks 5FG-15 4Y Engine 1989-1994
fit for Toyota Lift Trucks  5FG-15 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FG-18 4P Engine 1989-2007
fit for Toyota Lift Trucks  5FG-18 4Y Engine 1989-1994
fit for Toyota Lift Trucks  5FG-18 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FG-20 4P Engine 1989-2007
fit for Toyota Lift Trucks  5FG-20 4Y Engine 1989-2007
fit for Toyota Lift Trucks  5FG-20 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FG-23 4P Engine 1989-1994
fit for Toyota Lift Trucks  5FG-23 4Y Engine 1989-2007
fit for Toyota Lift Trucks  5FG-23 5K Engine 1989-1994
fit for Toyota Lift Trucks   5FG-25 4P Engine 1989-1994
fit for Toyota Lift Trucks  5FG-25 4Y Engine 1989-1994
fit for Toyota Lift Trucks 5FG-25 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FG-28 4Y Engine 1989-2007
fit for Toyota Lift Trucks 5FG-30 4Y Engine 1989-2007
fit for Toyota Lift Trucks  5FGL-10 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FGL-14 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FGL-15 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-18 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FGL-20 4P Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-20 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-23 4P Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-23 5K Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-25 4P Engine 1989-1994
fit for Toyota Lift Trucks 5FGL-25 5K Engine 1989-1994
fit for Toyota Lift Trucks  5FLD-10 V1512 Toyota Dsl. 1989-1994
fit for Toyota Lift Trucks  6FDL-10 V1512 Engine 1994-2007
fit for Toyota Lift Trucks  6FDL-14 V1512 Engine 1994-2007
fit for Toyota Lift Trucks 6FDL-15 V1512 Engine 1994-2007
fit for Toyota Lift Trucks   6FDL-18 V1512 Engine 1994-2007
fit for Toyota Lift Trucks  6FDL-20 V1512 Engine 1994-2007
fit for Toyota Lift Trucks  6FDL-23 V1512 Engine 1994-2007
fit for Toyota Lift Trucks   6FDL-25 V1512 Engine 1994-2007
fit for Toyota Lift Trucks  6FG-10 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FG-14 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FG-15 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FG-15 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FG-18 4Y Engine 1994-2007
fit for Toyota Lift Trucks 6FG-18 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FG-20 4Y Engine 1994-2007
fit for Toyota Lift Trucks   6FG-20 5K Engine 1994-2007
fit for Toyota Lift Trucks   6FG-23 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FG-23 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FG-25 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FG-25 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FG-28 4Y Engine 1994-2005
fit for Toyota Lift Trucks  6FG-28 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FG-30 4Y Engine 1994-2005
fit for Toyota Lift Trucks  6FG-30 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FGC-25 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FGL-10 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FGL-14 4Y Engine 1994-2007
fit for Toyota Lift Trucks 6FGL-14 5K Engine 1994-2005
fit for Toyota Lift Trucks  6FGL-15 4Y Engine 1994-2007
fit for Toyota Lift Trucks   6FGL-15 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FGL-18 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FGL-18 5K Engine 1994-2007
fit for Toyota Lift Trucks  6FGL-20 4Y Engine 1994-2007
fit for Toyota Lift Trucks   6FGL-20 5K Engine 1994-2007
fit for Toyota Lift Trucks   6FGL-23 4Y Engine 1994-2007
fit for Toyota Lift Trucks  6FGL-23 5K Engine 1994-2007
fit for Toyota Lift Trucks 6FGL-25 4Y Engine 1994-2007
fit for Toyota Lift Trucks 6FGL-25 5K Engine 1994-2007

OE/Part Number
100211-4540, 27060-78003, 27060-78003-71, 12187N, 146-93107
DRA3519,  8760196, AC8760196, 446165, LRA01719, SYAN0003
12187, 90295181N, 50928, 90-29-5181, X612187, 90-29-5181N
210-7000, AND0168, 400-52002, 400-52002R, 40052063, 10459516, 9760218-454

Specification

Unit Type: Alternator
Part Type:  Unit
Voltage: 12V
Rotation:  CW
Amperage: 35A
Number of Grooves: 1-Groove Pulley
Fan Location: Internal
Regulator Location: Internal
Regulator Clock: 9:00
Pulley OD: 2.917in / 74.1mm
Pulley Type: Solid
Polarity: Negative

Feature
1. MaXpeedingrods Alternator is made from 100% new components,  never Compromise on Used/Refurbished one.Our alternators provide reliable power fit for every journey—whether on main roads, country lanes, or remote tracks
2. This alternator provides high efficiency and reliability, ensuring stable power supply fit for your vehicle. It utilizes modern design and manufacturing technologies to deliver excellent performance and provide reliable power fit for various electrical equipment and charging systems.
3. The robust and precision CNC machined design to reduce friction, vibration and noise, reducing the need fit for frequent replacements. Rotors and stators are calibrated and then sealed with secondary insulating coating to help prevent shorts.
4. Built to strict quality control standards 100% factory tested, including load tests, voltage regulation, cycling tests, and heat resistance tests. Engineered with premium brushes and fault-resistant parts fit for significantly longer-lasting alternators.

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
