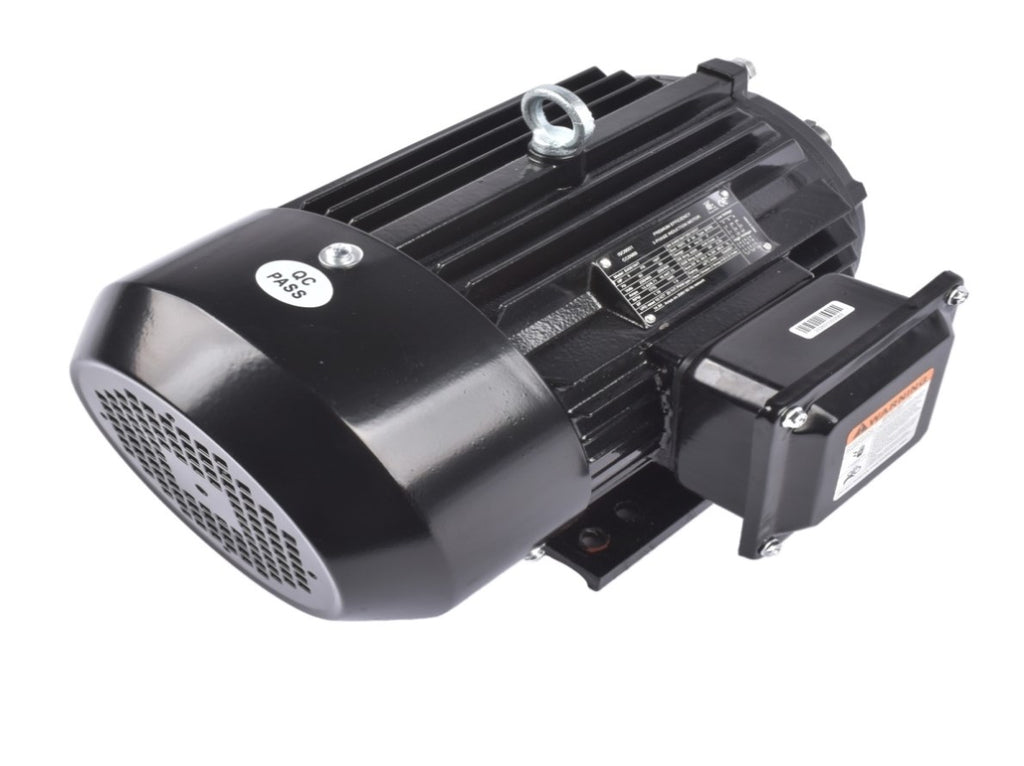

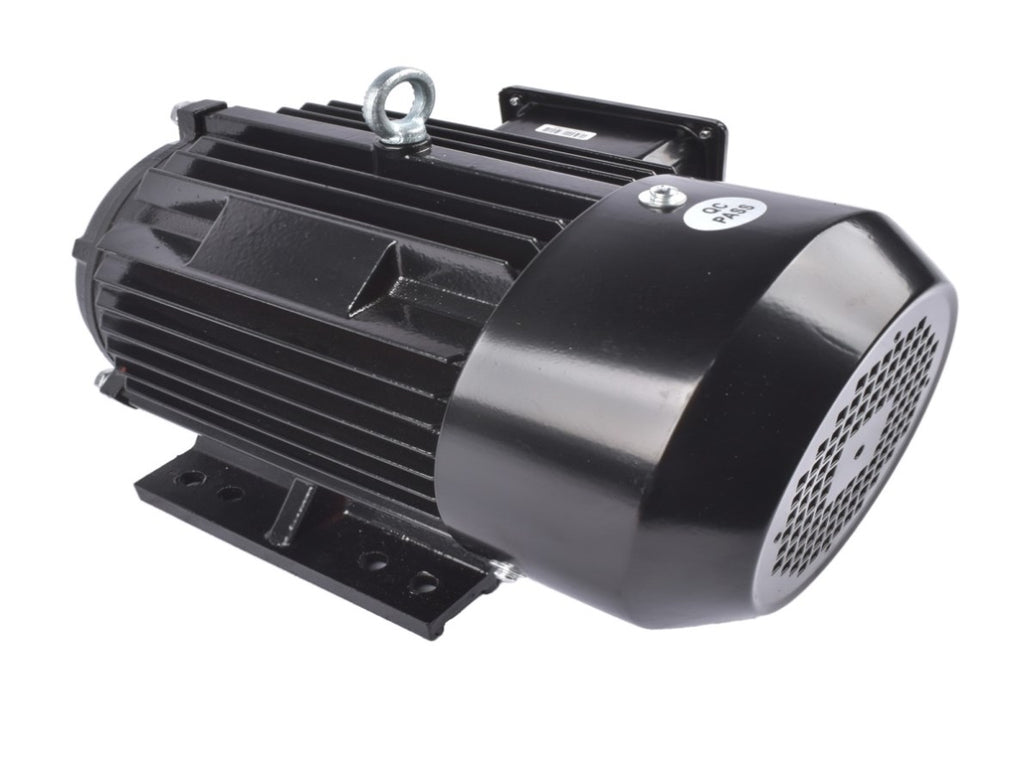

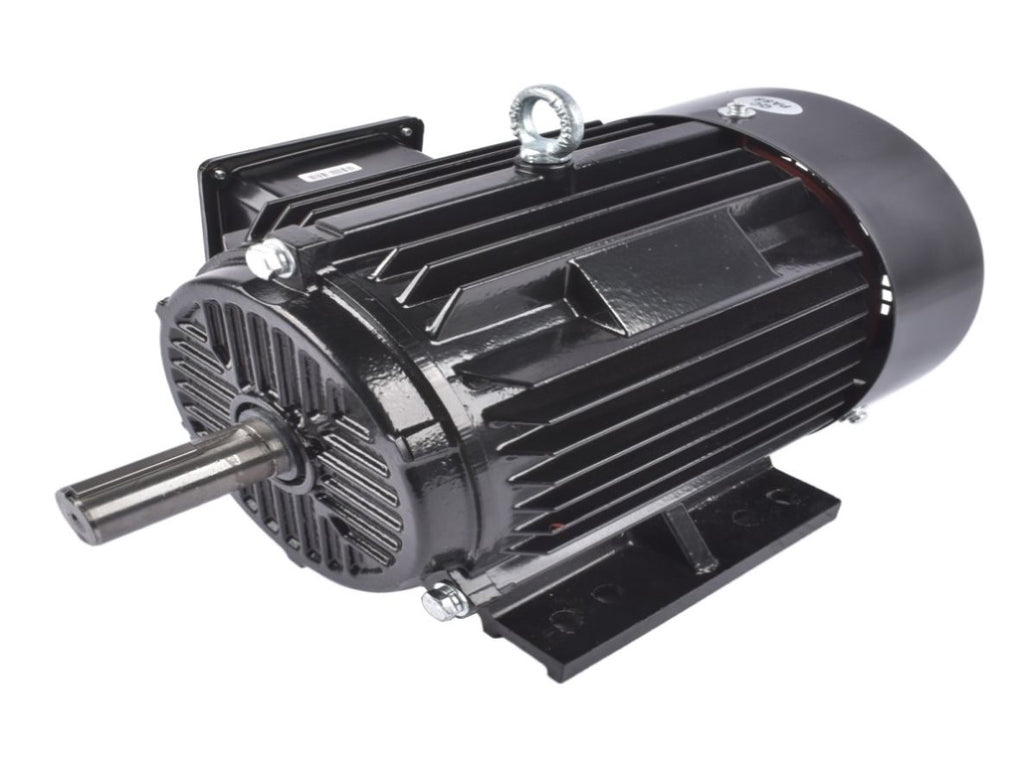

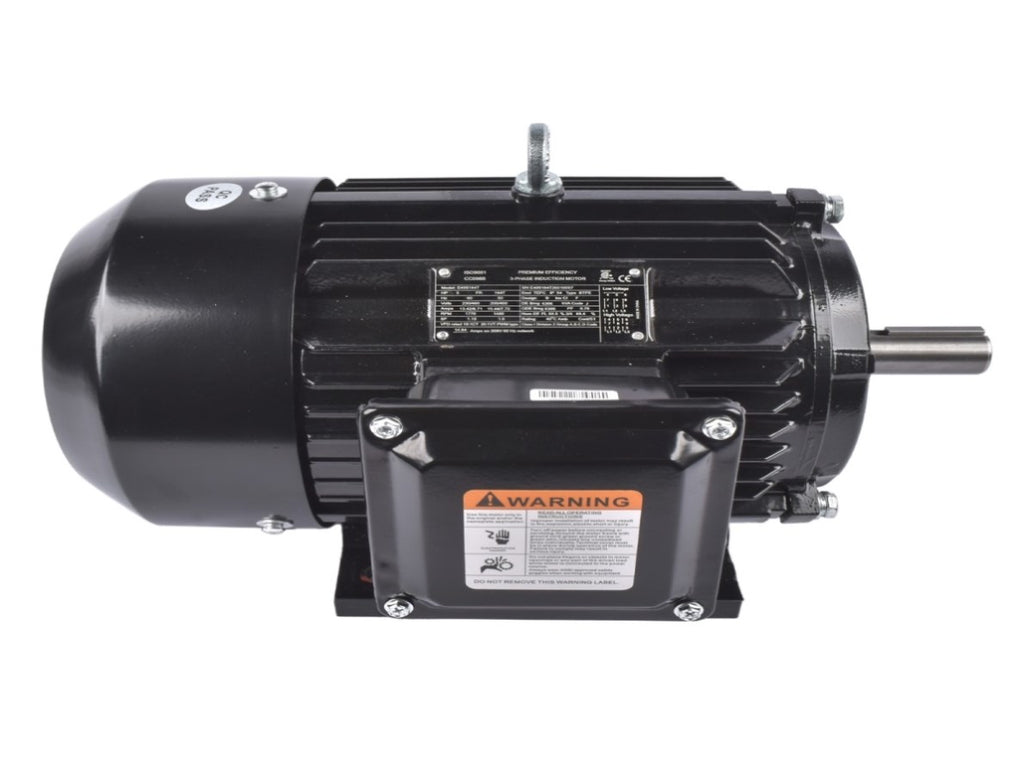

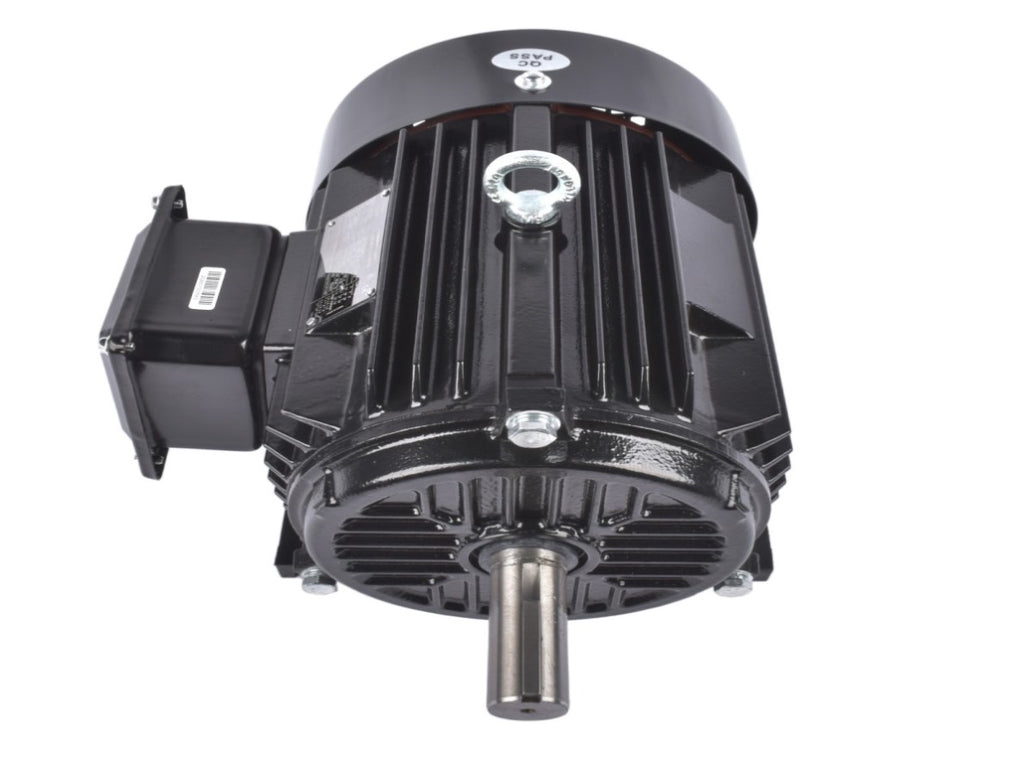

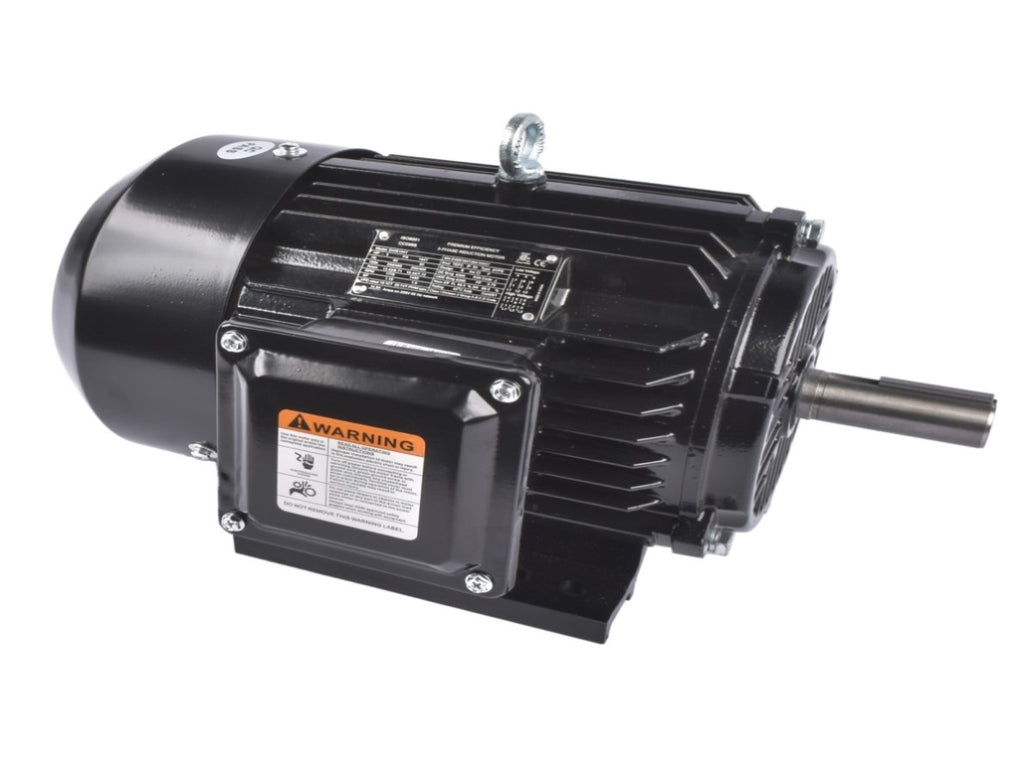

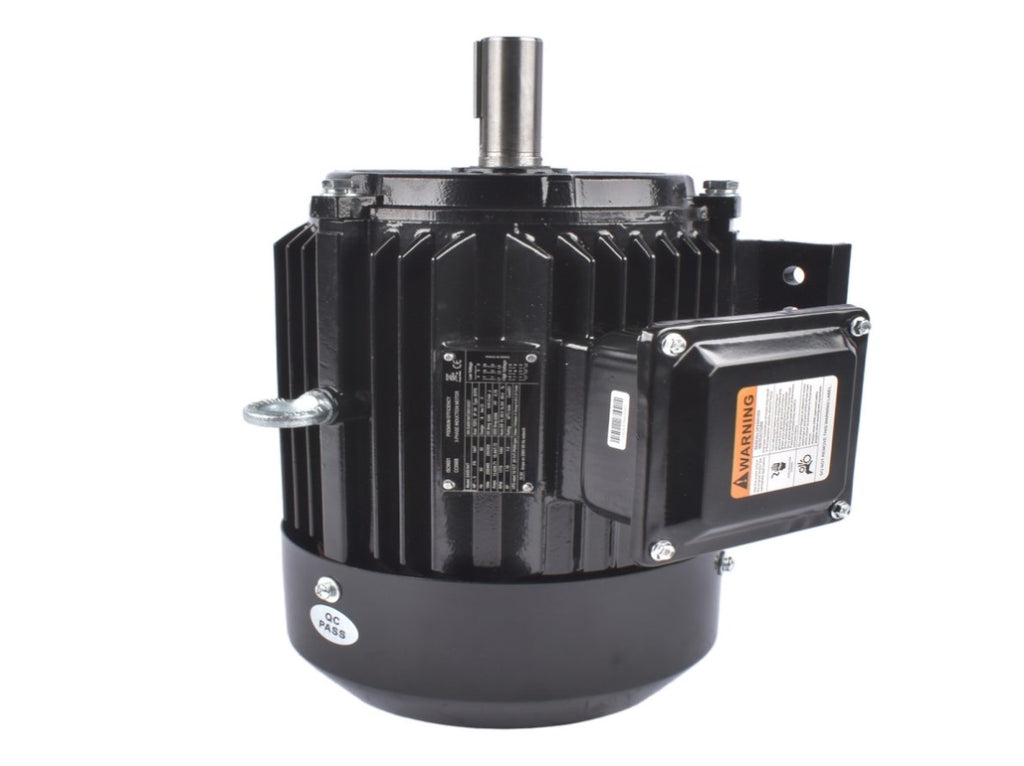

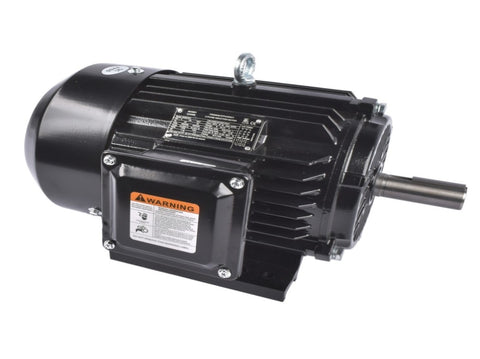

5HP Three Phase Air Compressor Motor TR50214 230/460V 1800 RPM TEFC 184T 65347480
?Specifications
Type: Air Compressor Motor
Material: Cast Iron + Copper Winding
Color: Black
Color: Black
IP Rating: IP55
Current Type: AC
AC Phase: 3 Phase

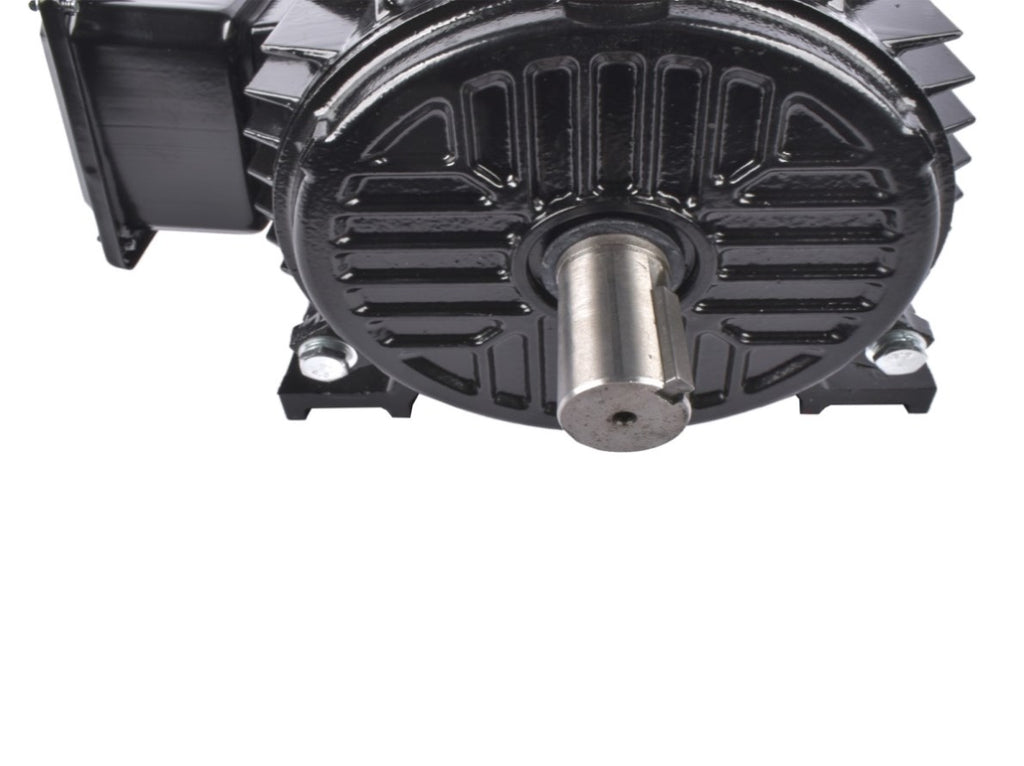

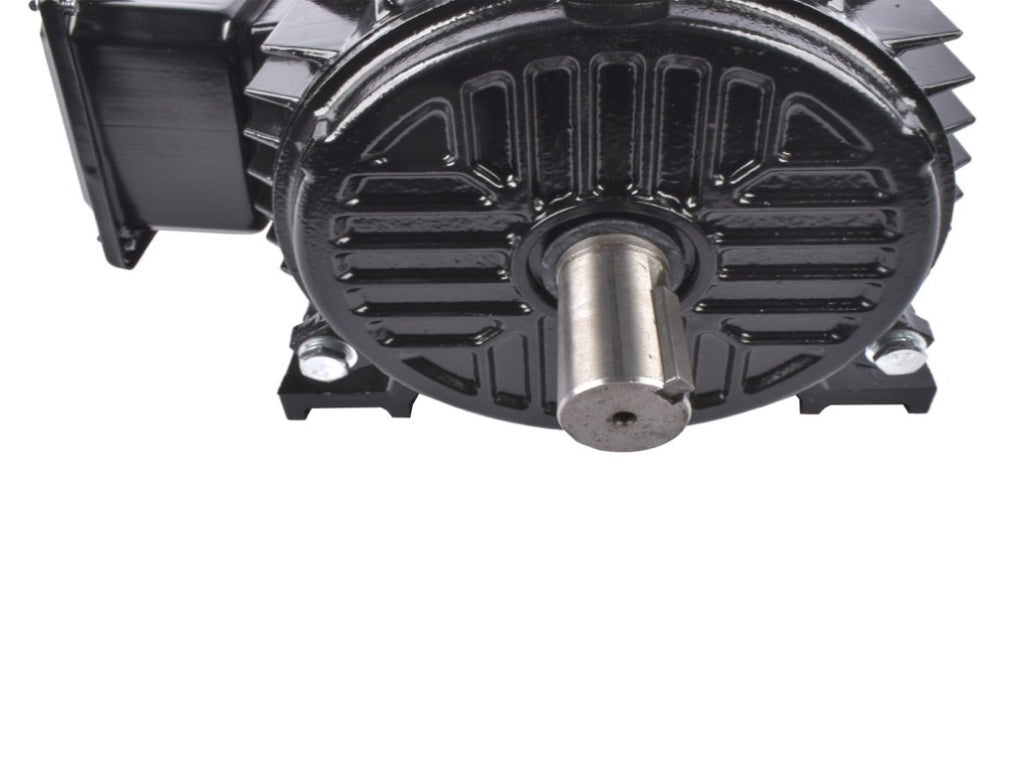

Shaft Type: Keyed
Insulation Class: F
Rated Load (HP) : 5

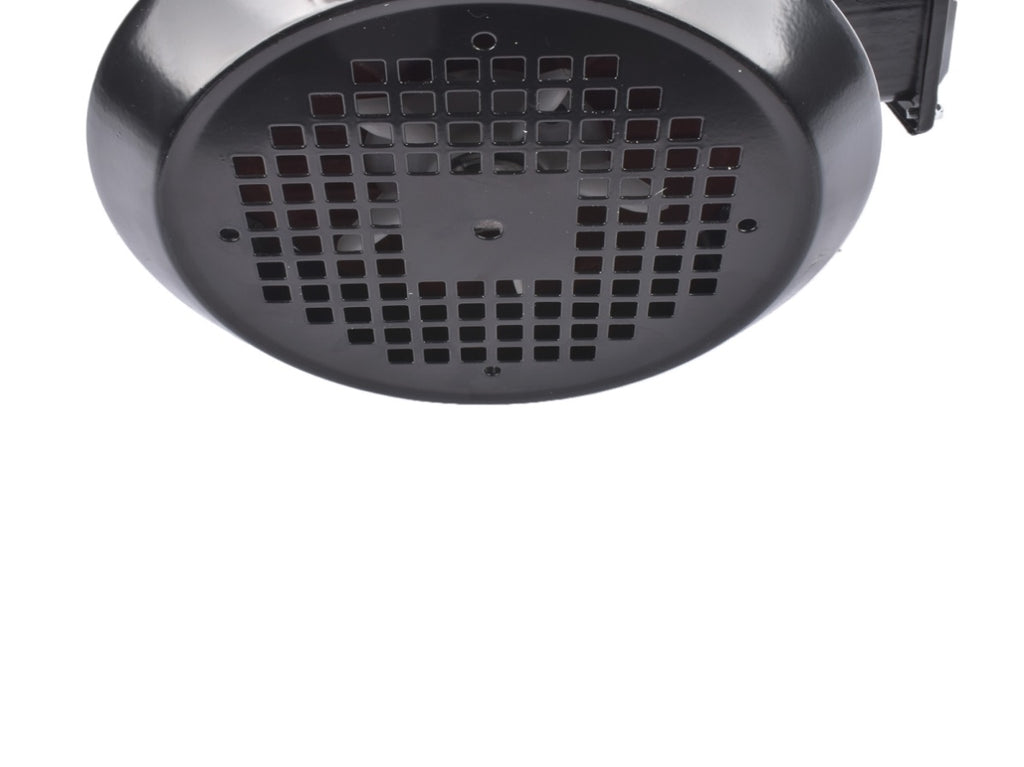

Fan Type: Fan Cooled
IEC Frame Size: 184T
NEMA Frame Suffix: T
Rotation: Bi-Directional
Service Factor: 1.0/1.15
Max Temp: 40 Degrees C
Full Load Amps: 13.42/6.71
AC Frequency Rating: 50/60 Hz
NEMA Design: Design B (General Purpose)
Nominal Rated Input Voltage: 230 V/ 460 V
Base RPM: 1800 RPM (Full Load Speed 1755)
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
TR50214
?Features
①Reversible operation, rigid base mounting, ball bearings, Class F insulation
②Compact size, easy to transport, simple installation, excellent heat dissipation
③Forged iron housing, durable, wear-resistant, long service life
④Heavy Duty, 5 HP, 1800 rpm, rated input voltage 230/460 V, 184T frame three-phase motor
?Package Includes
1x Air Compressor Motor
(As Pics Shown)
