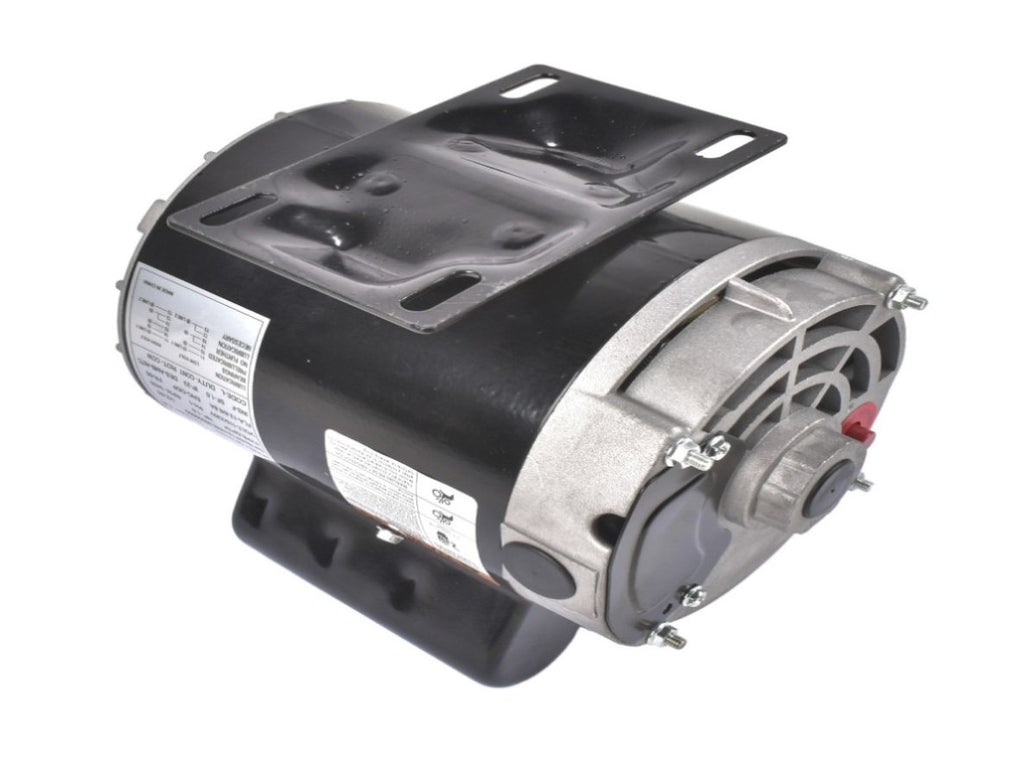

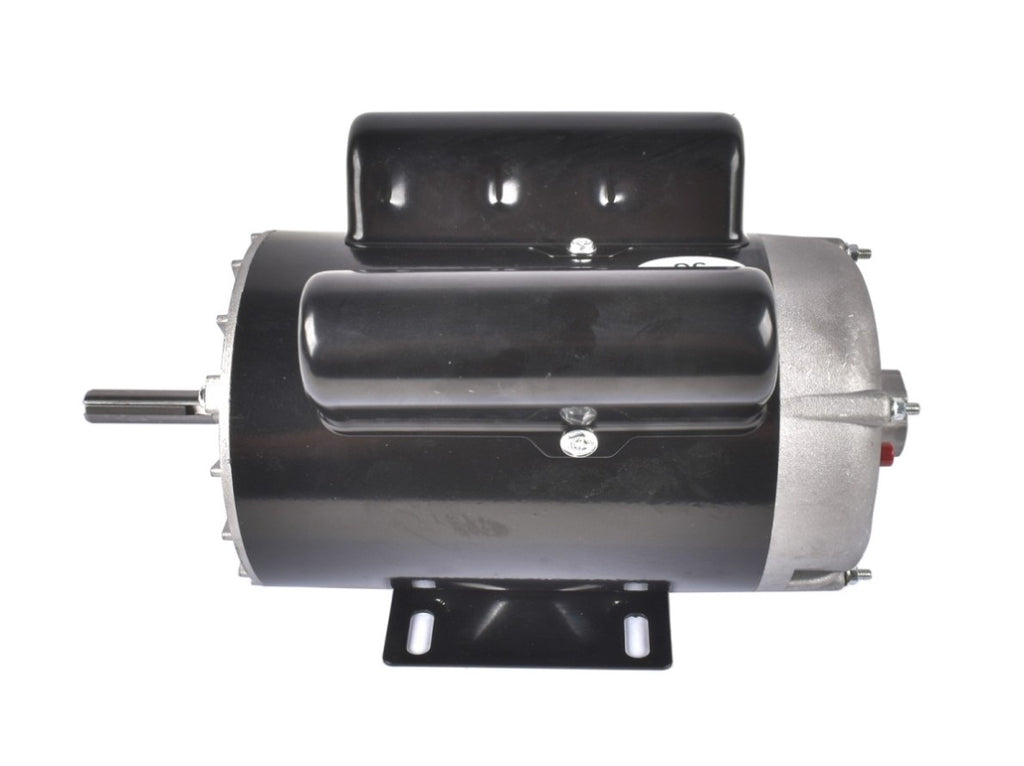

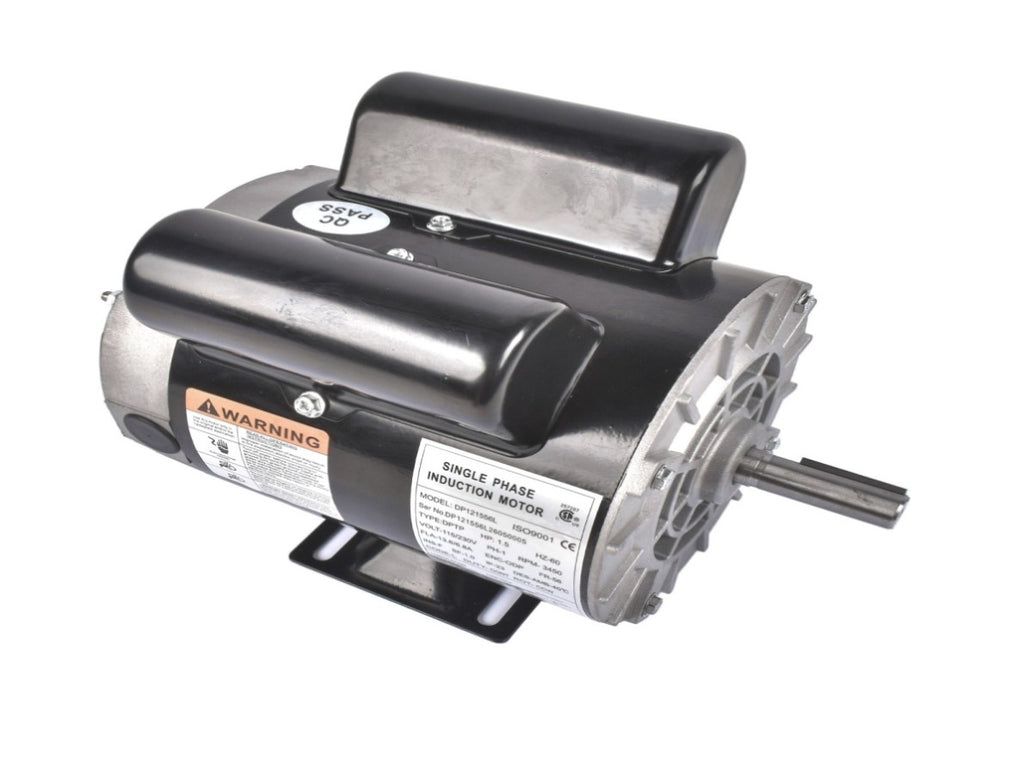

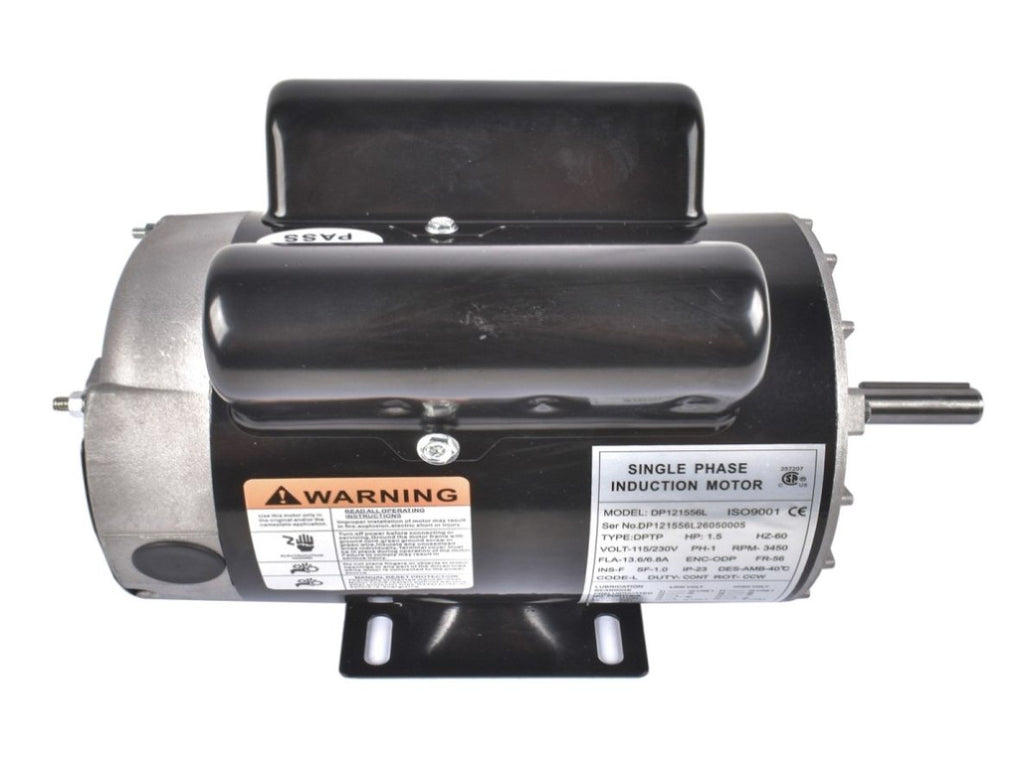

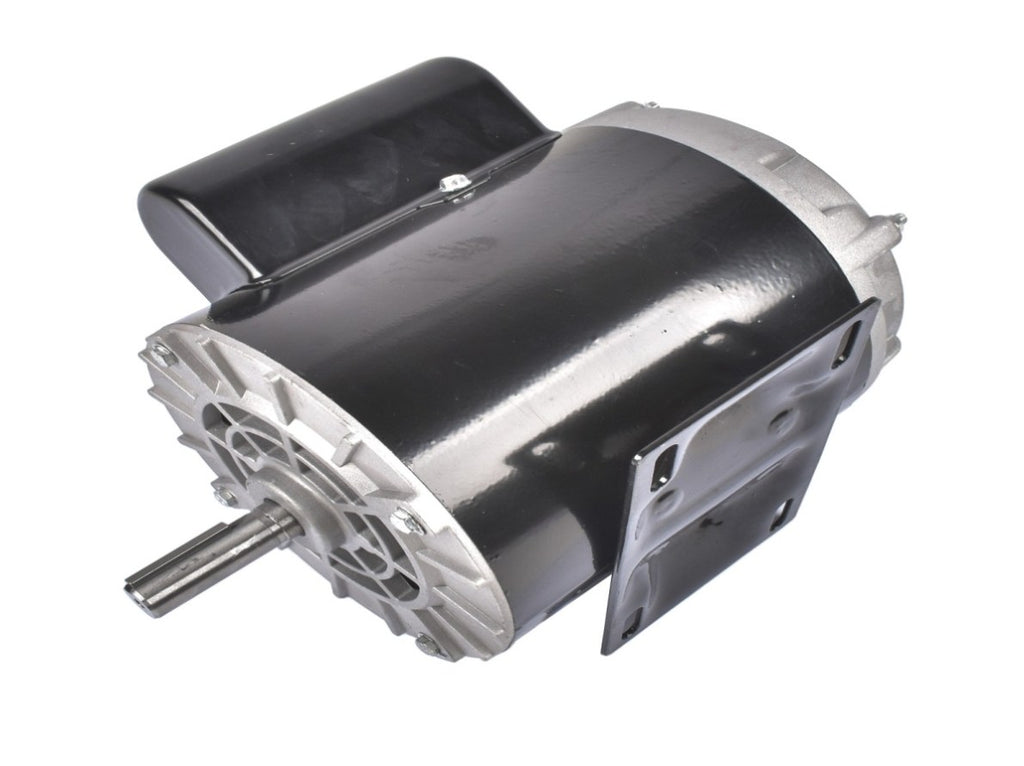

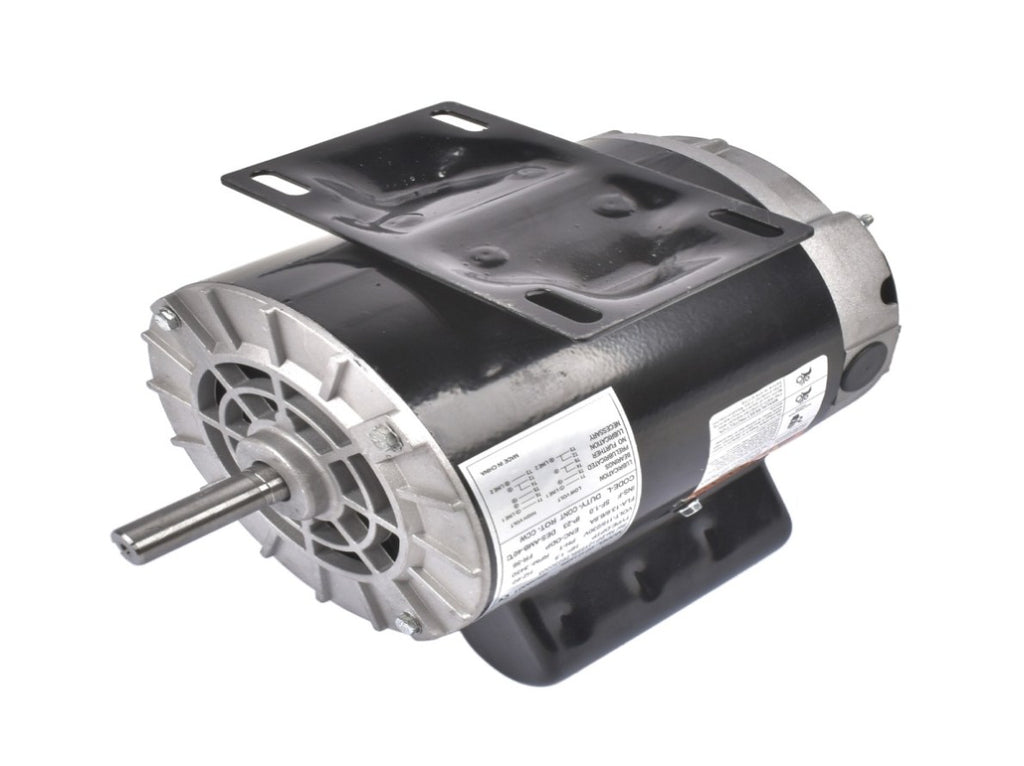

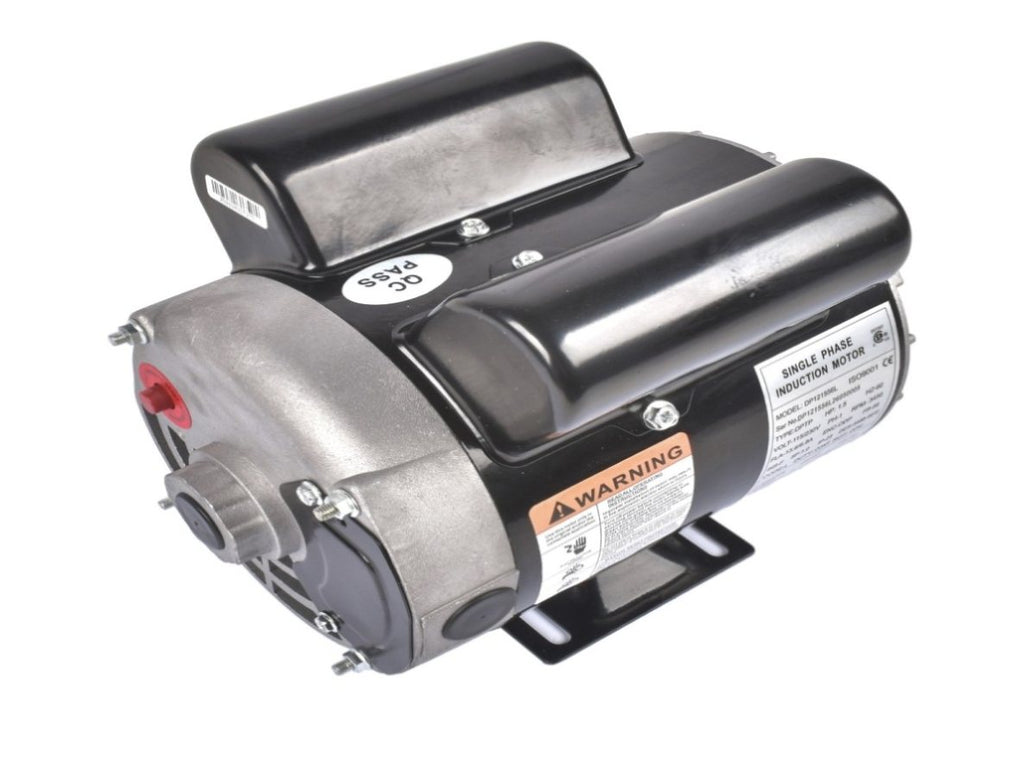

Air Compressor Motor 1.5 HP 1 Phase 3450 RPM 56 Frame 115/230 V 60 HZ CCW 41745178
Specifications
AC Phase: 1 Phase
Output HP: 1.5 HP
Output KW: 1.1 KW
Voltage: 115/230 Volt
Speed: 3450 RPM
Service Factor: 1.0
Frame: 56
Enclosure Type: ODP (Open Drip-Proof)
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 HZ
Full Load Amps: 13.6/6.8A
Duty: Continuous
Insulation Class: F
Rotation: CCW
Shaft Type: Keyed
Frame Material: Rolled Steel
AC Motor Type: Induction
Notes!

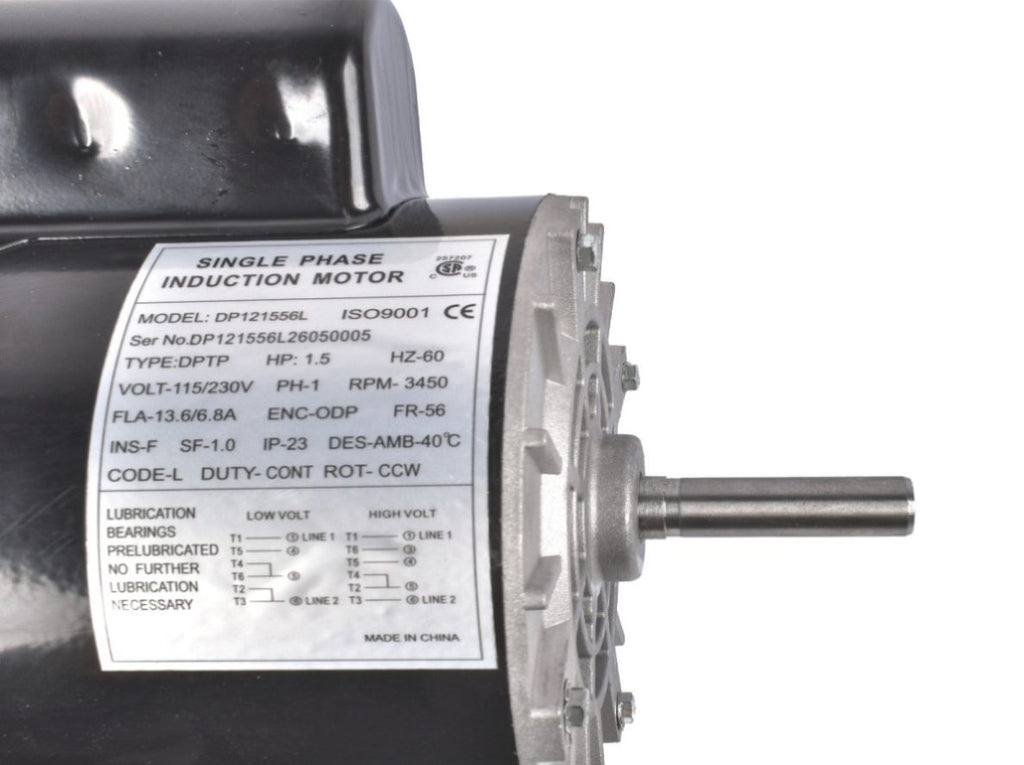

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
