Air Suspension Spring Kit Rear fit for Ford E-450 Econoline 1996-2004 19254262

Fitment；

Fit For Ford E-450 Econoline 1996–2005

Fit For Ford E-450 Super Duty 2006–2026

Fit For Ford E Super Duty Cargo 1996–2002

Fit For Ford E Super Duty Base Model 2000–2001

Fit For Ford Motorhome Class C; E-450 1996–2026

NOTE:

Requires 8" between tire and frame.

Not exceed the vehicle’s gross vehicle weight rating (GVWR).

Fitment Note:

Vehicles equipped with a factory auxiliary leaf spring near the rear U-bolt nuts may experience interference with the lower mounting bracket. Verify adequate clearance before purchasing.

Specification:

Condition: Brand New

Minimum PSI: 5 PSI

Maximum PSI: 100 PSI

Internal Jounce Bumper included: No

Placement on Vehicle: Rear left and right

Air spring---

Load capacity: Up to 5,000 LBS

Stroke:  120 mm

Max. Extended: 190 mm

Min. Compressed: 70 mm

Design height: 148 mm

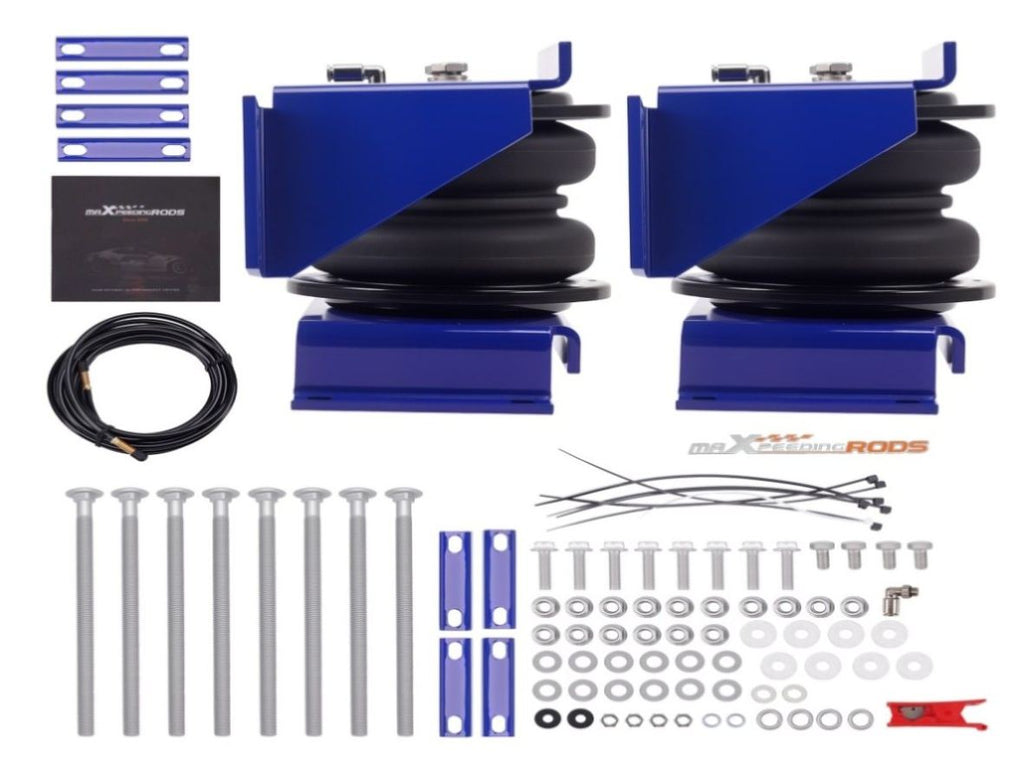

Package includes（as the picture shows）:

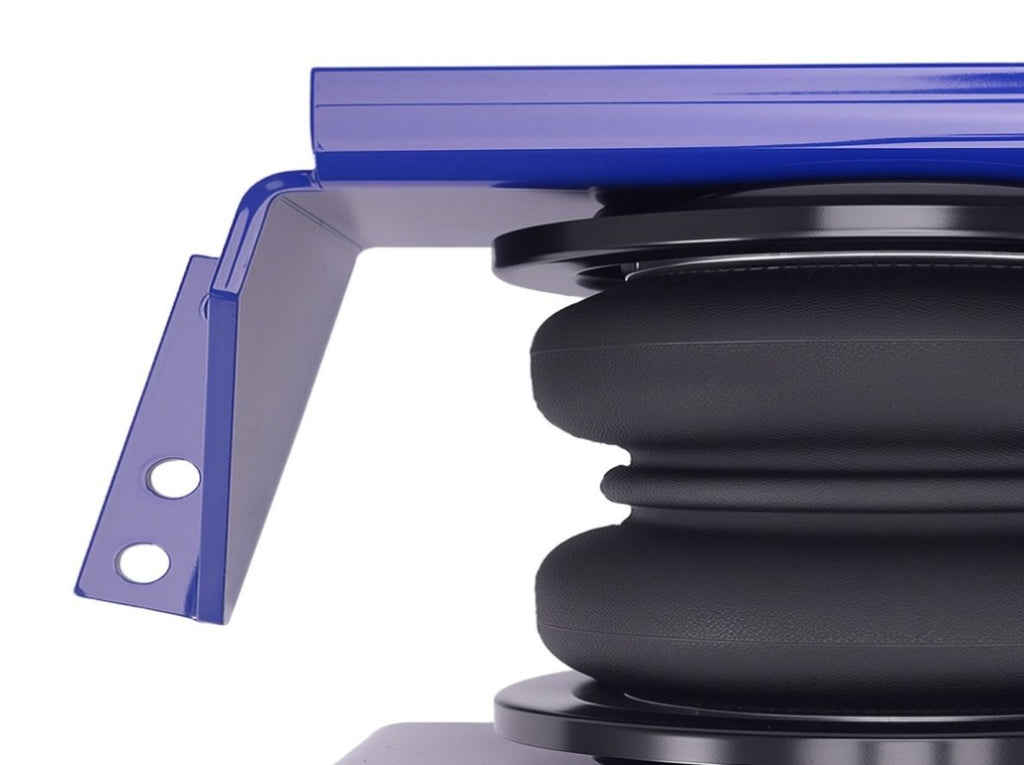

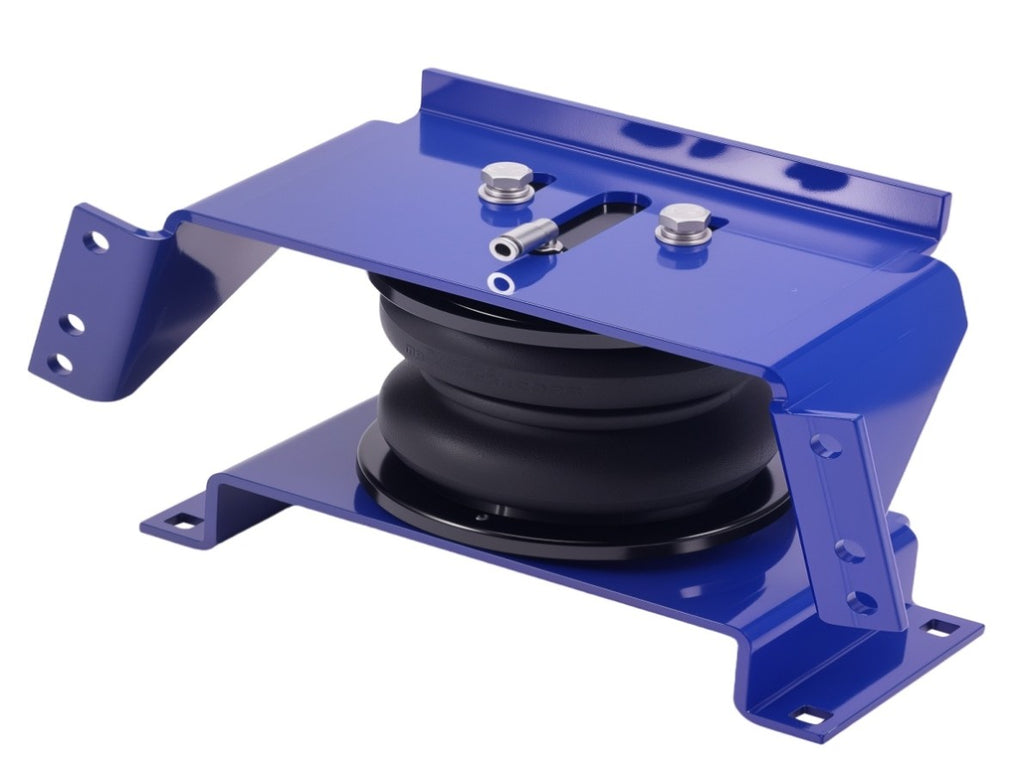

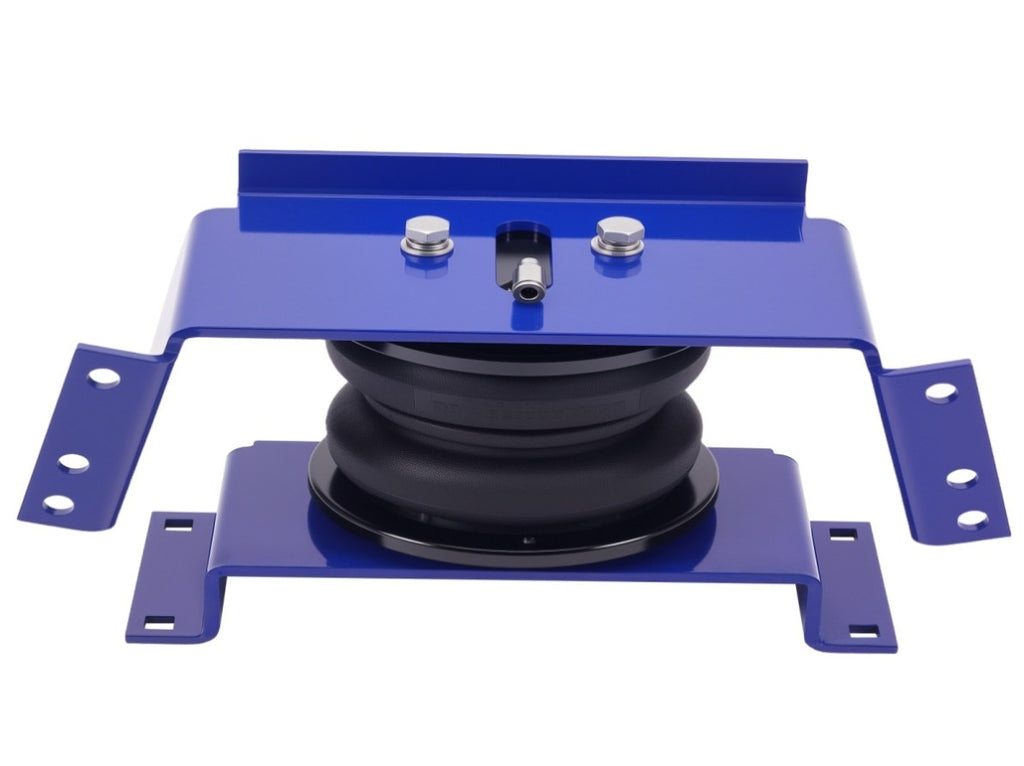

2x Heavy Duty Double Bellow Air Ride Suspension bags

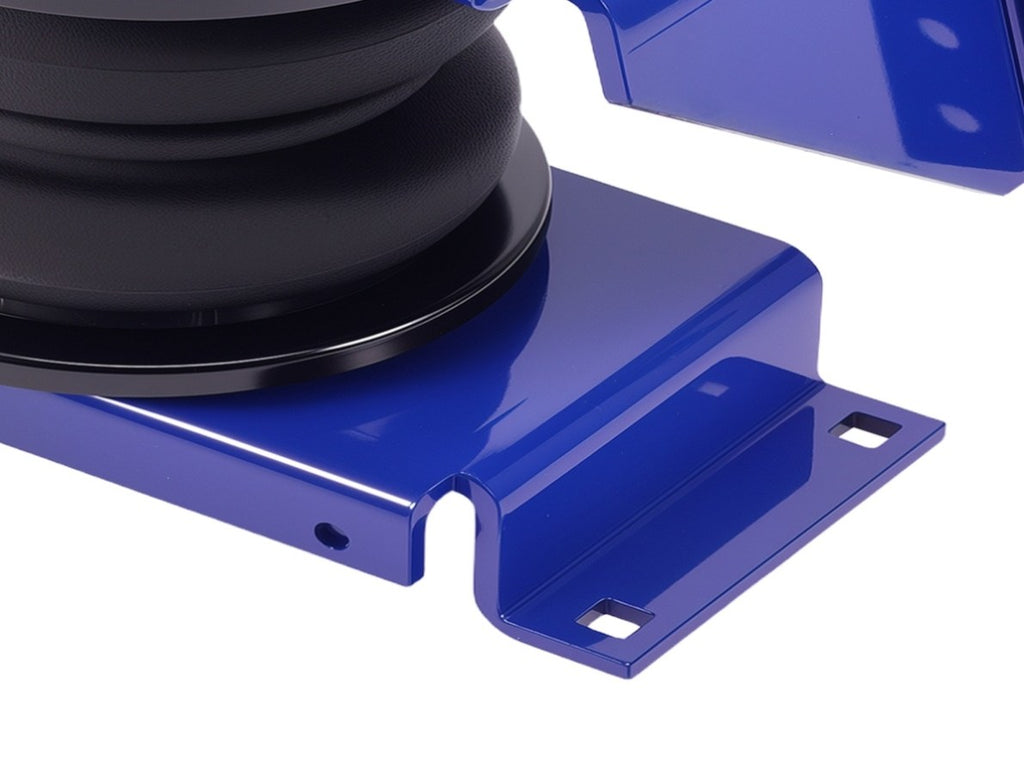

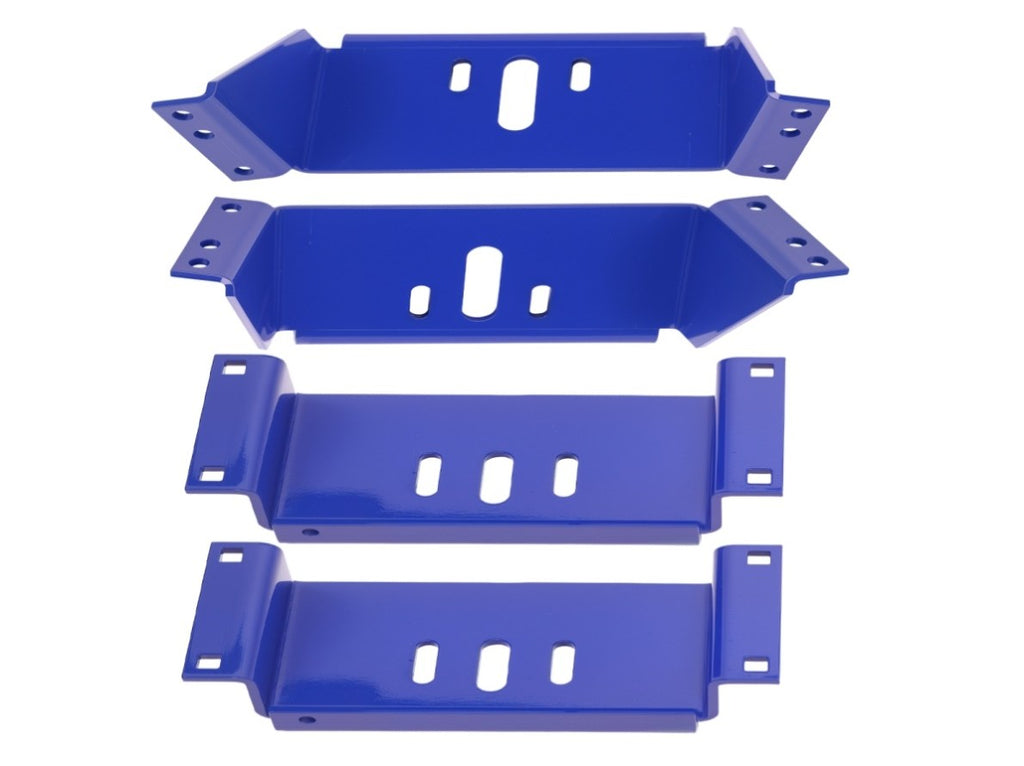

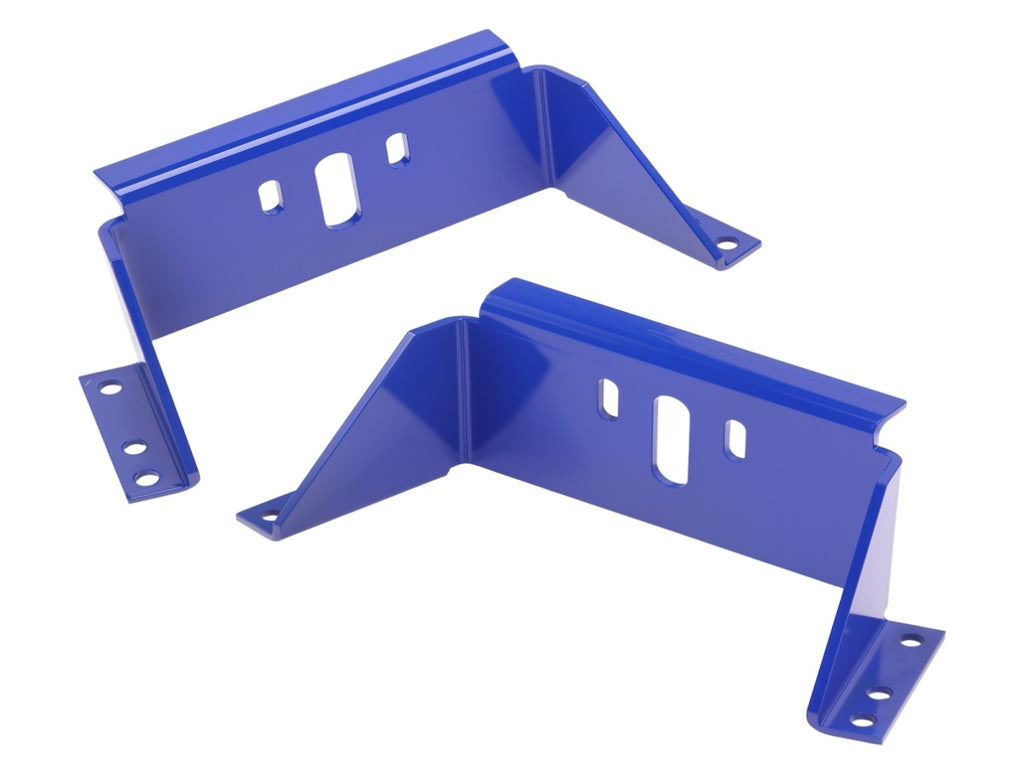

4x Upper and lower mounting brackets

1x Air line 6m

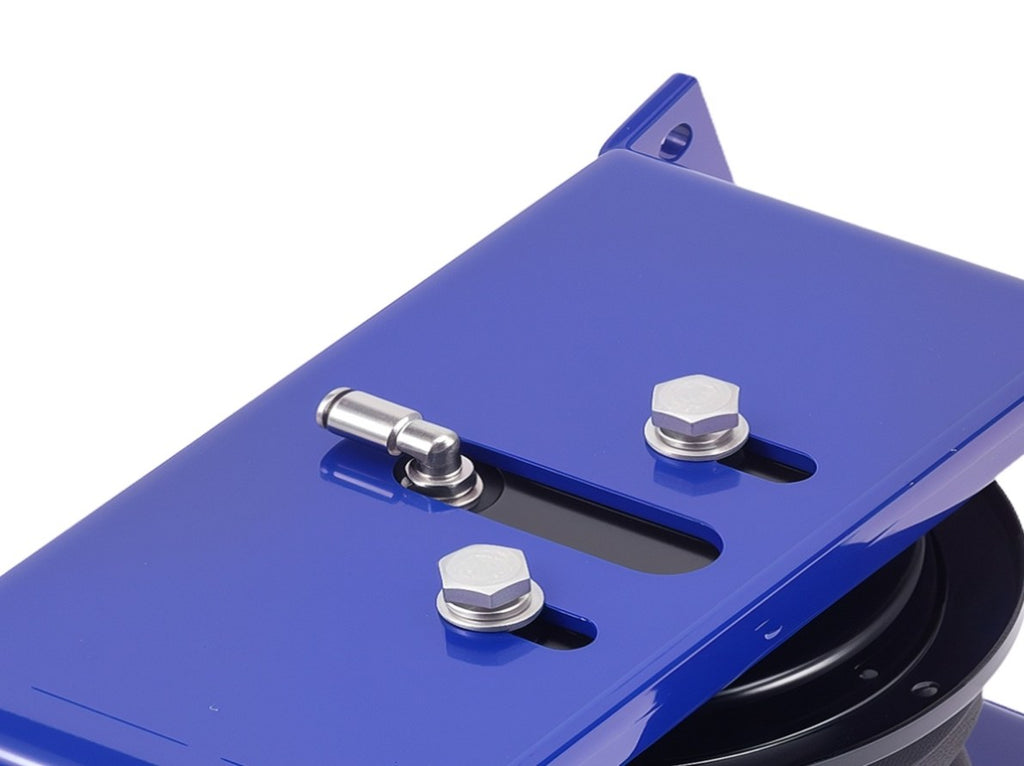

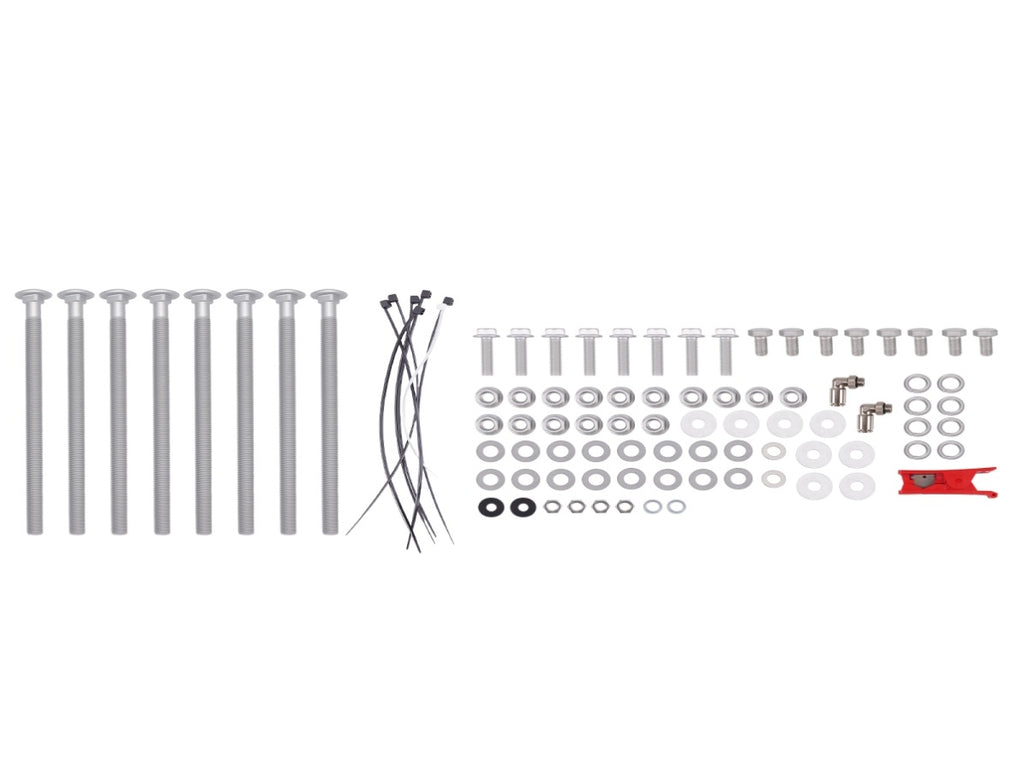

Includes All Brackets & Hardware Needed to Install

Feature:

1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.

NOTE:
fit for gross vehicle weight rating (GVWR) over 14,050 LBS. Requires 8" between tire and frame.
Not exceed the vehicle's  gross vehicle weight rating (GVWR).
