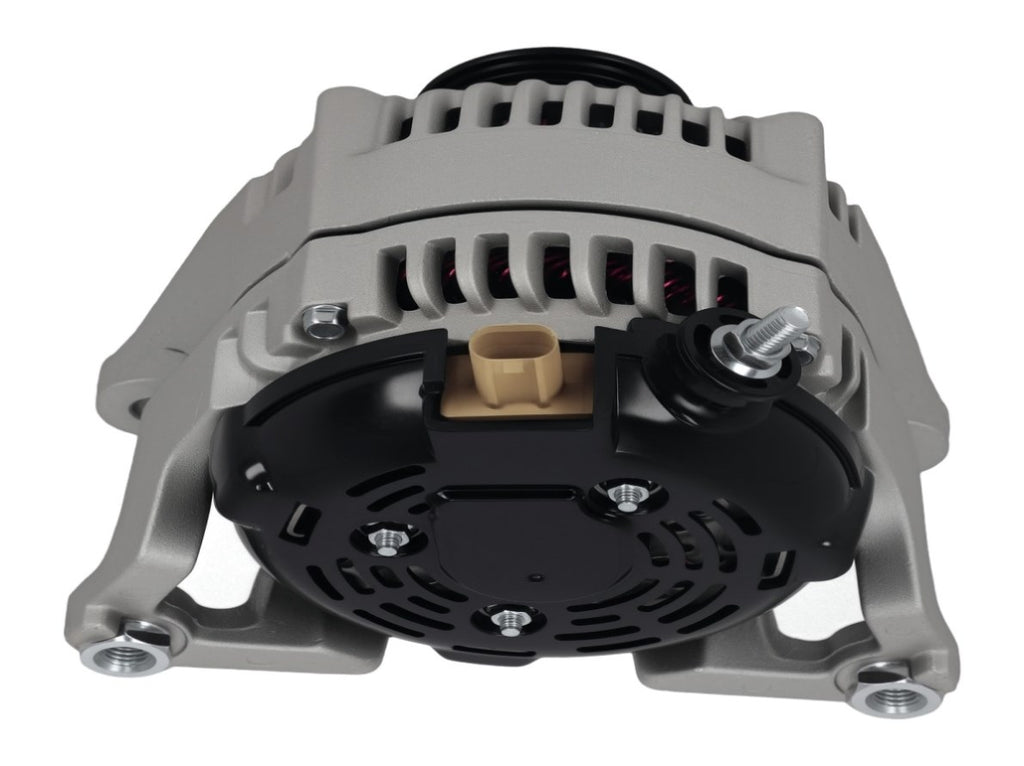

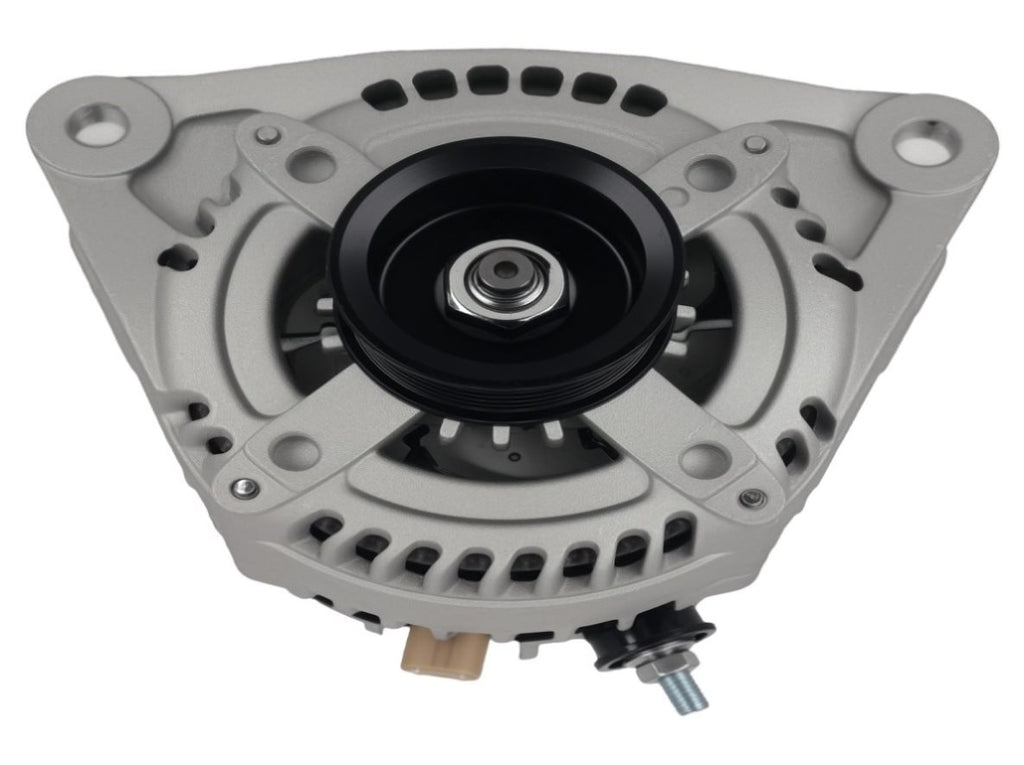

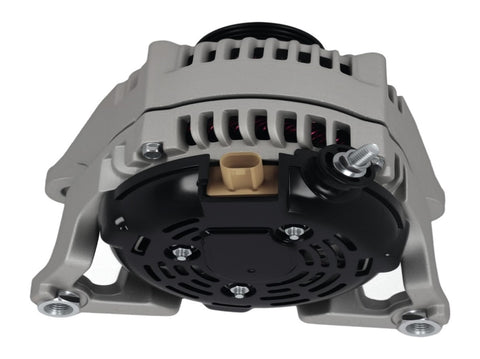

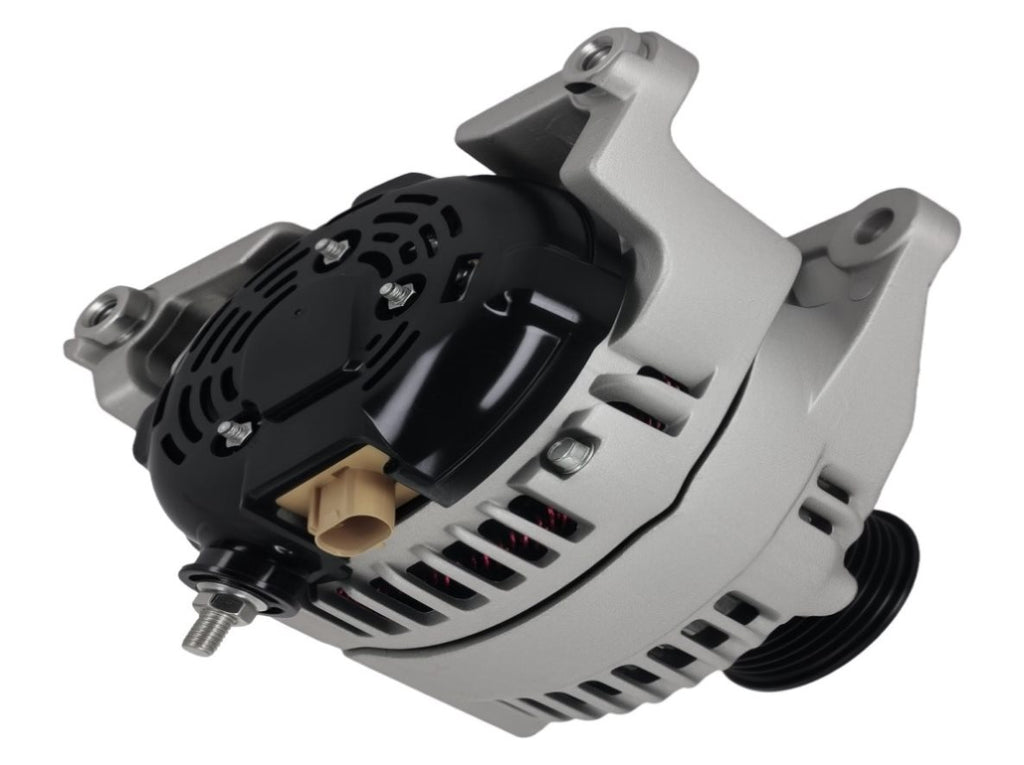

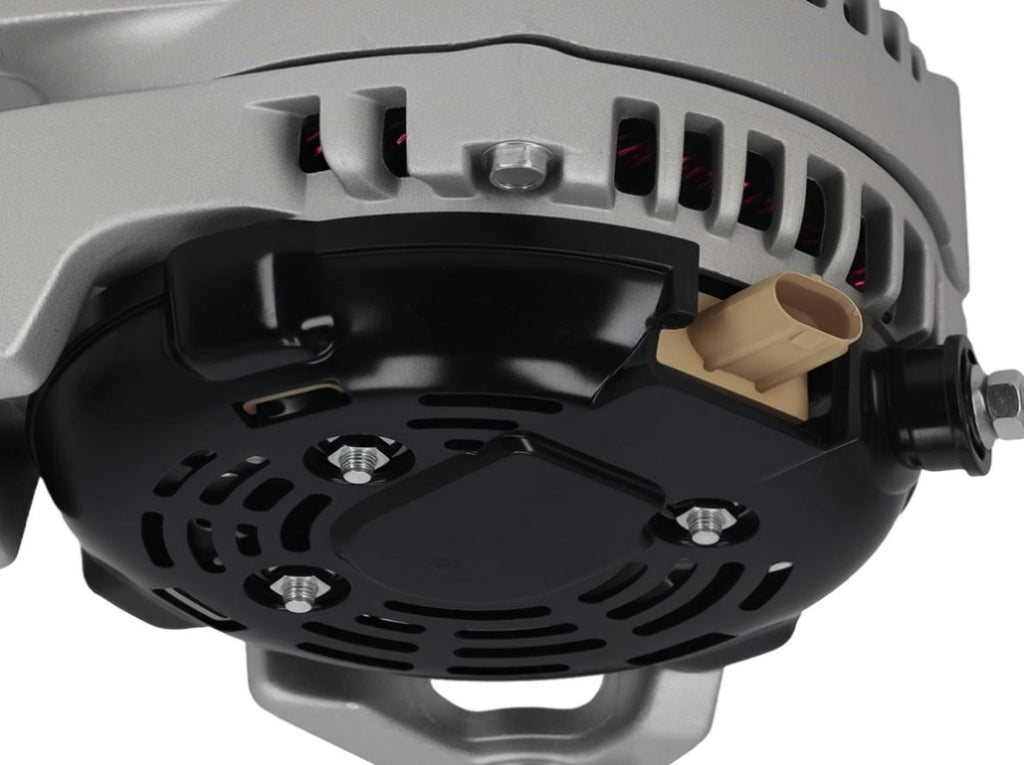

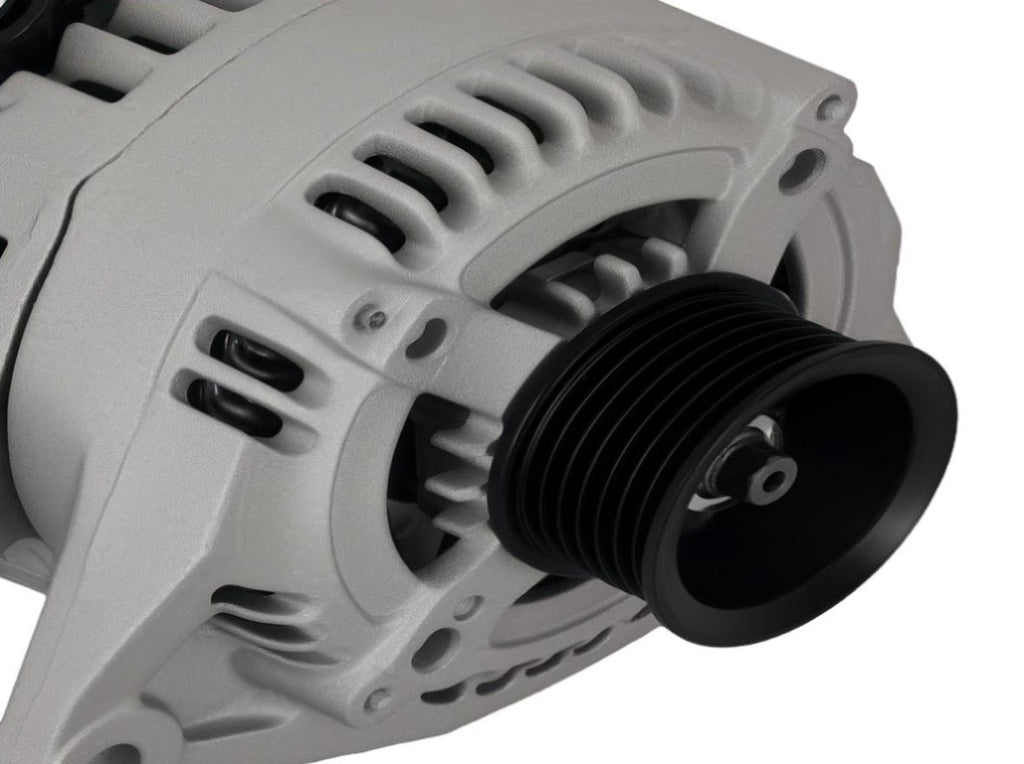

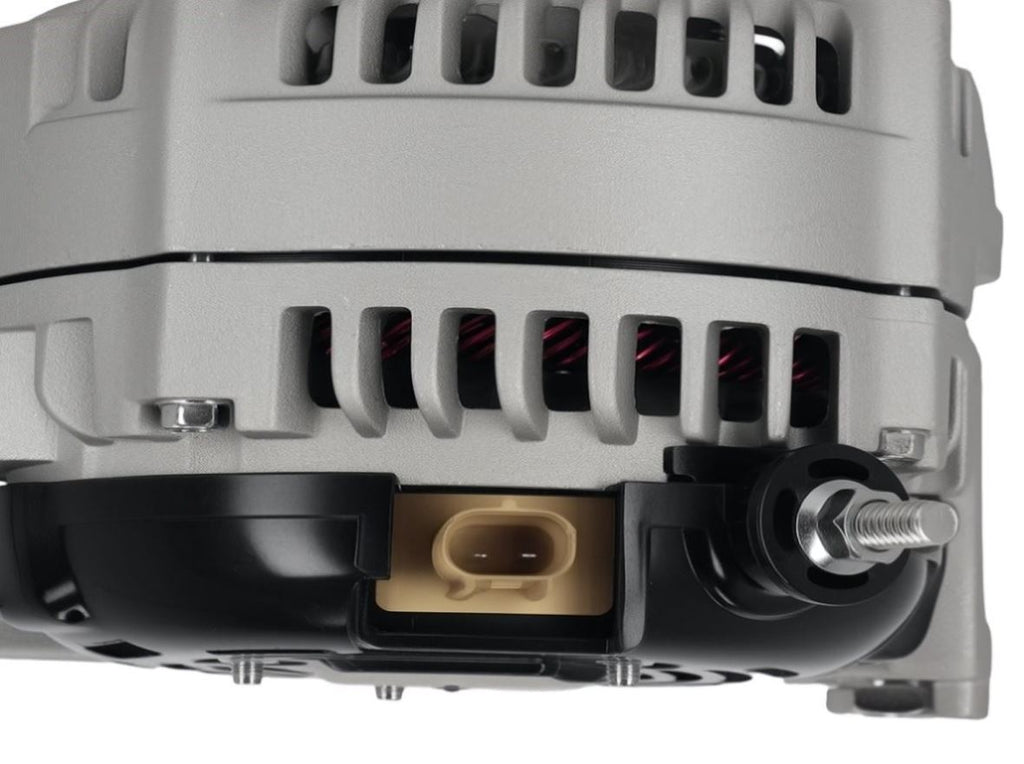

Alternator fit for Dodge Ram 1500 2500 3500 5.7L V8 2003-2006 Durango 2004-2006 160A 03733450

Application

fit for Dodge Durango 5.7L V8 2004-2006
fit for Dodge Ram 1500 5.7L V8 2003-2006
fit for Dodge Ram 2500 5.7L V8 2003-2006
fit for Dodge Ram 3500 5.7L V8 2003-2006

OE/Part Number

56028697AA ,421000-0210, 13988,421000-0280, AND0265, 400-52280
421000-0281, 421000-0282, 400-52526R, 12563, 139560, 213-9560
90-29-5571, AL6452X, 210-0560, A-80278, A-80326, 13988A
90-29-5571N, 965B, R6028697AA,13988N,400-52280, 400-52280R
12563, 139560, 213-9560, N13988, 13988AN, A-80278, A-80326

Specification

Amperage: 160A
Voltage: 12V
Rotation: Clockwise
Number of Grooves: 7
Pulley Class: S7
Fan Type: IF
Regulator: ER

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
