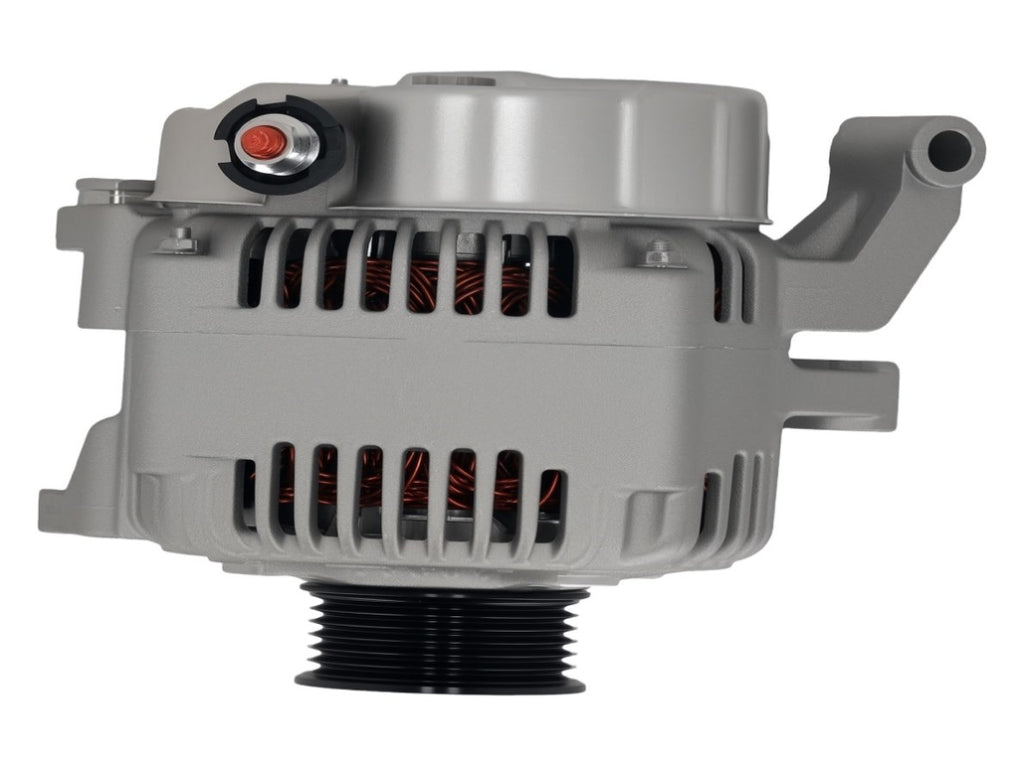

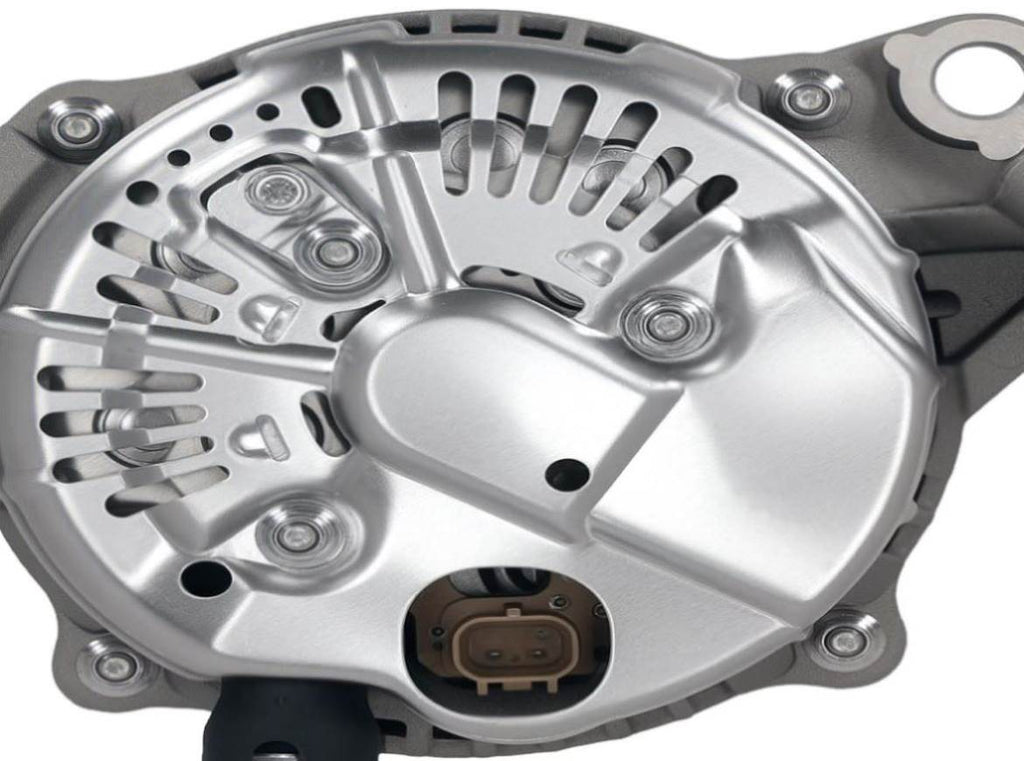

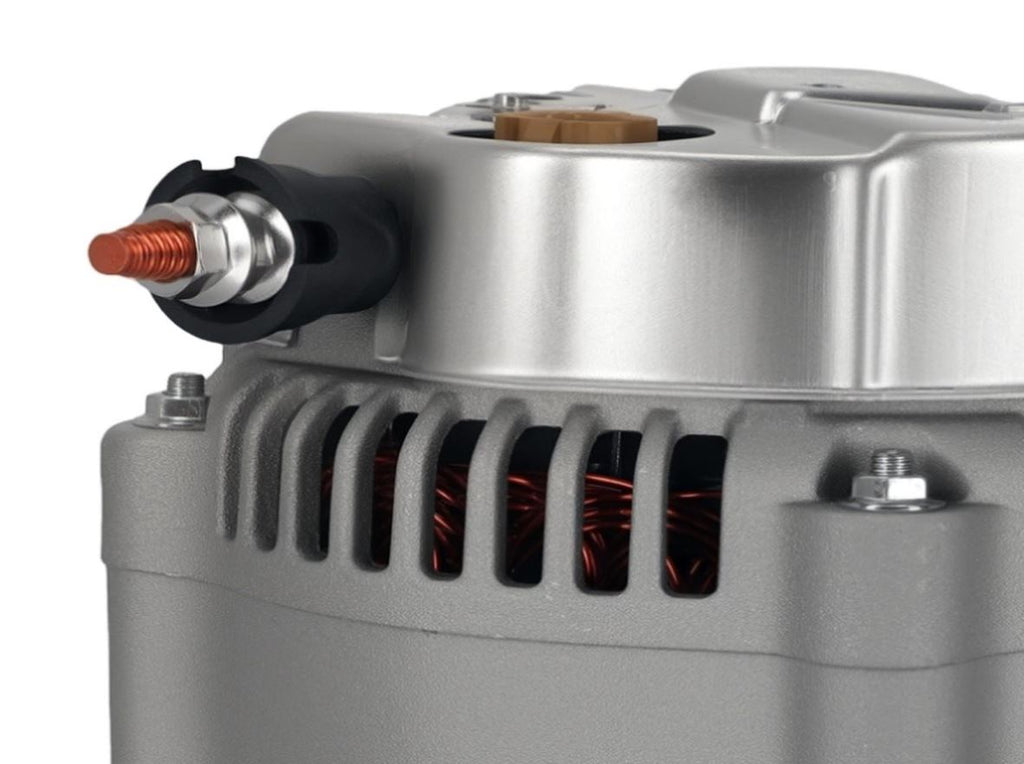

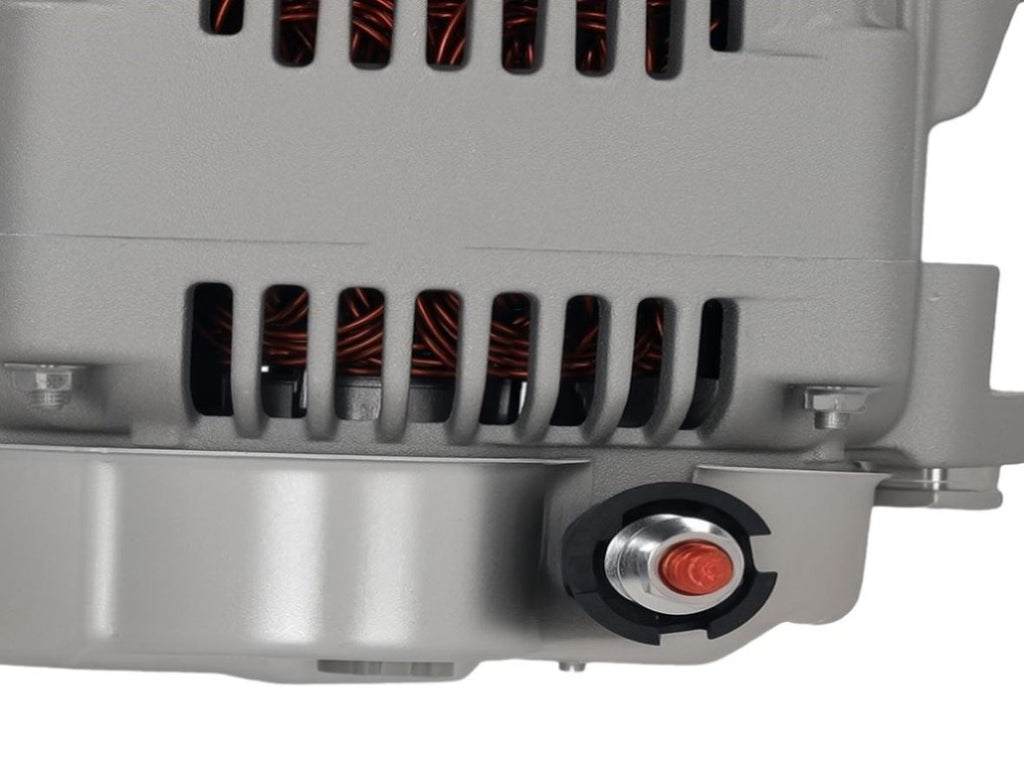

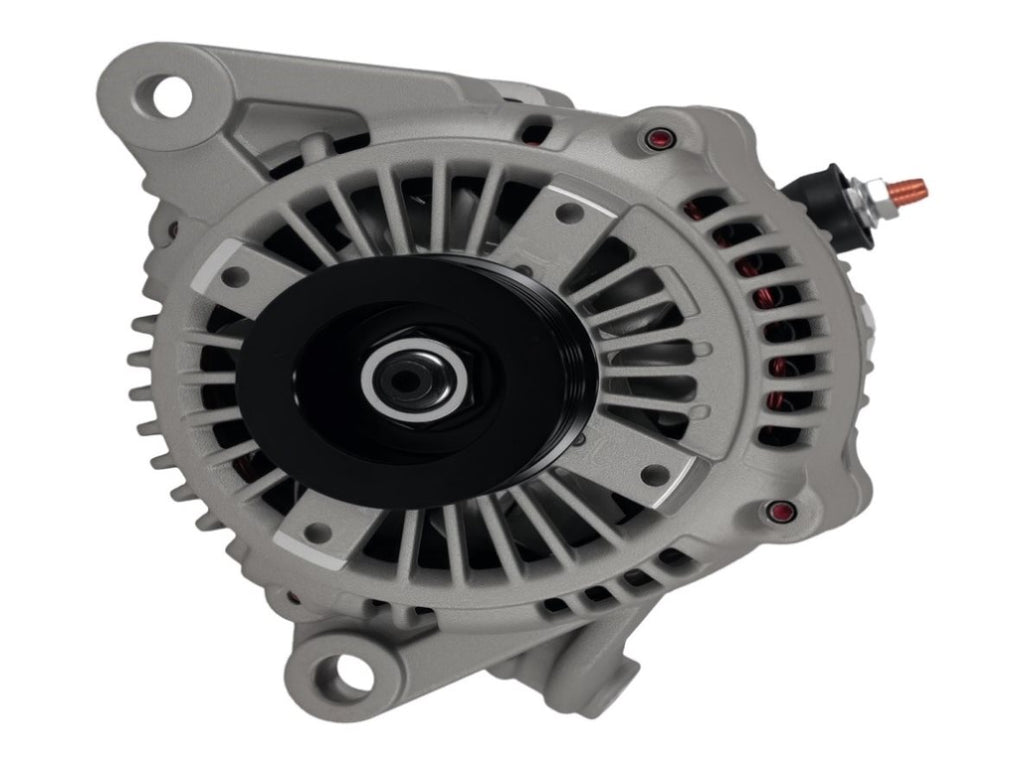

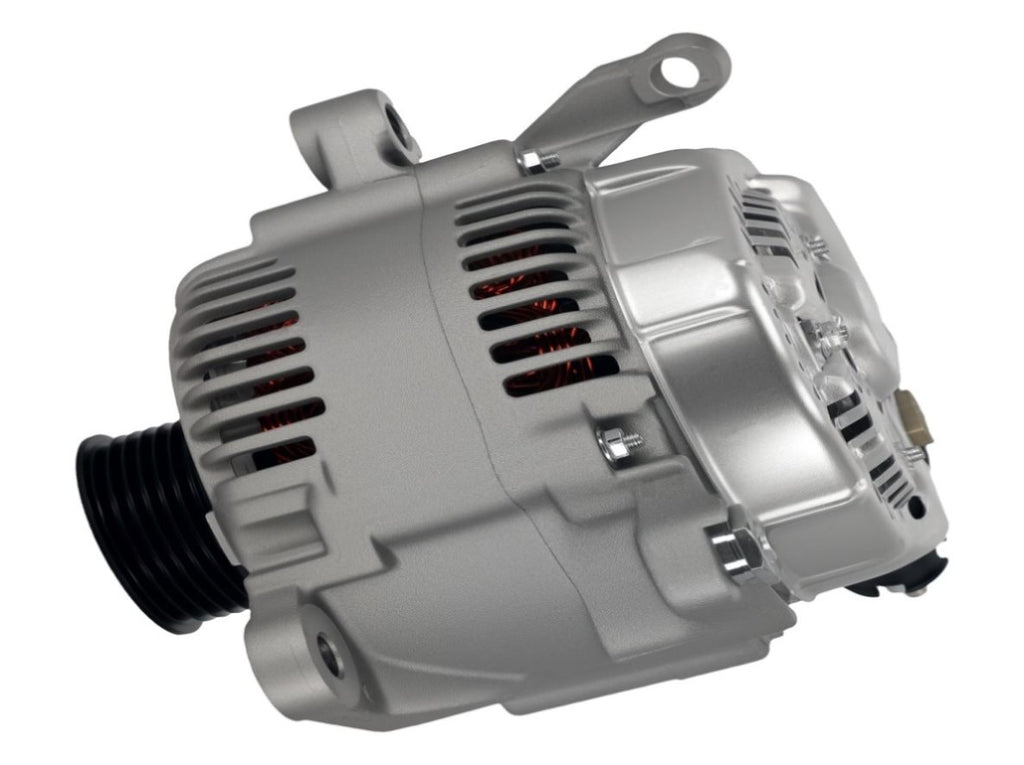

Alternator fit for Jeep Grand Cherokee 4.7L V8 287Cu 2002 Liberty 3.7L 56041693AD 03051670

Application

fit for Dodge  Durango V6 3.7L 136 Amp 2005-2006
fit for Dodge Durango V8 4.7L 136 Amp  2001-2006
fit for Dodge Ram 1500 V6 3.7L 136 Amp 2002-2003
fit for Dodge Ram 1500 V6 3.7L Manual trans. 136 Amp  2006
fit for Dodge Ram 1500 V8 4.7L 136 Amp 2002-2003
fit for Jeep Grand Cherokee V8 4.7L 136 Amp  2002
fit for Jeep Liberty V6 3.7L 136 Amp 2002

OE/Part Number

56041693AD, 1210004630, 12837, 56028241, 56041120AC
56029700AA, 213916, 13916, 13916N, 11280N, ALS6541X
11280, 12562, 56041120, 56041120AD, RL041120AD, 56041693AA
13912, 211280, AL6427X, 90018, 11280, N13916, 56041693AC, 56041693AE

Specification

Condition : New
Amp Rating: 136A
Pulley Section (Grooves): 6-Groove Pulley
Rotation Direction: CW
Supply Voltage (V): 12V

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
