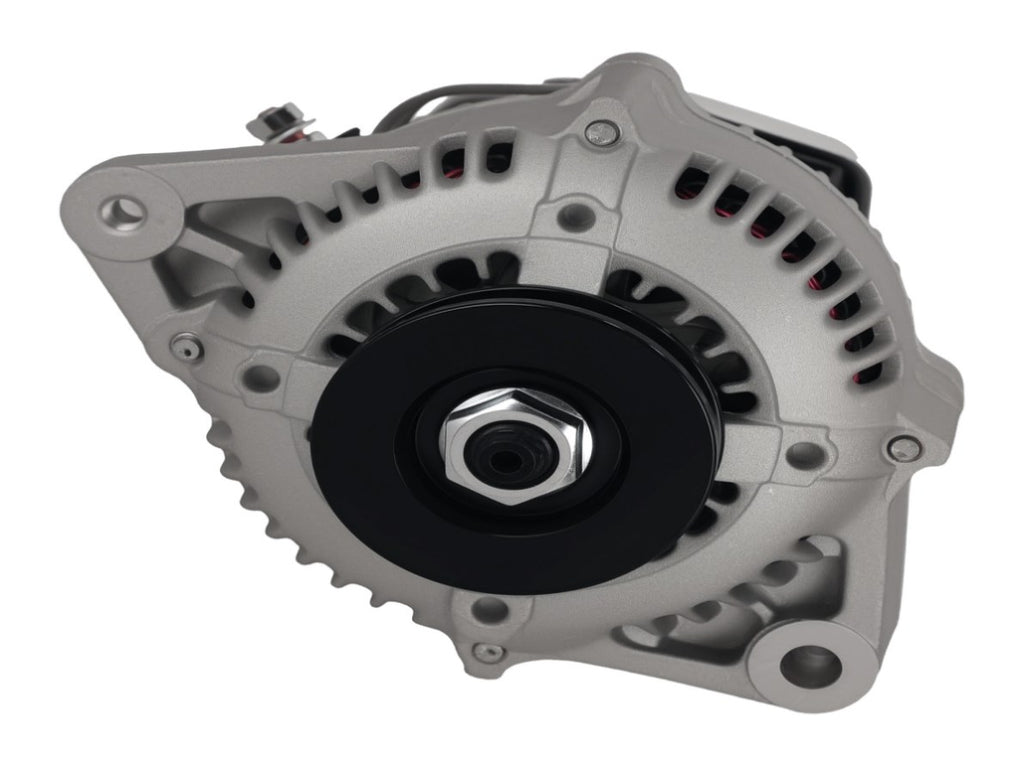

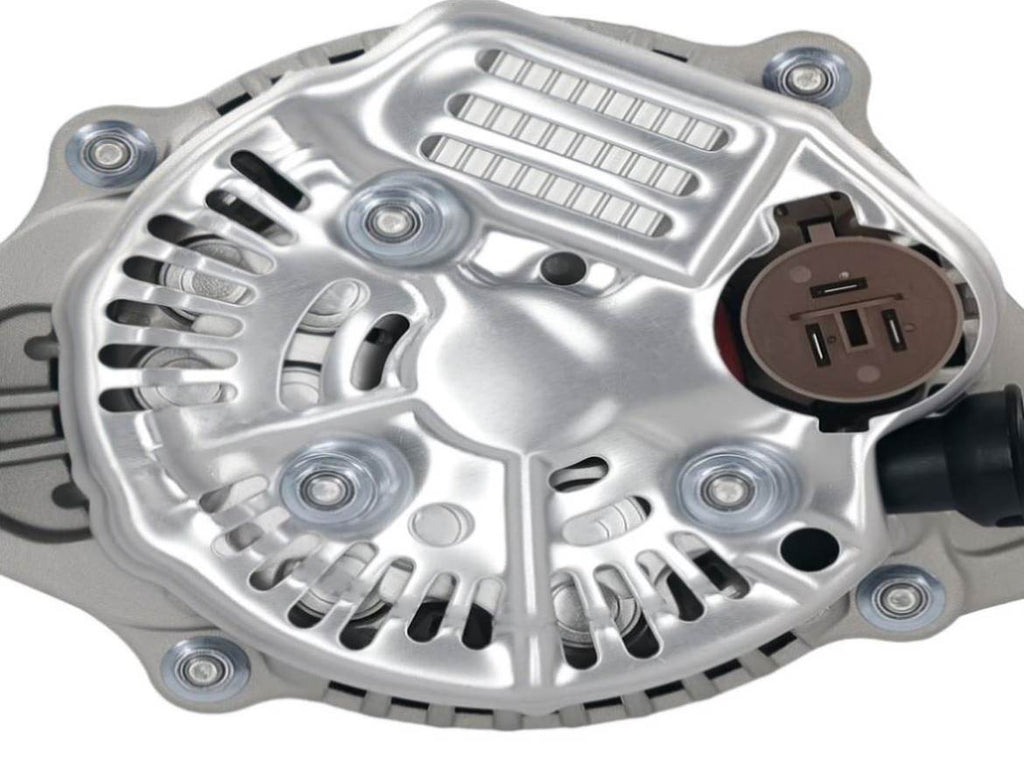

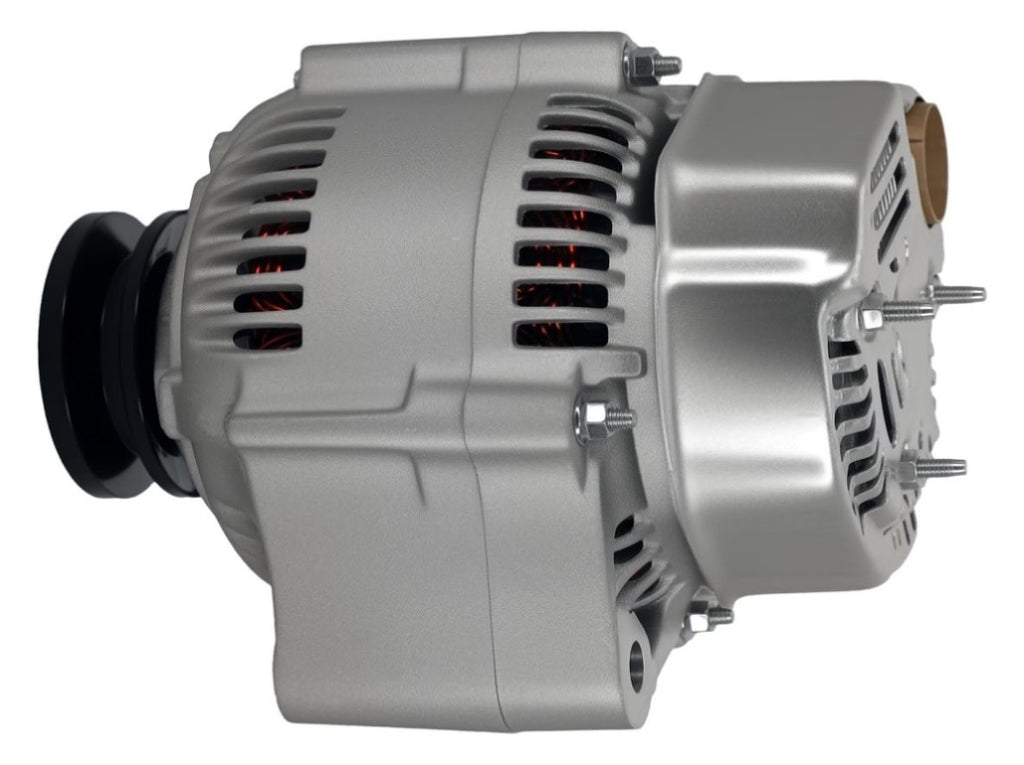

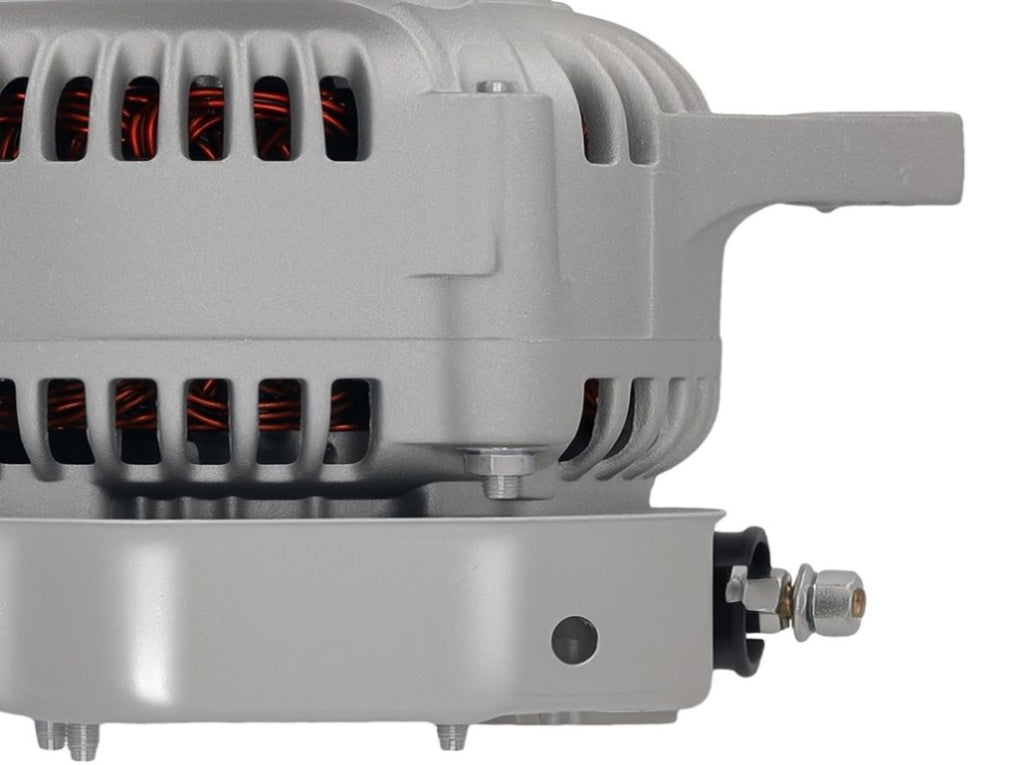

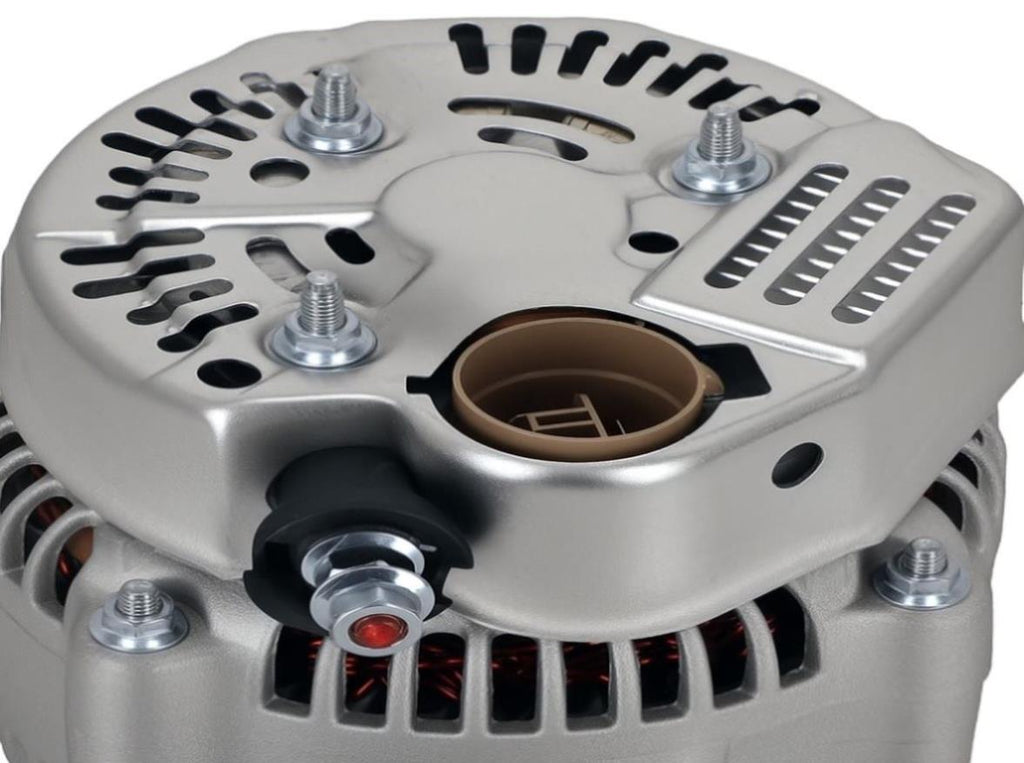

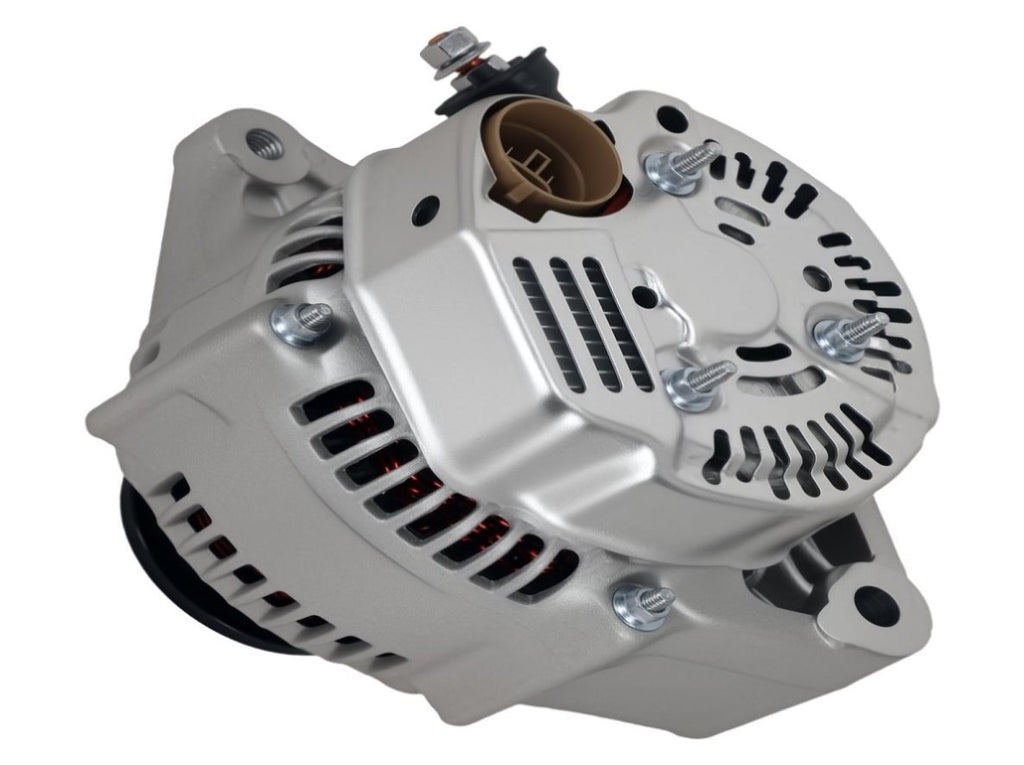

Alternator fit for Toyota 4Runner 1987-1991 Toyota Pickup L4 2.4L 2366cc 100211-2030 57863266

Application

fit for Toyota 4Runner L4 2.4L 2366cc A.T .1987-1992
fit for Toyota 4Runner L4 2.4L 2366cc M.T. 1987-1991
fit for Toyota 4Runner L4 2.4L 2366cc 1985-1986
fit for Toyota Celica L4 2.4L 2366cc 1985
fit for Toyota Pickup  L4 2.4L 2366cc A.T.1987-1991
fit for Toyota Pickup  L4 2.4L 2366cc M.T.1987-1991
fit for Toyota Pickup  L4 2.4L 2366cc GAS1985
fit for Toyota Pickup  L4 2.4L 2366cc 1986
fit for Toyota Pickup  L4 2.4L 2366cc DIESEL60 Amp 1985

OE/Part Number

100211-2030, 321-1166, 334-1132, 334-1685, 334-1685A, 20170209
27060-35060-84, 27060-35061,27060-35061-84, 14668, 290-225, 290-305
AND0079, 400-52020, 400-52020R, 27060-35071, 27060-35071-84, 27060-35081
27060-35060, 27060-35120, 27060-35120-84,90-29-5152, 100211-2031
100211-3160, 100211-3550, 100211-2031, 1-1036-01ND, 1107701ND
ALT5056, 14456, 14457, 40052020, 10463753, 113077

Specification

Unit Type: Alternator
Pulley Groove Quantity: 1
Voltage: 12V
Rotation: CW
Amperage: 60A
Pulley Class: V1
Fan Type: IF

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
