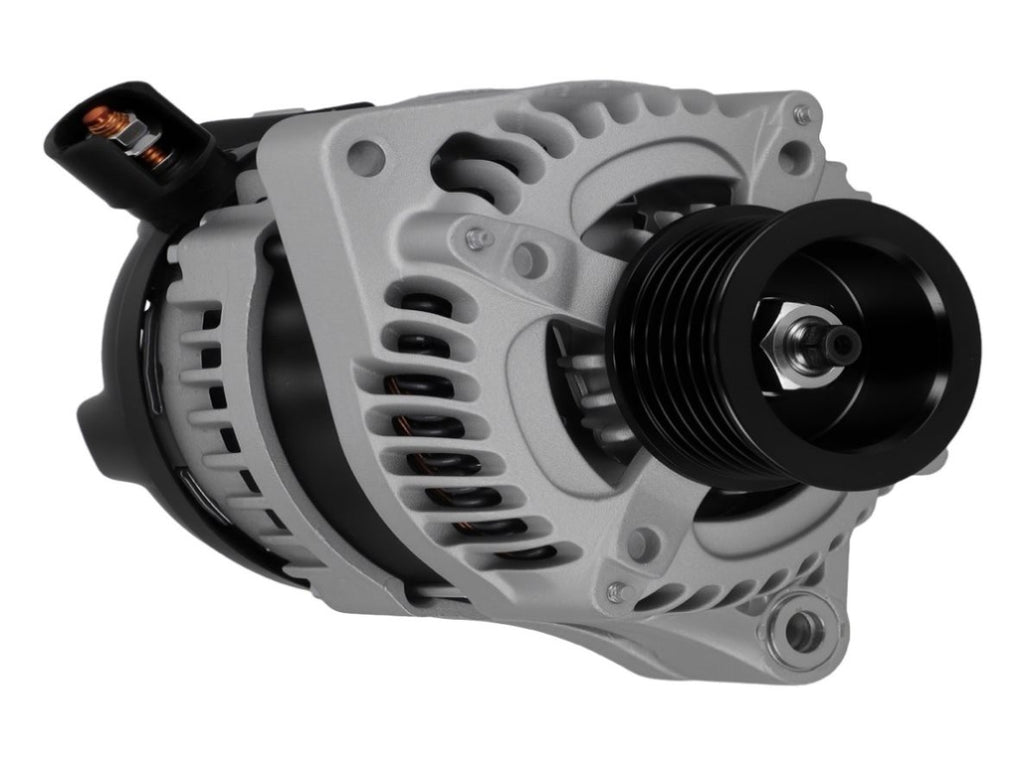

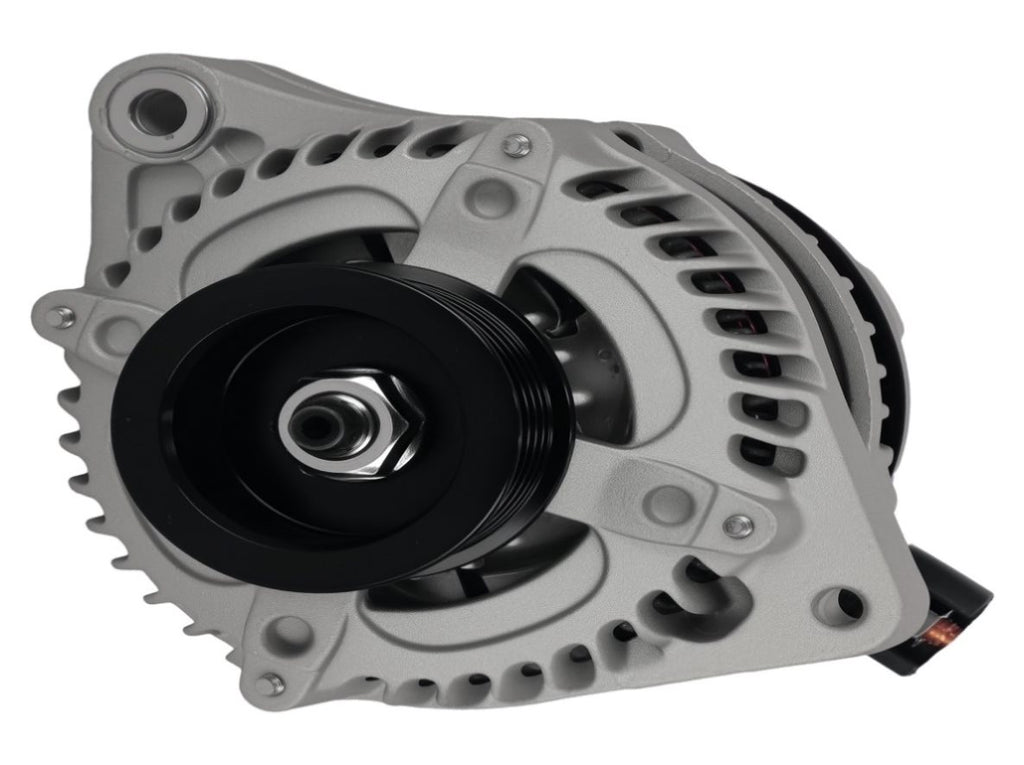

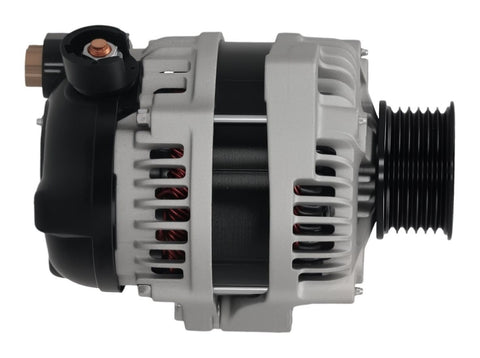

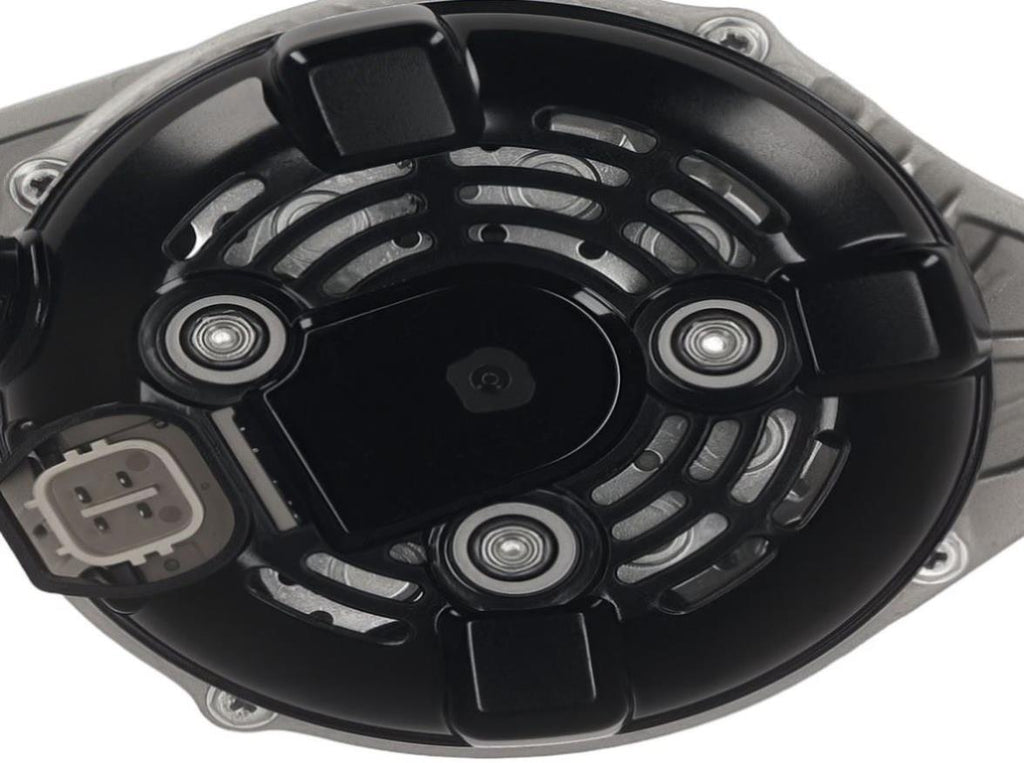

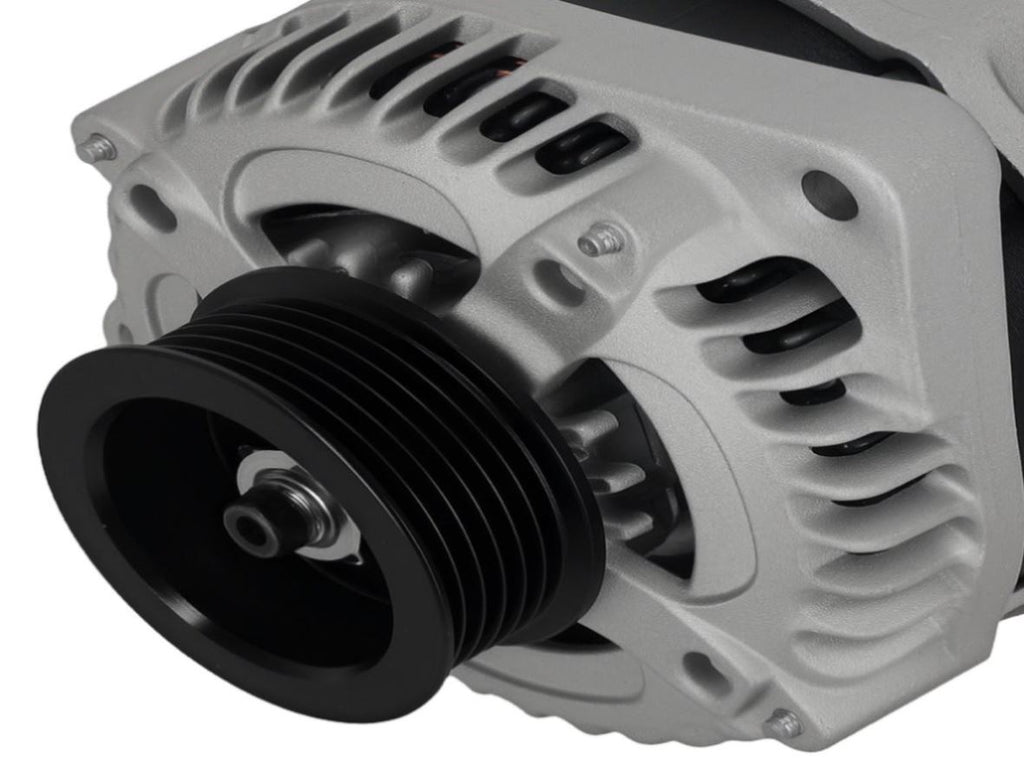

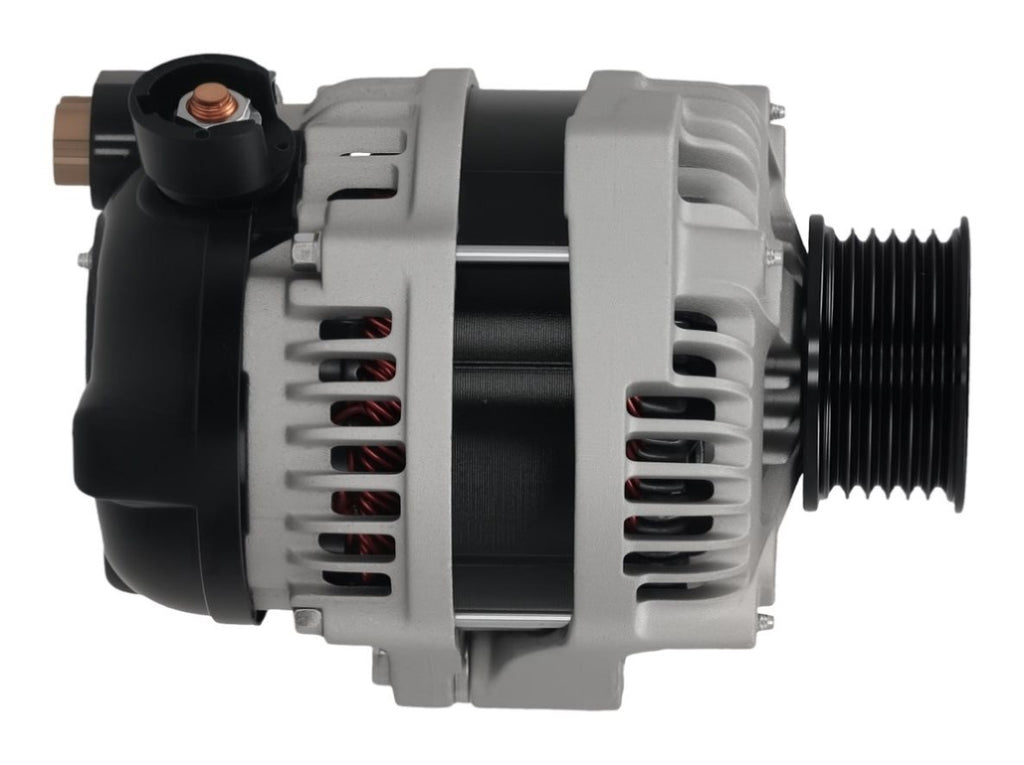

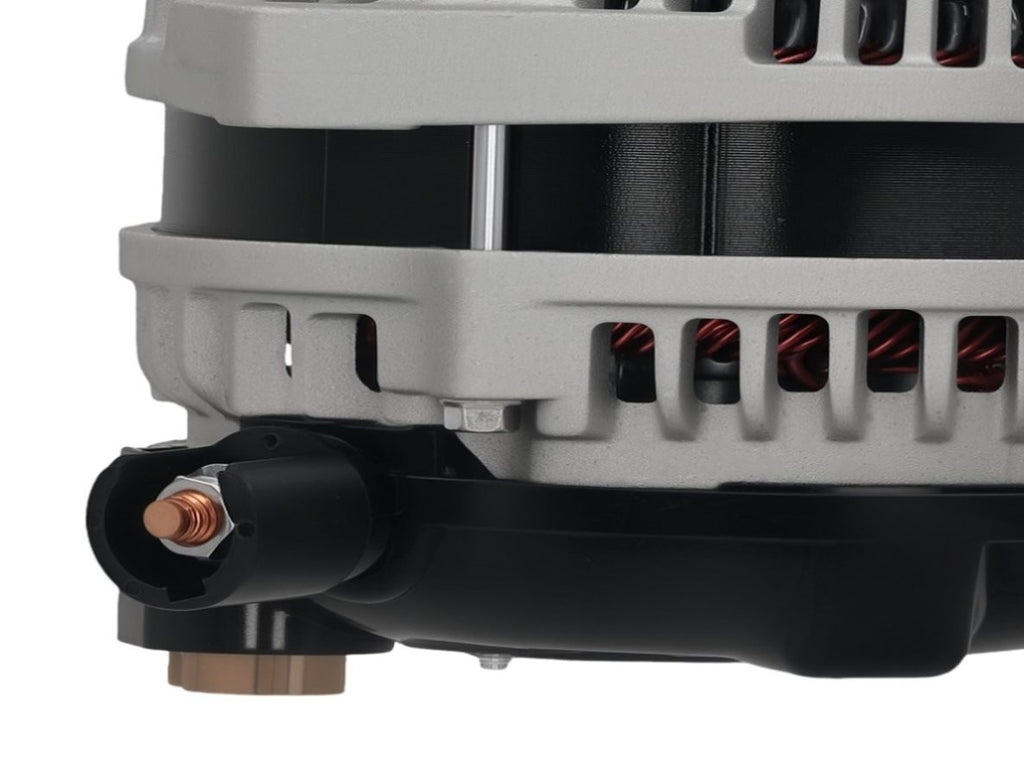

Alternator W/ 6 Grooves fit for Honda Pilot 3.5L 2005-2008 130 Amp 12 V 31100RJAA02 98691895

Application

fit for Acura Auto and Light Truck MDX 3.5L 2003-2006
fit for Acura Auto and Light Truck MDX  3.7L 2007-2009
fit for Acura Auto and Light Truck RL 3.5L 2005-2008
fit for Acura Auto and Light Truck TL  3.2L 2004-2008
fit for Acura Auto and Light Truck TL 3.5L 2007-2008
fit for Honda Auto and Light Truck Odyssey 3.52005-2007
fit for Honda Auto and Light Truck Pilot 3.5L 2005-2008
fit for Honda Auto and Light Truck Ridgeline 3.5L  2006-2008

OE/Part Number
31100-RDJ-A01, 31100-RGL-A01, 104210-3100, 104210-4290, 104210-4300
104210-4301, 31100RGLA01RM, 31100RJAA01, 31100RJAA02, CSC10, CSD29
CSD69, 3342584, 3342661, 3342692A, 1042103100, 1042104290, 1042104301
1042104690, TN1042104690, 2100529, 2100674, 31100RGMA01, 31100RGMA01RM
31100RYPA01, 31100RYPA01RM, CSD30, 11099, 11150, 11151, LRA01621, 139567
139691, 1N9281, 2139281, 2139567, 2139691, 90295548N, 90295654, 90295681
31100-RGM-A01, 31100-RYPA01, 400-52163, 400-52252R, VND0339, AND0308
AND0340, AND0408, 400-52252R, A-80032, A-80312, A-80313, A-80337, 400-52163
400-52163, 400-52252R, 11099, 11150, 11151, LRA01621, LRA04171, 213-9567, 290-5083
290-5220, 290-5221, 290-5221A, 290-5222, 12423, 12723, 12778, A2918, A3150, VDN11300101-A
90-29-5548, 90-29-5654, 90-29-5681, 90-29-5548, 90-29-5654, 90-29-5681

Specification

Type: Alternator
Voltage: 12 V
Rotation: CW
Amperage: 130 A
Pulley Class: S6
Regulator: IR
Fan Type: IF
Pulley Included: Yes
One Wire Capable :No
Plug Clock Position: 11:00
Pulley: 6 Groove Serpentine
Ground Type: Negative
Mounting Type: 1 Pivot Foot
Pulley Belt Type: Serpentine
Case Material: Aluminum

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
