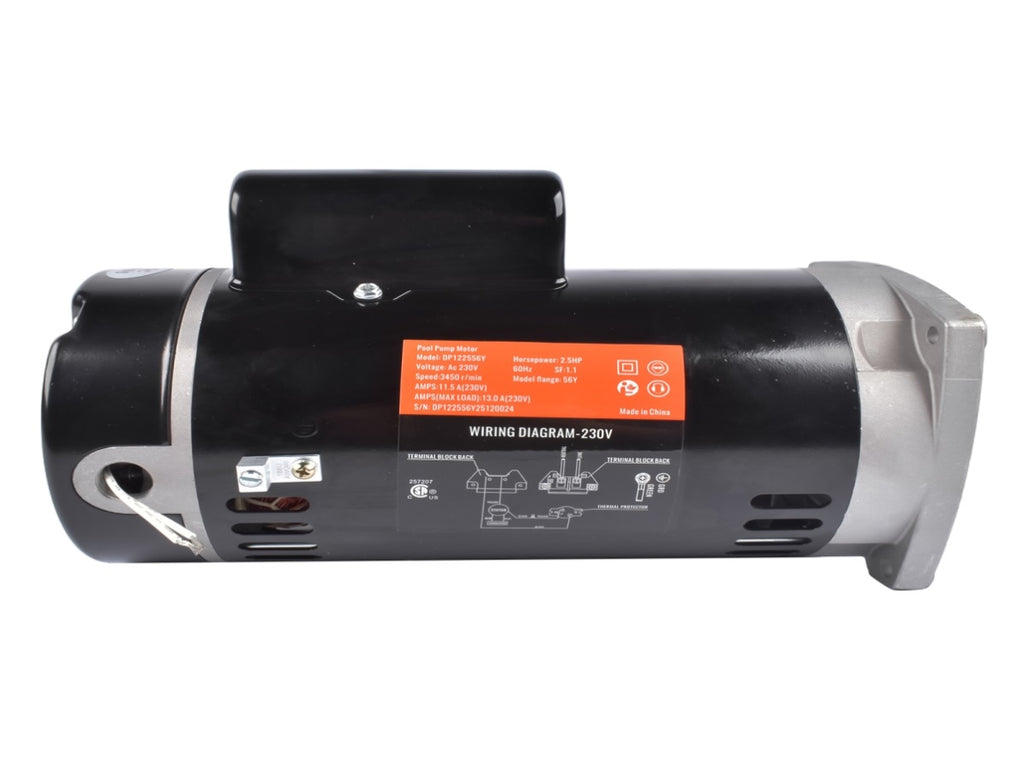

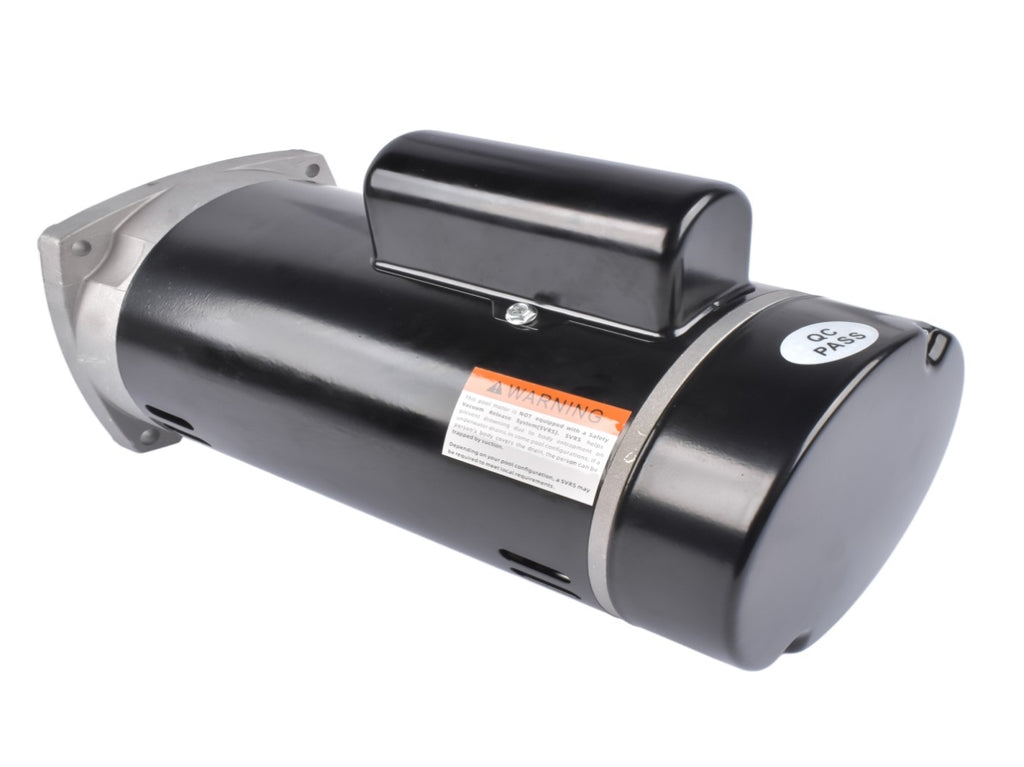

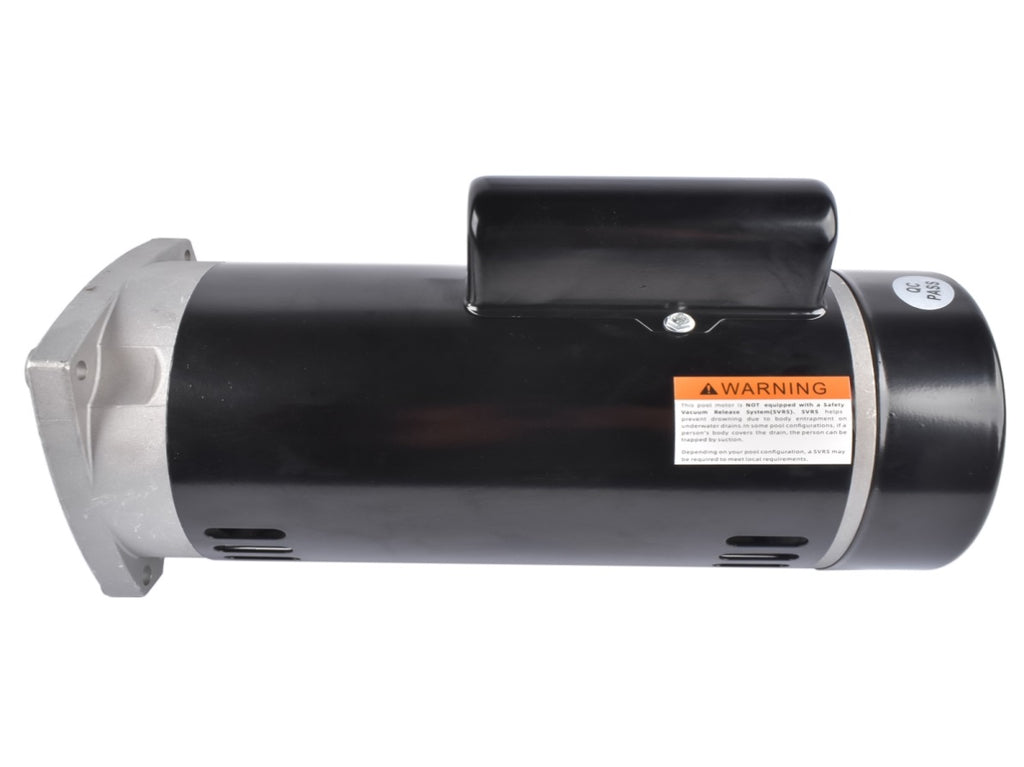

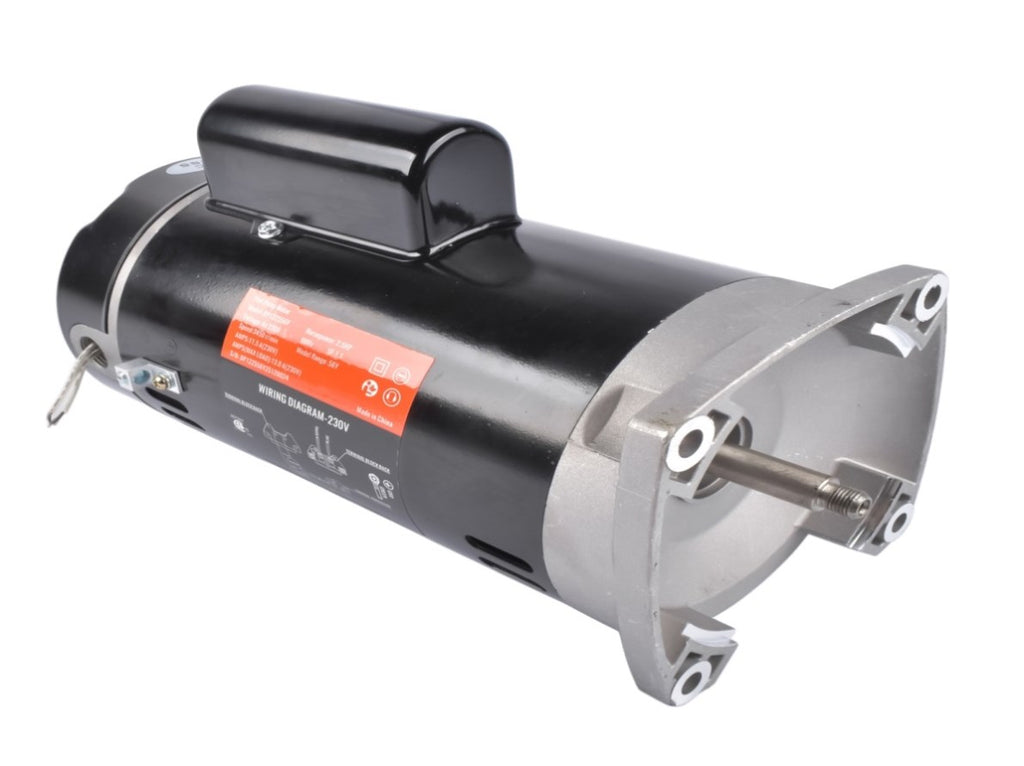

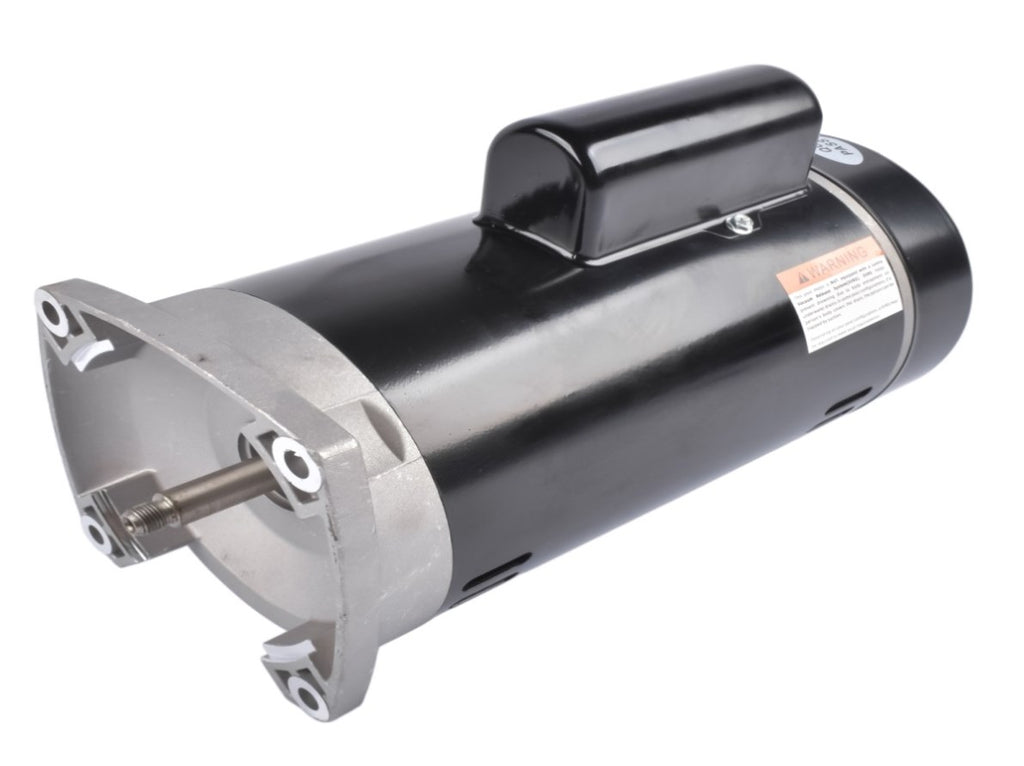

B2840 B840 2.5 HP 230V 3450 RPM Pool Pump Motor 56Y Frame Square Flange Fits for Whisperflo 49292636

Description:

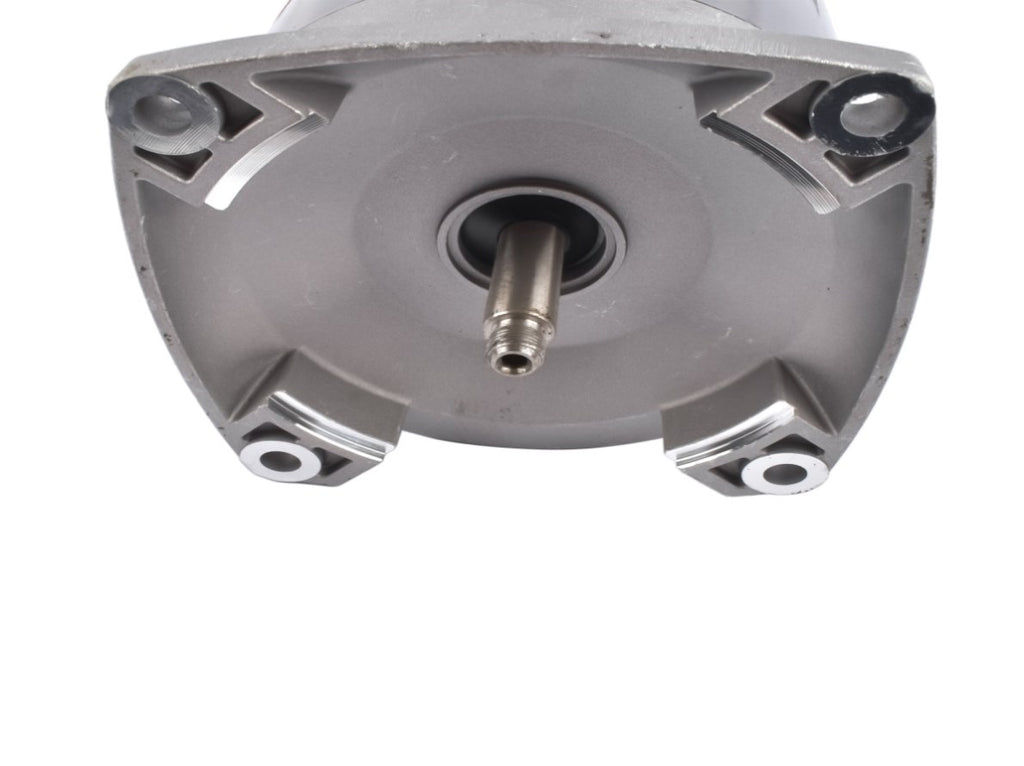

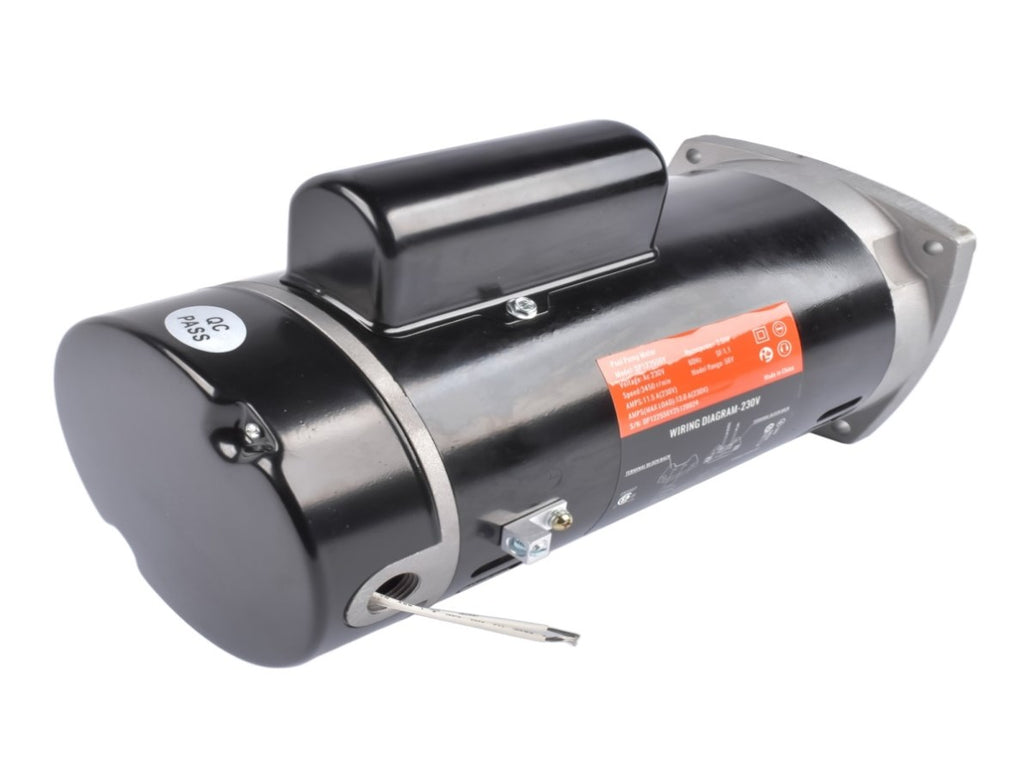

The B2840 Pool Pump Motor is a square flange style motor with a 56Y Frame and is an Up Rated 2.5 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

OE Number:

B2840, B840

Specifications:

Type: Pool Pump Motor

Voltage: 230V

Frequency: 60 HZ

Output KW: 1.87 KW

Output HP: 2.5 HP

Amps: 11.5 amp

Speed: 3450 RPM

Frame: 56Y

Enclosure: Drip Proof

Ambient Temperature: 50℃

Thermal Protection: Thermally Protected

Shaft Type: 5/8" Diameter threaded shaft

Speed: Single

Mounting: Square Flange

Automatic Overload Protection - Service Factor 1.04
