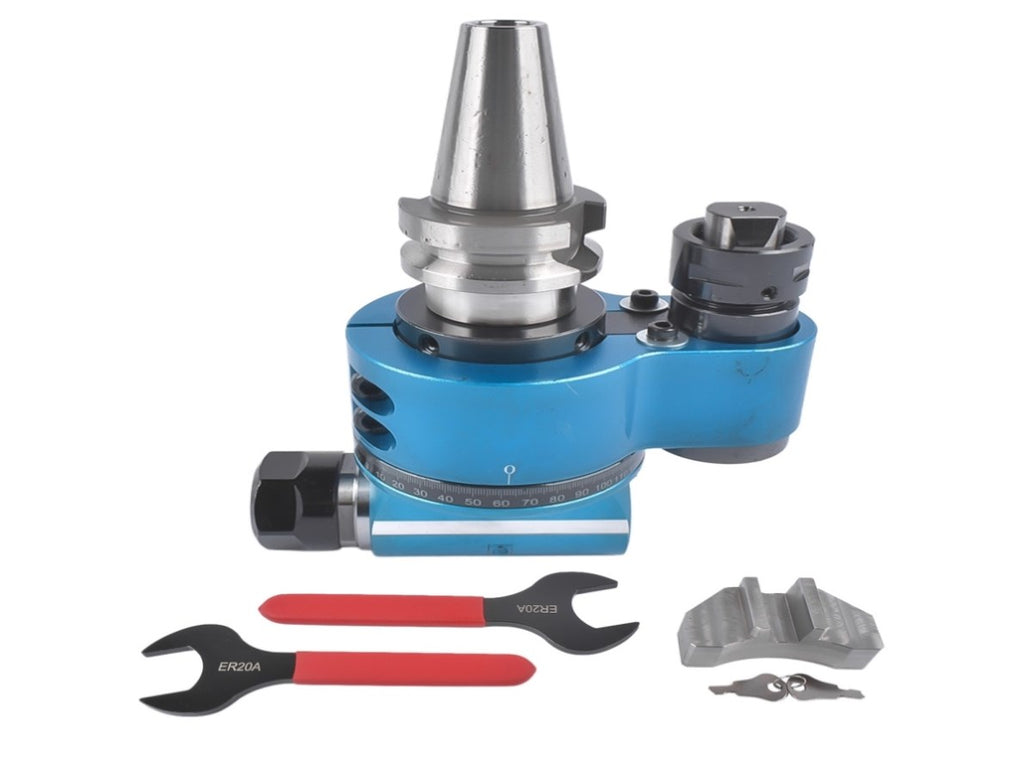

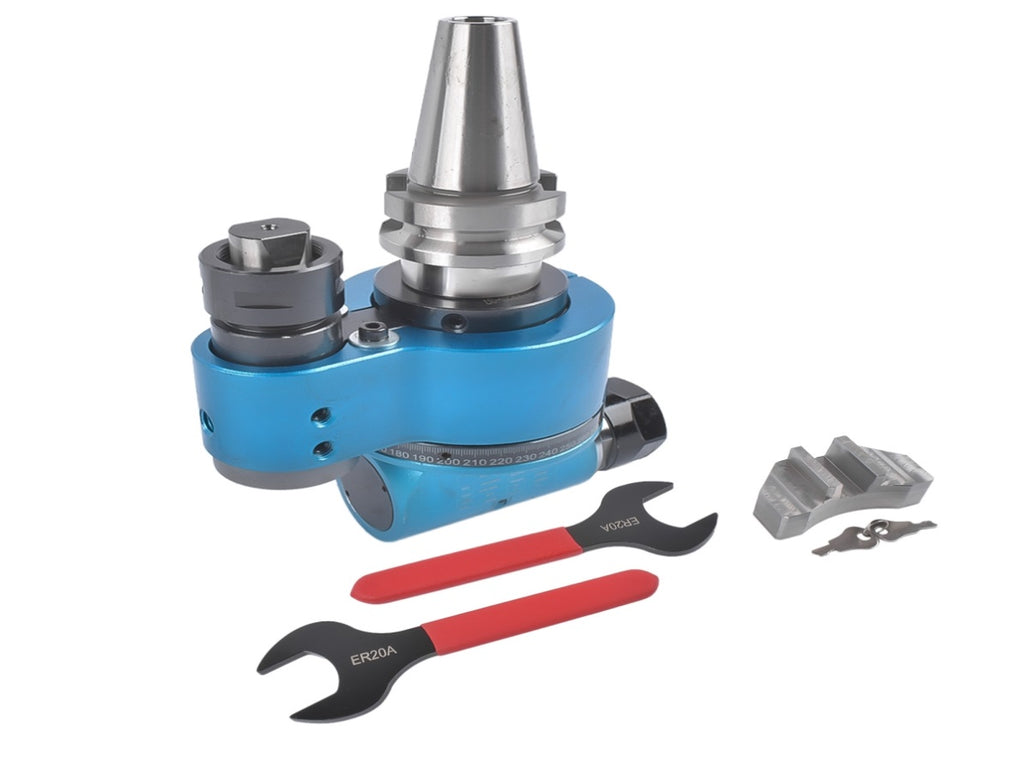

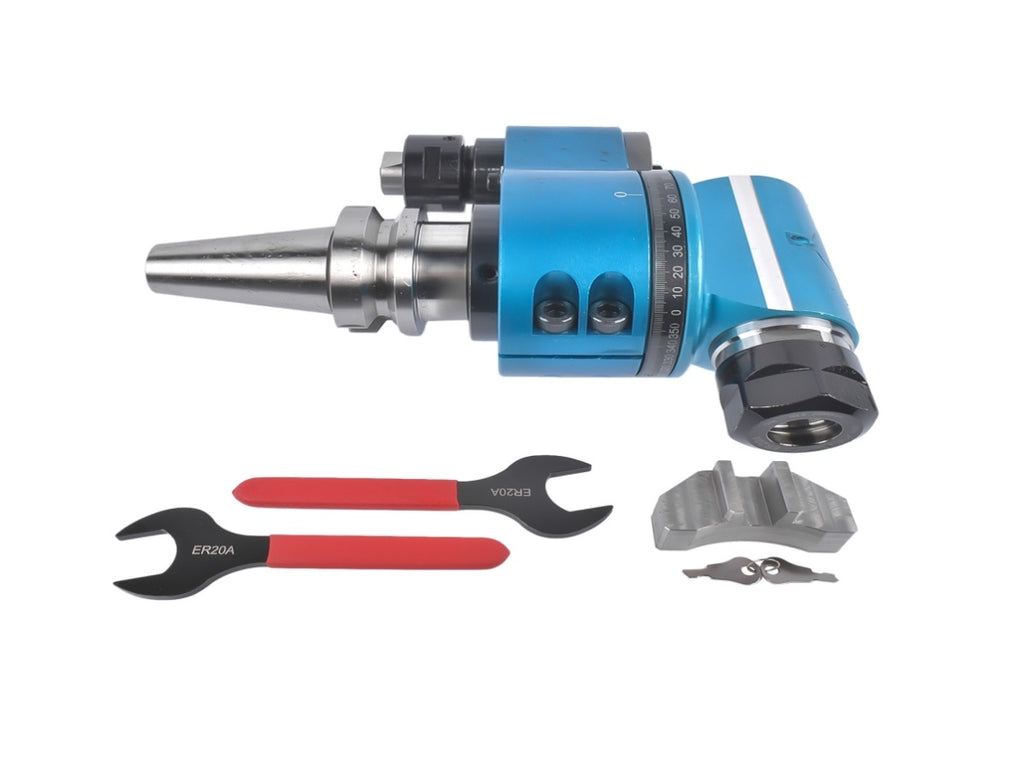

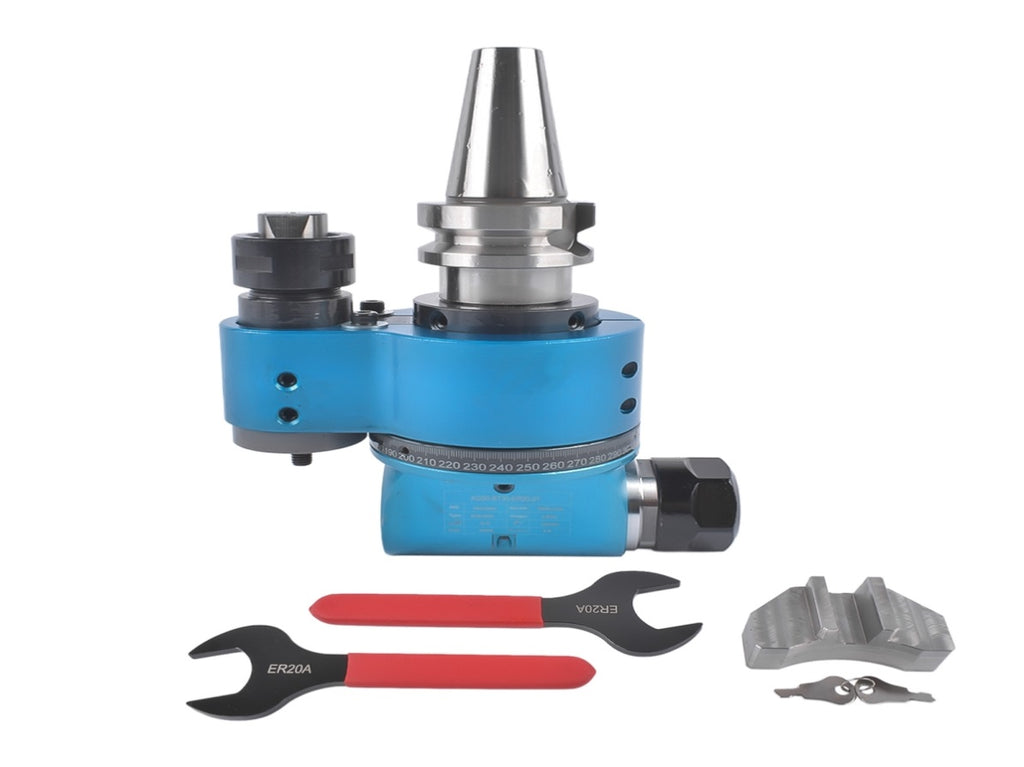

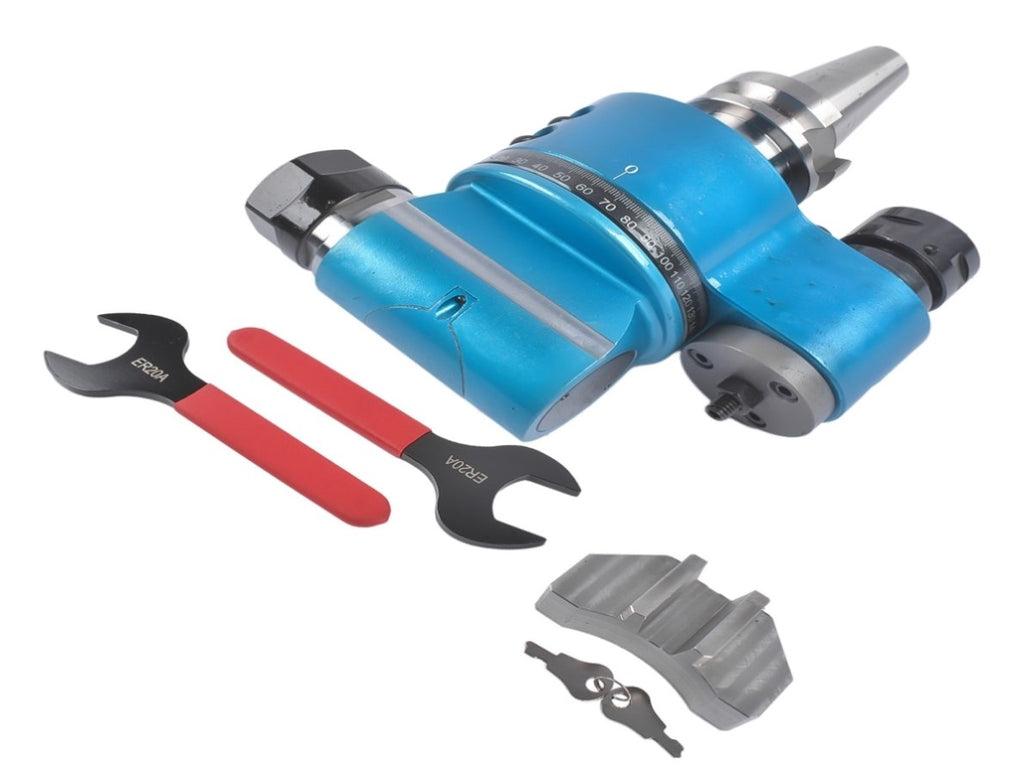

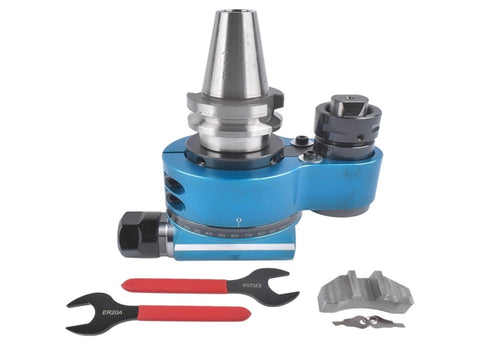

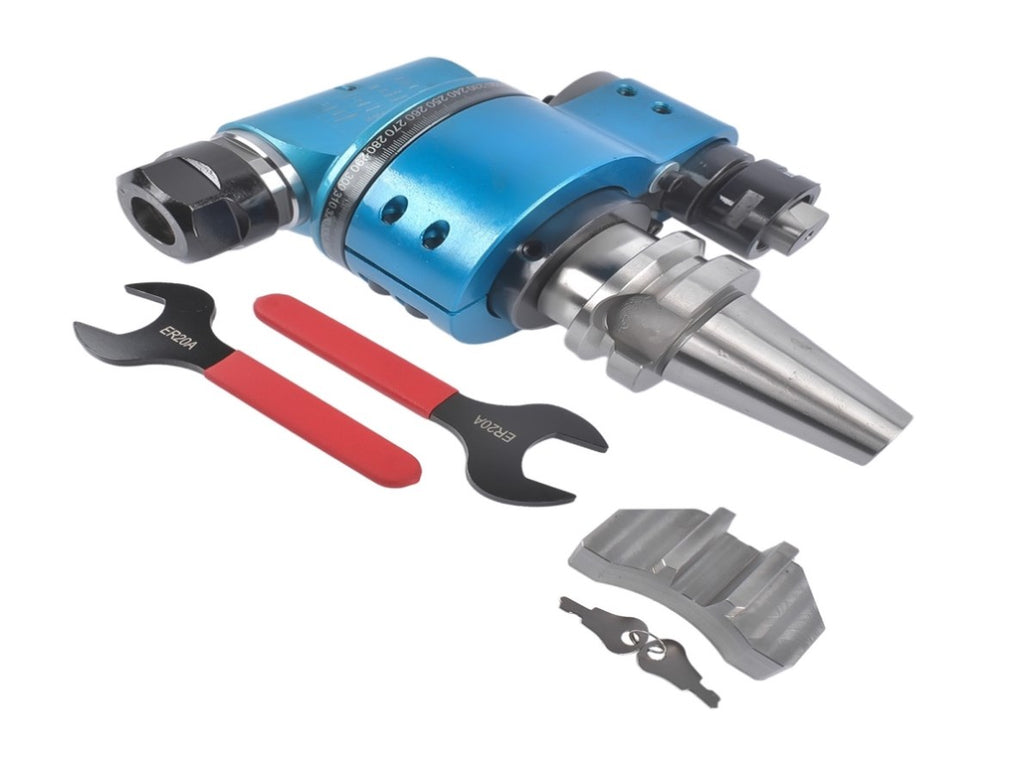

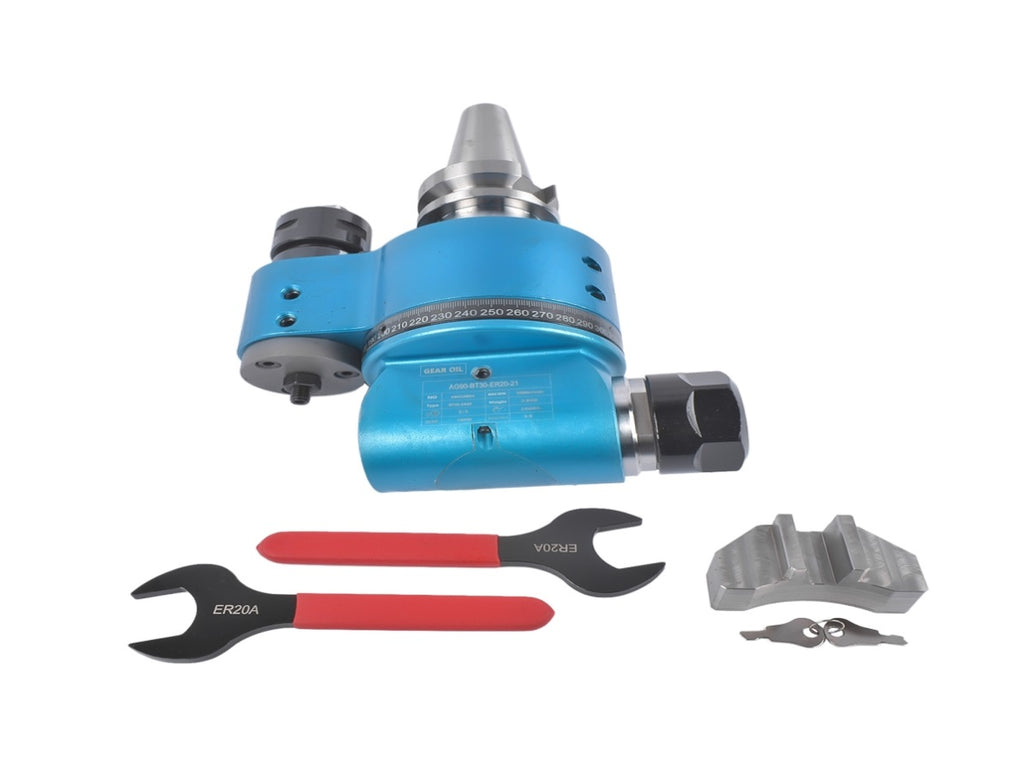

BT30-90°-21-ER20 Fixed Angle Head Collet Chuck 90°Angle 11 Gear Ratio 5000r/min Single Head 90 32579169

Description:

Angle head is a kind of machine tool accessory, the machine tool installed with the angle head can rotate the center line of the tool and the spindle rotation center line at an angle to process the workpiece.  The use of angle head, without changing the structure of the machine tool can increase its processing range and adaptability, so that some of the traditional methods difficult to complete the processing can be achieved, and can reduce the workpiece repeated clamping, improve processing accuracy and efficiency. It is widely used in various fields of machining, such as aviation, automobile, mold and die.

Specifications:

Type: Fixed Angle Head Collet Chuck

Model: BT30-90°-21-ER20

Input: BT30

Output: ER20

Maximum Clamping: φ13mm

Maximum Torque: 16Nm

Maximum Speed: 5000r/min

Transmission Ratio: 1:1

Installation Method: Fixed Support

Lubrication Method: Grease Lubrication

Material: Aviation Aluminum + 40Cr

Features:

- Single head machining centers side milling head

- Universal purpose, drilling, tapping and milling function

- 360° Rotation angle, automatic tool change

- Clear scale and positioning pin, high performance

- Waterproof and dust-proof, Rotation speed max up to 5000rpm/min

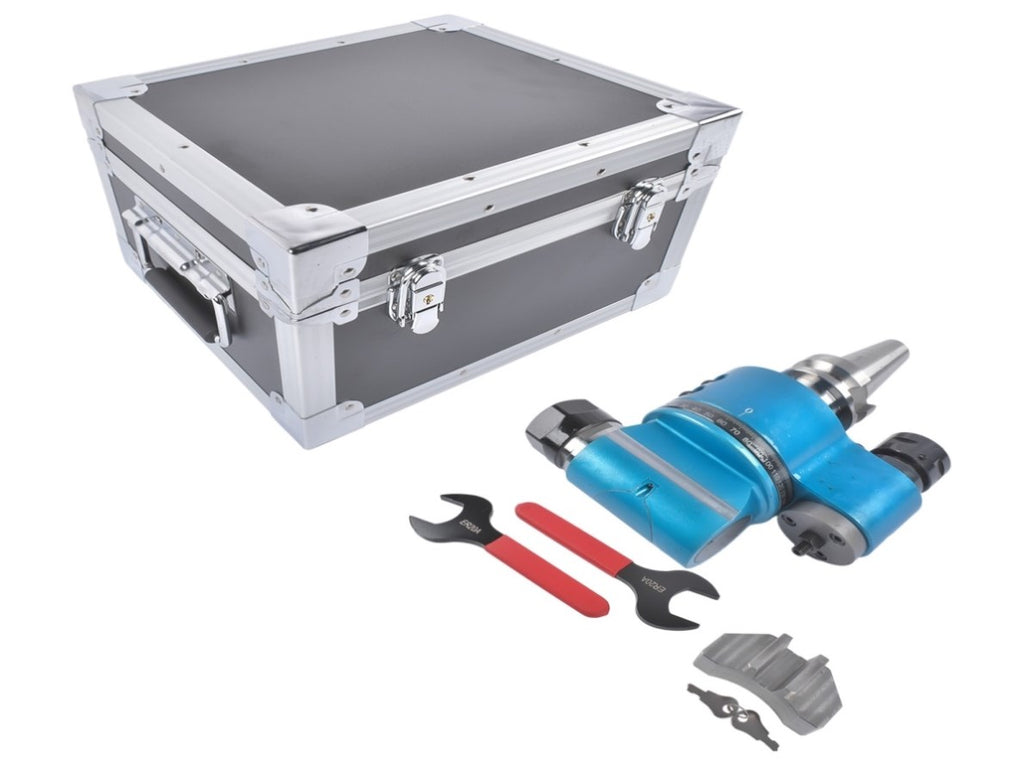

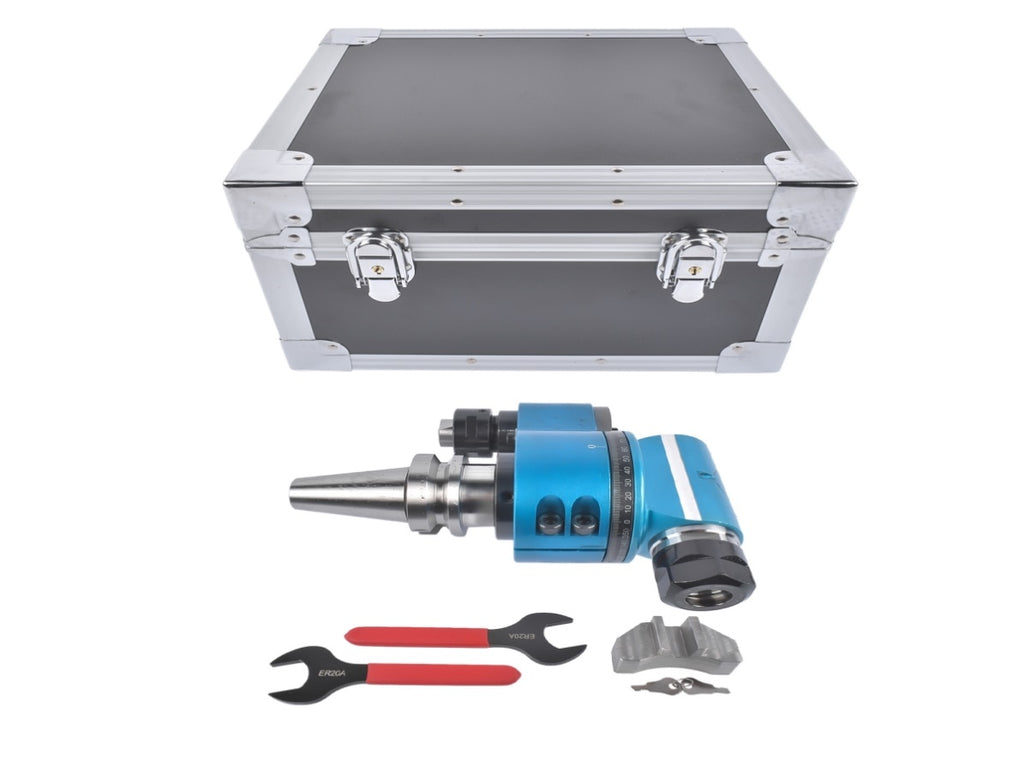

Package Includes:

1x BT30-90°Angle Head
