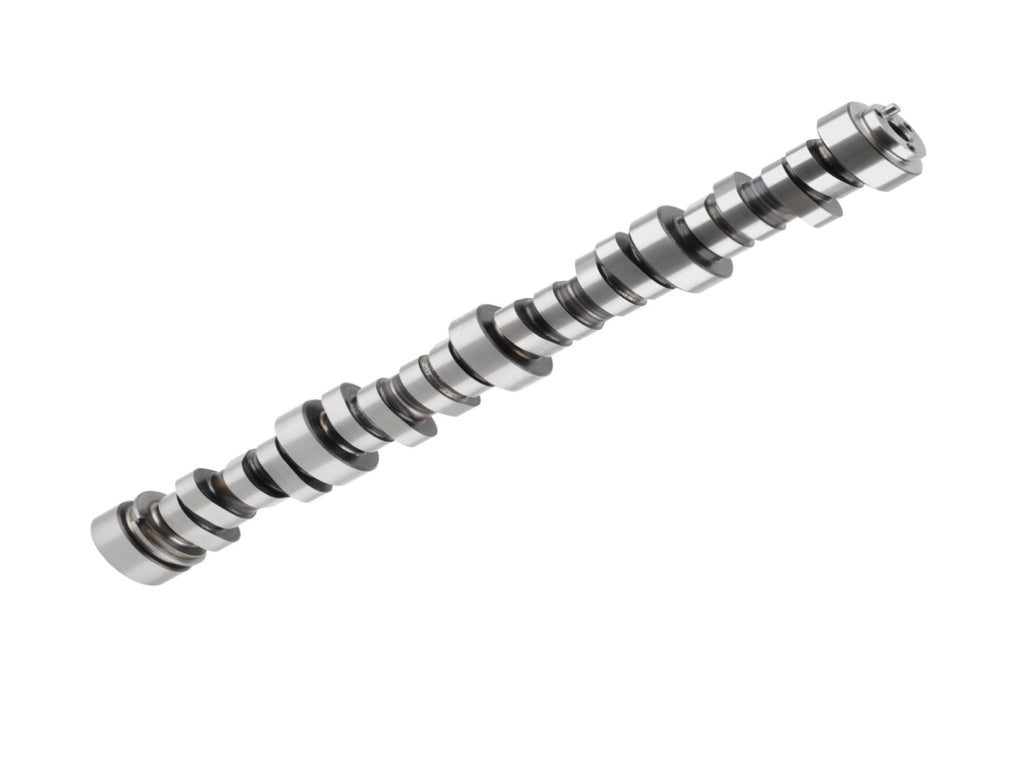

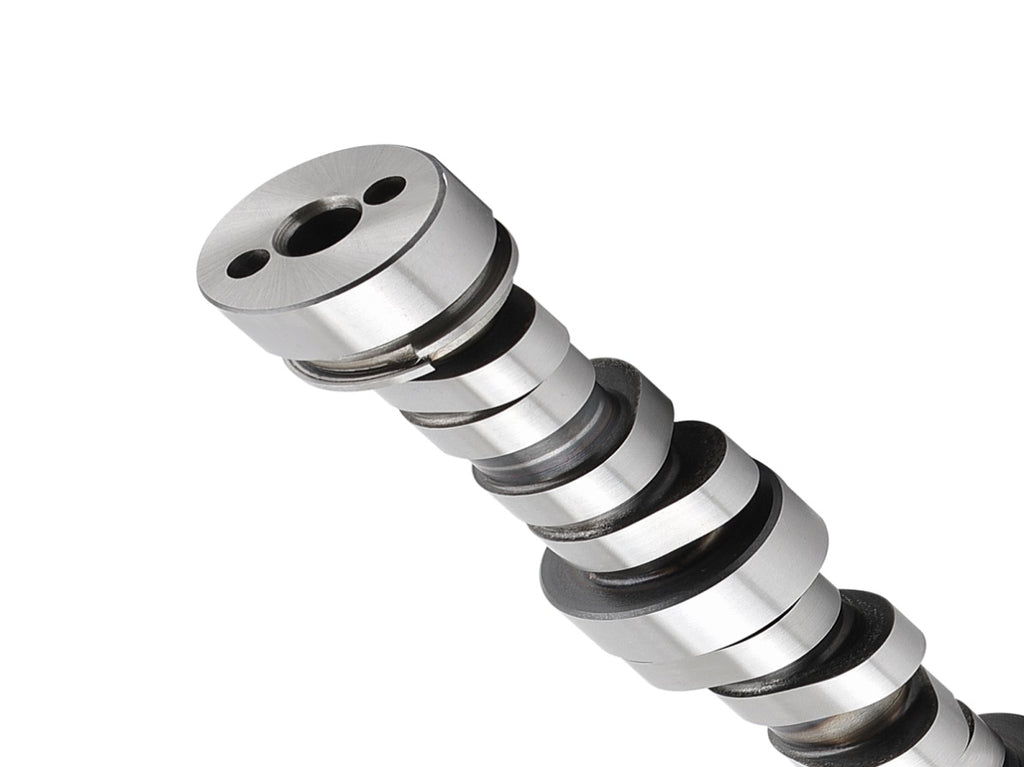

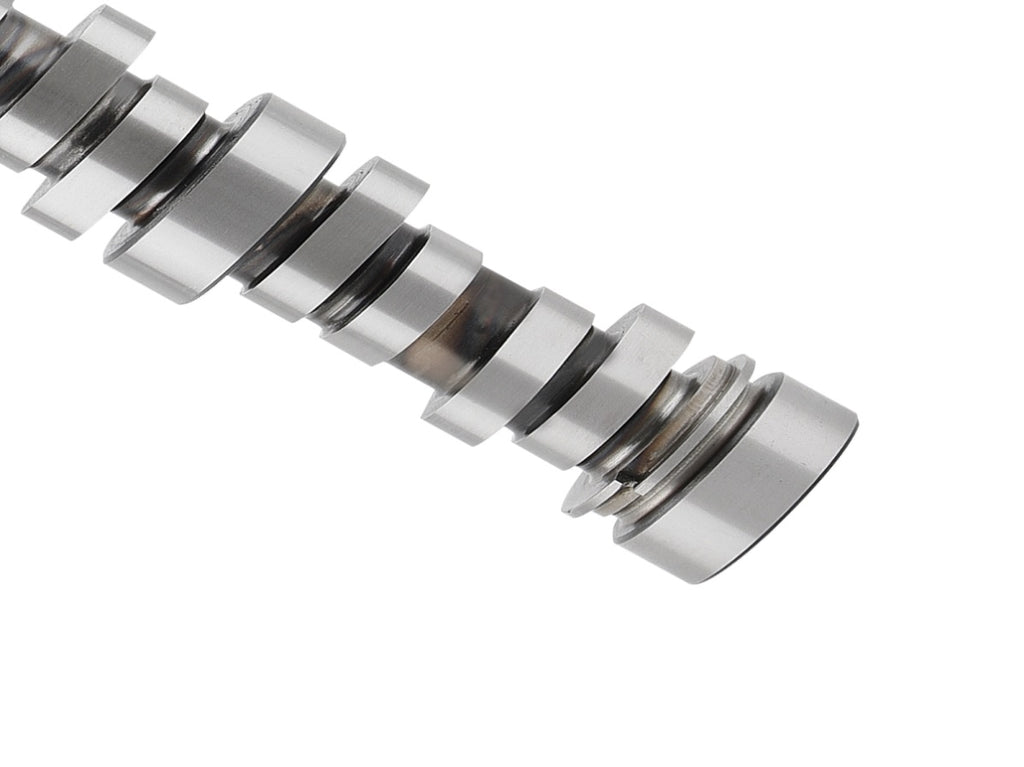

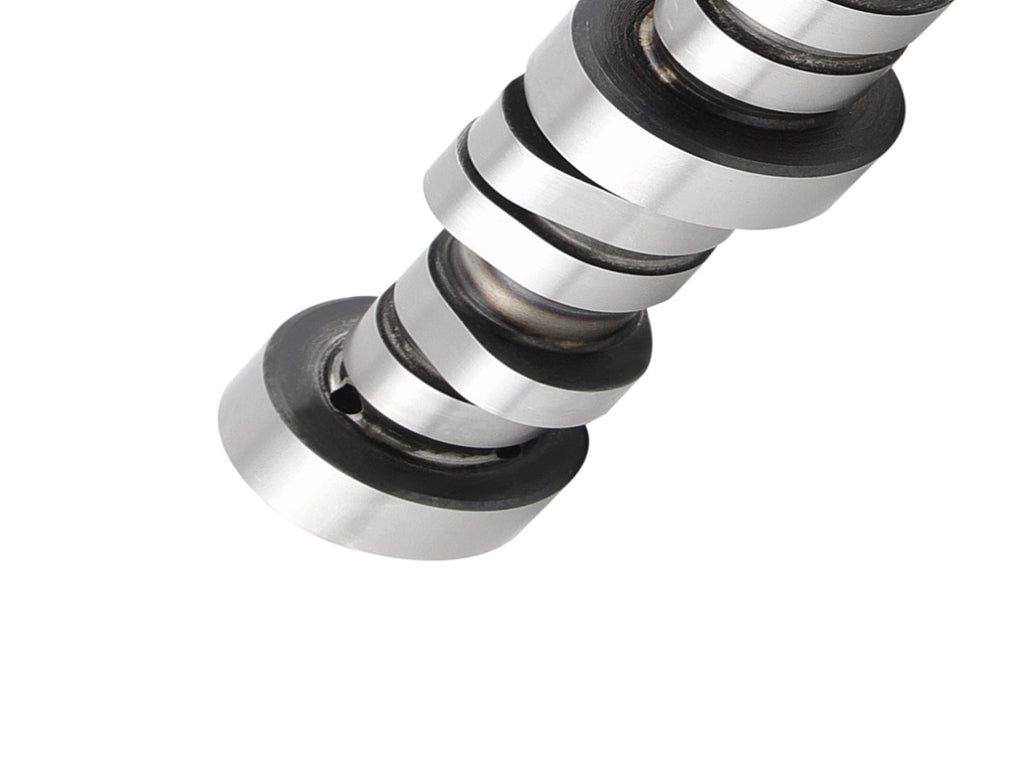

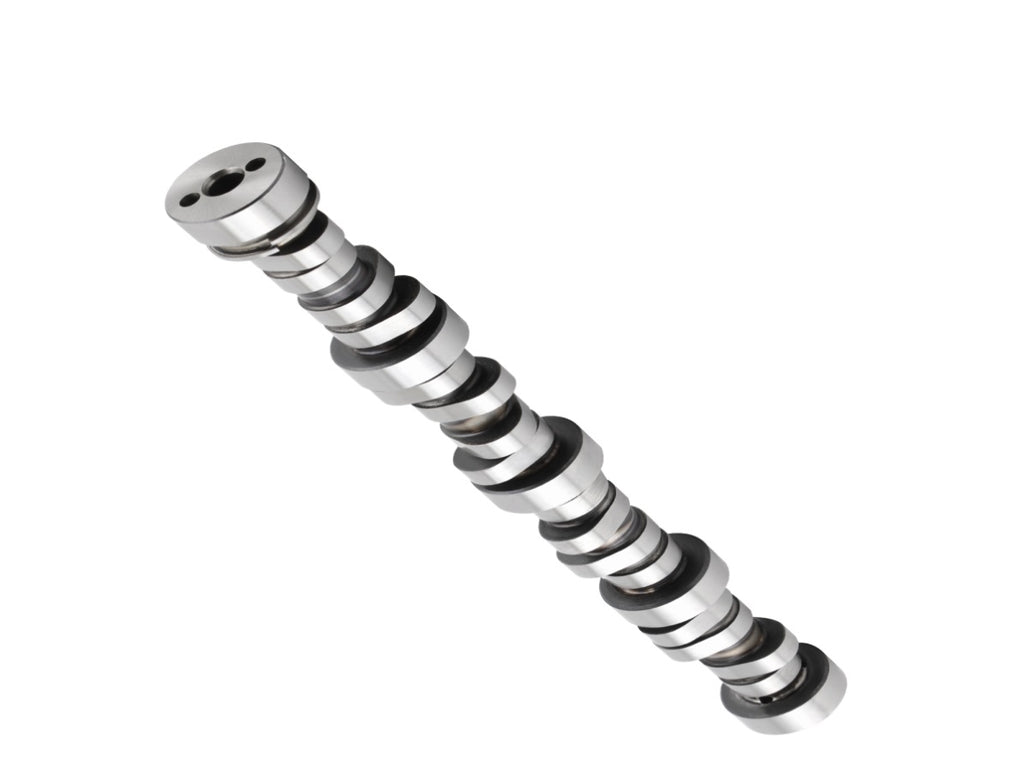

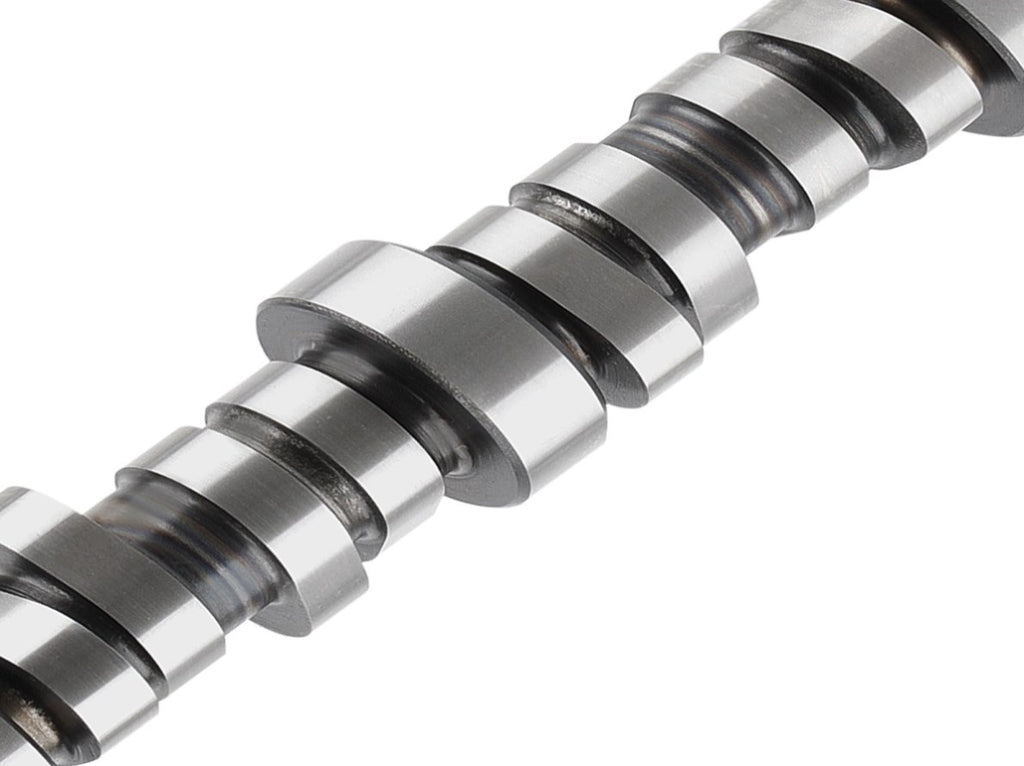

Cam Camshaft .552" Lift fit for Chevy Ls Ls1 Corvette Camaro 296 Duration E1841P 73992894
Description:
Camshaft is a key factor in determining the RPM range of an engine's power band. Therefore, the strength and support of the camshaft are highly required in the design. Our product is made from steel or cast iron, strong and durable
Application:
fit for Chevrolet Ls-series 1997-2004 without Active Fuel Management (AFM)
fit for Chevrolet Ls-series 1997-2004 without Active Fuel Management (AFM)
fit for Chevy LS LS1 CAM
fit for Chevrolet Camaro
fit for Chevrolet Corvette
fit for Pontiac GTO
fit for Pontiac Firebird
fit for Chevrolet Camaro
fit for Chevrolet Corvette
fit for Pontiac GTO
fit for Pontiac Firebird
Replacement Part Number: E-1841-P, E1841P, 1841P
Specifications:
Type: Hydraulic Roller
Lifter Type: Hydraulic Roller
Camshaft Type: Hydraulic Roller
Engine: fit for LS1
Product Line: Sloppy Stage III
Lobe Separation Angle: 112 Degrees
Material: Billet Steel
Condition: New
Color: Silver
Package Includes:
1x Camshaft (Showing as the picture)
Lifter Type: Hydraulic Roller
Camshaft Type: Hydraulic Roller
Engine: fit for LS1
Product Line: Sloppy Stage III
Lobe Separation Angle: 112 Degrees
Material: Billet Steel
Condition: New
Color: Silver
Package Includes:
1x Camshaft (Showing as the picture)
Cam Lift Intake: .350
Cam Lift Exhaust: .350
Valve Lift Intake: .552
Valve Lift Exhaust: .552
Advertised Intake Duration: 296°
Advertised Duration Exhaust: 299°
Duration at .050 Cam Lift Intake: 238°
Duration at .050 Cam Lift Exhaust: 242°
Intake Opens at: 11° BTC
Intake Closes at: 47° ABC
Exhaust Opens at: 57° BBC
Exhaust Closes at: 5° ATC
Camshaft Overlap: 73°
Lobe Line Intake: 108°
Lobe Line Exhaust: 116°
Operating Power Range: 2,200-5,400 rpm
Good Mid-Range torque 3,000-4,000 RPM
Cam Lift Exhaust: .350
Valve Lift Intake: .552
Valve Lift Exhaust: .552
Advertised Intake Duration: 296°
Advertised Duration Exhaust: 299°
Duration at .050 Cam Lift Intake: 238°
Duration at .050 Cam Lift Exhaust: 242°
Intake Opens at: 11° BTC
Intake Closes at: 47° ABC
Exhaust Opens at: 57° BBC
Exhaust Closes at: 5° ATC
Camshaft Overlap: 73°
Lobe Line Intake: 108°
Lobe Line Exhaust: 116°
Operating Power Range: 2,200-5,400 rpm
Good Mid-Range torque 3,000-4,000 RPM
Product length: 48cm
Product diameter: 5.3cm
Package size(cm): 58*11*10
Package weight(kg): 4.6
Product diameter: 5.3cm
Package size(cm): 58*11*10
Package weight(kg): 4.6
Note:
Fully tested under extreme condition fit for heat resistance and long-life use.
No Instruction Included, professional installation is highly recommended.
No Instruction Included, professional installation is highly recommended.
