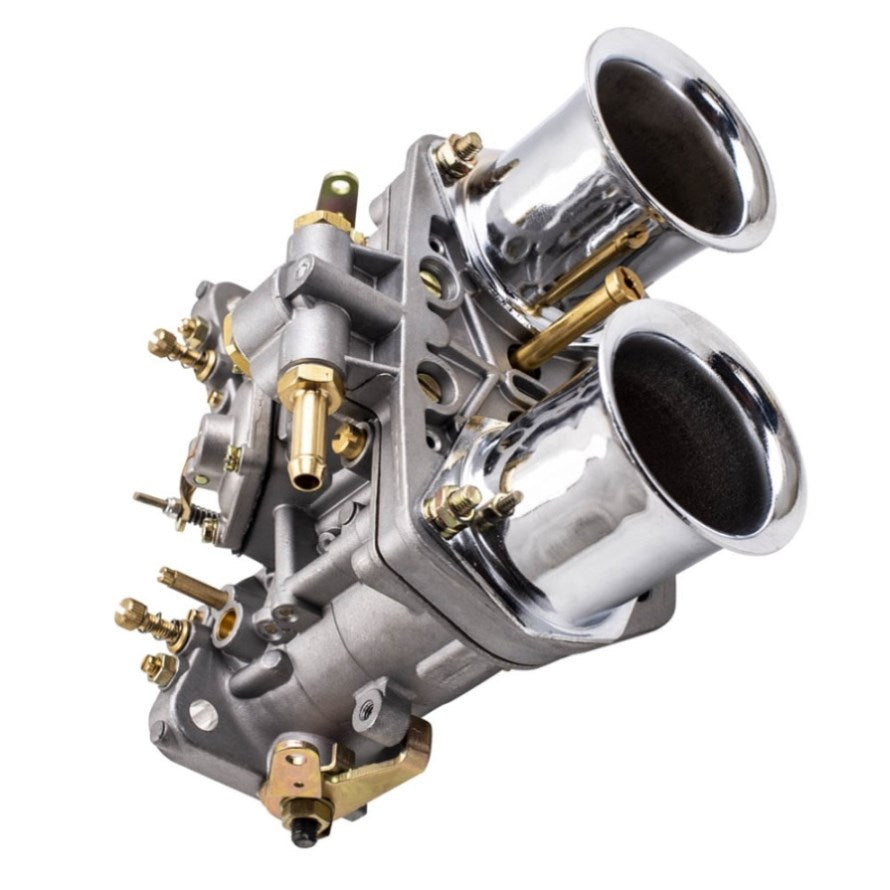

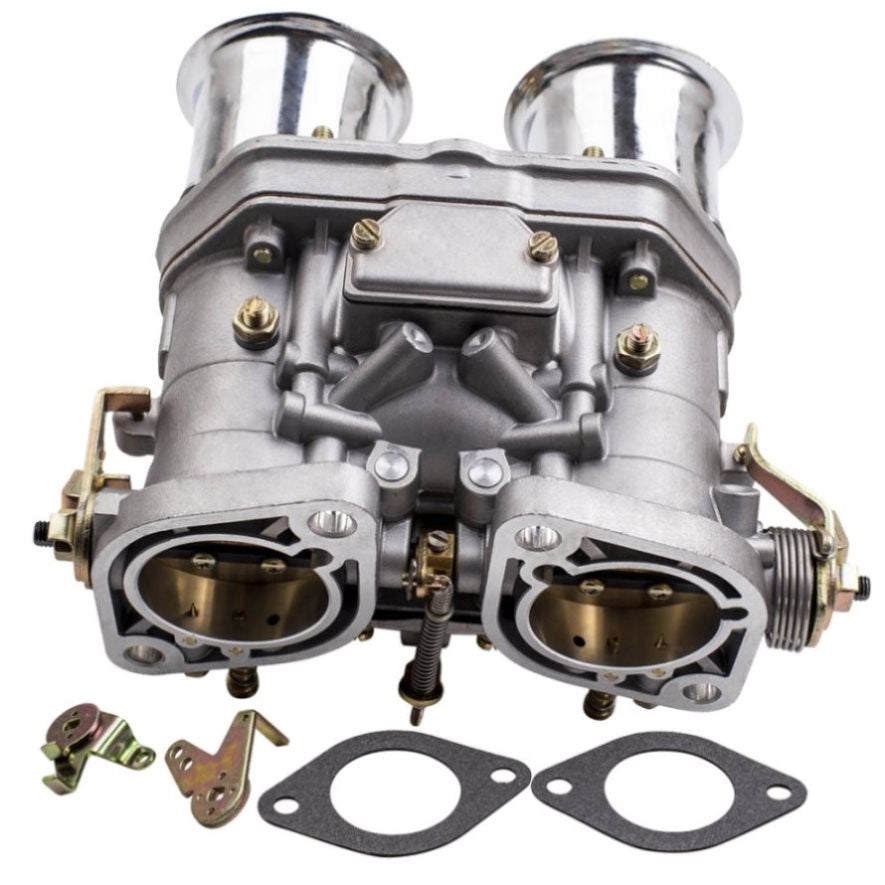

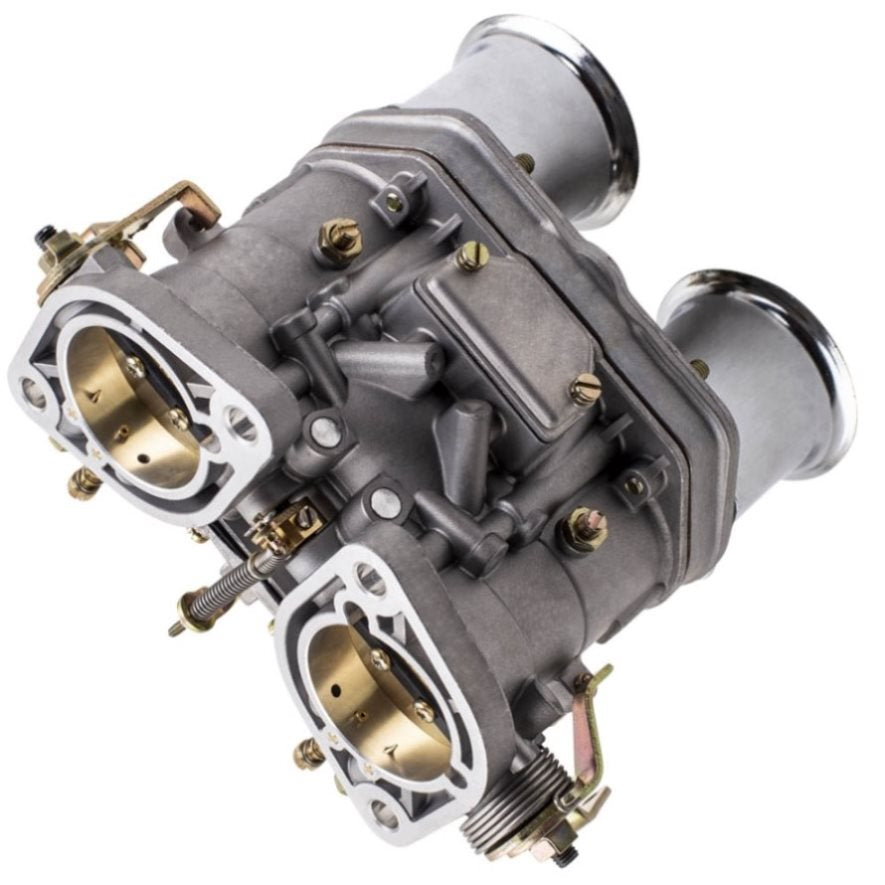

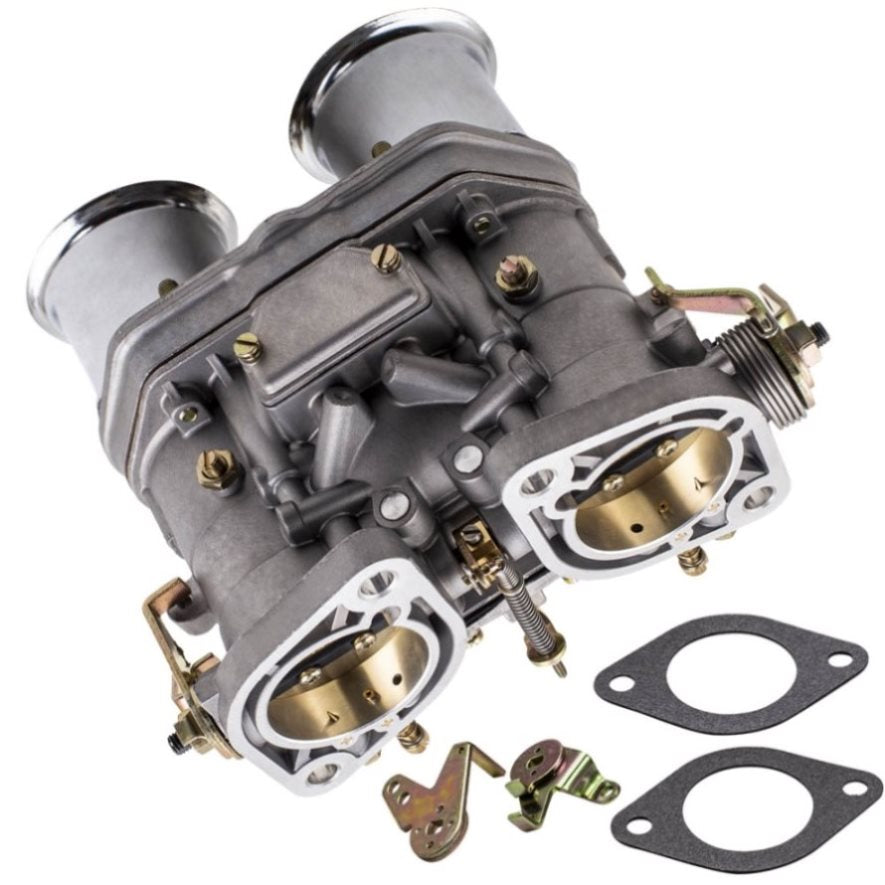

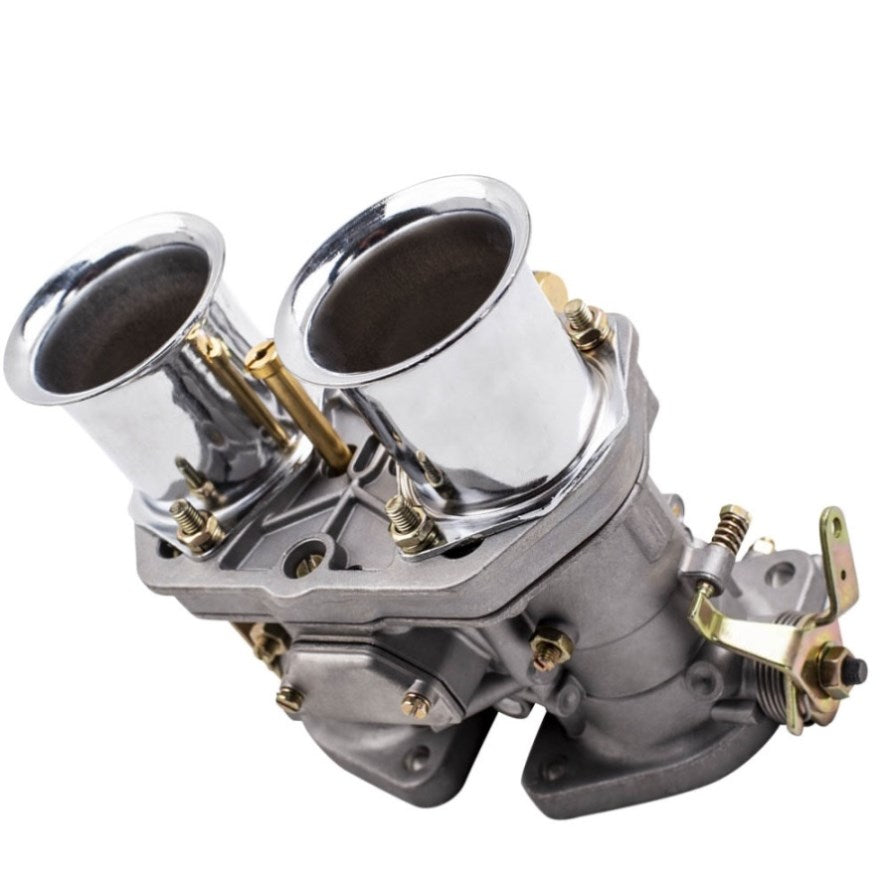

Carb Carburetor 44 IDF 2 Barrel Fit For VW, Fit for Jaguar, Fit for Porsche, Fit for BMW, Fit for 86294239

Introduction:

A carburetor is a device to mix air and fuel for internal combustion engines in the proper ratio for combustion. The fuel and air mixture is too rich if it has an excess of fuel, while too lean if there is not enough. Therefore, our high quality carburetor is the perfect solution for the appropriate ratio of air and fuel mixture and finally provides a good engine performance.

Application:

Fit for any application that uses the 44 IDF Carburetor

Fit For VW, Fit for Jaguar, Fit for Porsche, Fit for BMW, Fit for Fiat and American V8's Engines

OE/Part number:

18990.03

Specification:

Condition:100% Brand New

Material:Zinc Alloy

Instructions:Not Included

Bolt Hole Spacing Length& Width:134.5(max)mm×64(max)mm(Center To Center)

Base Plate Size:78mm/78mm

Intake Side Inner Diameter:44mm(two same)

Choke Air Horn Inner  Diameter:46mm

Choke Air Horn Outer Diameter:65mm

Venturi Diameter:36mm

Type:Manual Choke

Main jets:135

Air Corrector Jets:175

Emulsion tube:F11

Idle jets:55

Dif:36

Package Dimensions:24*18*17cm

Weight:2.1kg

Package included:

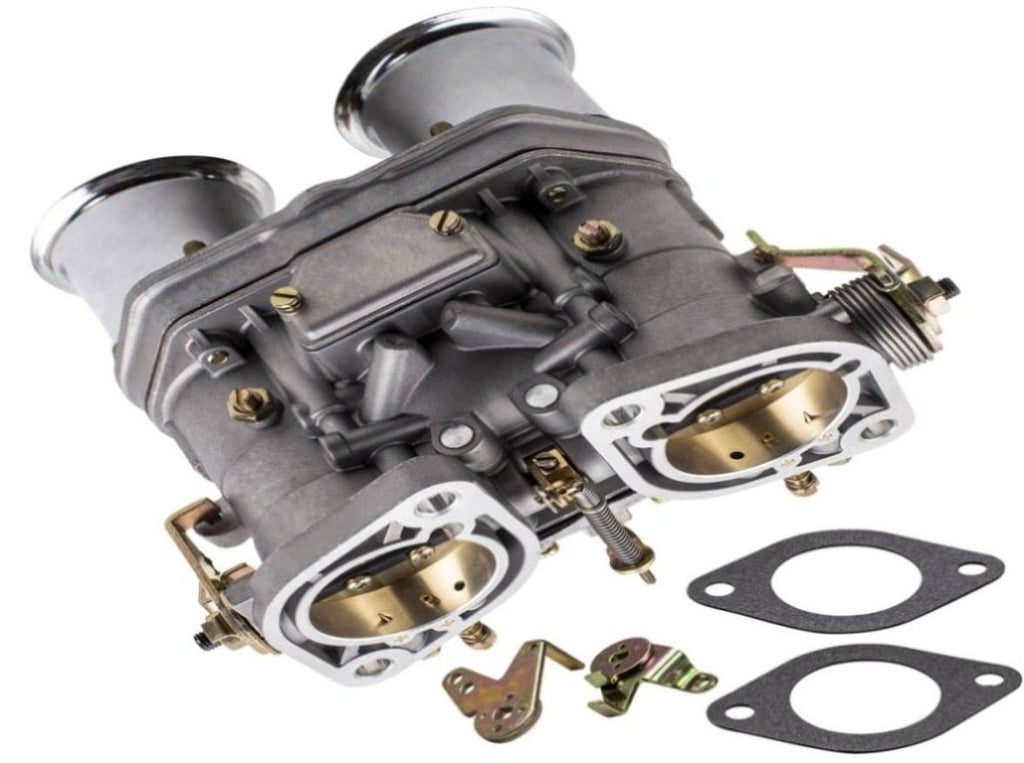

1x44 IDF 44MM Carburetor

2x Gasket

2x Bracket

Feature:

1.Two air horns for increasing airflow input, connect with air filter, improves fuel efficiency

2.Aftermarket brand new, ensure superior and reliable quality.

3.High hardness and corrosion resistance, longer usage life.

4.Let your vehicles speed up in a short time, better driving experience.

5.Control the speed of engine under stable condition, effective operation.

6.Improve the structure during manufacturing process, high accuracy.

Note:

*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.

*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  (No Instruction Included)

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
