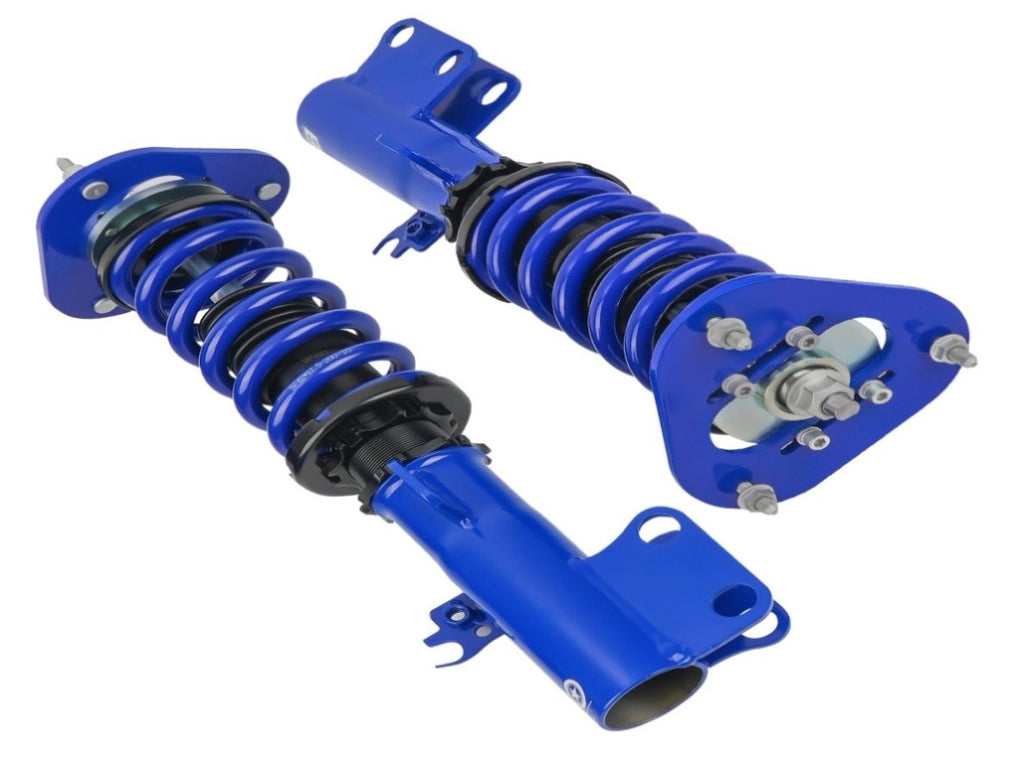

Coilovers Suspension Adjustable Height Shocks Fit For TOYOTA COROLLA AZE141L XRS 2009-2010 77362016
Key Features:
Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Twin-Tube System for Comfortable Ride on Streets
Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase
Application:
Fit For TOYOTA COROLLA (E140) AZE141L XRS 2009-2010
Fit For TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013
Fit For TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019
Fit For TOYOTA MATRIX (E140) LE 2009-2014
Specification:
- Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Blue body with blue spring

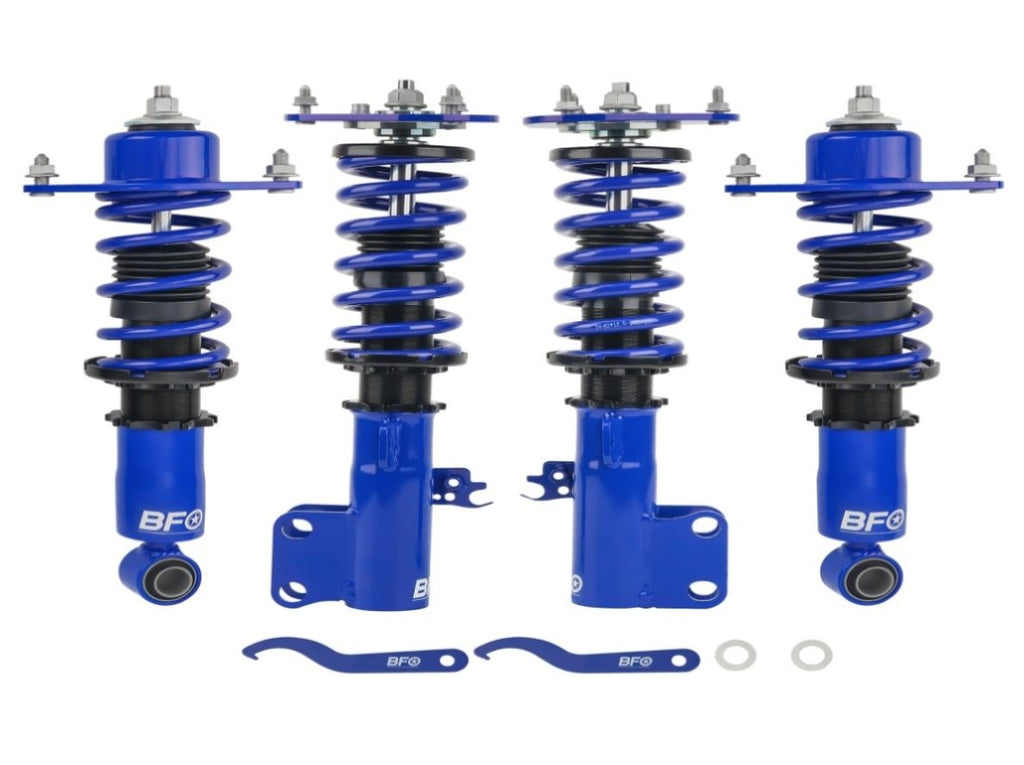

Package included:

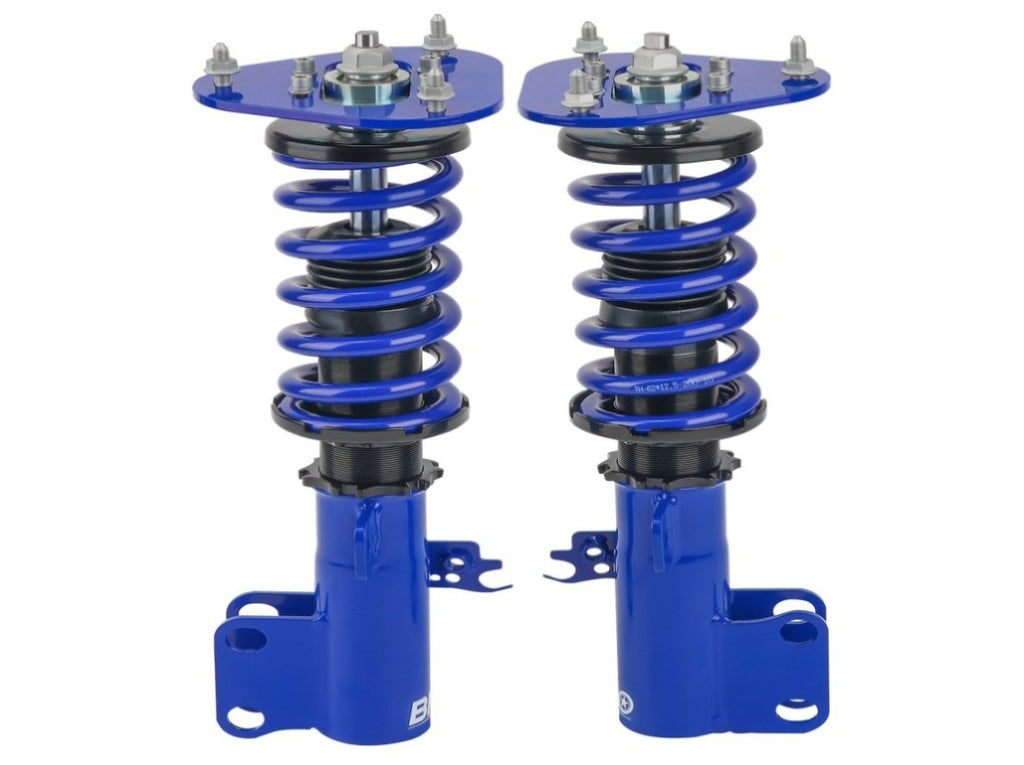

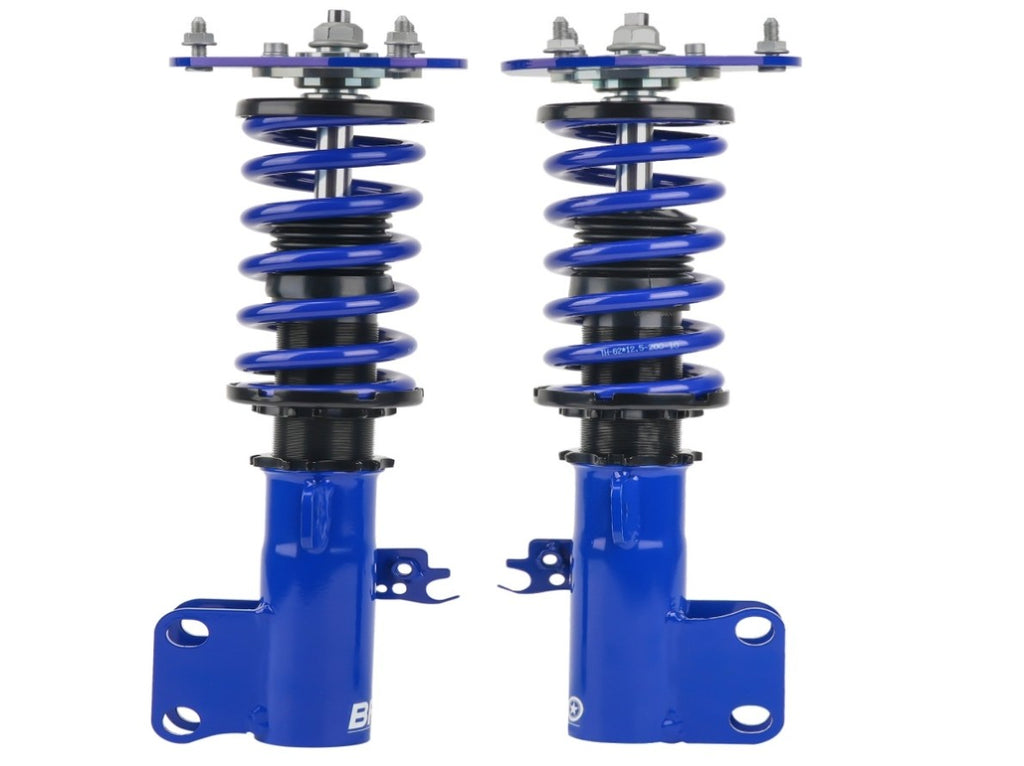

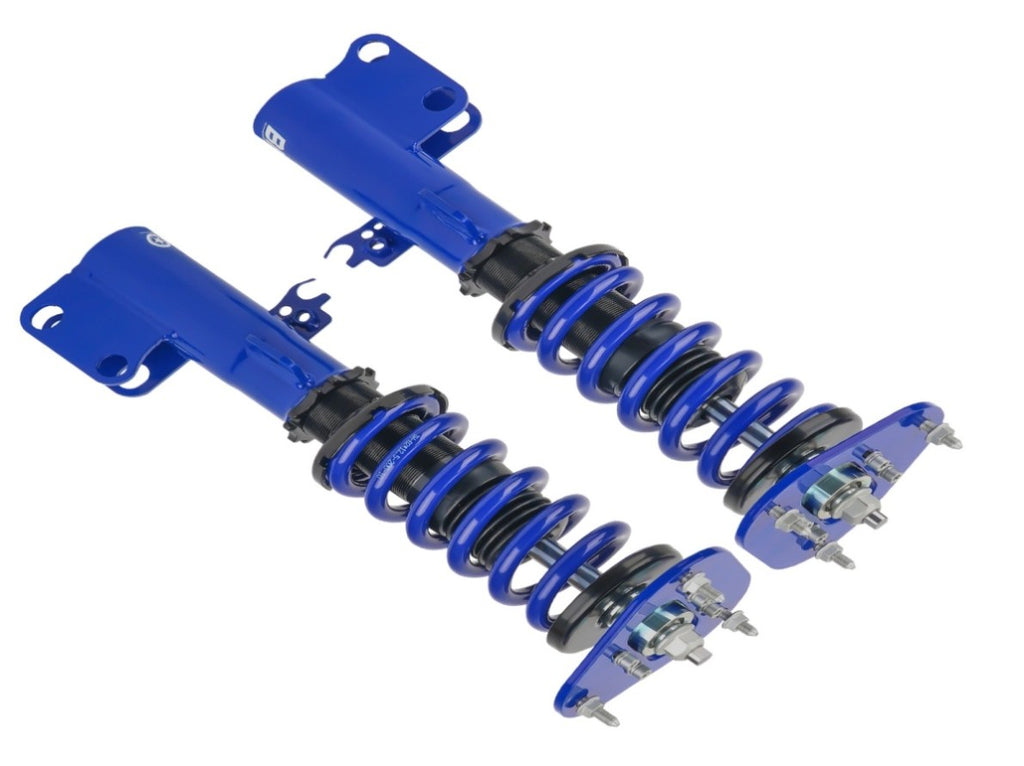

2x Front coil-overs

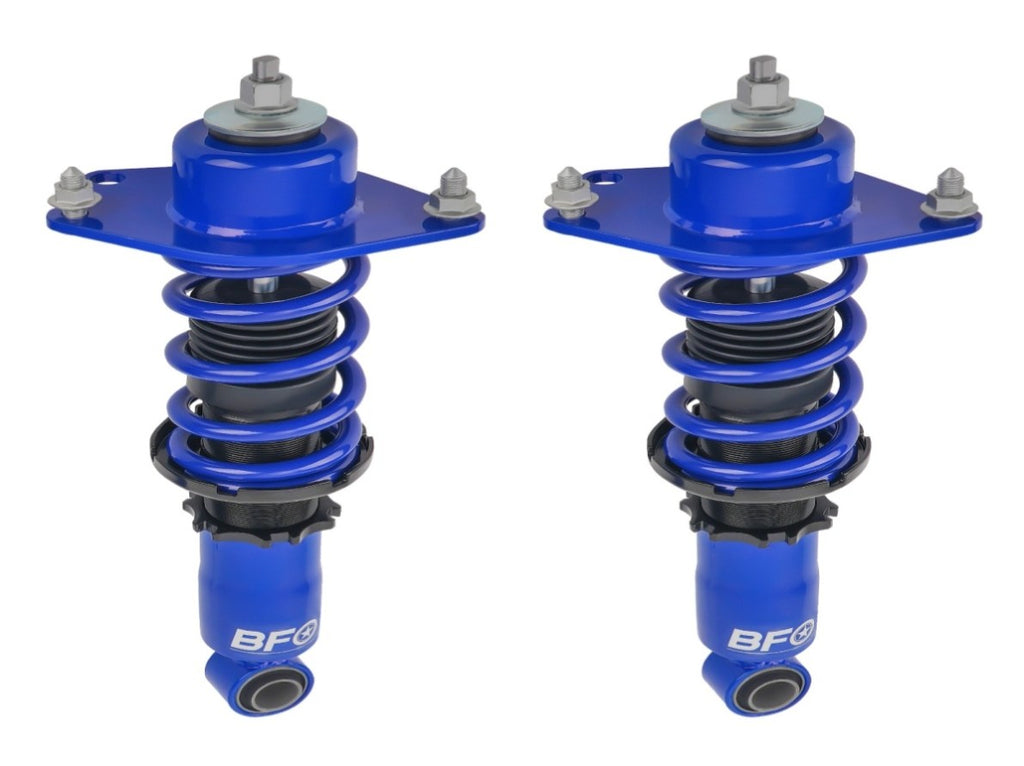

2x Rear coil-overs
2x C spanners
Authority ID: MXR02FXSY（Very important, please do not delete）
Notice: California Prop 65 Warning
