Introducation:

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles),  which offers you a lowered stance, improved performance  for your daily use vehicle.

Application:

Fit For Toyota Corolla E90  1987–1992

Fit For Toyota Corolla E100 1991–1998

Fit For Toyota Corolla E110  1995-2002

Fit For Toyota Corolla AE92  1987-1991

Fit For Toyota Corolla AE101 1992-1998

Fit For Toyota Corolla AE111 1988-2002

Specification:

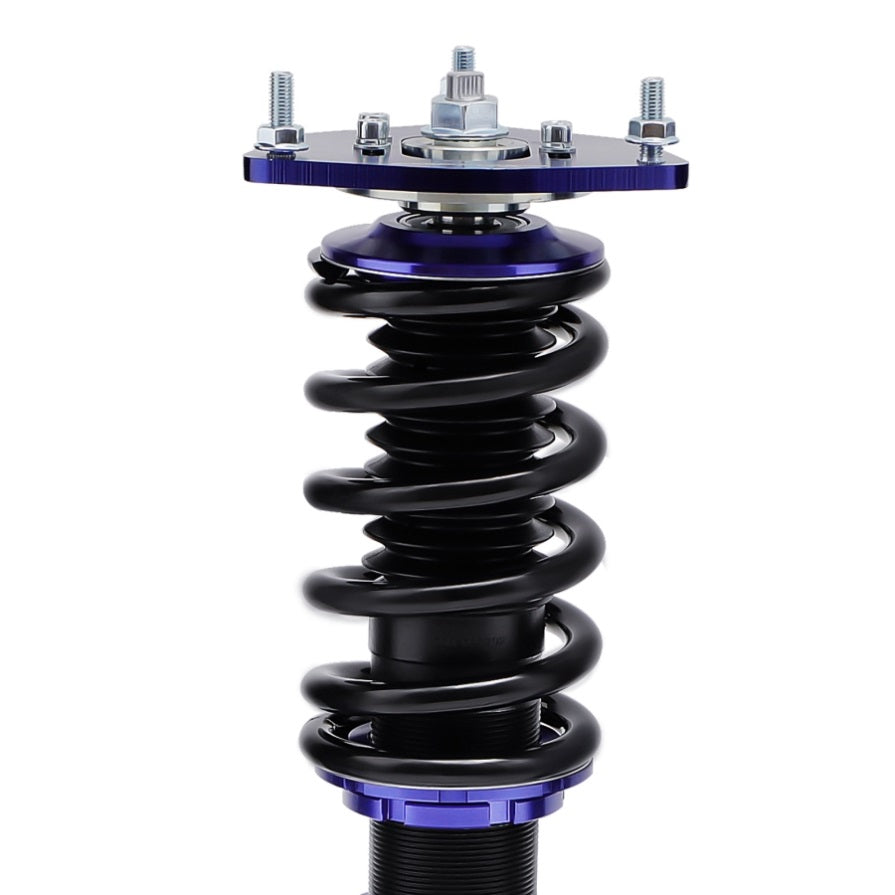

Top mount: Front camber plate；rear pillow ball

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Adjustable height: lowering 1-3 inch

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: blue body with black spring

Features:

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

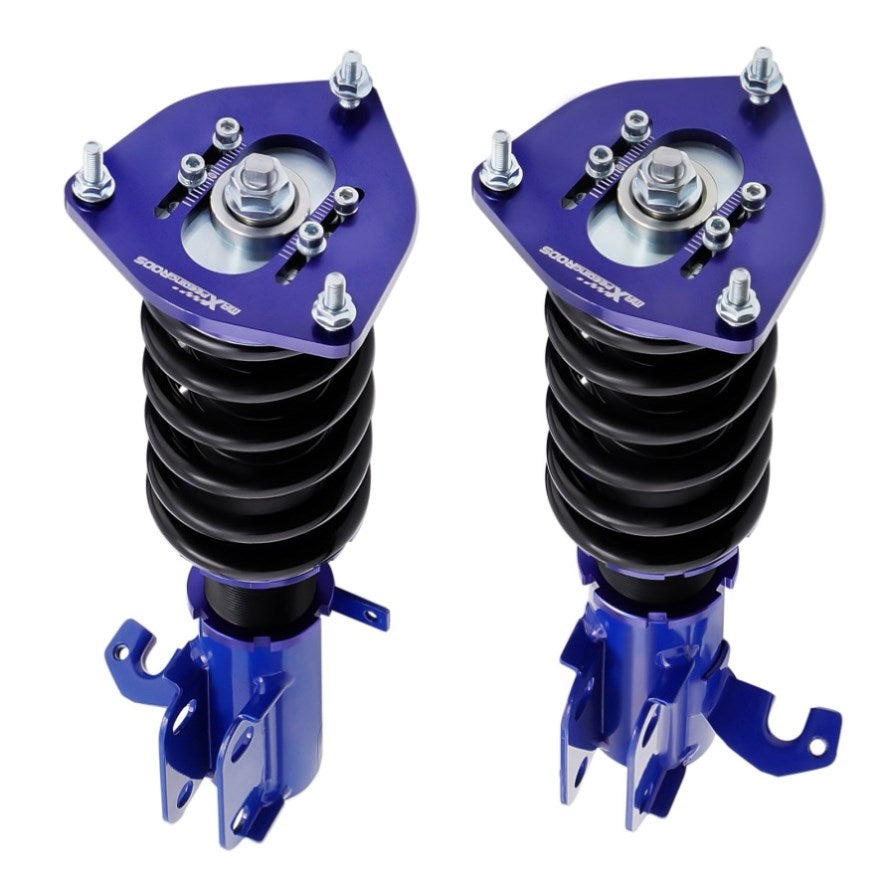

2.Camber plate top mounts help to eliminate the need for a separate camber kit.

3.Twin-Tube structure allows sufficient stroke within the shock absorber.

4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

8.Steel shock bodies with special surface treatment to improve the durability.

9. Full rebuildable

Package included:

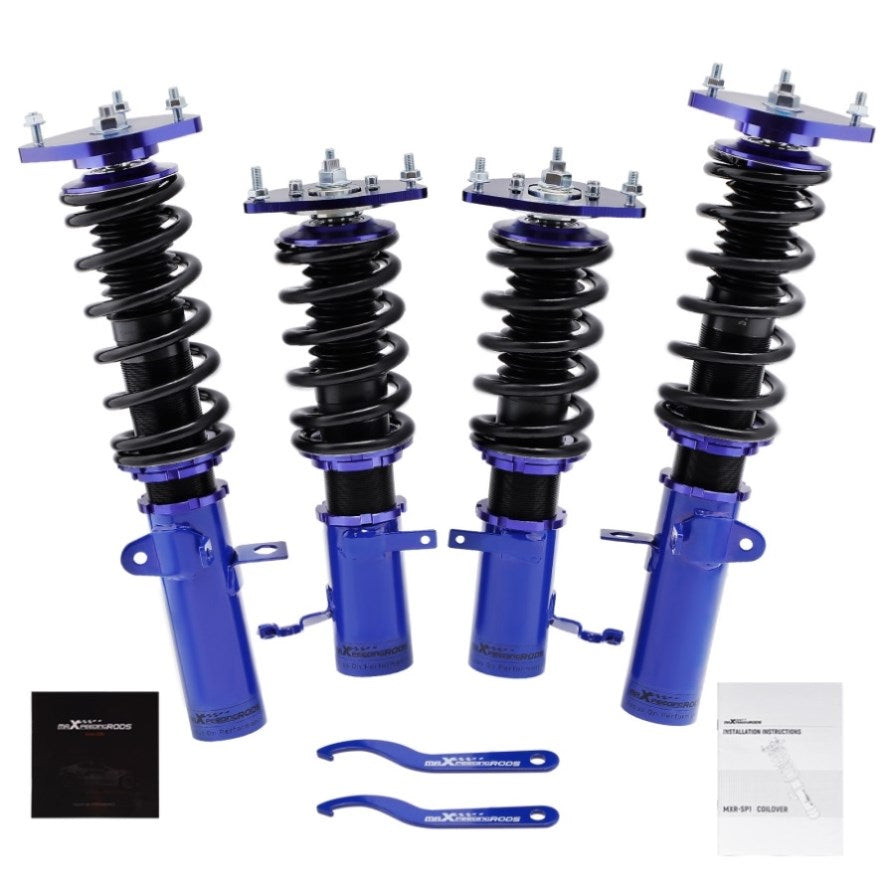

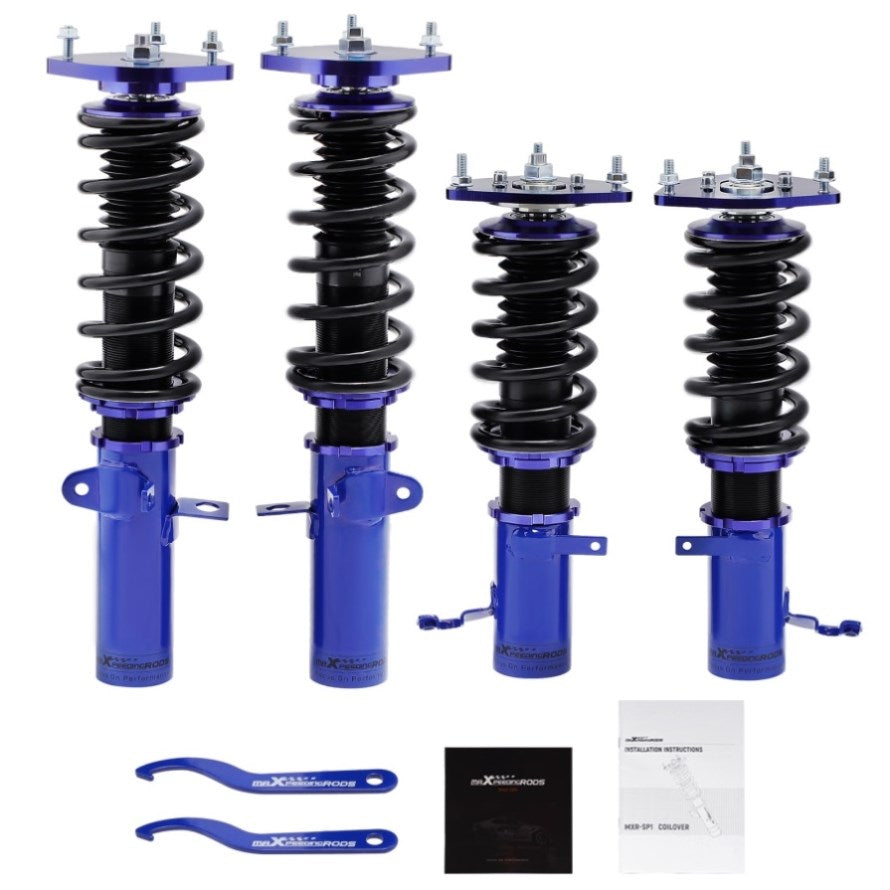

Complete coilover assembly kit for front and rear

A pair wrench for height adjustment

Dimension:

Package dimension : 63*51*21

Weight: 26700g

Notice:

The coilovers kit will "Lower your car" and does not keep to the original ride height.

Code:MGGRP

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
