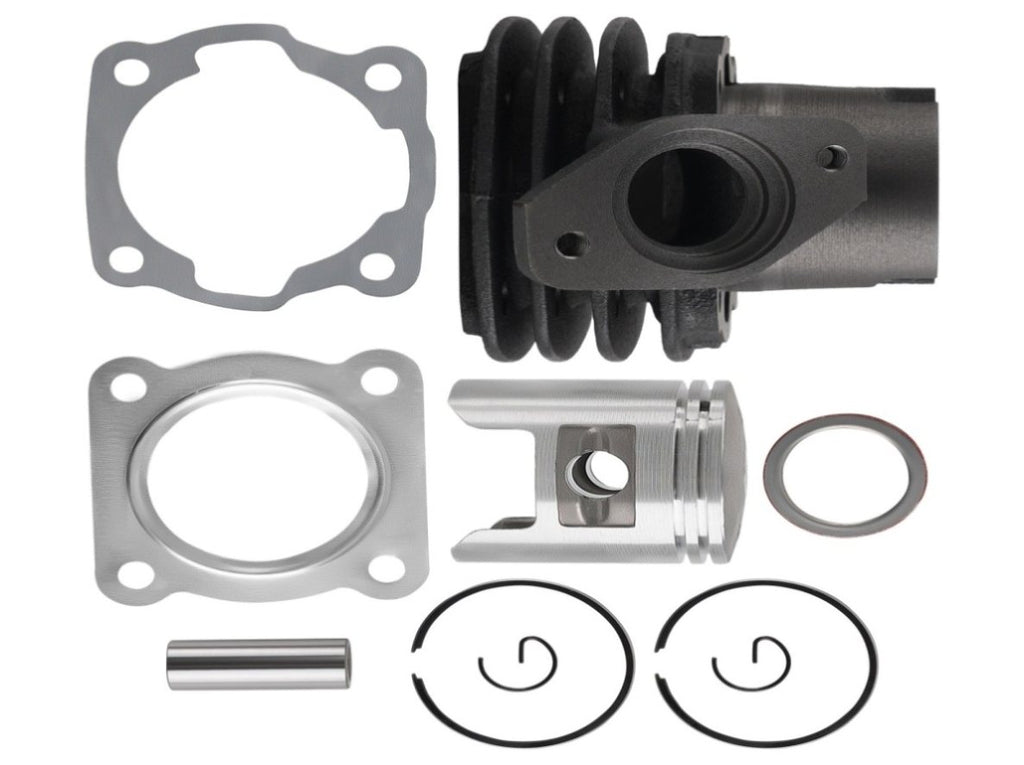

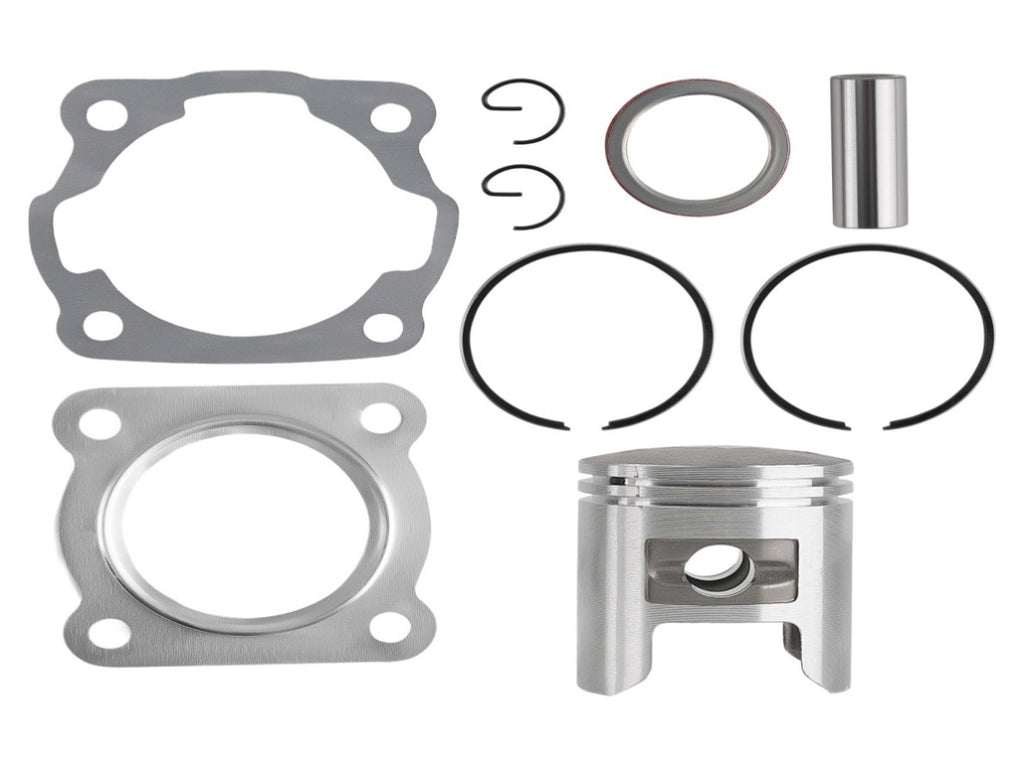

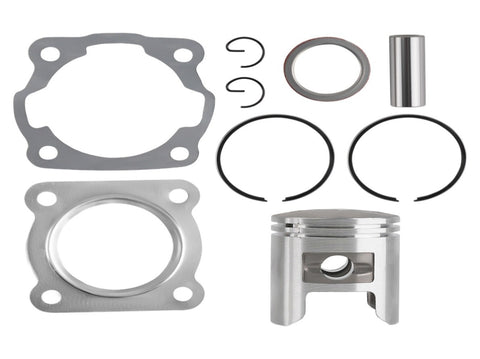

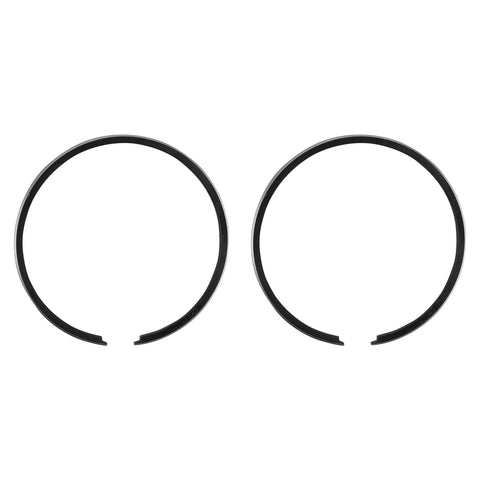

Complete Cylinder Rebuild Kit fit for Honda NQ50 Spree 1984-1987 OEM Quality Parts 24273572

Application
fit for Honda NQ50 Spree 1984-1987

OE/Part number

12101-GK8-000, 12251-GN2-000, 12191-GK8-010,
12101GK8000, 12251GN2000, 12191GK8010

Specification
Material: Iron
Type: Cylinder Piston Kit
Cylinder bore and stroke: 41.00mm x 37.40mm
Cylinder Displacement: 49cc / Compression Ratio 7.2:1
Cilinder bolt hole centres: 48mm. (bolt hole diameter is 7mm)

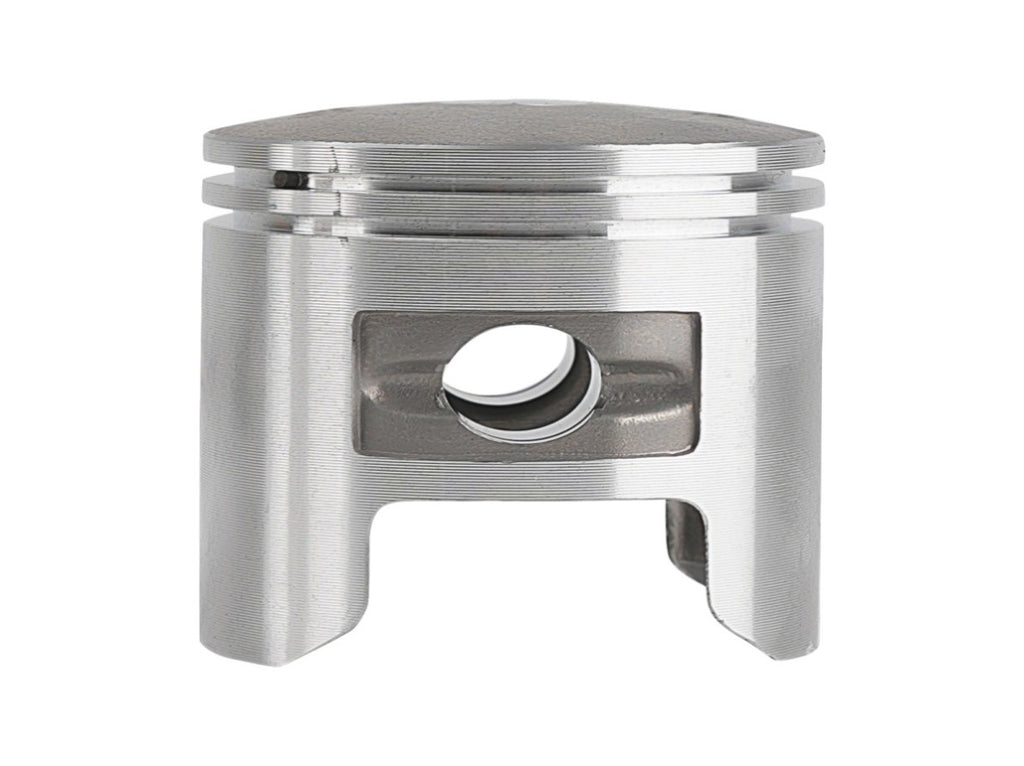

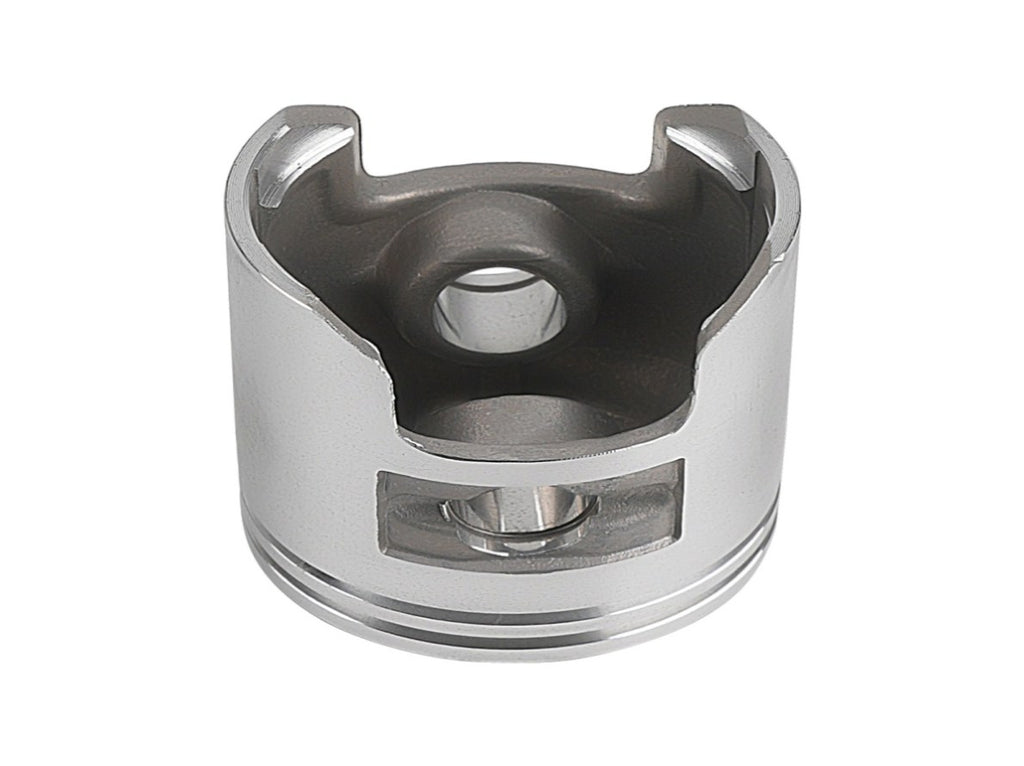

Piston pin diameter: 10mm.
Exhaust flange bolt centres: 46mm.
Exhaust hole: 30mm
The diameter fit for the bolt hole to adapt Exhaust: 5mm
Bore extension into crank case: 37mm.
O/d of bore extension: 51mm

Features


OEM-Level Quality, Cost-Effective Maintenance

• 100% Brand New Components: Rigorous factory inspections eliminate risks of used/counterfeit parts, restoring factory performance at a fraction of the cost.

Time-Saving & DIY-Friendly

• Complete Kit + Precision Design: Enables hassle-free installation fit for DIYers – no professional tools or expertise required.

Extended Engine Lifespan

• High-Rigidity Materials & Precision Engineering:
