Complete Drop Height Kit fit for Dodge Ram 1500 2WD V8 94-99 Front 2-3" Rear 4" 92538307

Application:

fit for Dodge Ram 1500 2WD (Std Cab, V8, Auto Trans Only) 1994-1999

Specification:

Product type: lowering kit

Lowering height: front 2" or 3"; rear 4"

Material: steel & molded spacer

Finish: powder-coated

Diameter of piston rod: F&R12.5mm/0.49"

Piston diameter：F&R 30mm/1.18"

Outer cylinder diameter: 45mm/1.77"

Travel: F 118mm/4.64" R 200mm/ 7.87"

Extended length: F 425mm/16.73" R 566mm/ 22.28"

Collapsed length: F 307mm/12.08" R 366mm/ 14.40"

Nitrogen charged：yes

Dust cover equipped: yes

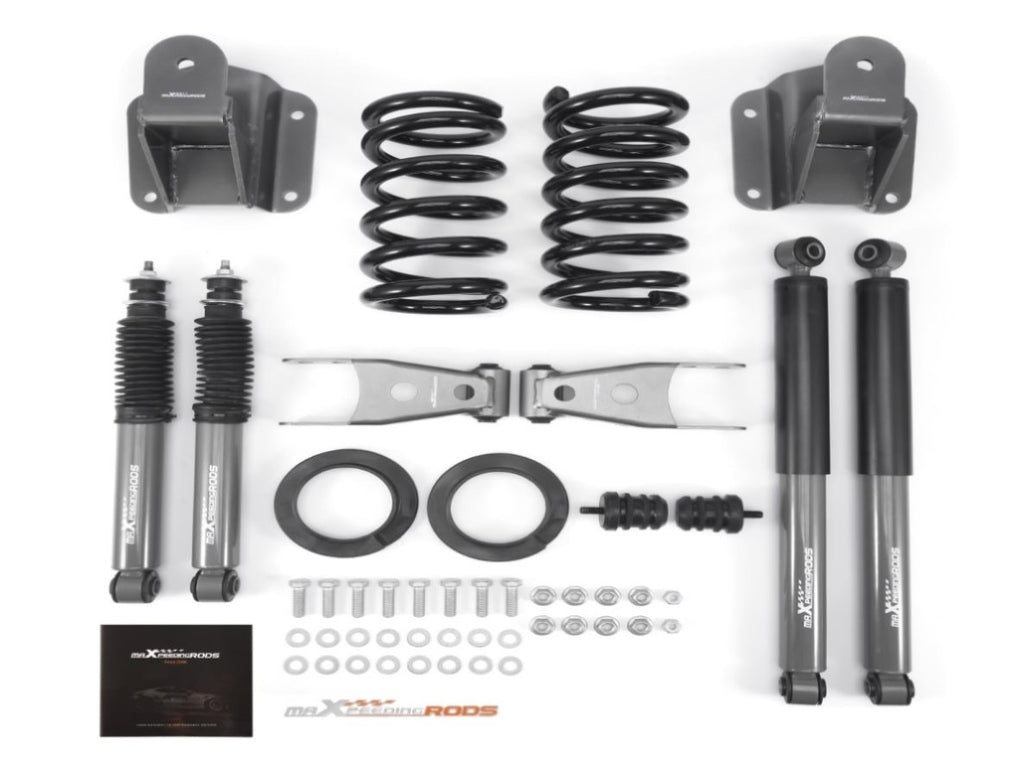

Package included:

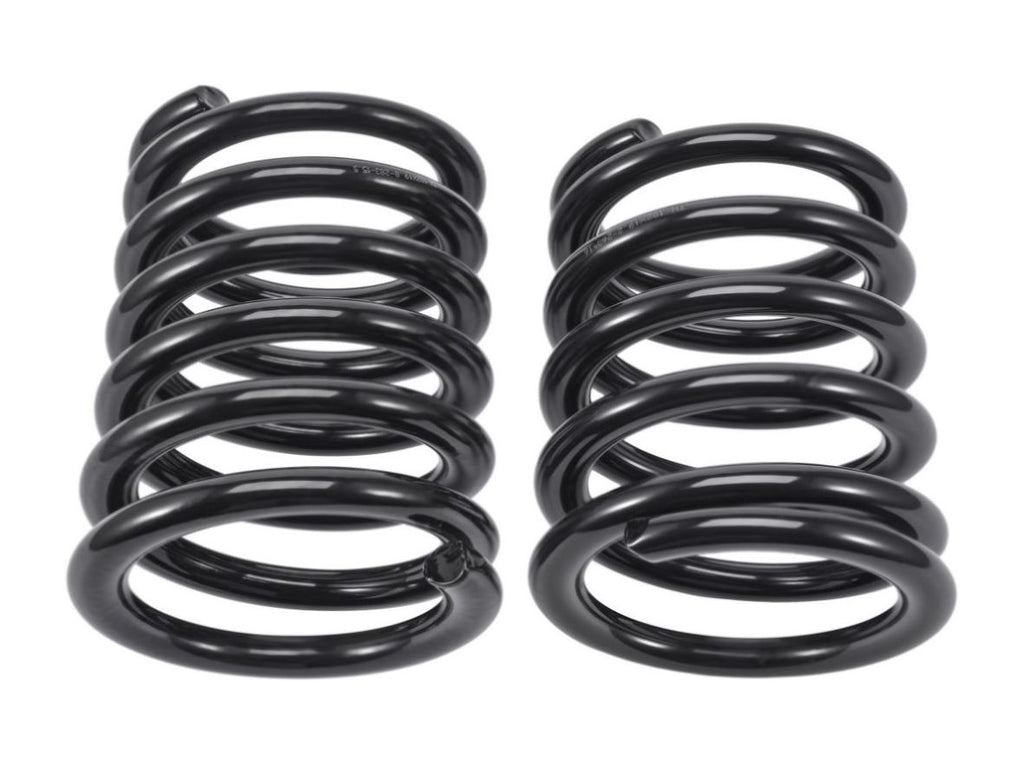

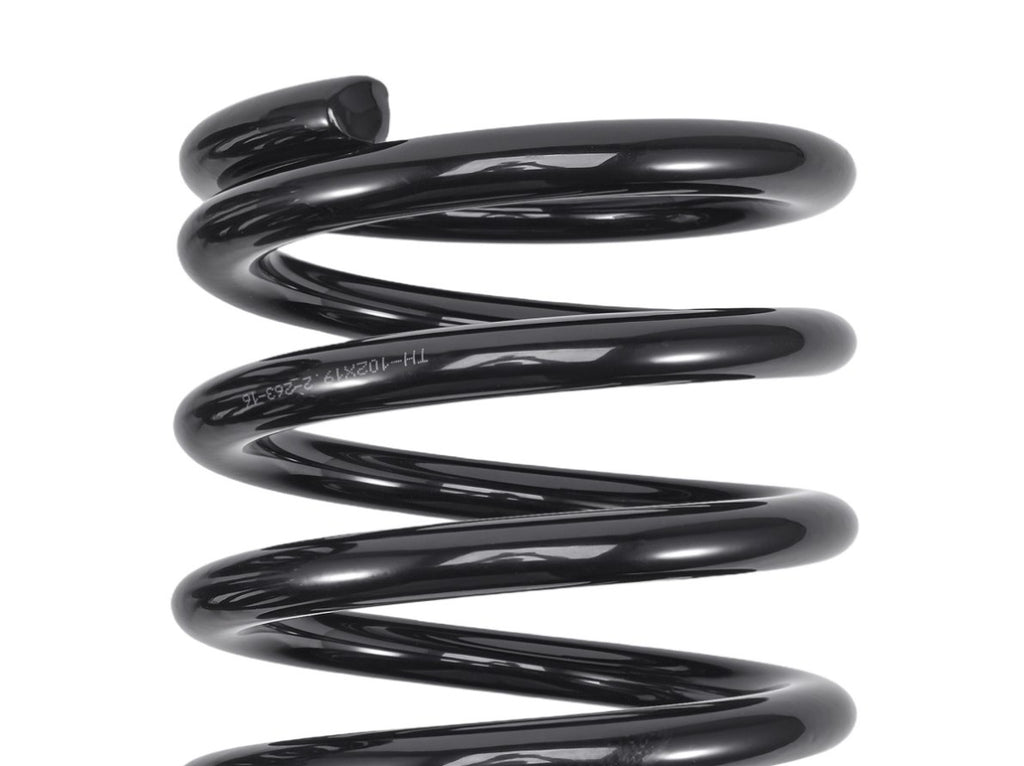

1x Passenger side coil with spring length 263mm=10.35"

Spring rate: 16kg/mm=895.95lbs/in

1x Driver side coil with spring length 283mm=11.14"

Spring rate: 15kg/mm=839.96lbs/in

2x Spring spacer help to lift 1"

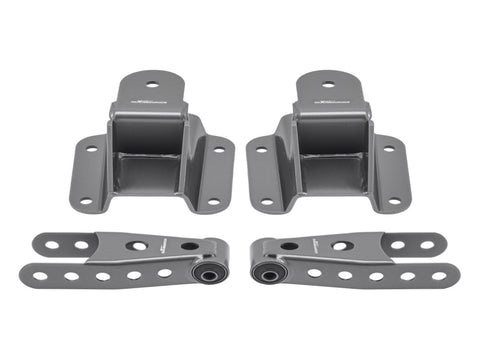

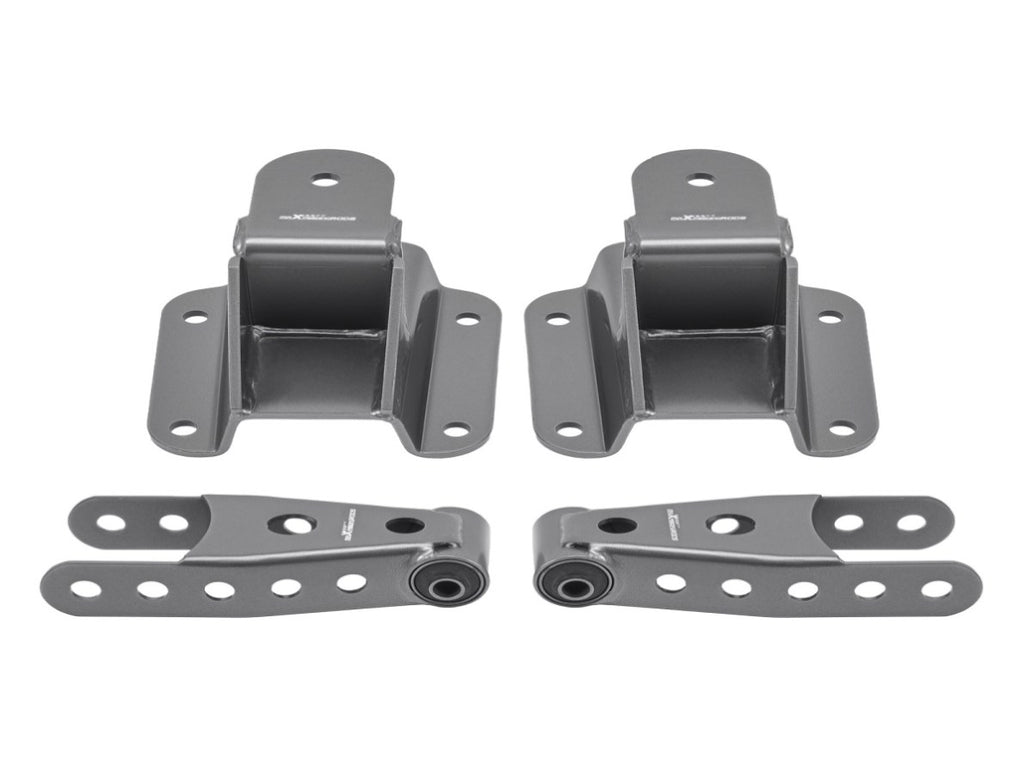

2x Rear hangers

2x Rear shackles

2x Frong shocks

2x Rear shocks

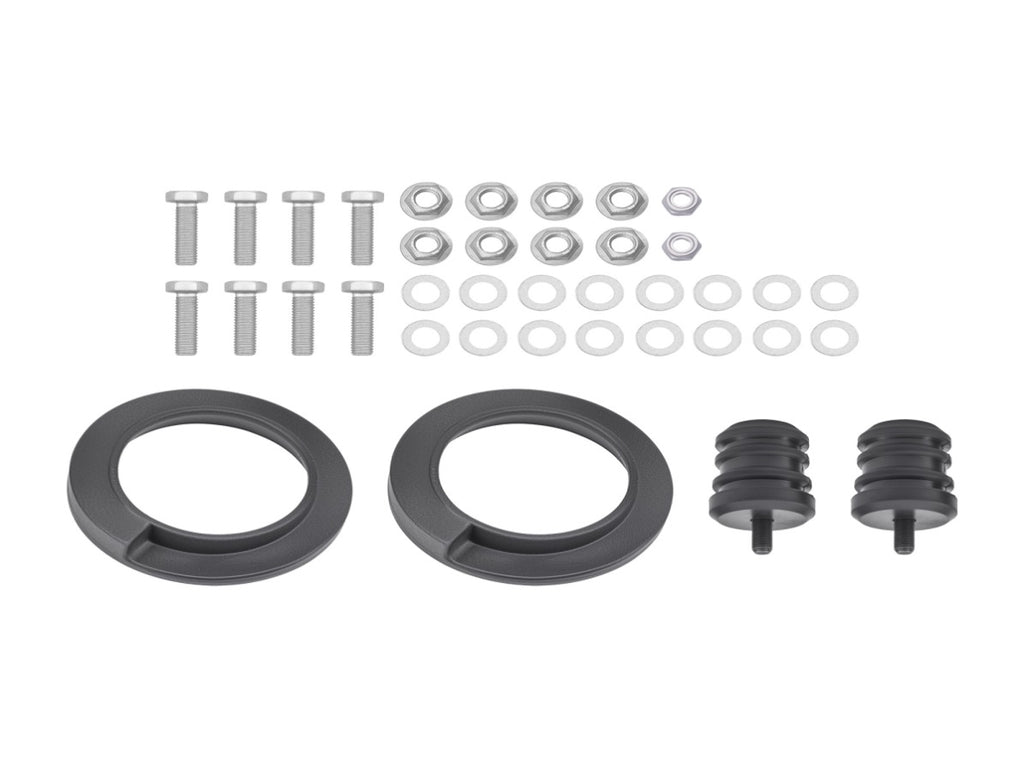

Necessary hardware

Feature:

2 lowering height options with one purchase

Lower the center of gravity, reduce cornering roll, and increase vehicle stability

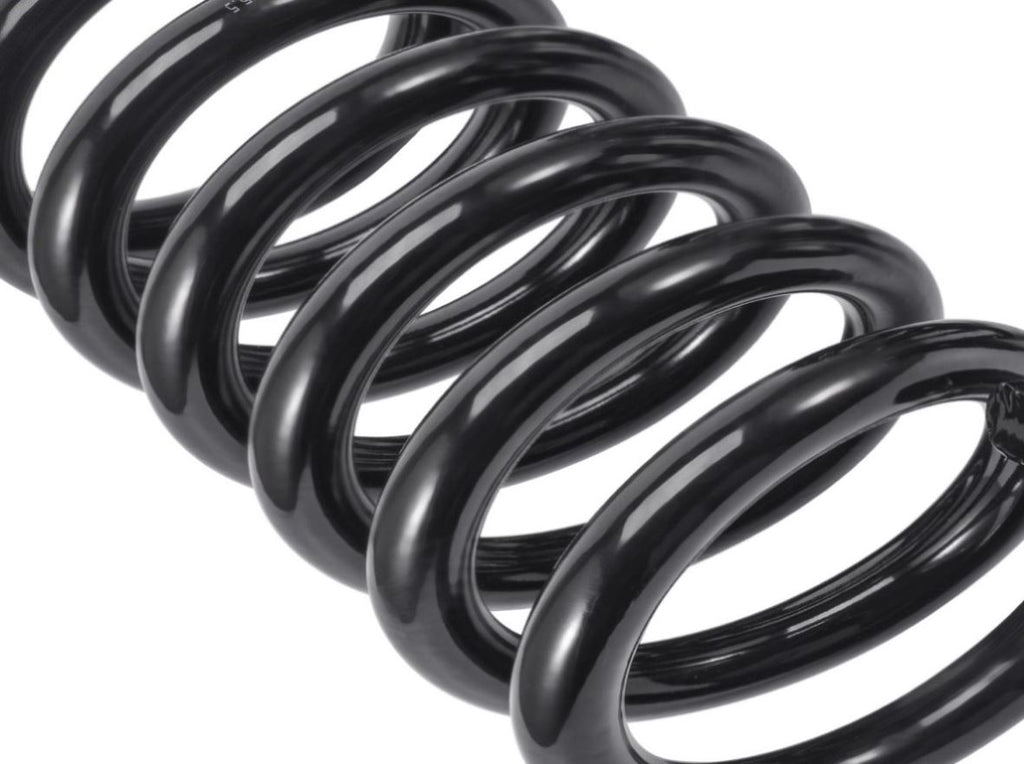

High tensile spring——600,000 times continuously test to assure its high tensile strength.

Powder coating fit for corrosion resistance

Nitrogen charged twin-tube shock absorber with high durability
