Complete Power Steering Rack and Pinion fit for Hummer H3 06-09 H3T 10 94725465 93640847

Application:

fit for Hummer H3 All Engine with 16 mm Diameter Tie Rod 2006-2008

fit for Hummer H3 All Engine 2009-2010

fit for Hummer H3T All Engine 2010

w/ HydrauLic Power Steering; Includes Inner Tie Rods

OE/Part number:

97-1040, 22-1040, 5234374, 15864176, 19179723, 25781473, 25817577, 25885237, 94725465

Specification:

Distance Between Mounting Holes (IN):2.88

Input Shaft Diameter (IN)：0.75

Input Shaft Length (IN)：1.88

Number of Mounting Holes：2

Rack Length (IN)：48.88

Thread Length (IN)：2.28

Return Port Thread Size：0.436

Pressure Port Thread Size：0.472

Total Turns Lock To Lock (MM):3.25

Package included:

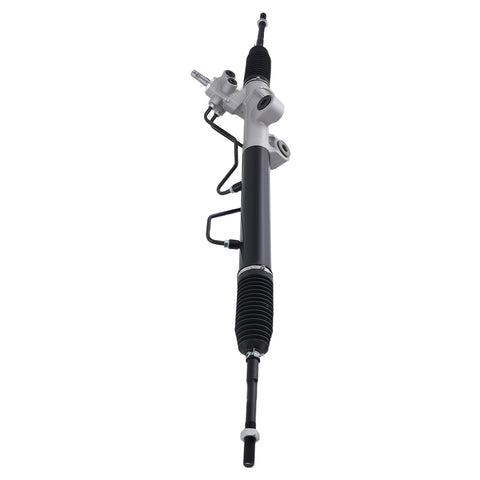

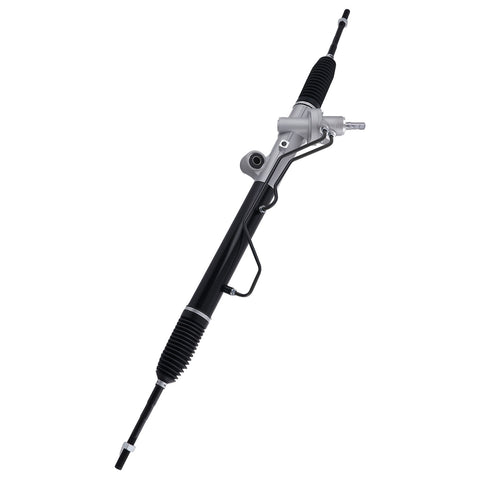

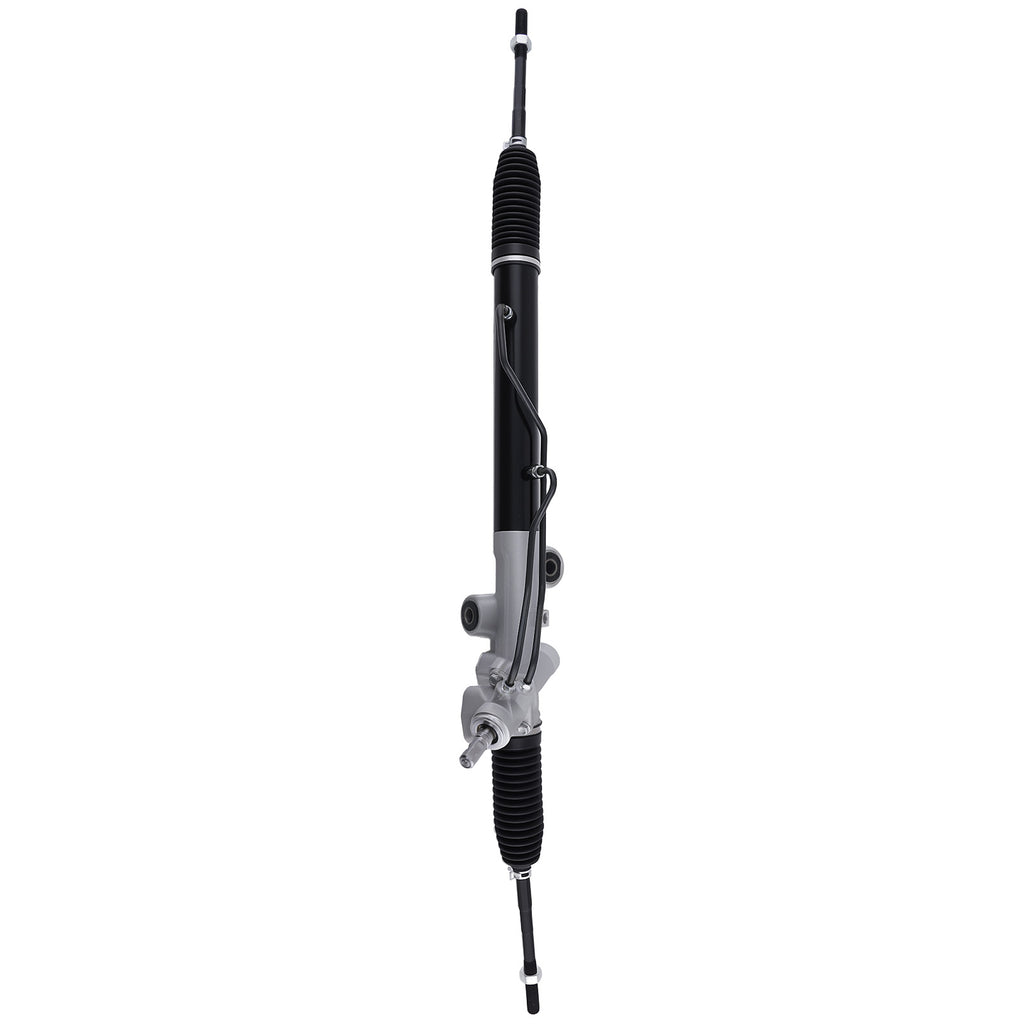

1* Power Steering Rack and Pinion Assembly

Showing as the picture

Feature:

Note-1: w/ HydrauLic Power Steering; Includes Inner Tie Rods

Note-2: fit for the models with 16mm Diameter Tie Rod, not fit for 14mm Diameter Tie Rod.

Note-3:To avoid operating errors, we recommend professional installation.

Note-4:If you are not sure about the compatibility, or you are looking fit for other car parts, just contact us. We are happy to offer any help. Below information will help:

VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
