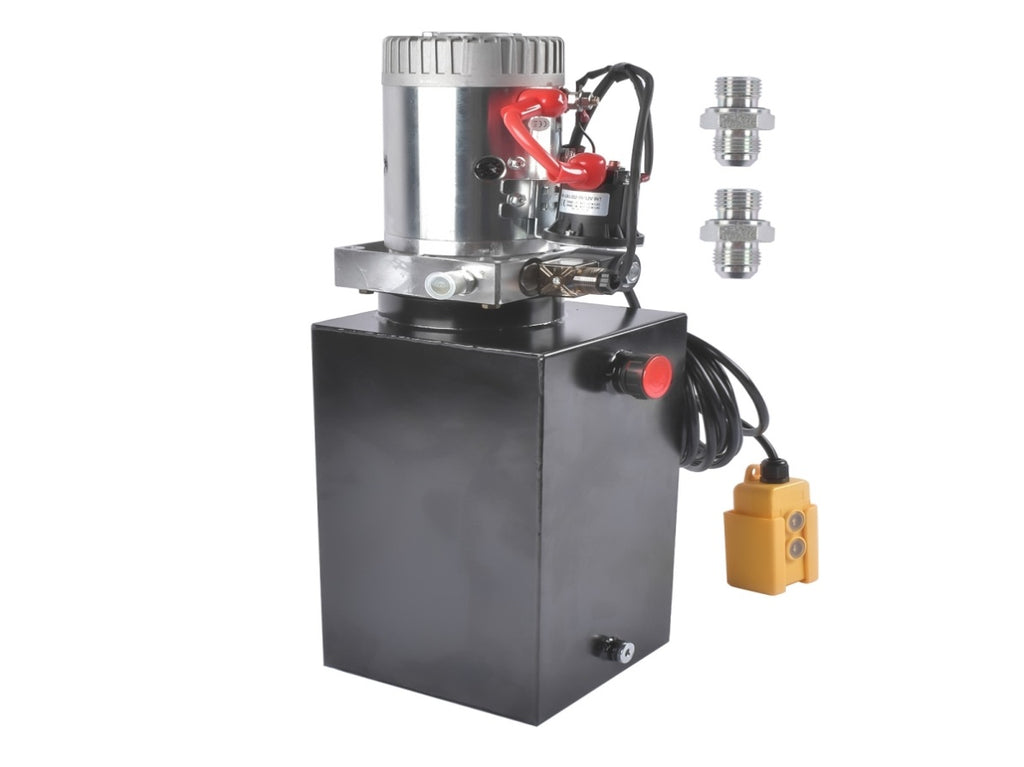

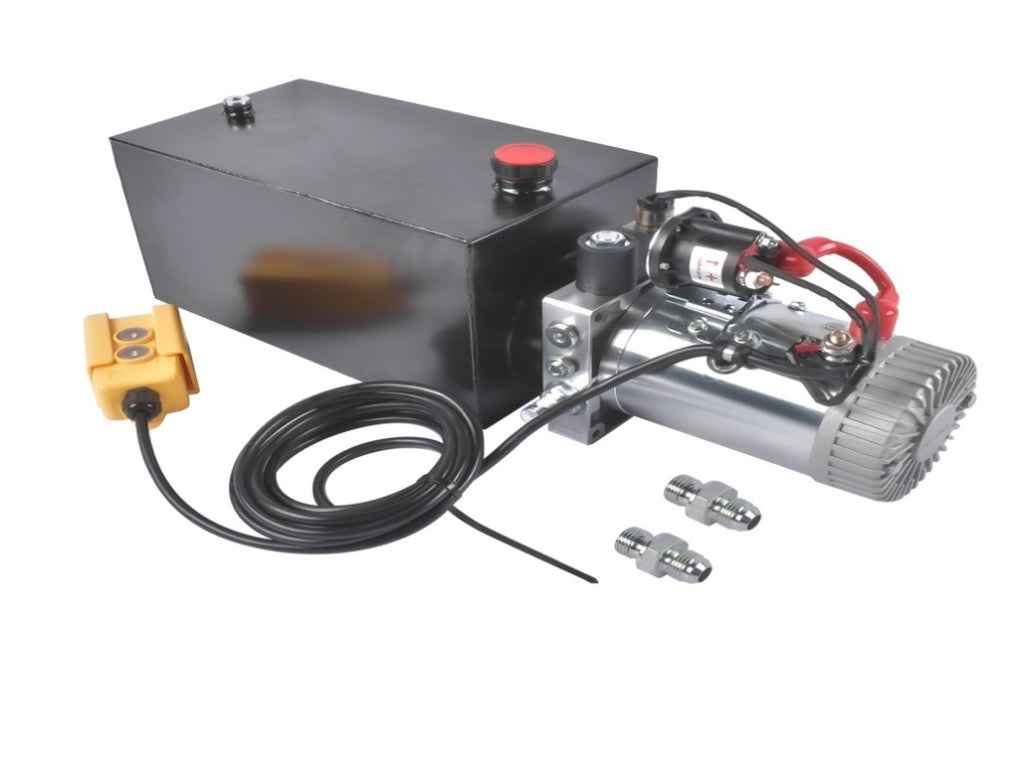

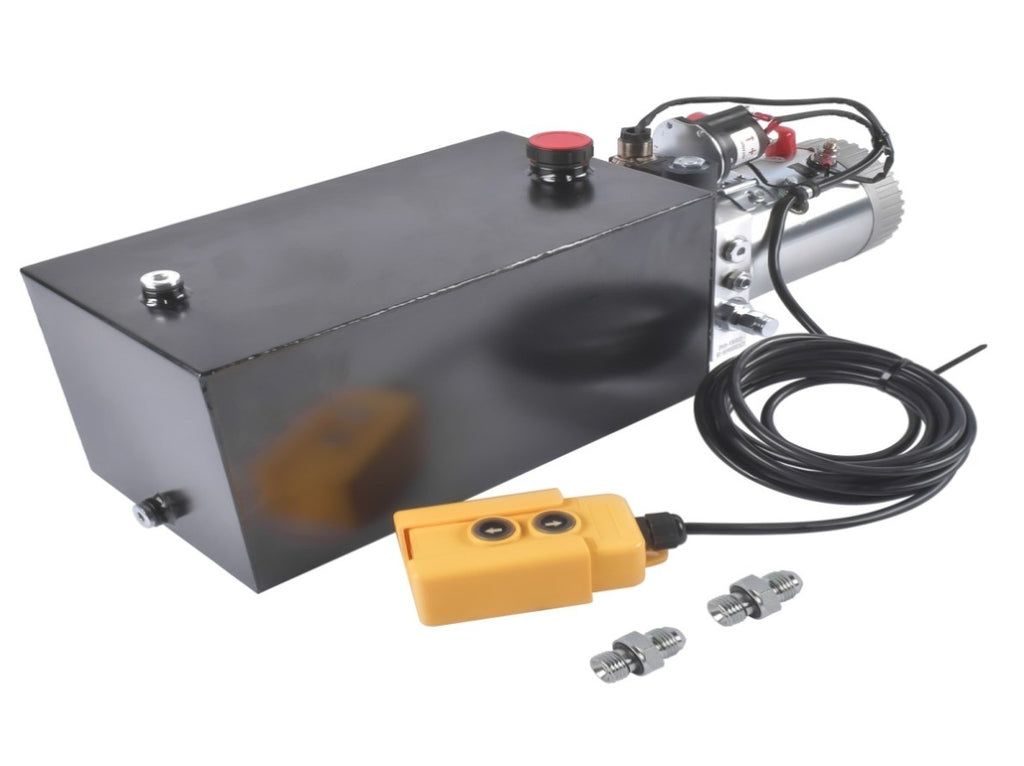

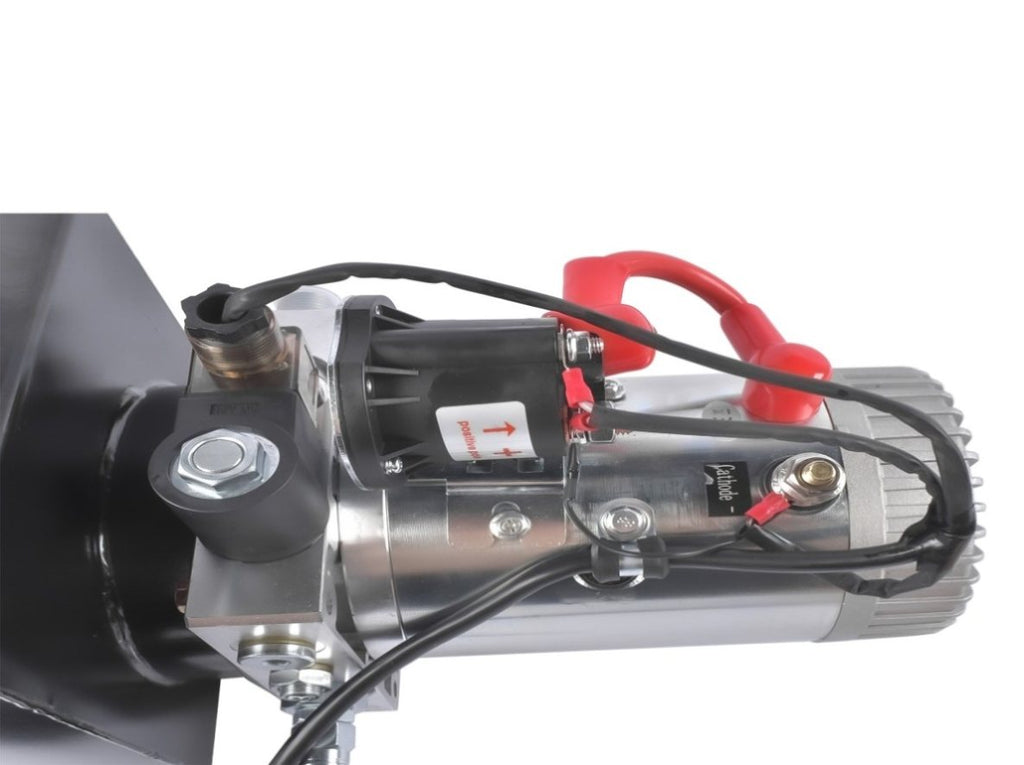

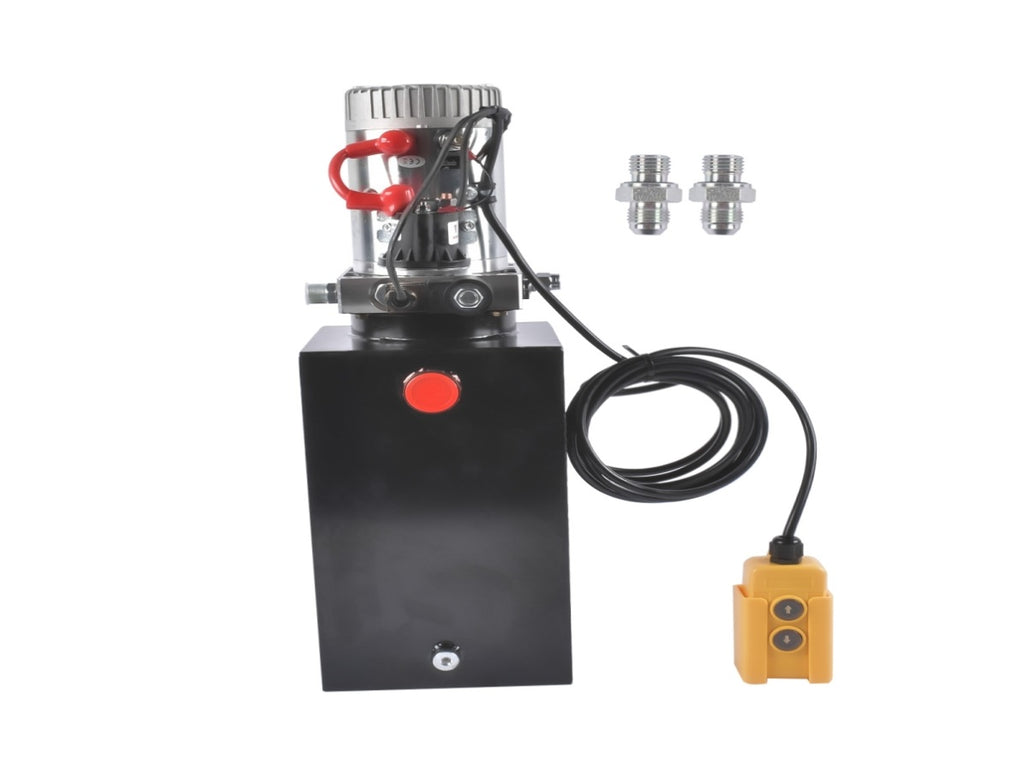

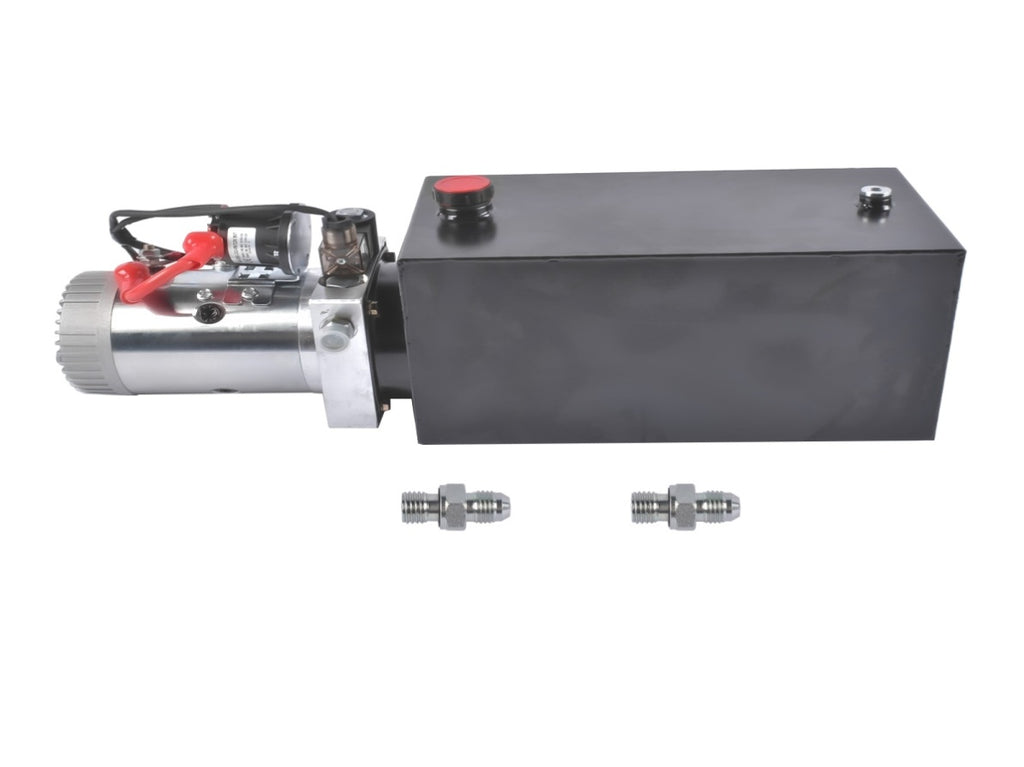

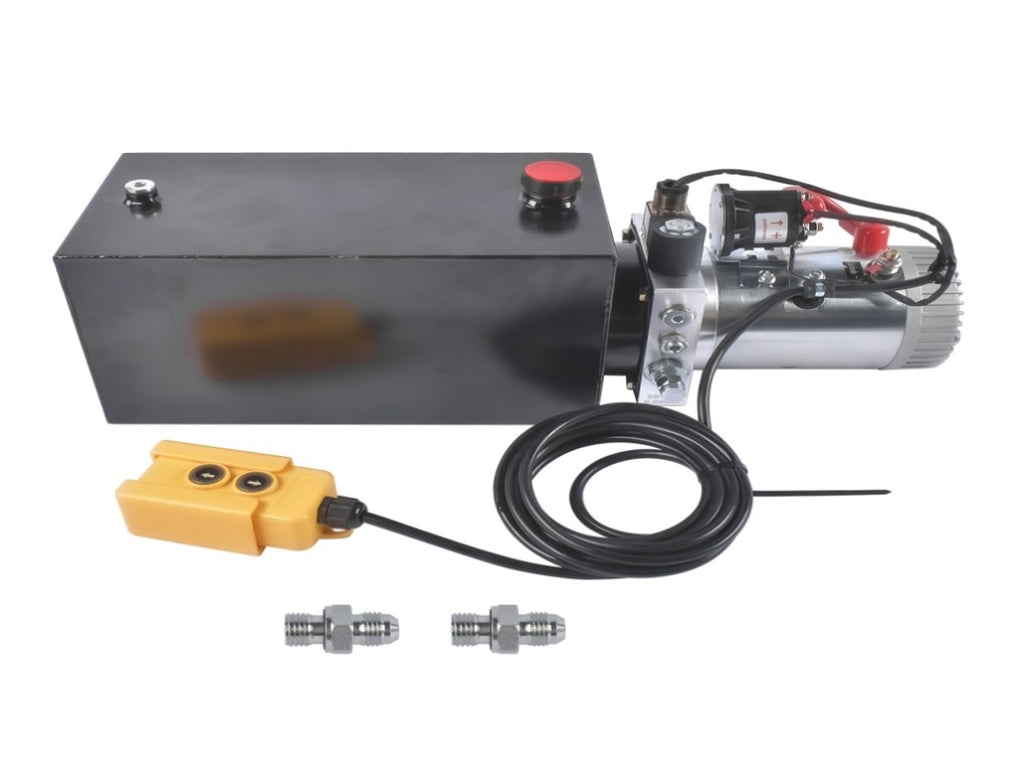

DC12V Single Acting Hydraulic Pump w/ 10L / 10Quart / 2.5 Gal Tank 10QSAMHP 27692666
I. Item Description
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 10-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
II. Item Specifics
Colour: Black
Model: 10QSAMHP

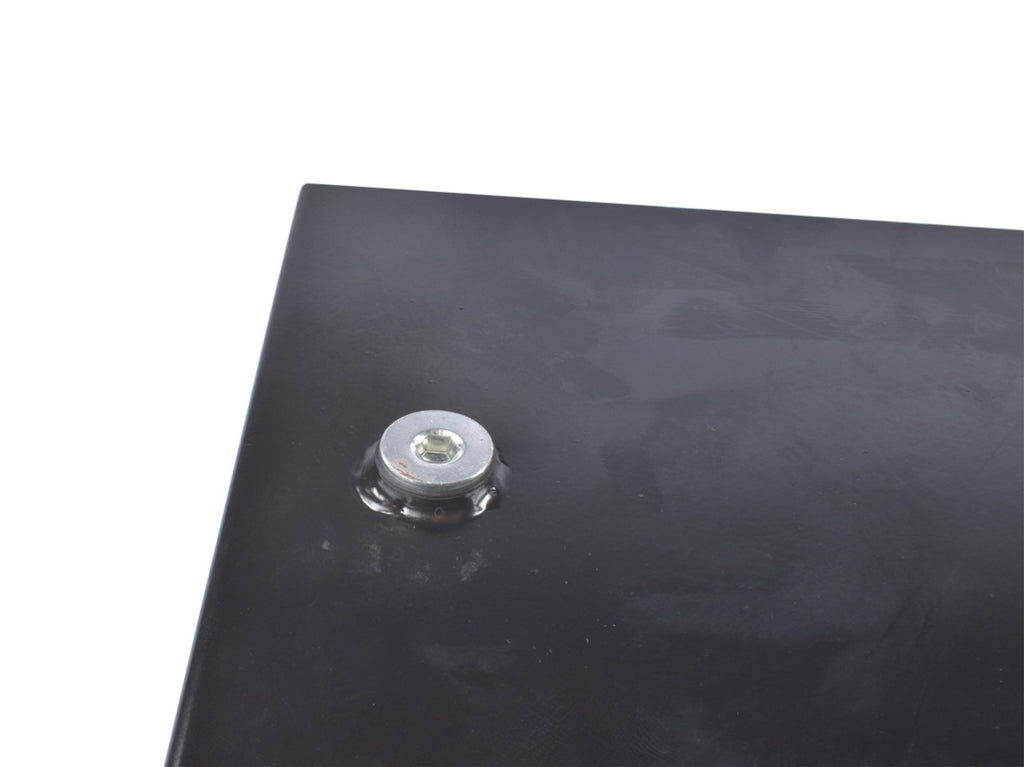

Tank Material: Metal
Tank Capacity: 10L / 10Quart / 2.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6

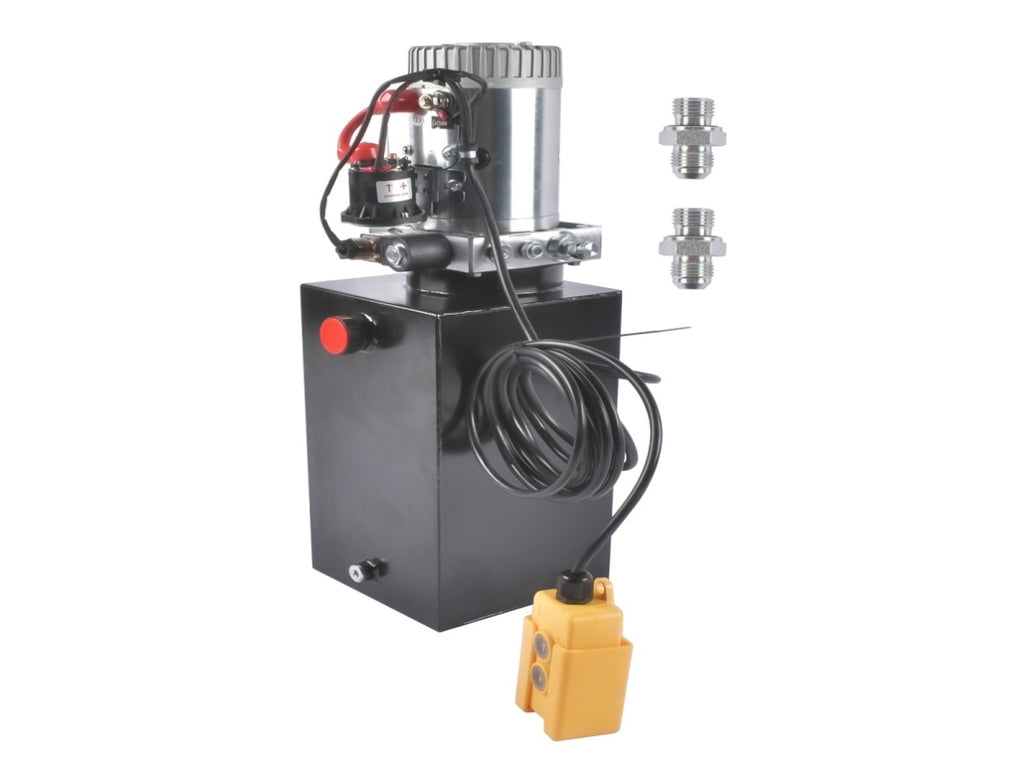

Mount Position: Horizontal / Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft / 4.5 m
III. Item Features
?High-Performance Pump: Equipped with a 12V DC motor (1.6-3.0kw) and a 10-quart tank, this hydraulic pump offers max pressures of 3200 PSI (A port, SAE#6) and 1500 PSI (B port, SAE#6), operating as a single-acting pump for power-up/gravity-down motion.
?Plug-and-Play Convenience: Fully pre-assembled, this 12V power unit includes simple wiring, clear instructions, an additional SAE#6 connector, and a 15 ft remote control for effortless operation.
?Durable Construction: Built with robust metal, the dump trailer pump resists cracking and damage. Ideal for remote hydraulic systems, it features an overflow valve for automatic pressure release, ensuring safety and reliability.
?Swift Operation: Powered by a high-performance motor, the strong motor ensures quick startup and oil output, providing efficient power for dump trailers and beds to lift loads rapidly.
?Versatile Compatibility: Suitable for stackers, lifting platforms, and various dump trailers, this 12V DC power unit serves as a direct replacement for remotely controlled hydraulic systems.
IV. Package Included
1x 10 Quart Double Acting Hydraulic Pump
1x English Manual

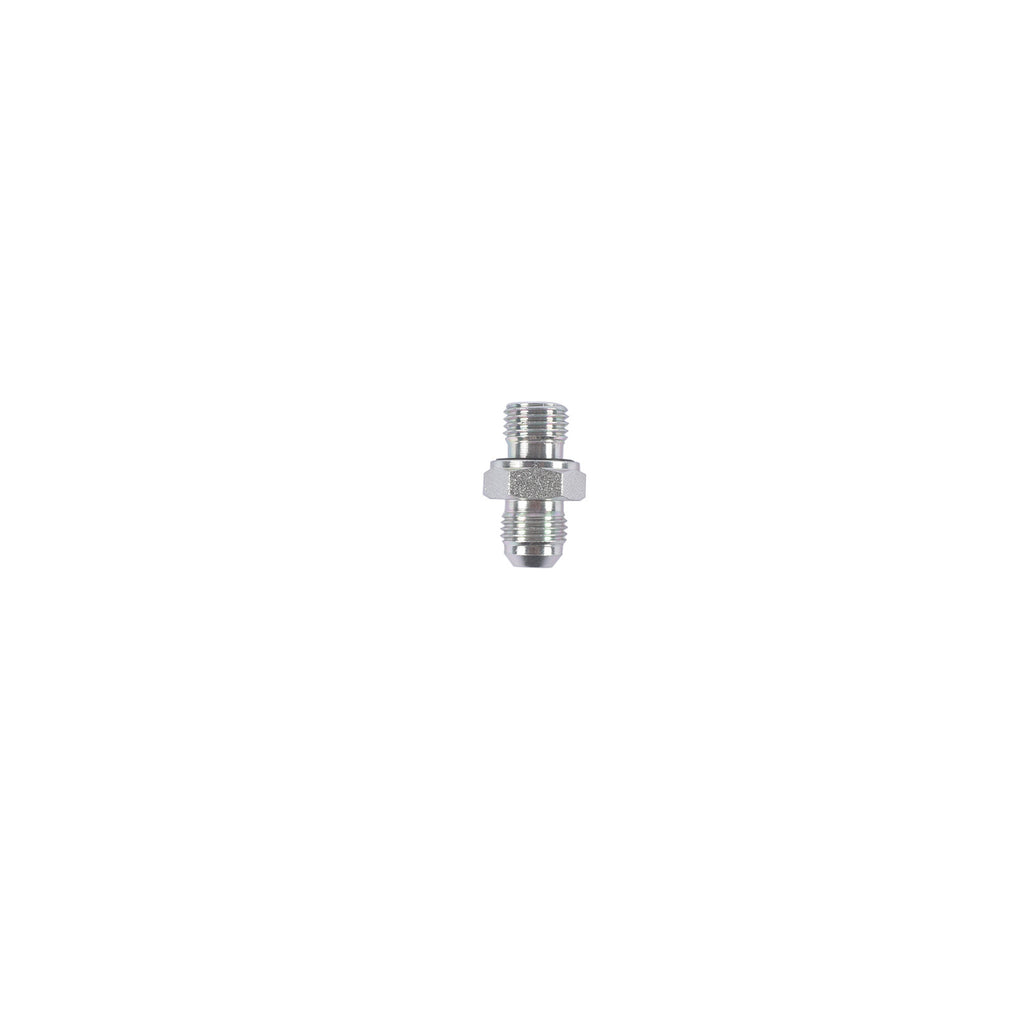

Several Related Accessories (Including a Connector)
(As Pics Shown)
