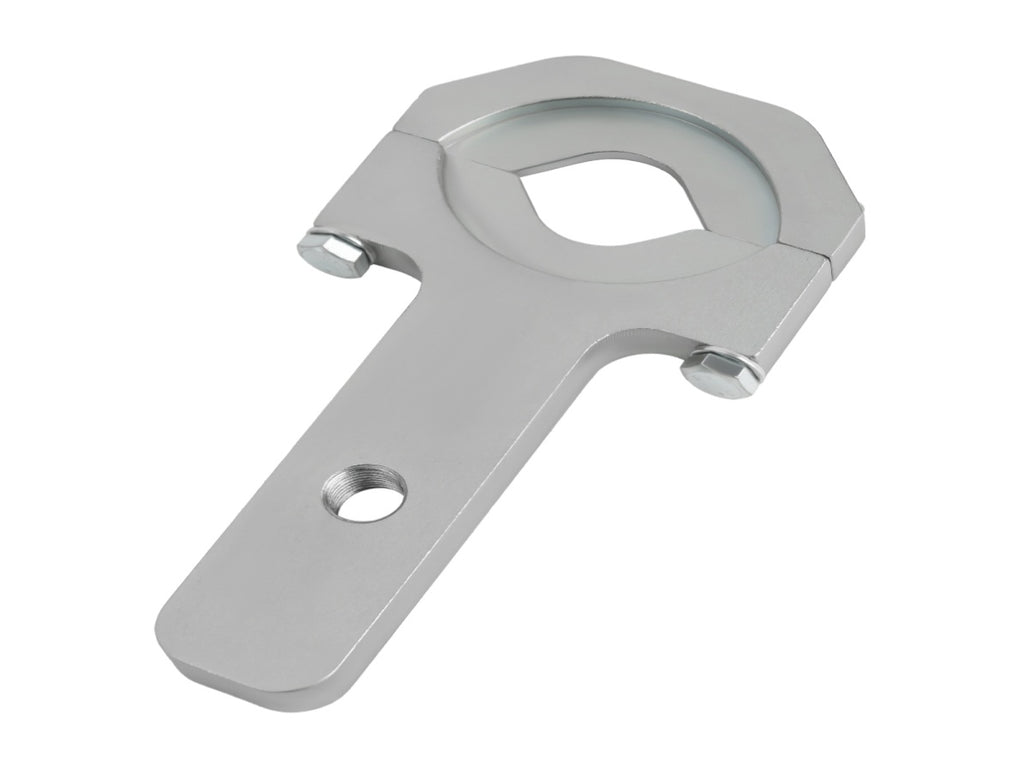

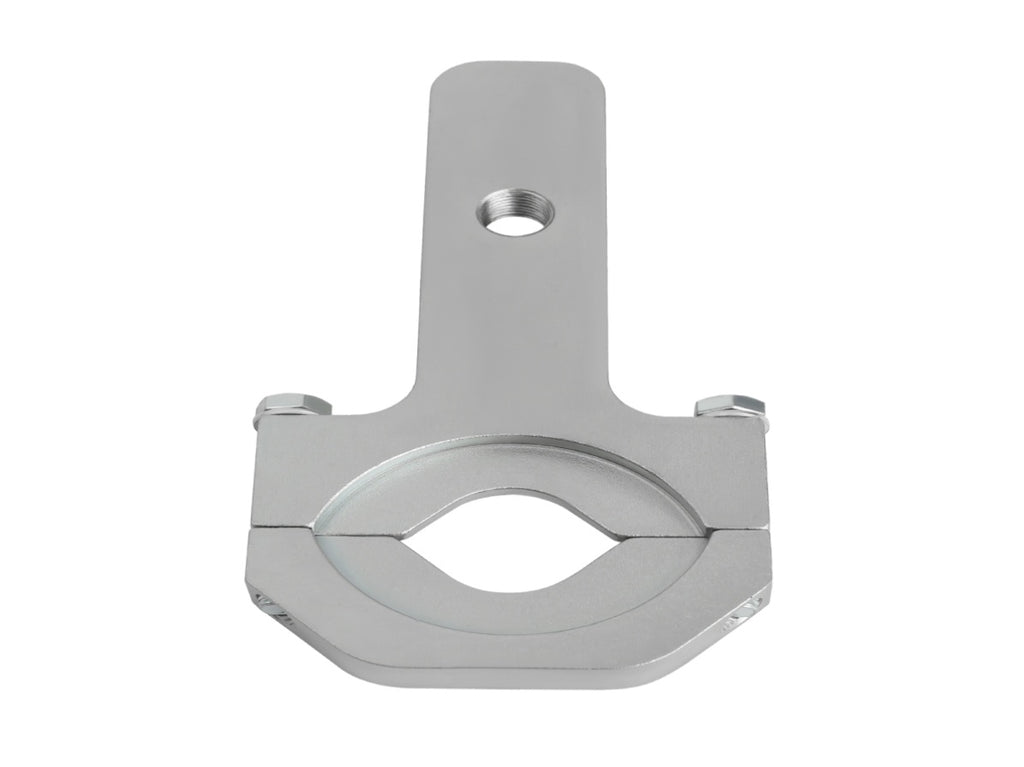

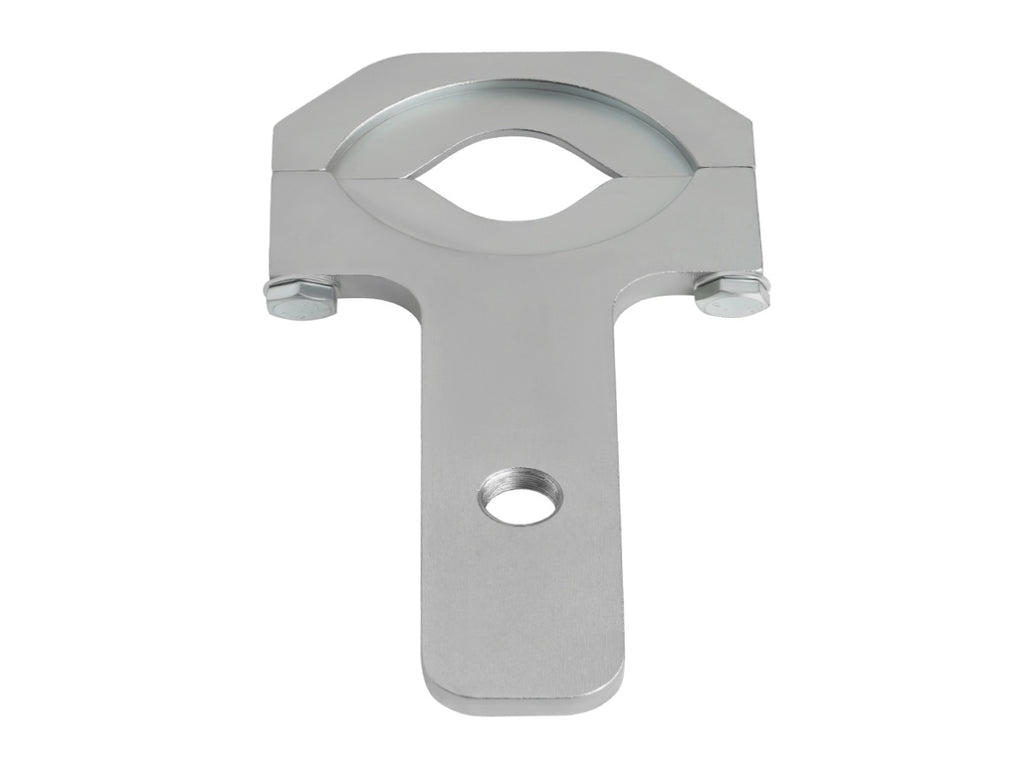

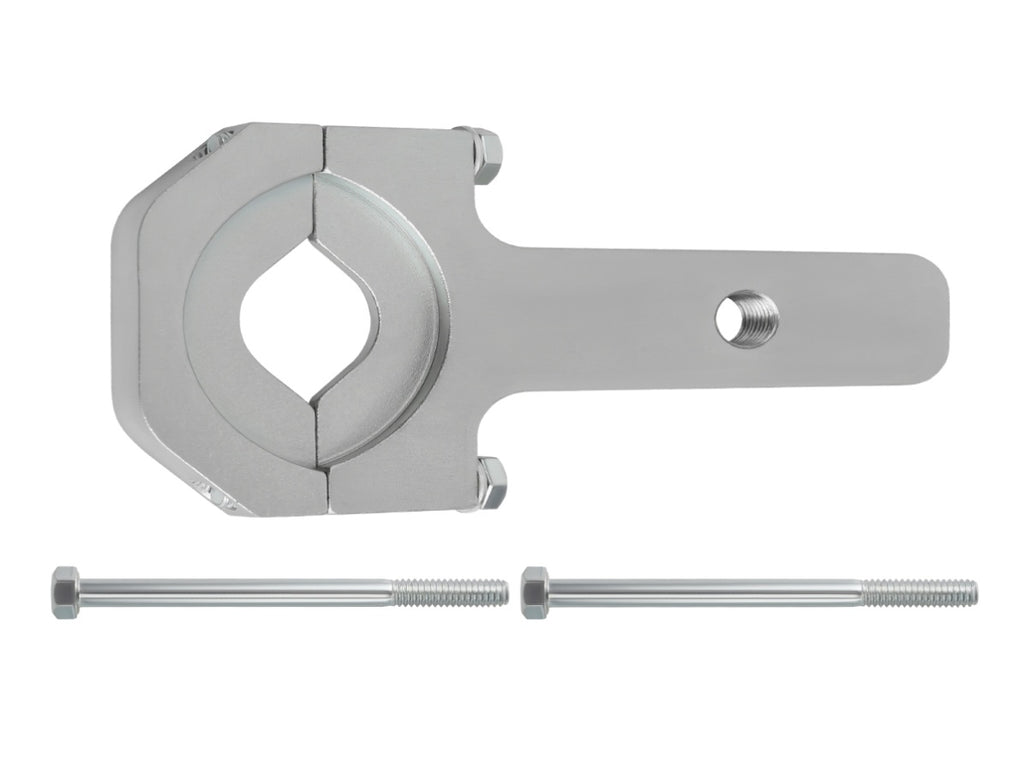

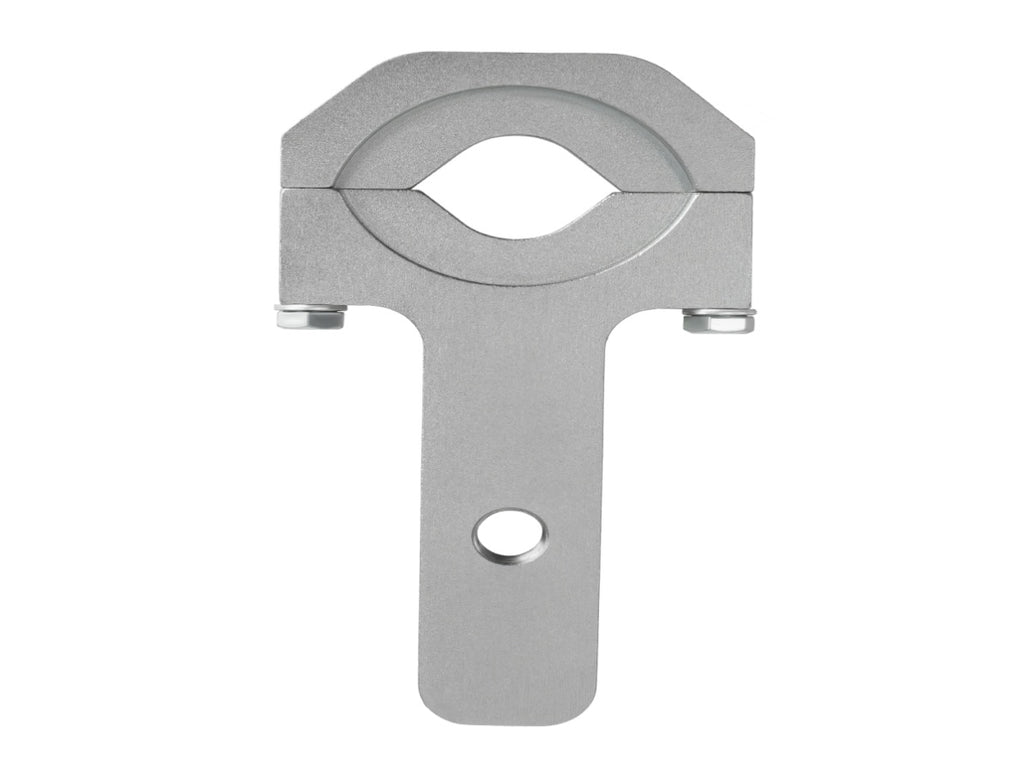

DT-51329-A Driveshaft Removal Adapter Tool fit for Chevrolet Equinox GMC Terrain 07806391

Application:

fit for Chevrolet/Chevy Equinox

fit for GMC Acadia Terrain

fit for Cadillac XT5

fit for Buick Envision

OE/Part Number:

DT-51329-A

Features:

1. Production Advantage: Safely remove the retention clip that locks onto the PTU or RDM splined shaft. Meanwhile, without damaging the driveshaft.
2. Instructions: DT-51329-A attaches around the prop shaft, and its two halves are tightened to seat DT-51329-A into the groove. The slide hammer is then attached and used to remove the prop shaft. The removal force is 2000–6000 N at 50 mm/min. Unapproved methods will damage the prop shaft.
3. The driveshaft separation tool is expertly designed to quickly and efficiently remove c-clips from spline driveshaft, making differential removal a breeze when used in conjunction with tools DT-51329 and the J-02619 inertia hammer.
4. This innovative tool is specifically engineered to secure the drive shaft while allowing the sliding hammer to detach the components without causing any damage, ensuring the longevity and reliability of your vehicle's driveshaft system.
5. Crafted from high-quality metal materials, the driveshaft Separation Tool boasts exceptional strength and durability. With a polished chrome finish, it effectively resists corrosion and rust, providing a reliable solution fit for your repair needs.
6. Designed to fit seamlessly with grooves provided by Equalnox and lerraln, this tool is fit for XT5, fit for Acadia, and fit for Envision driveshaft. Use it alongside the Essential J-02619-A sliding hammer to easily loosen and remove c-clips fit for a hassle-free installation process.

Specification:

DT-51329-A Driveshaft Removal Adapter Tool fit for the groove provided on Equinox, Terrain, XT5, Acadia, and Envision prop shafts. It is used with the previously Essential J-02619-A Slide Hammer to unseat the snap ring

Package Includes:
1x Driveshaft Separation Tool
