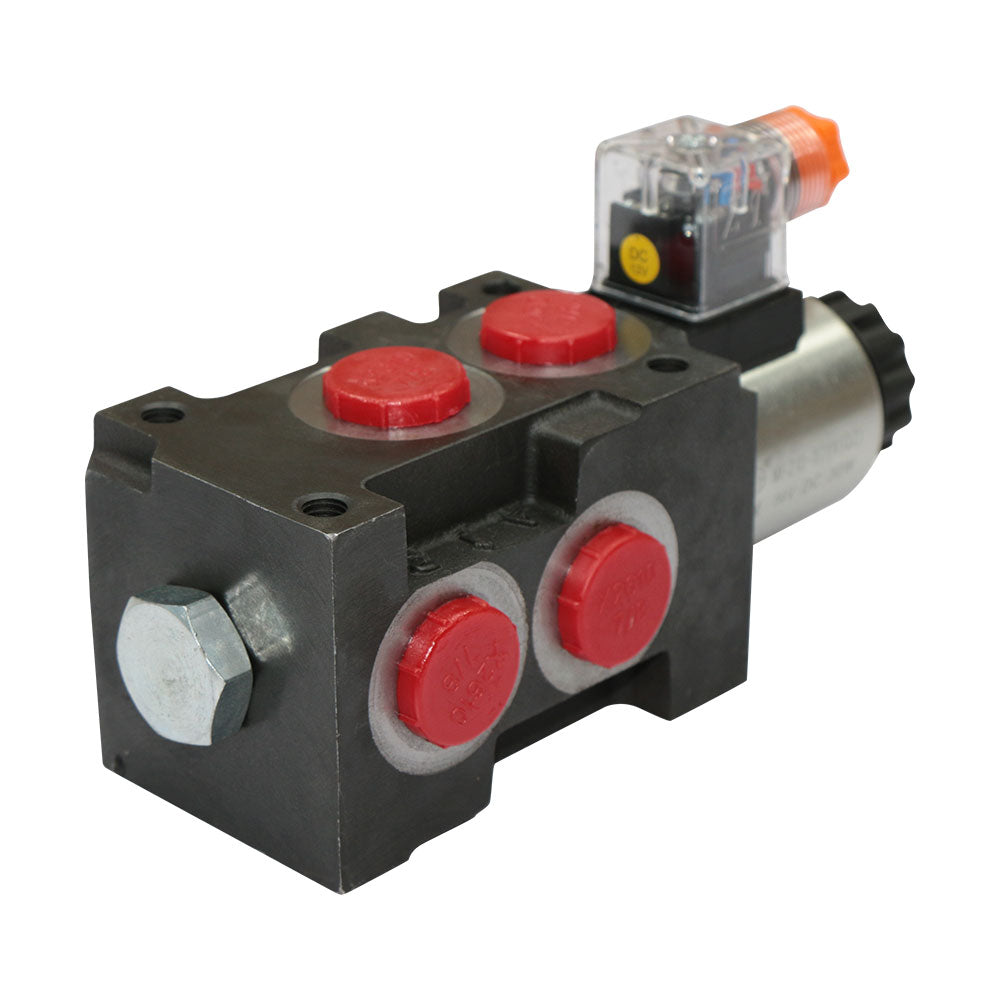

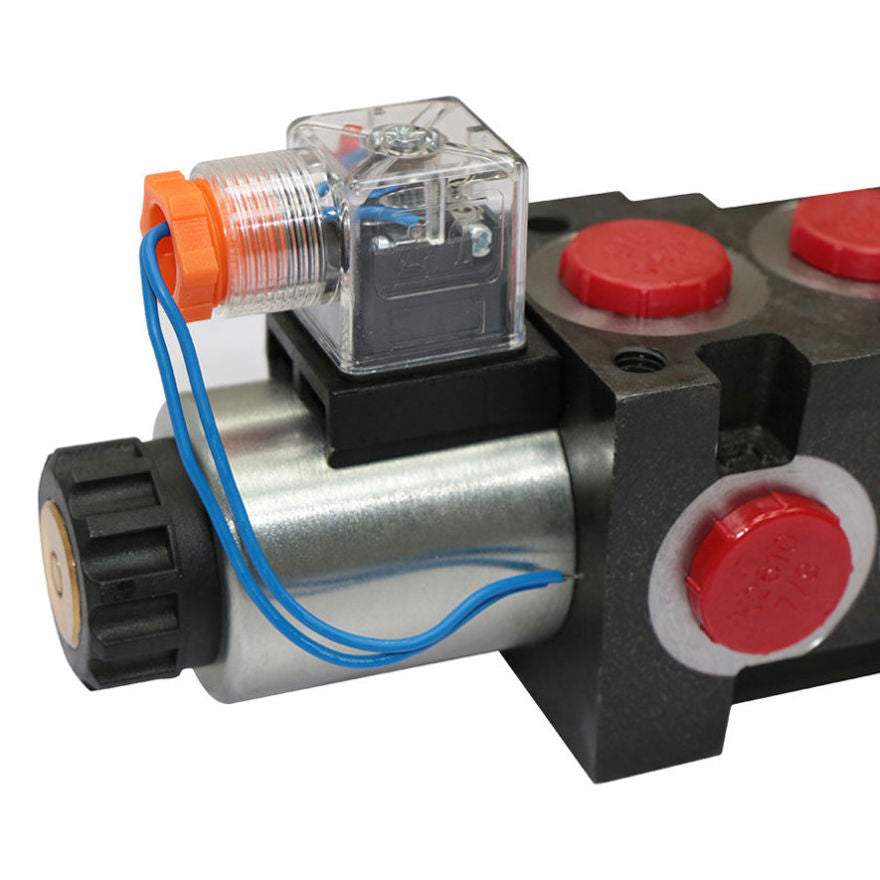

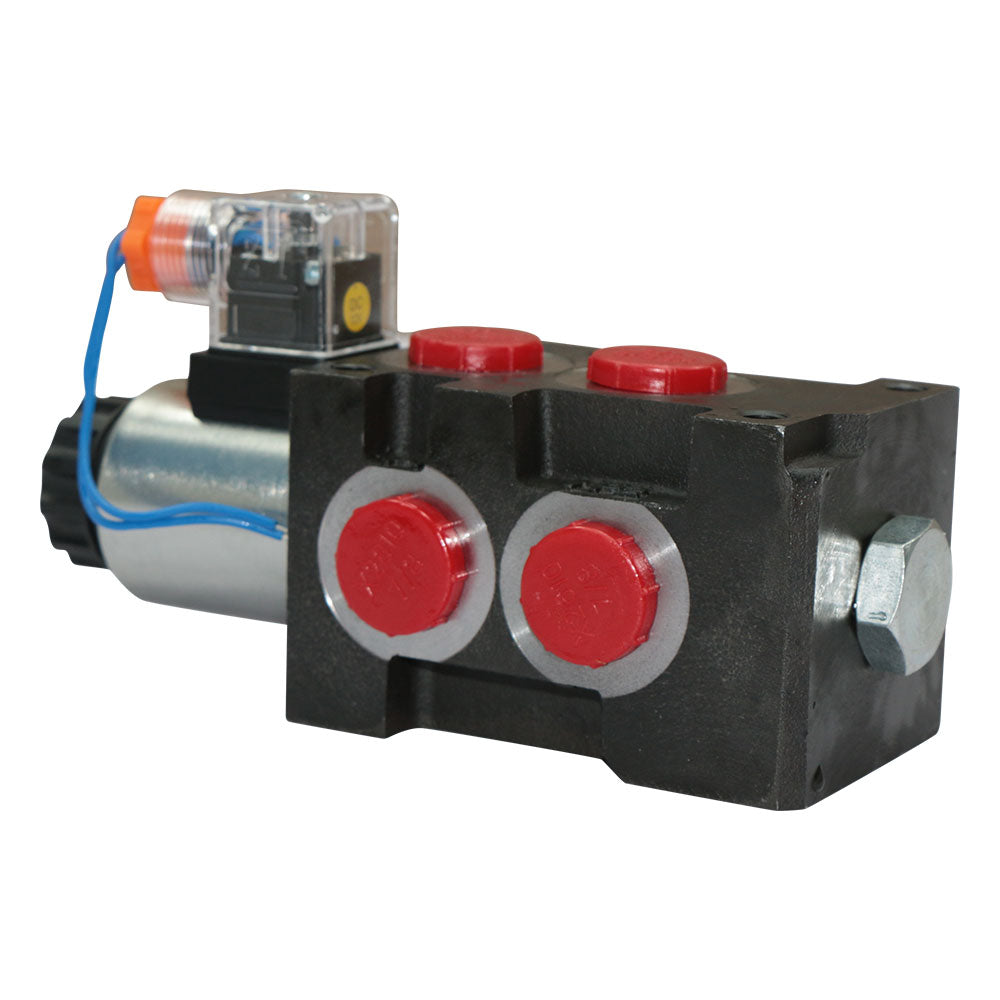

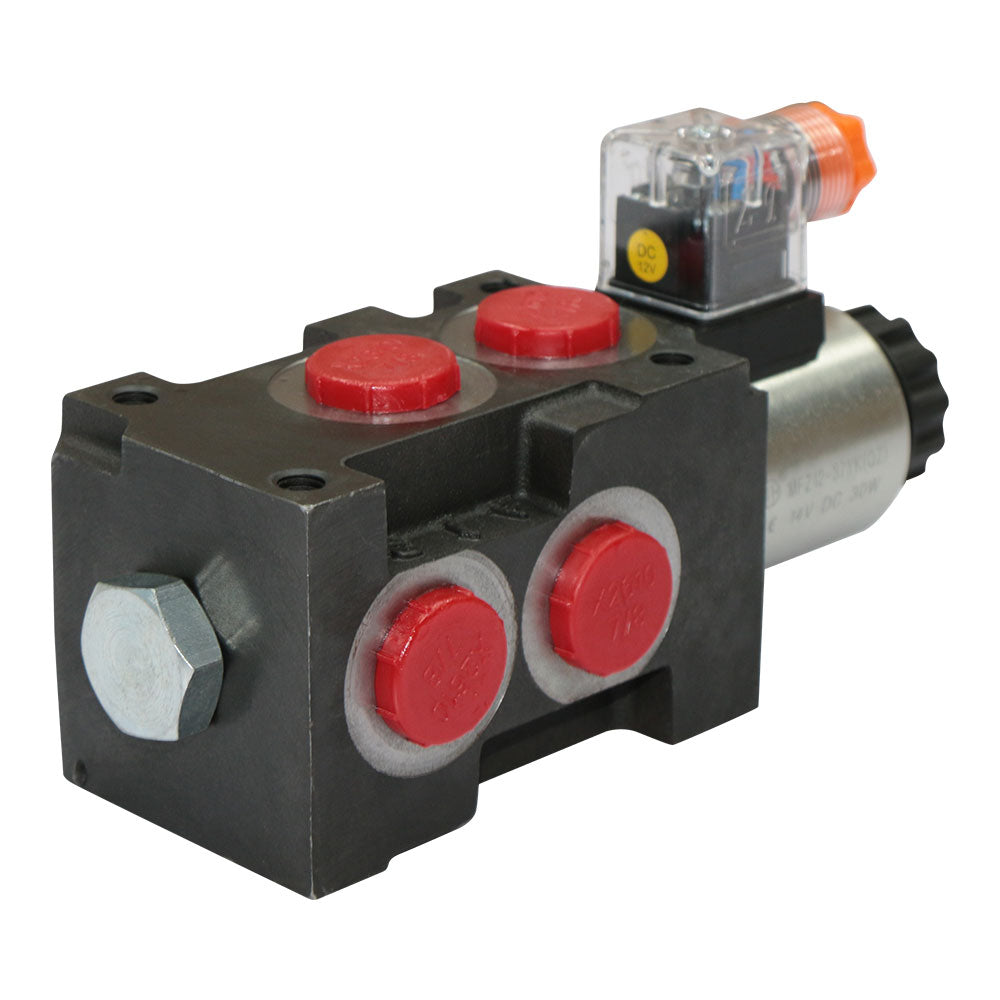

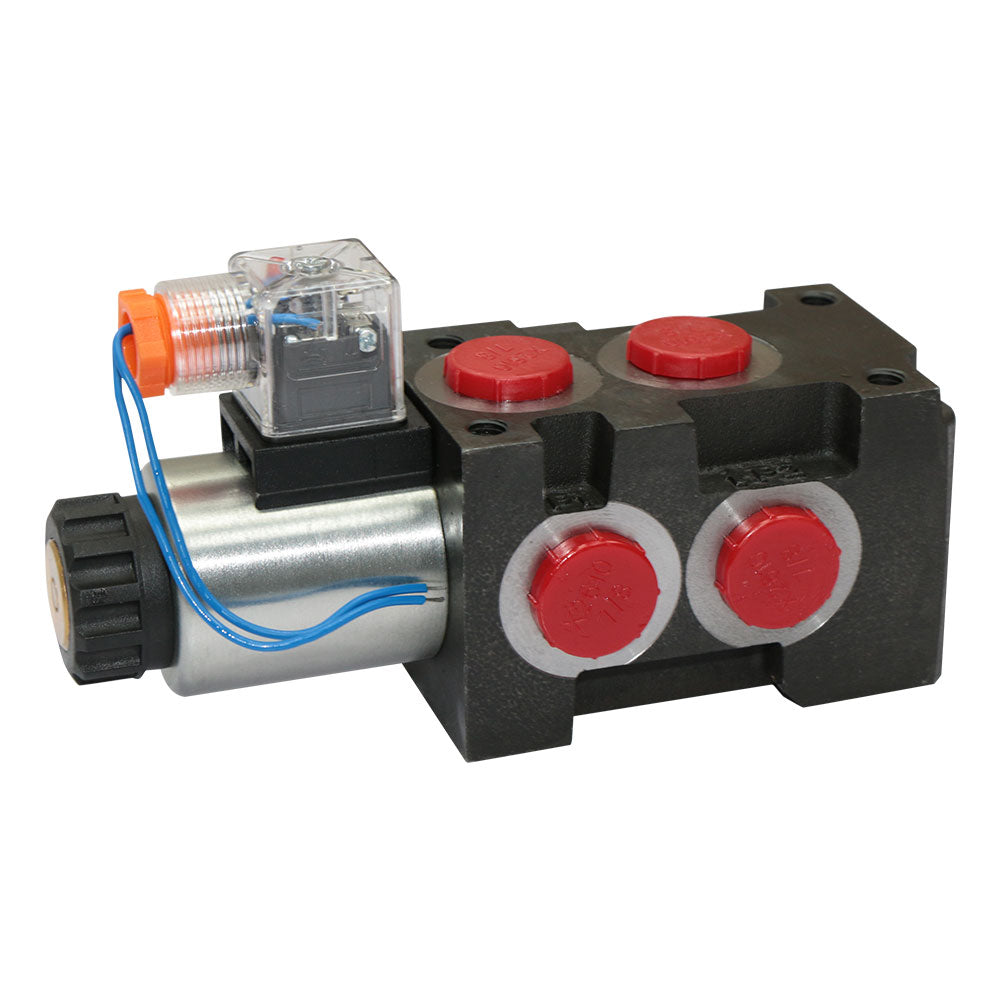

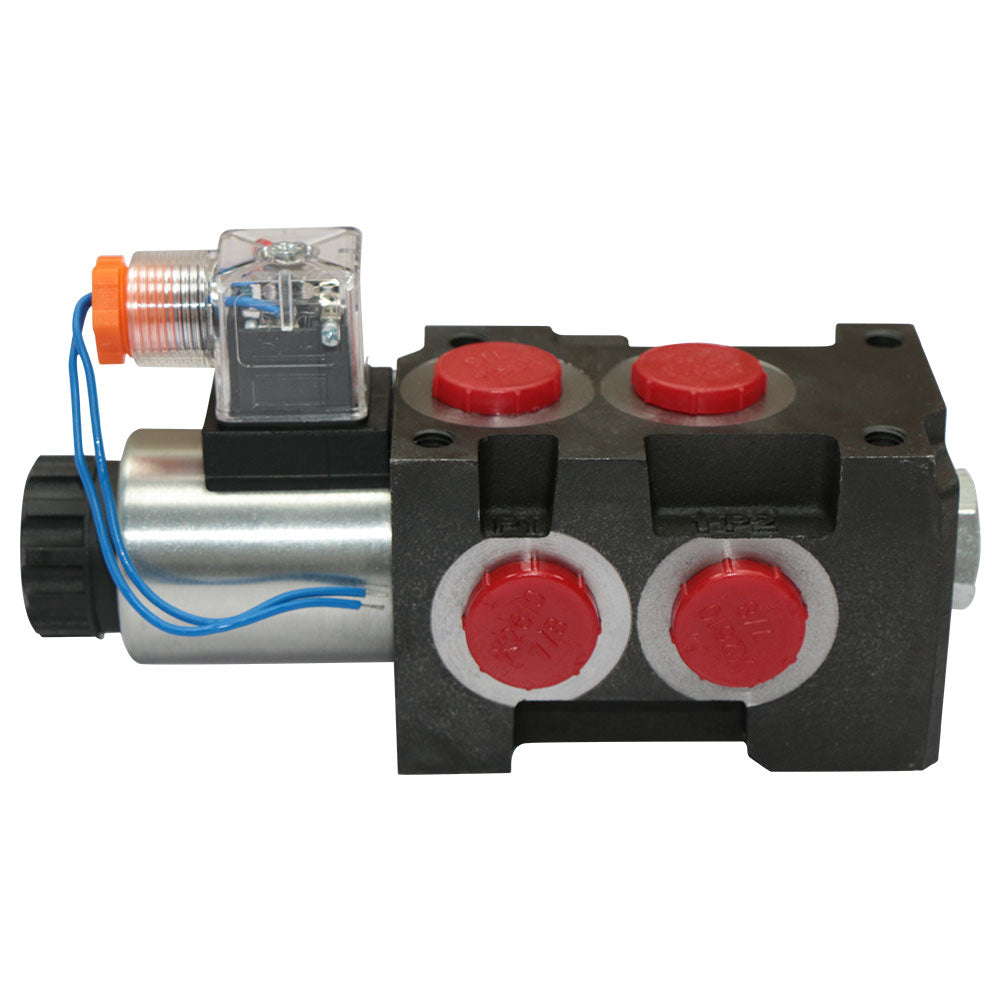

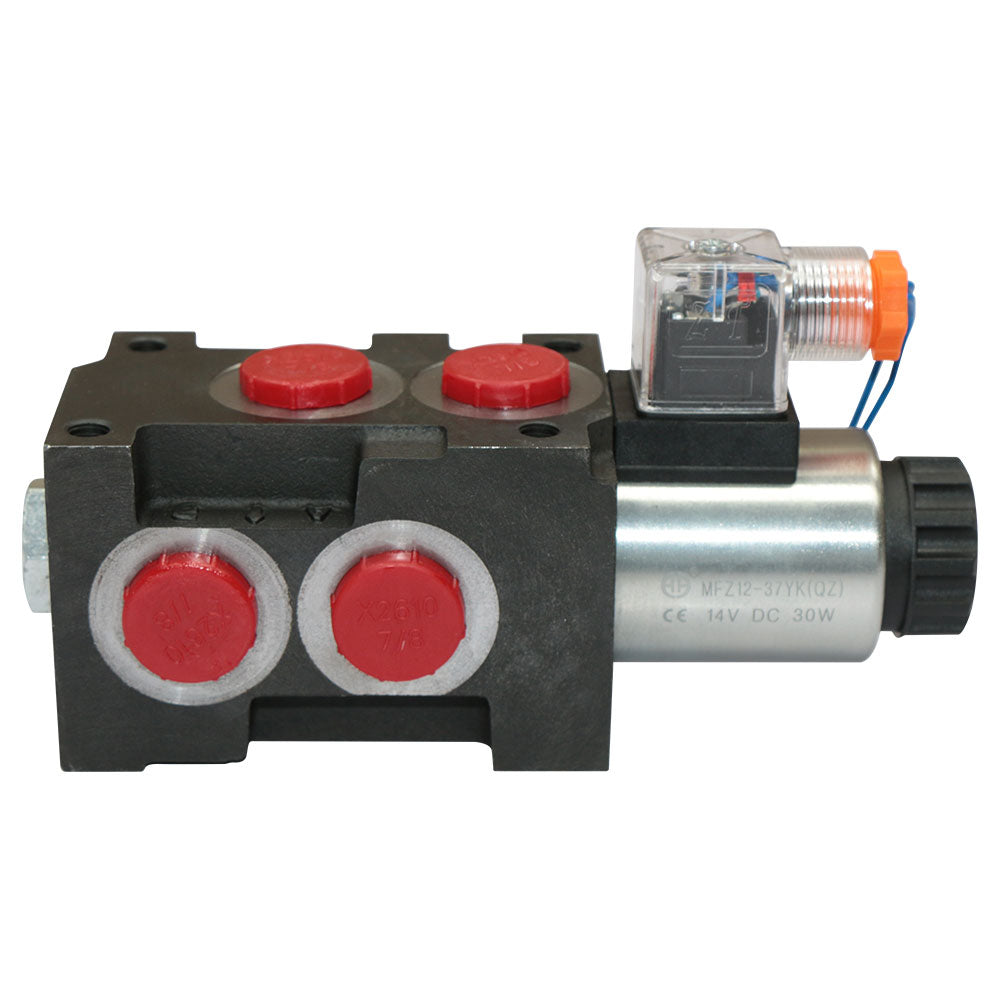

Efficiently Control Your Hydraulic System with our 6-Port Selector Valve 12VDC Solenoid with Easy 76824688
Features:
The valve can switch freely between oil circuits with different flow pressures.
It can be connected to the oil pump, so that the hydraulic oil can be divided into two different oil circuits.
It can also be connected to multiple directional valves to send oil to or from different devices.
Allow you to easily add additional functionality to an existing hydraulic system without requiring extensive additional plumbing or electrical components.
This industrial pump is suitable for double-acting or single-acting cylinders.
All threaded rods (not included) can integrate up to 3 valves.
Specifications:
Max Flow: 50LPM
Flow Rating: 13 GPM
Nominal Pressure: 25MPa (3625 PSI)
Oil Port: 7/8-14UNF
6 Ports with #10 SAE (3/4"-16) Thread
Package size: 23×16×13cm/9.1x6.3x5.1inch
Gross weight: 3kg/6.7lbs
Include:
1× Hydraulic Solenoid Selector
