Engine Cylinder Piston Top End Rebuild Kit fit for Yamaha RD350 1973 1974 1975 00677144

Application
fit for Yamaha RD350 1973 1974 1975


Part Number
360-11311-00-00, 360-11321-00-00, 360-11631-03-96
360113110000, 360113210000, 360116310396

Specification
Type: Cylinder Piston Top End Rebuild Kit
Engine Type: 2-Stroke
Matrerial: Aluminum
Bore and Stroke Size: 64mm x 54mm
Exhaust Port Wide: 38mm
Exhaust Port Height: 29.5mm
Cylinder Compression: 6.6:1
Displacement: 347cc
Internal Cylinder Coating: No
Piston: Cast Piston
Piston Size: 64mm
Machine Type: Street Motorcycle
Placement on Vehicle: Left, Right
Displacement Type: Direct replacement

Features
- Direct replacement, easier to install.
- Made of high quality material, impact-resistant, corrosion and wear resistance.
- Wear resistance and heat resistance, long service life.
- Cylinder Piston Kit Bore Size - 64mm

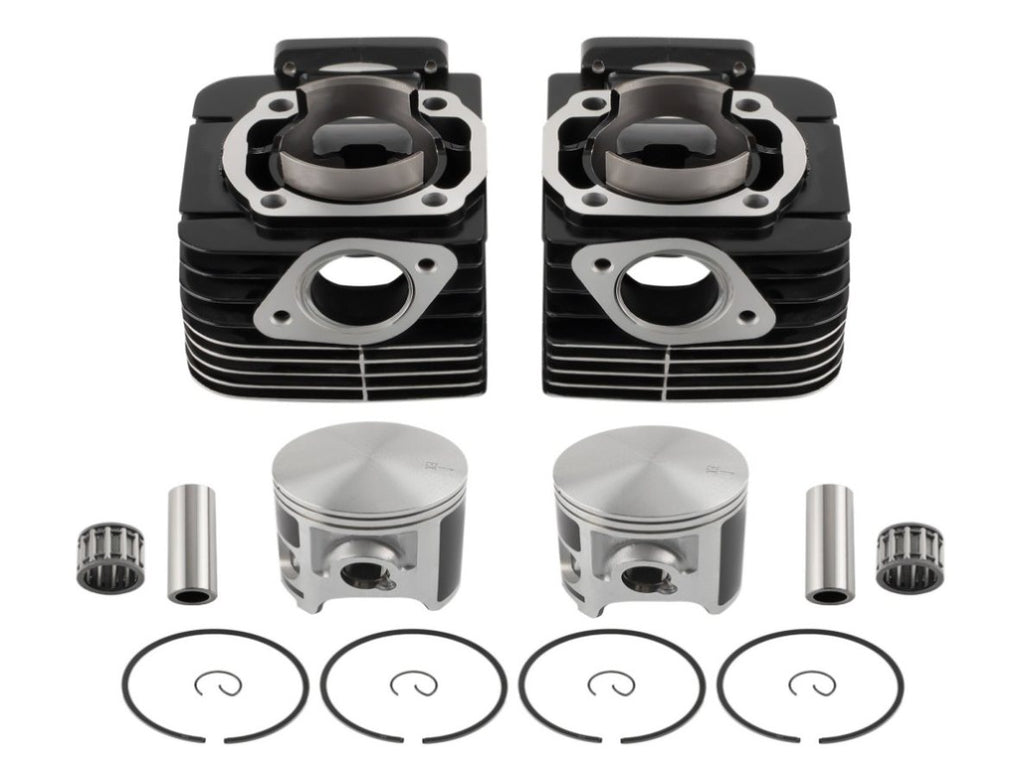

Package Included

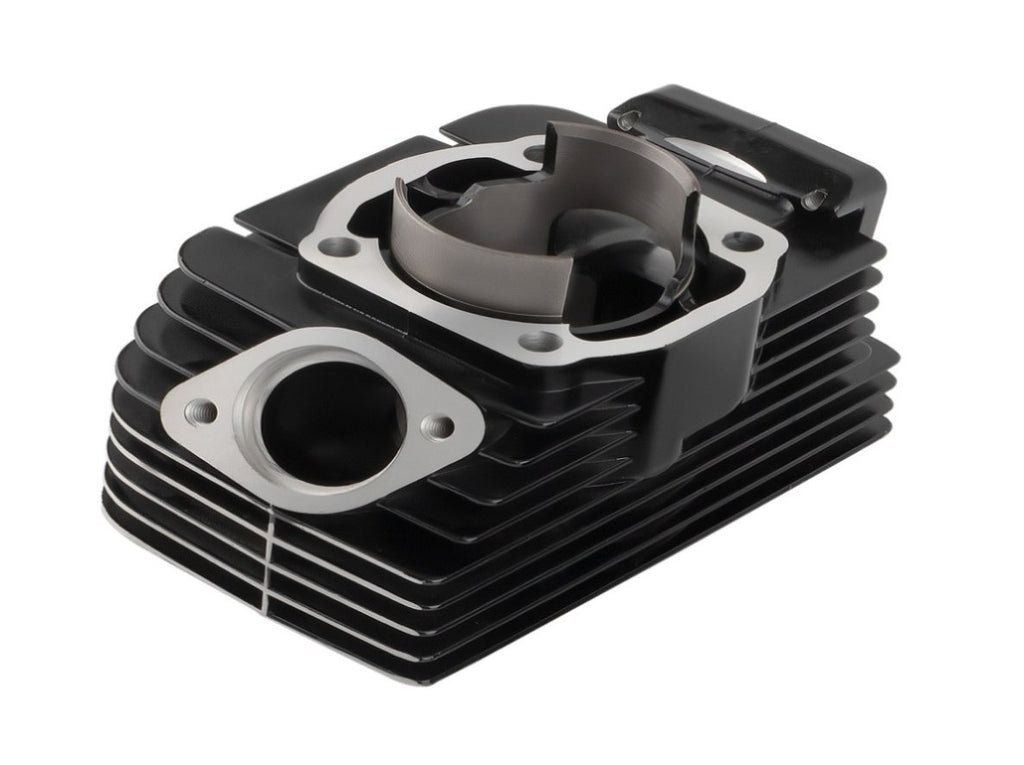

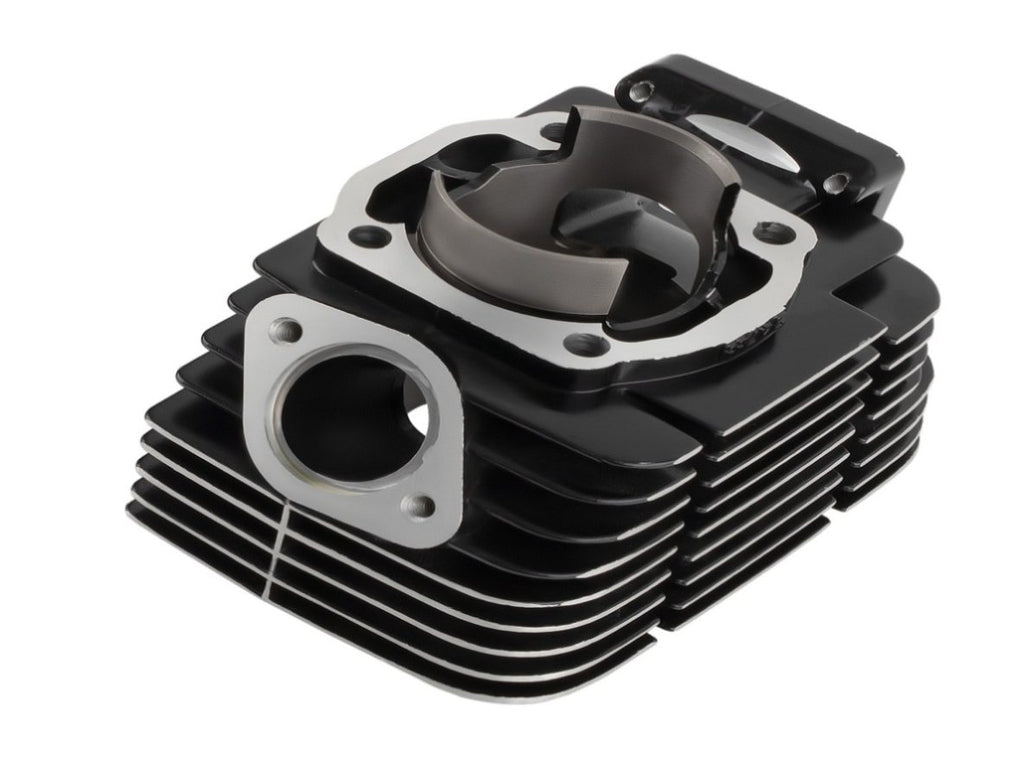

2x Cylinder

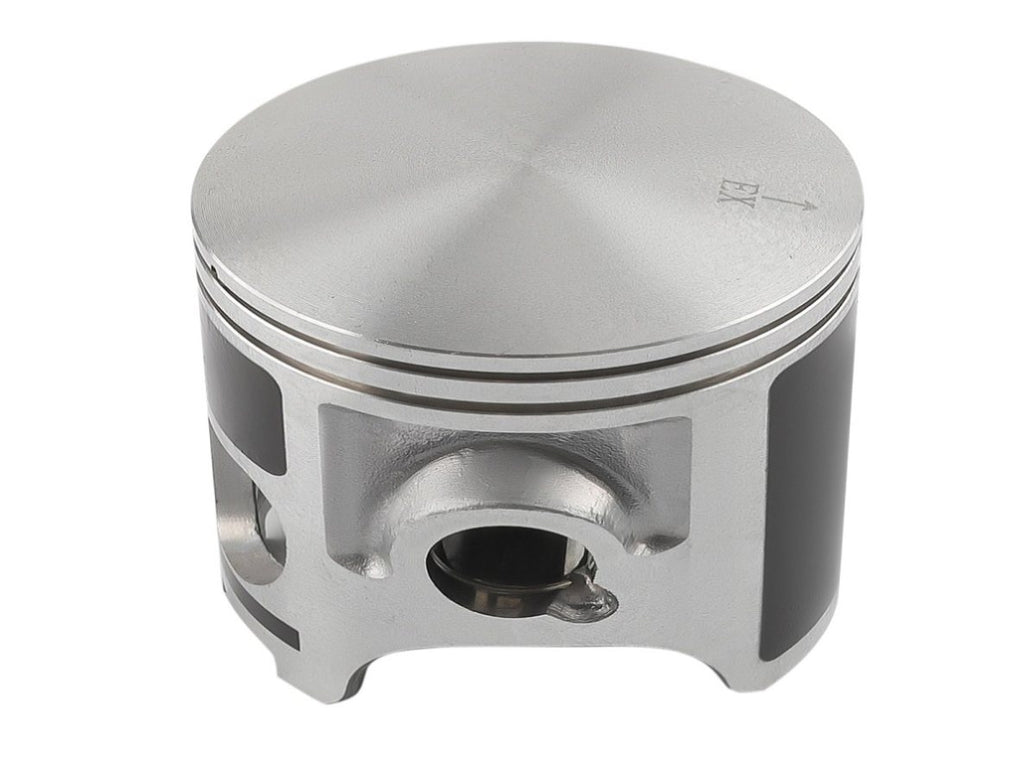

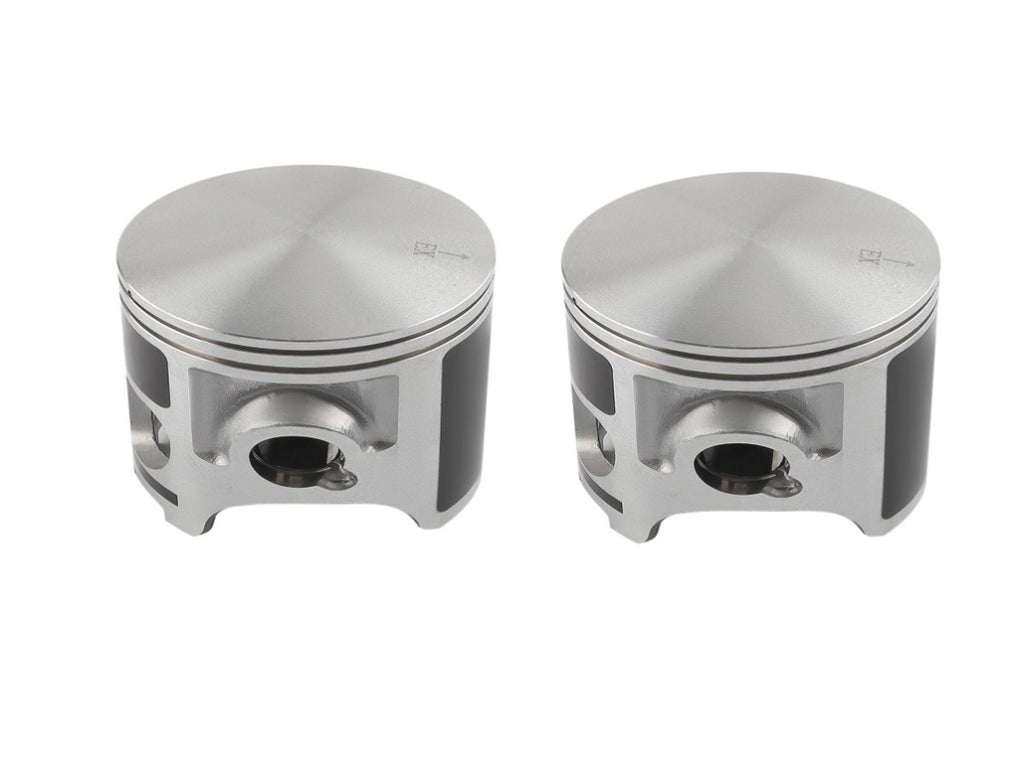

2x Pistons

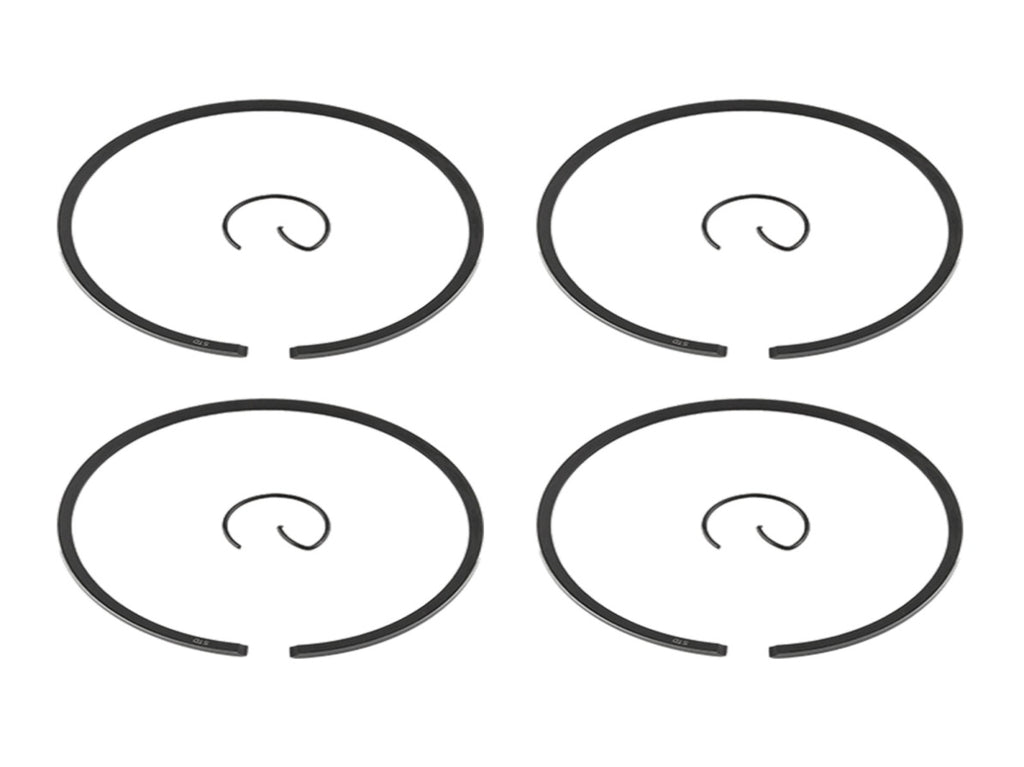

2x Sets Piston Rings
2x Piston Pins
2x Sets Piston Pin Circlip
(As shown in the picture)

Note
- Please confirm the model number before purchase.
- Not Included installation instructions, Professional installation required.
