Engine Timing Belt Kit fit for Honda Accord Odyssey Isuzu Oasis 2.3L 1998-1999 18965400

Application:

• fit for HONDA ACCORD DX 2.2L 2156CC L4 SOHC 1990-1993

• fit for HONDA ACCORD LX 2.2L 2156CC L4 SOHC 1990-1993

• fit for HONDA ACCORD EX 2.2L 2156CC L4 SOHC 1990-1993

• fit for HONDA ACCORD SE 2.2L 2156CC L4 SOHC 1991-1993

• fit for HONDA ACCORD DX/LX/SE 2.2L 2156CC L4 SOHC 1994-1997

• fit for HONDA ACCORD EX 2.2L 2156CC L4 SOHC 1994-1997

• fit for HONDA ODYSSEY EX/LX 2.2L 2156CC L4 SOHC 1995-1997

• fit for HONDA PRELUDE S 2.2L 2156CC L4 SOHC 1992-1996

• fit for ISUZU OASIS LS/S 2.2L 2156CC L4 SOHC 1996-1997

• fit for ACURA CL 2.2L 2156CC L4 SOHC 1997-1997

• fit for ACURA CL 2.3L 2254CC L4 SOHC 1998-1999

• fit for HONDA ACCORD EX/LX/SE 2.3L 2254CC L4 SOHC 1998-2002

• fit for HONDA ACCORD DX 2.3L 2254CC L4 SOHC 1998-2002

• fit for HONDA ODYSSEY 2.3L 2254CC L4 SOHC 1998-1998

• fit for ISUZU OASIS 2.3L 2254CC L4 SOHC 1998-1999

OE/Part number：

• Timing Belt: 14400P0A004, 14400PAAA01, 14400PAAA02, 5862059340
• Balance Shaft Belt: 13405PAAA01, 13405PAAA02, 13405PAAA03, 13405PT0004, 5862021480, 5862059260
• Water Pump: 19200P0A003, 19200P0BA01, 19200PT0003, 19200PT0013, 5862023750
• Timing belt tensioner: 14510-PT0-004
• Balance shaft belt tensioner: 13404-PT0-004
• other: TS26244, ITM244, 1351280, TCKWP244, WP244K1A, TB244186LK1, TBK244, WPHO012, TBKWP244

Specification:

• Condition：100% Brand New
• Type: Timing Belt Kit
• Fitment Type: Direct Replacement
• Placement on Vehicle：Front
• Material: Rubber/Steel/Plastic
• Manufacturer Warranty: 1Year

Timing Belt

Number of Teeth: 112&70
Color: Black
Material: EPDM

Belt 1

Pitch (IN): .375
Pitch (mm): 9.5
Pitch Length (IN): 42
Pitch Length (mm): 1067
Top Width (IN):.945
Top Width (mm): 24
Type: Automotive Timing Belt

Belt 2

Pitch (IN):.375
Pitch (mm): 9.5
Pitch Length (IN): 26.25
Pitch Length (mm): 667
Top Width (IN): .63
Top Width (mm): 16
Type: Automotive Timing Belt

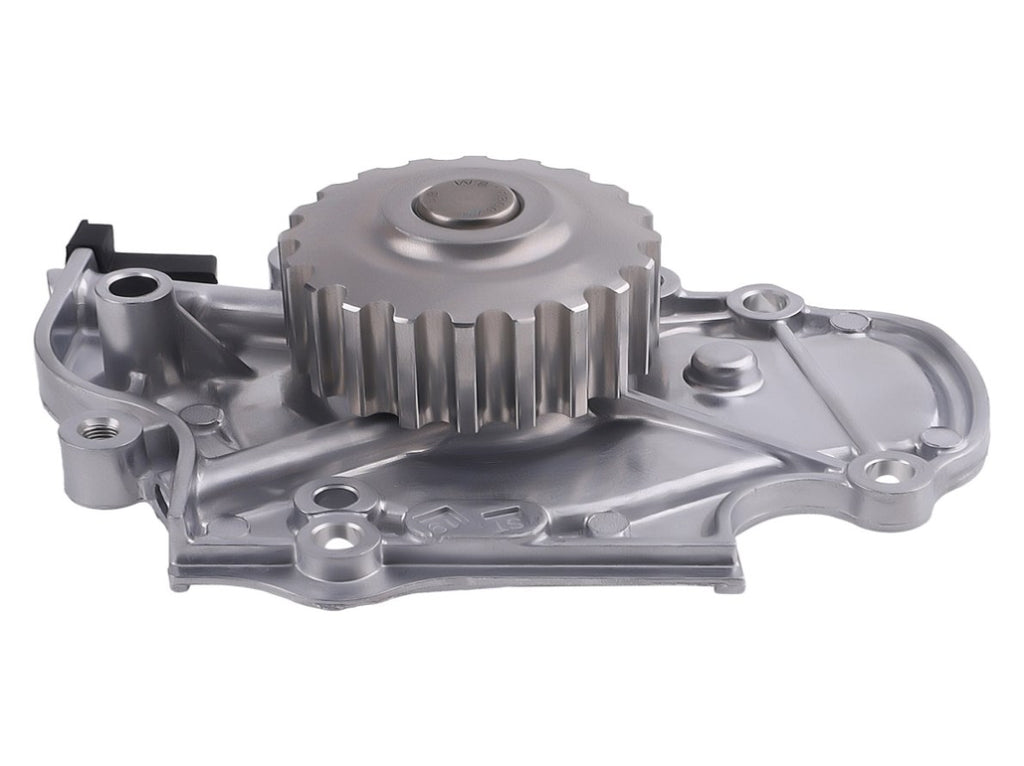

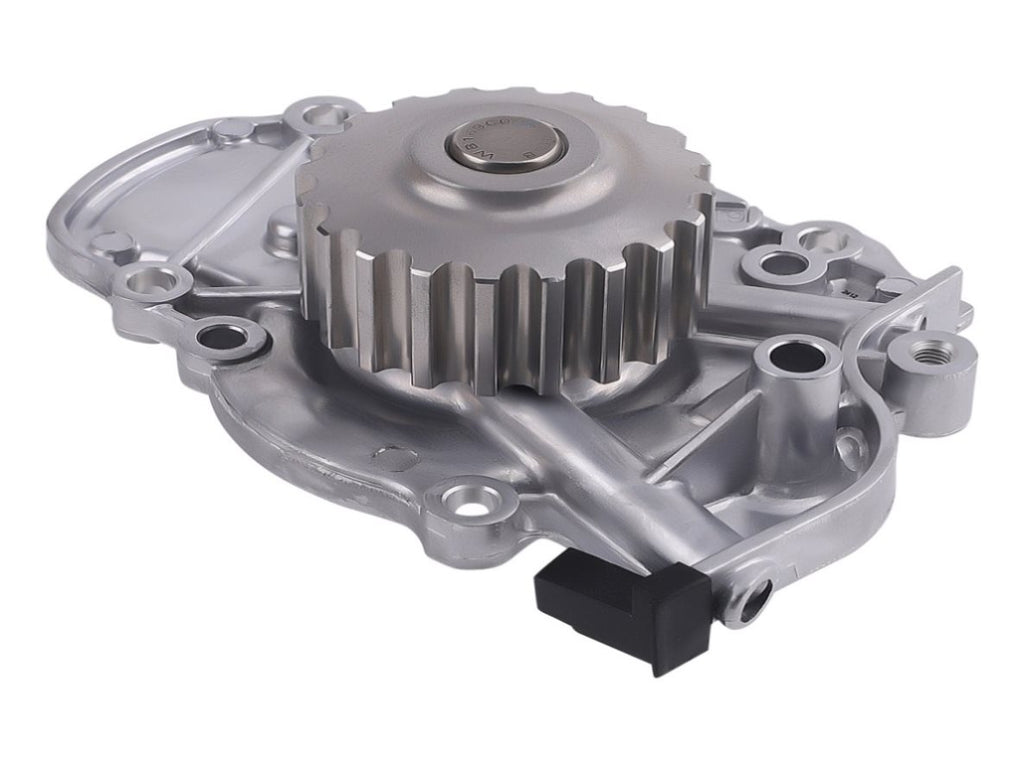

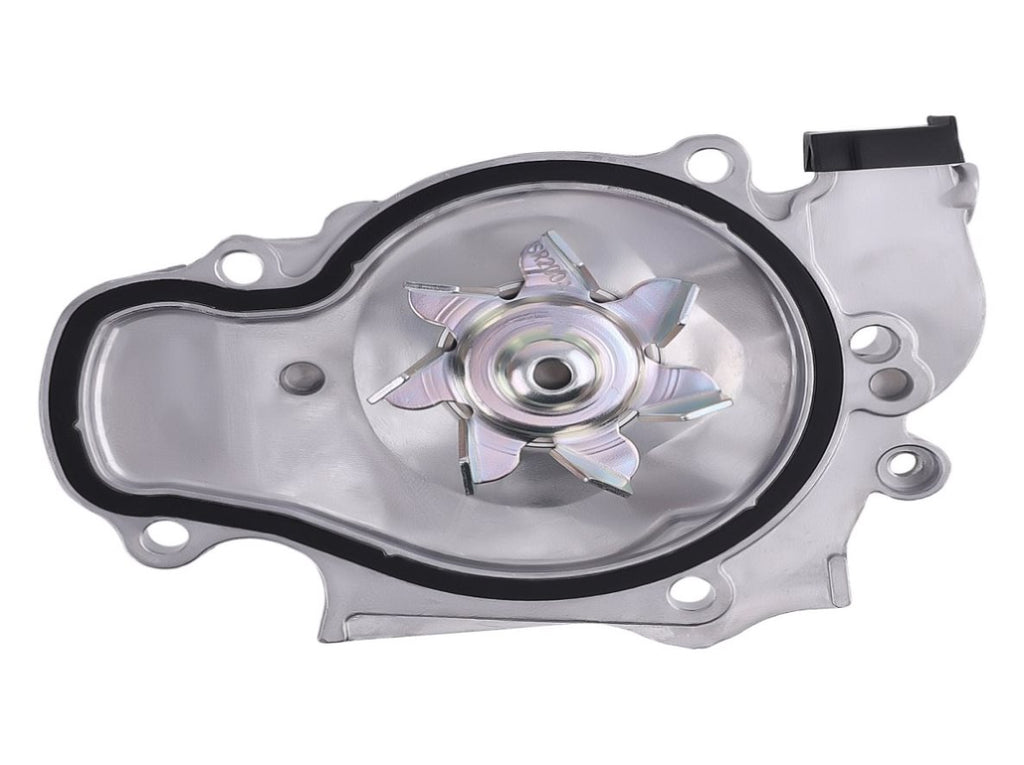

Water Pump

Water Pump Material: Aluminum, Cast Iron, Steel
Mounting Hardware Included: No
Gaskets Included: Yes
Pulley Included: Yes
Number of Hose Connectors: 0
Impeller Vane Quantity: 7
Rotation: Clockwise
Housing Material：Aluminum
Hub Height: 1.9 IN
Hub Pilot Diameter: 2.33 IN
Impeller Material: Metal
Impeller Rotation: Reverse
Includes Back Housing: No
Pulley Included: Yes
Water Pump Drive Type: Timing Belt

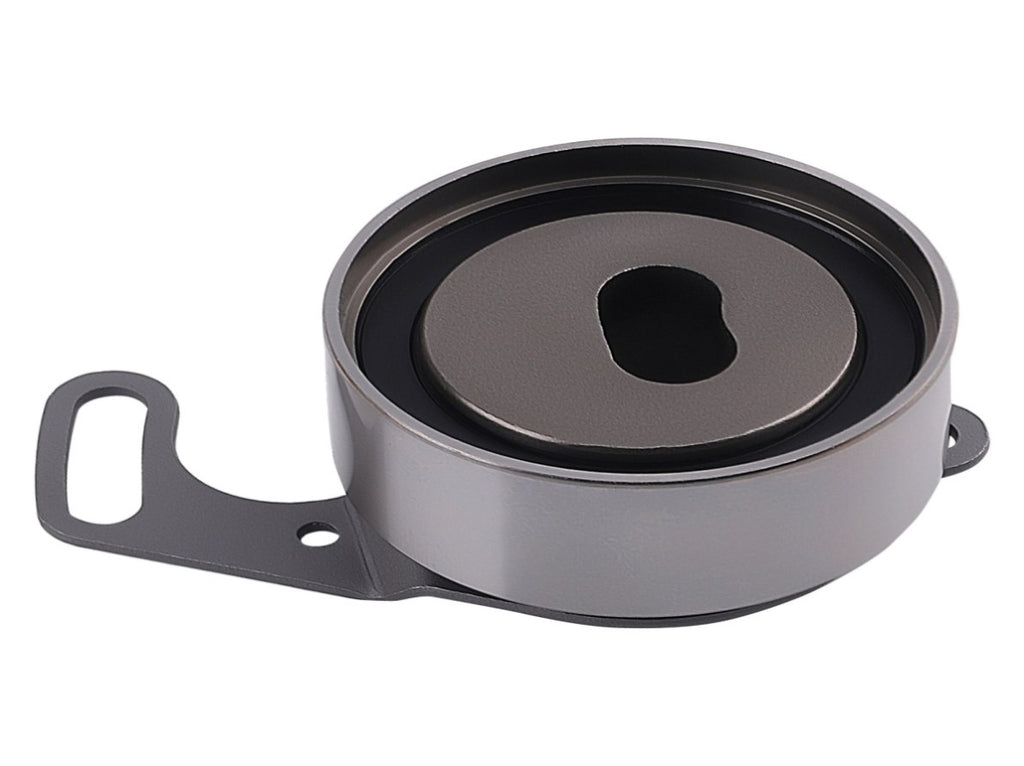

Belt Tensioner 1

Contact Surface: Smooth/Backside
Inside Diameter (mm): Slotted
Material: Steel
Pulley 1 Flanged: No
Pulley Outside Diameter 1 (mm): 62
Pulley Quantity: 1
Pulley Width 1 (mm): 27
Tensioner Type: Spring

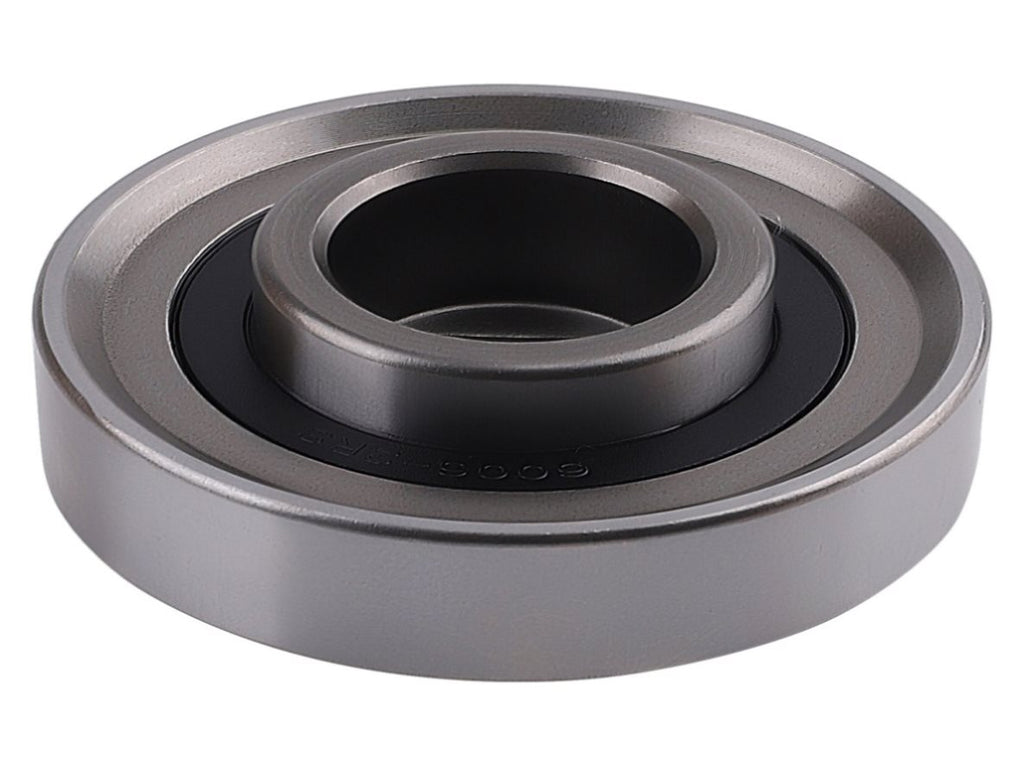

Belt Tenisoner 2

Contact Surface: Smooth/Backside
Contents: Tensioner
Inside Diameter (mm): Slotted
Material: Steel
Pulley 1 Flanged: No
Pulley Outside Diameter 1 (mm): 70
Pulley Quantity: 1
Pulley Width 1 (mm): 19
Tensioner Type: Spring

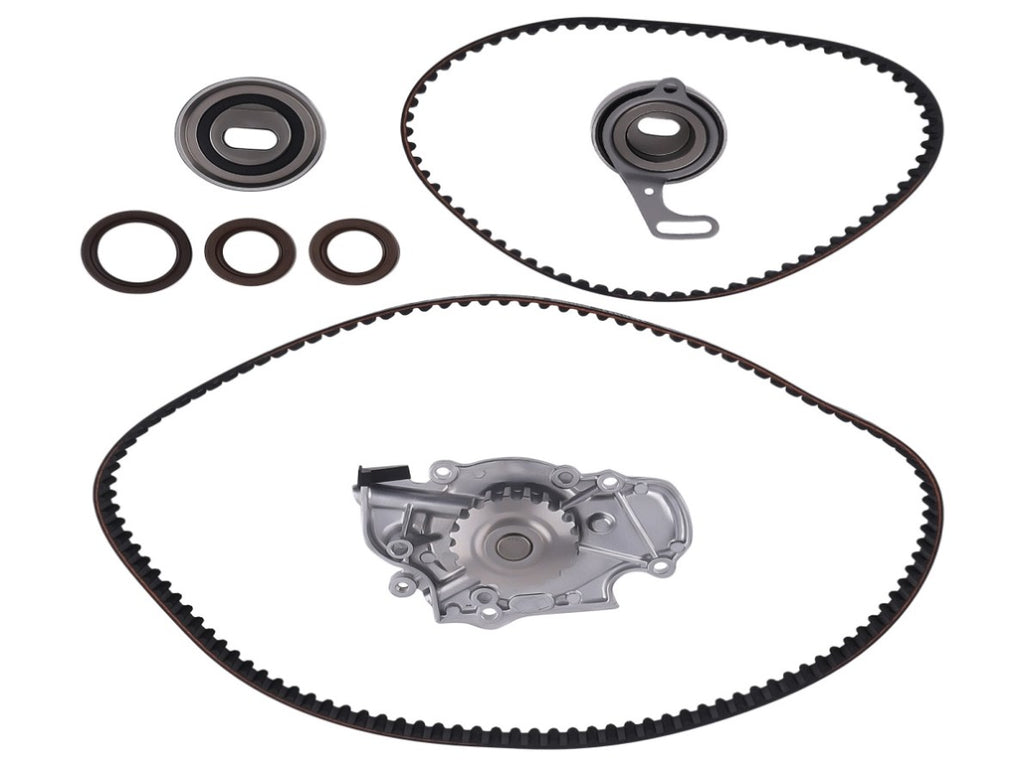

Package included：

• 1*Timing Belt (112 round teeth)
• 1*Balance Shaft Belt ( 70 teeth)
• 1*Timing Belt Tensioner
• 1*Balance Shaft Tensioner
• 1*Camshaft Seal
• 1*Crankshaft Seal
• 1*Water Pump with Gasket

Feature：

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Note:

1.Professional installation is highly recommended.
2.Please make sure it will fit your machine before purchasing it.
3.Please check pictures fit for more details.
